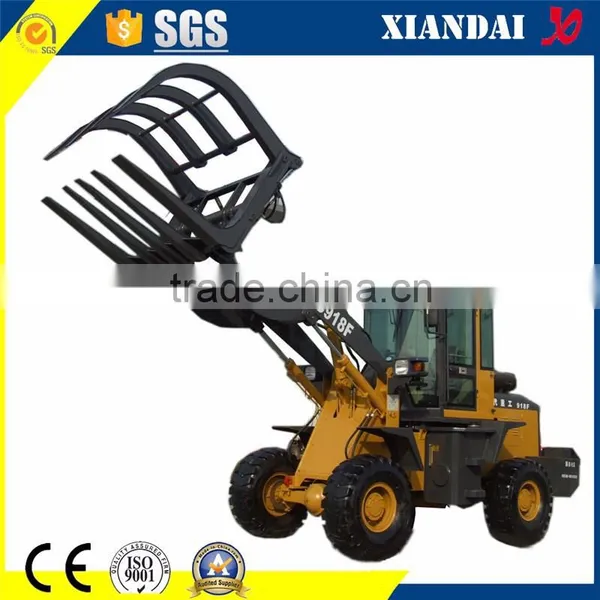

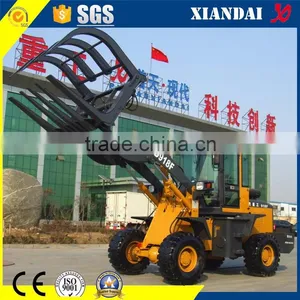

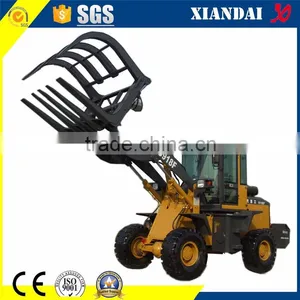

1.6ton Grass Grabber Wheel Loader With CE Approved and Quick Coupler

Name: 1.6ton Grass Grabber Wheel Loader With CE Approved and Quick Coupler
Brand: XIANDAI
SKU: 102089175
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Brand Name:

XIANDAI

Model Number:

XD918F

Taian Modern Heavy Industries Technology Co., Ltd.

6Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Brand Name XIANDAI

Model Number XD918F

Place of Origin Shandong, China

Type Front Loader

Moving Type Wheel Loader

Dimension(Long * Breadth * High) 5660*1900*2820

Rated Load 1.6ton

Certification CE, SGS

Warranty one year

After-sales Service Provided Overseas third-party support available

I.Features&Benifits

1.Large wheel base(2200mm), large operating weight and high longitudinal stability..

2.The working equipment has an automatic leveling function and high efficiency, which is able to lighten the driver’s operation intensity.

3.XD918F grass grabber is applicable to farm, waste materials recycling station.

II.Specifications

Model	XD918F
Main specifications
Grass grabber capacity (m3 )	1.5
Rated load (t)	1.6
Weight (t)	4.1
Lifting time of the arms (s)	≤6
The sum of three items(s)	≤10
Forward gear(km/h)	I 0-8 II 0-18
Reverse gear	I 0-8 II 0-18
Max. climbing gradient	30°
Demensions
Overall dimension (mm)	566019002820
Wheel base (mm)	2200
Wheel tread(mm)	1450
Max. dumping height(mm)	2900/3200
Dumping reach (mm)	780
Diesel engine
Engine model	YN33
Engine type	In-line,water-cooling,4-stroke,4cylinder,direct-injection
Rated power(kw)	48
Rated speed (r/min)	2400
Total exhaust of cylinder(L)	3.298
Type of starting	Electric start
Transmission system
Torque converter
Model	YJ265
Type	Single stage, three elements
Gearbox
Model	YJ265
Type	Fix counter-shaft, power-shift
Axle and tire
Type of main reducer	Spiral bevel gear,single stage
Type of final reducer	Single stage planetary
Size of tire	17.5-16
Working device of hydraulic system
Model of working pump	CBG2050
Nminal displacement(ml/r)	50
Rated pressure(Mpa)	16
Multi-way directional valve	ZL15
Pressure(Mpa)	16
Rated flow(L/min)	63
Steering system
Type	Load-sensing hydraulic steering
Displacement(ml/r)	250
Max input pressure(Mpa)	16
Brake system
Type of traveling break	Air over hydraulic break
Type of parking break	Band break
