Specifications
famous brand YUNNEI 4100 engineFlexible application of various lumberyard and Freight yard
Over load protection system
I.Basic Equipment
1.China famous brand YUNNEI 4100 engine
2.Hydraulic transmission and hydraulic steering.
3.Countershaft power-shift gearbox ,torque converter.
4.Air over hydraulic break system ,caliper break system.
5.Wheel reduction axle, automatic bucket flat.
6.Over load protection system
II.Specifications
Model |
XD918F |
Main specifications | |

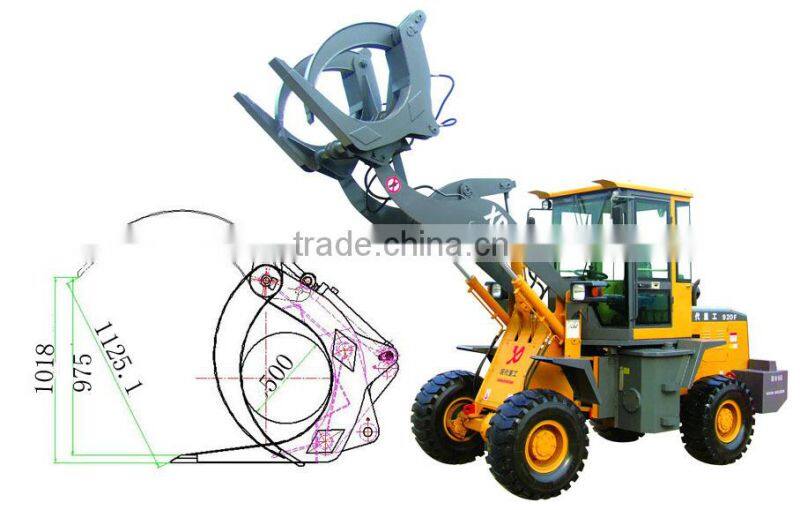

Wood grabber opens diameter (mm) |
500-1125.1 |
Rated load (t) |
1.6 |
Weight (t) |
4.1 |
Lifting time of the arms (s) |
≤6 |
The sum of three items(s) |
≤10 |
Forward gear(km/h) |
I 0-8 II 0-18 |
Reverse gear |
I 0-8 II 0-18 |
Max. climbing gradient |
30° |
Demensions | |
Overall dimension (mm) |
5660*1900*2820 |
Wheel base (mm) |
2200 |
Wheel tread(mm) |
1450 |
Max. dumping height(mm) |
2900/3200 |
Dumping reach (mm) |
780 |
Diesel engine | |
Engine model |
YN33 |
Engine type |
In-line,water-cooling,4-stroke,4cylinder,direct-injection |
Rated power(kw) |
48 |
Rated speed (r/min) |
2600 |
Total exhaust of cylinder(L) |
3.298 |
Type of starting |
Electric start |
Transmission system | |
Torque converter |
|
Model |
YJ265 |
Type |
Single stage, three elements |
Gearbox |
|
Model |
ZL15 |
Type |
Fix counter-shaft, power-shift |
Axle and tire |
|
Type of main reducer |
Spiral bevel gear,single stage |
Type of final reducer |
Single stage planetary |
Size of tire |
17.5-16 |
Working device of hydraulic system | |
Model of working pump |
CBG2050 |
Nminal displacement(ml/r) |
50 |
Rated pressure(Mpa) |
16 |
Multi-way directional valve |
ZL15 |
Pressure(Mpa) |
16 |
Rated flow(L/min) |
63 |
Steering system | |
Type |
Load-sensing hydraulic steering |
Displacement(ml/r) |
250 |
Max input pressure(Mpa) |
16 |
Brake system | |
Type of traveling break |
Air over hydraulic break |
Type of parking break |
Band break |
V. Payment terms & Delivery time &Guarantee time
1.Payment Terms:By TT. 30% deposit paid in advance, 70% balance paid before goods dispatching from the factory;
2.Delivery Time:within 20 days after receiving deposit;
3.Guarantee Time:one year or 1500 working hours which comes first after the date of B/L;
4.Shipping : 1 unit one 20GP & 2 units one 40HQ container;
