coal rotary dryer
The EP characteristics of the coal rotary dryer
1, out of gas is low temperature, dust removal equipment with long working hours.
2, new type of composite feed device, can regulate and control all final moisture index according to users’
requirements easily.
3, a high degree of automation, convenient operation, stable running.
4, the equipment investment is needed only 1/6 compared with imported products ,small investment,earnings fast.
5, equipment as new energy-saving products, save energy about 20% than similar products.
6, fuel can be coal, oil, steam, etc.

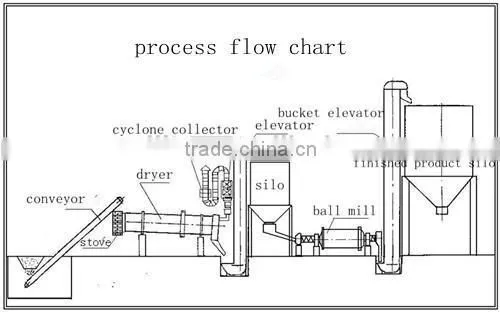

Brief introduction of technological process of the coal rotary dryer

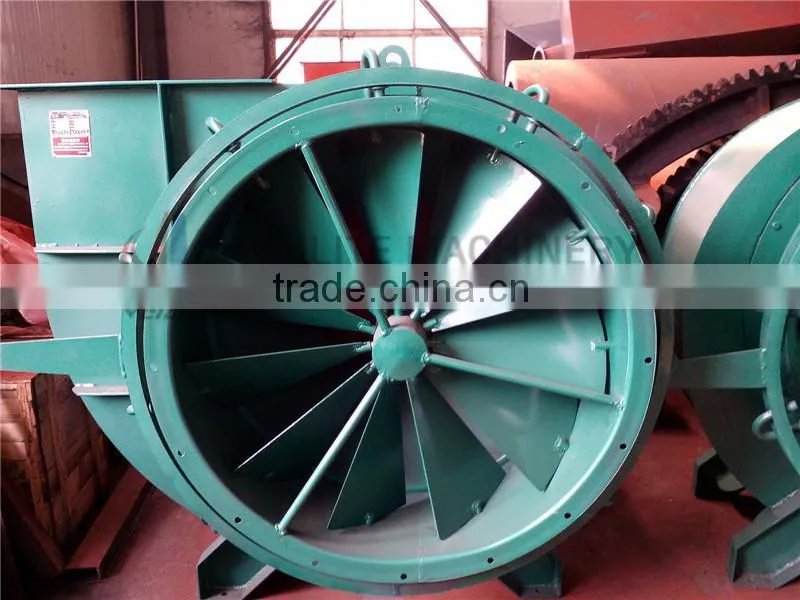

Cyclone dust collector →bag filter(bag type dust collector) →draught fan
↑
Scattered feeder→ribbon conveyor→hopper→ feeder→drying roller→wind conveyor
↓
finished product
warehouse
↑
Efficient hot-blast stove
Technology parameter of the coal rotary dryer
| Model | Gradient(%) | Rotate speed(r/min) | Inlet air temperature(°c) | Powder(kw) | Capacity(t/h) | Weight(t) |
| Φ600x6000 | 3-5 | 3-8 | ≤700 | 3 | 0.5-1.5 | 2.9 |
| Φ800x8000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.0 | 3.5 |
| Φ 800x10000 | 3-5 | 3-8 | ≤700 | 4 | 0.8-2.5 | 4.5 |
| Φ 3000x20000 | 3-5 | 1.5-5 | ≤800 | 55 | 25-35 | 78 |
| Φ 3000x25000 | 3-5 | 1.5-5 | ≤800 | 75 | 32-40 | 104.9 |
Have to say: the choice for the dust collector
For the dust collecting of fly ash drying, general equipped with cyclone and bag dust collector.
Cyclone separator also known as the centrifugal separator, working by the airflow contained fine powder do
rotary motion come into being centrifugal force, separate sticky powder from the gas. It is widely used in the
convective drying system and main equipment collect product from the gas. Cyclone dust extractor has simple
structure, reasonable design could obtain high separation efficiency. The big particle product in the wet air
exhausted from draught system can be collected, but when the particles contained in gas is very fine,and its
lighter weight, the effect of cyclone dust removal is not good.
bag filter always as the last stage of gas solid separation equipment separate powder products from the exhaust
gas, is the last line of defense intercept powder in the tail gas. The bag dust collector’s significant characteristics
is high efficiency to capture, in a large number of gas-solid separation equipment, its collection efficiency is
better than other equipments,to say the least. Especially to capture the particle under 20 μ m is more obvious,
efficiency could reach above 99%. Fine powder uncollected by cyclone separator have second use with the bag
dust collector, prevent the dust into the atmosphere cause the waste of resources and environmental pollution.

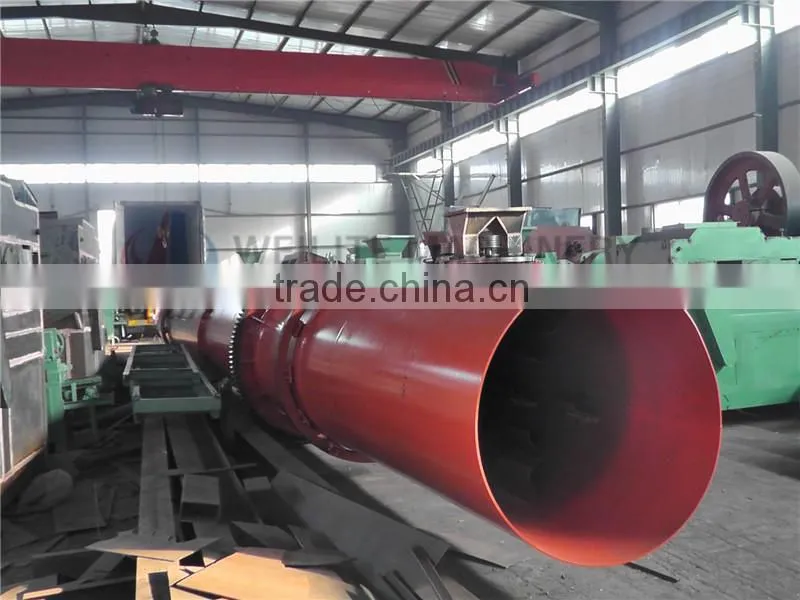

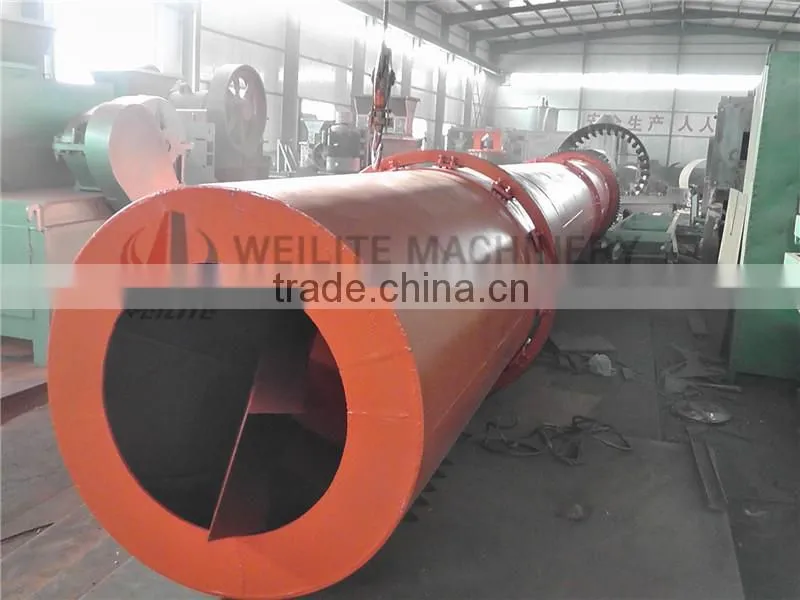

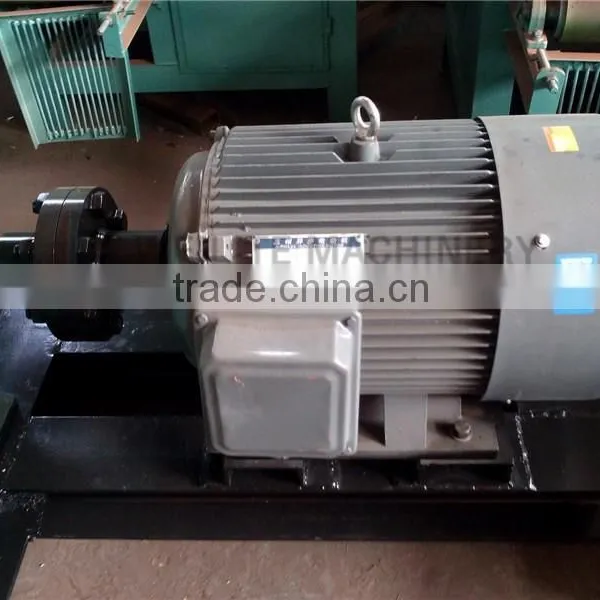

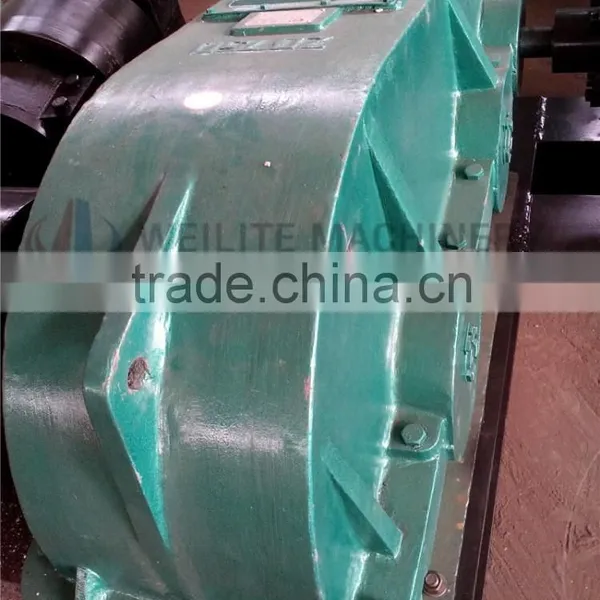

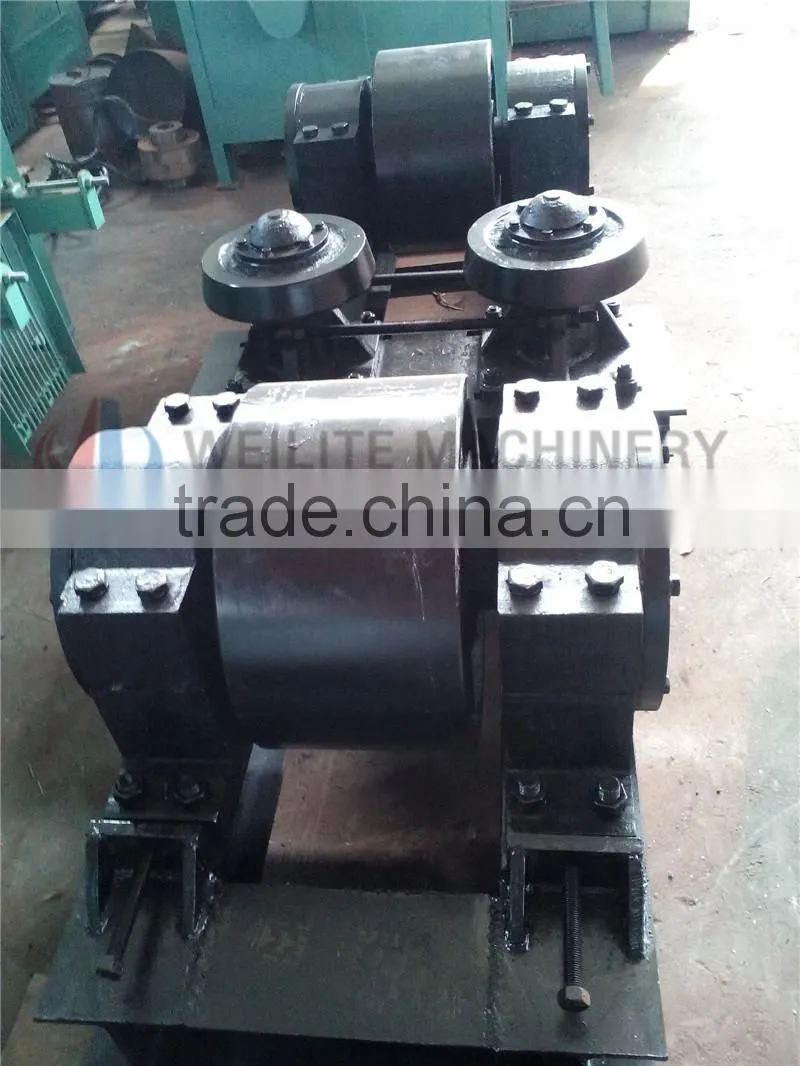

Parts and workshop show of the coal rotary dryer
delivery time:
5-18 working days after received the down payment
avaliable sea port
qingdao,shanghai,tianjin,etc

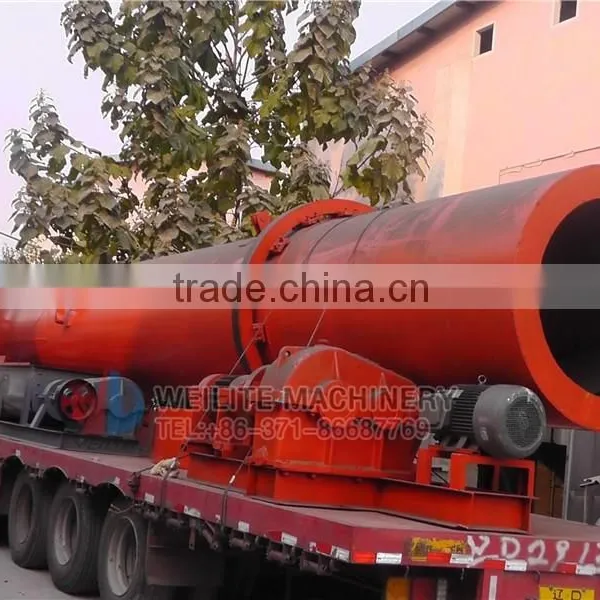

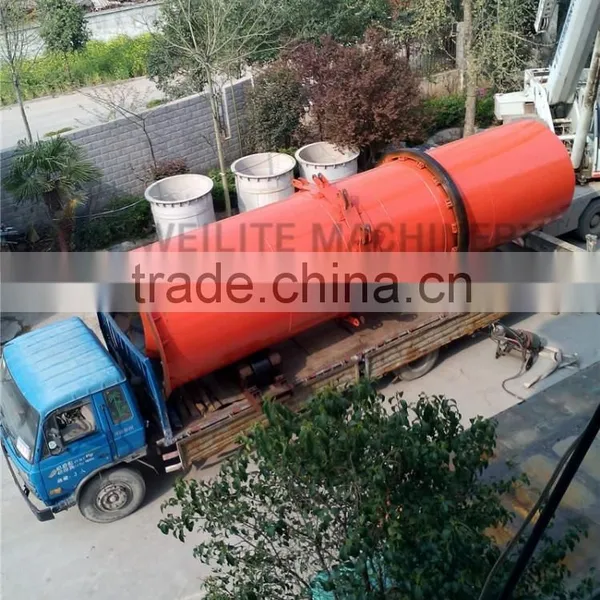

deliver goods
About our company
If you have any quetion of the coal rotary dryer, please feel free to contact me, I'm Ms.Ashley gao, will give response very soon , thank you very much for your interest and valuable time .
