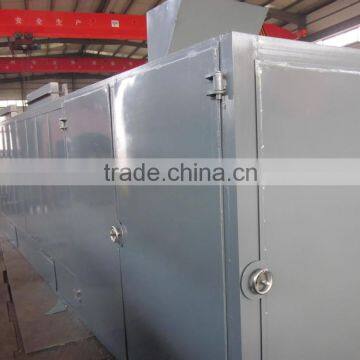

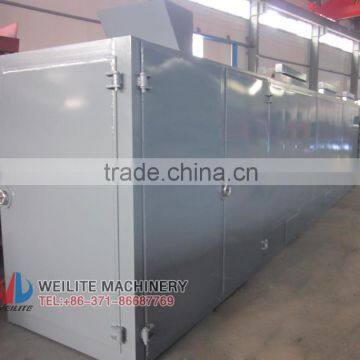

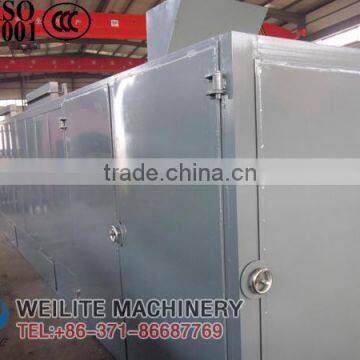

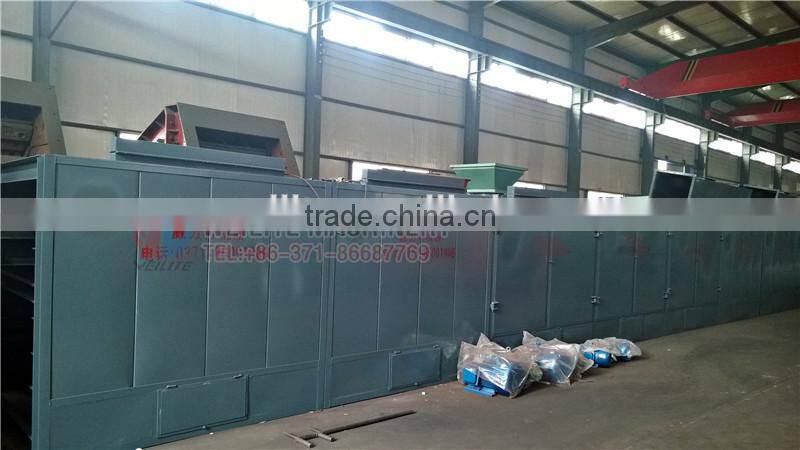

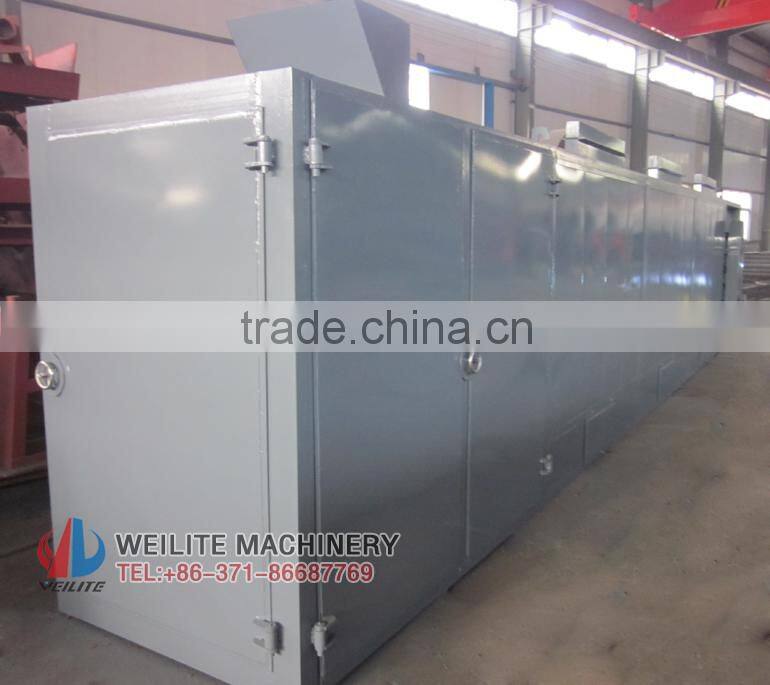

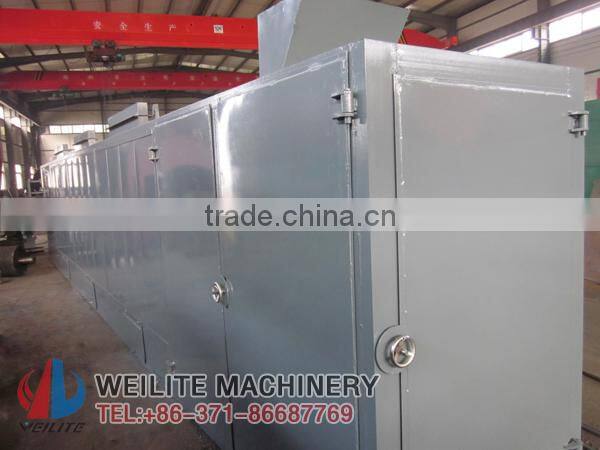

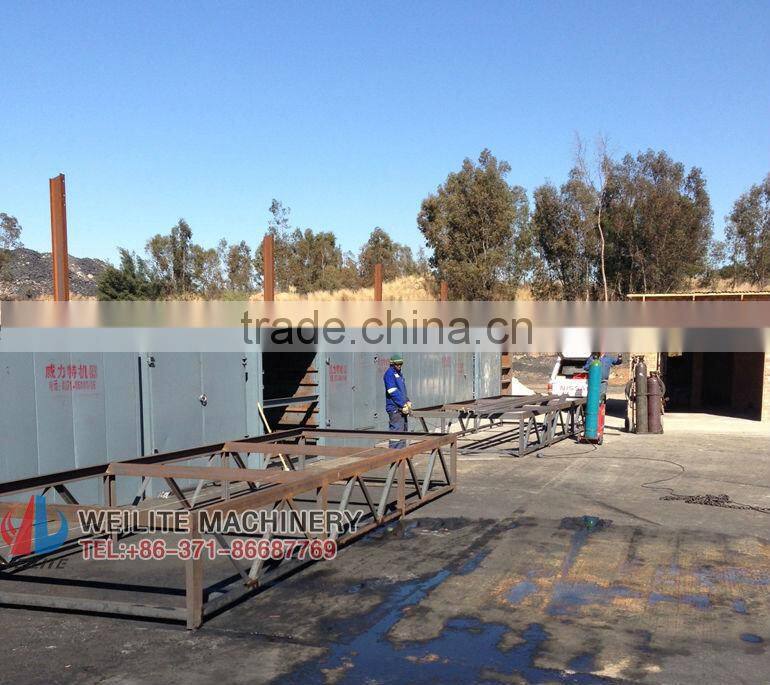

Coal Briquettes Mesh Belt Dryer
Mesh belt dryer is heated by electric heating, steam heating and hot air heating. Can achieve continuous production and mass production.
Suitable material of the coal briquettes mesh belt dryer
The Mesh Belt Dryer is widely used for drying

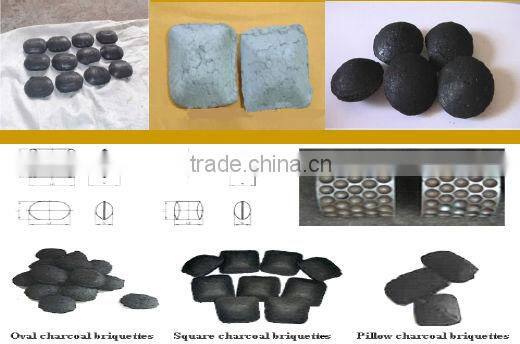

1. coal briquettes, charcoal briquette,
2. strip shaped , pellet meterial,
3. and other similar material .
Advantages of the coal briquettes mesh belt dryer
1. The mesh belt dryer is a kind of horizontal dryer with multi-section combination, so it has stable working performance, lowest broken rate ,excellent drying effect , low repair rate and easy to control the each link .
2. The length of a dryer is according to the humidity and the output of the final product .
3. Customer can adjust the conveyor speed according to the moisture content of raw material and expected moisture of final product .
Applications of the coal briquettes mesh belt dryer

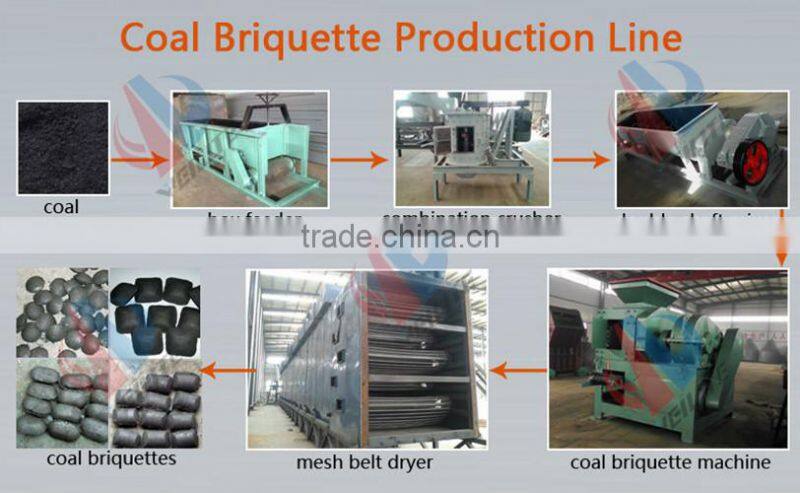

briquettes production line
pellet production line
other solid / powder material drying production line
Kindly note please: we manufacture all the machines in the coal briquettes making production line, if you want to know more details, kindly let us know the raw material ? the size and shape of the briquettes product want to make ? the capacity per hour ? Our engineer will design suitable production line program very soon .

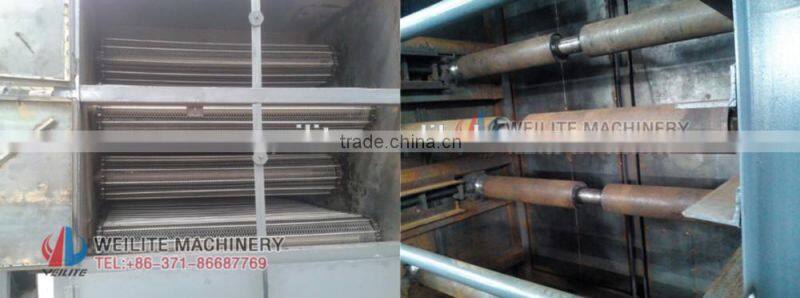

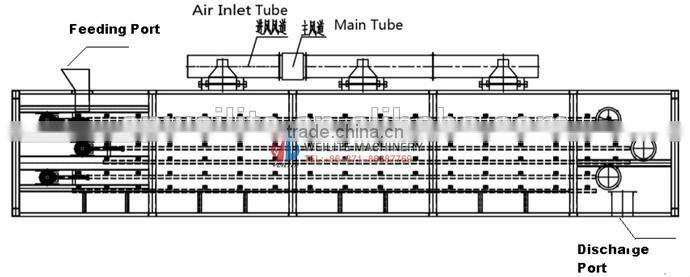

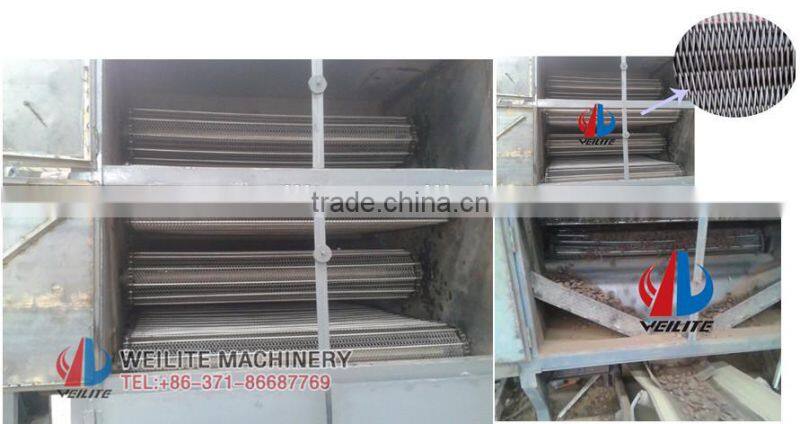

Structure of the electric coal briquettes mesh belt dryer
The nose,drying section,tail,mesh belt,transmission,blast pipe,discharge pipe,draught fan,etc.
Technology parameters of the electric coal briquettes mesh belt dryer
Type |
WDH0.8x8m-3 |
WDH1x20m-3 |
WDH1.5x20m-3 |
WDH2x20m-3 |
WDH1.5x30m-5 |
Length(m) |
8 |
20 |
20 |
20 |
30 |
Layer |
3 |
3 |
3 |
3 |
5 |
Mesh Belt Width(m) |
0.8 |
1 |
1.5 |
2 |
1.5 |
Moisture before drying(%) |
8%-12% |
8%-12% |
8%-12% |
8%-12% |
8%-12% |
Moisture after dried(%) |
1%-3% |
1%-3% |
1%-3% |
1%-3% |
1%-3% |
Power(kw) |
3 |
2.2x3 |
3x3 |
4x3 |
5.5x5 |
Drying Temperature(°C) |
70-300 |
70-300 |
70-300 |
70-300 |
70-300 |
Capacity(T/H) |
2 |
10-15 |
20-30 |
35-50 |
55-60 |
1. what's the cost of the coal briquettes mesh belt dryer ?
It depends on the size of the dryer, large capacity with large size machine .
2. how long should dry the wet coal briquettes to suitable moisture ?
Usually need 80-120mins, the moisture after drying can be low to 2% .

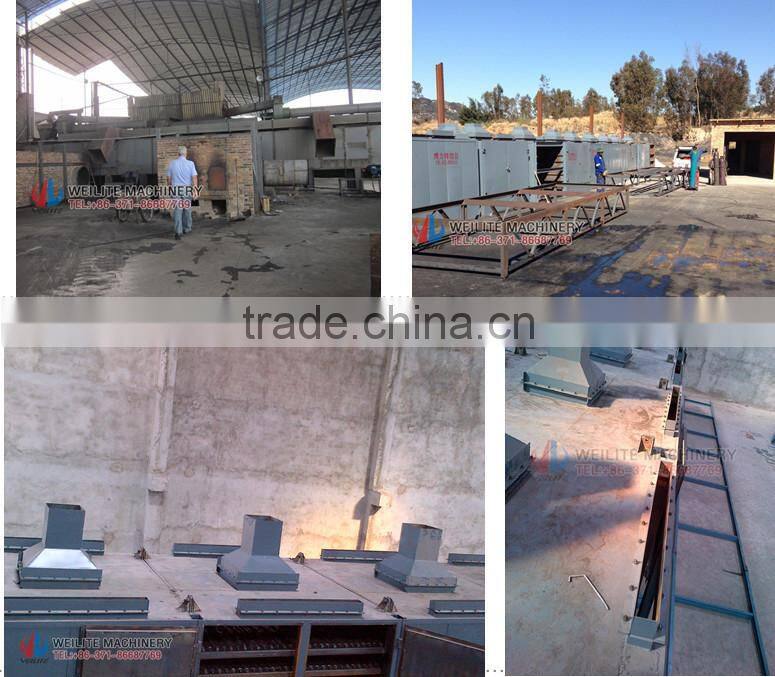

3. how to install the briquettes mesh belt dryer ?
We will send installation and foundation drawing free.

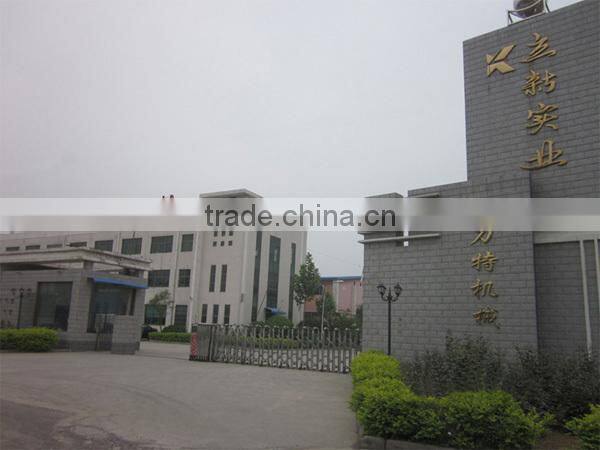

Henan province zhengzhou city weilite machinery plant is the professional manufacture for making different kinds new type coal briquettes mesh belt dryer, importing international advanced technical, use and improve the newest design concept of different machines to make more high efficiency, power saving and durable machines in the coal briquette making production line.
If you have any quetion of the conveyor coal briquettes mesh belt dryer, pl feel free to contact me .
Contact person: Ms.Ashley gao
Skype: ashley weilite
we chat: 18237163670
Celphone: 86 15639261763
Or email me .
