Coke dust dryer machine / semi-coke dryer

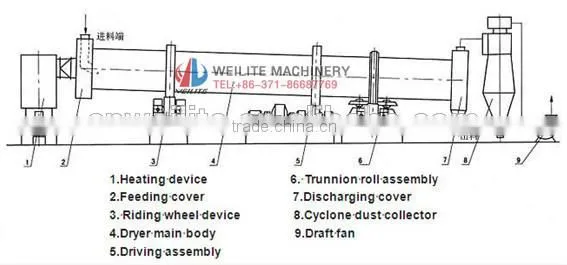

The structure of the semi-coke dryer
Mainly consist of draught fan, air let and air out device, feeding and discharge device,
cylindrical shell,etc .
The working principle of the semi-coke dryer
When the semi-coke are feed in the dryer, it will overturn along with the rotate of
the dryer, also because the gradient of the dryer, so the material will arrive the discharge hole

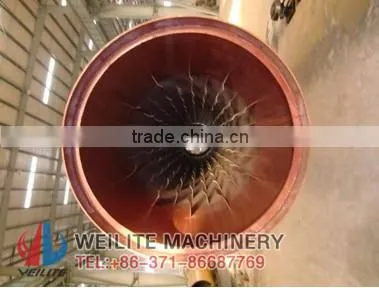

slowly, during the process of moving, the lifting board will raising the material then down, this
way will increase the contact area , the hot air will be taken out by the exhaust fan, the final
material will be discharged from the bottom .

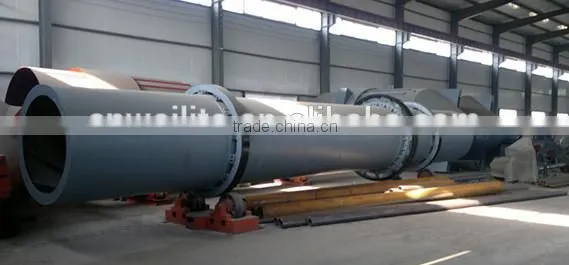

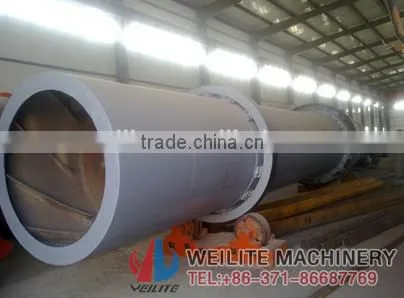

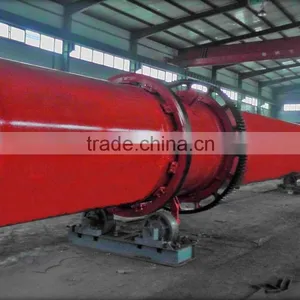

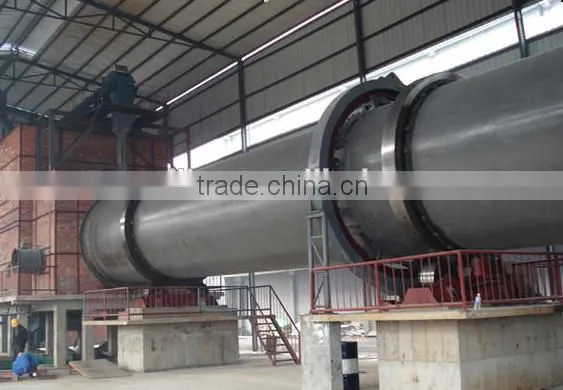

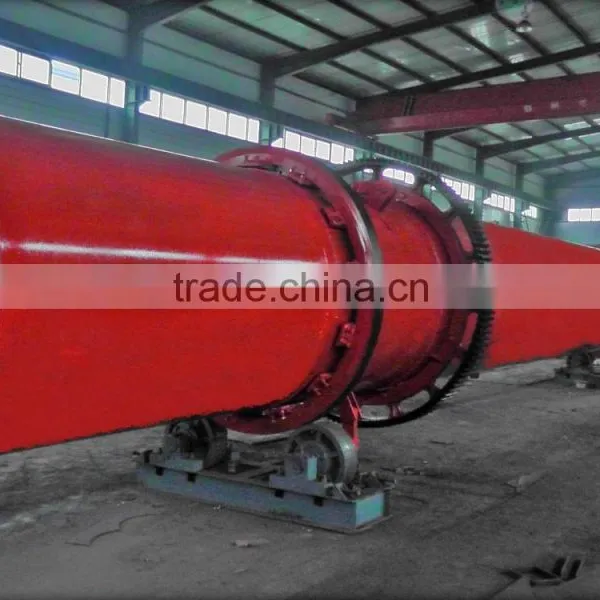

Semi-coke dryer in the factory
How about the features of the semi-coke dryer
Features of the coke dryer
1. Use unique steel which enjoy high and new technology .
2. Smallest line contact way guarantee the high speed, safety, smooth working .
3. Use the whole controlled way to detect the temperature of the coal drying equipment .

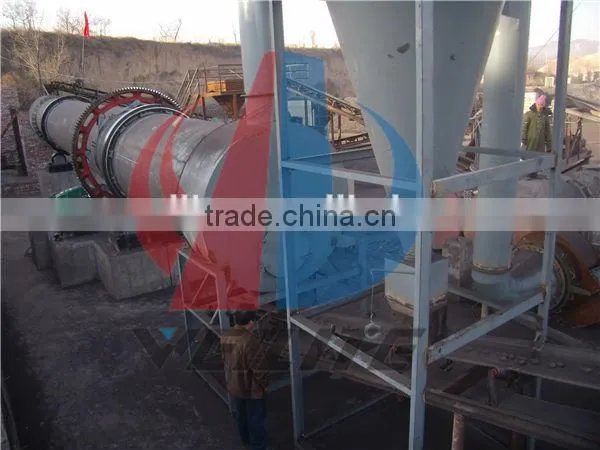

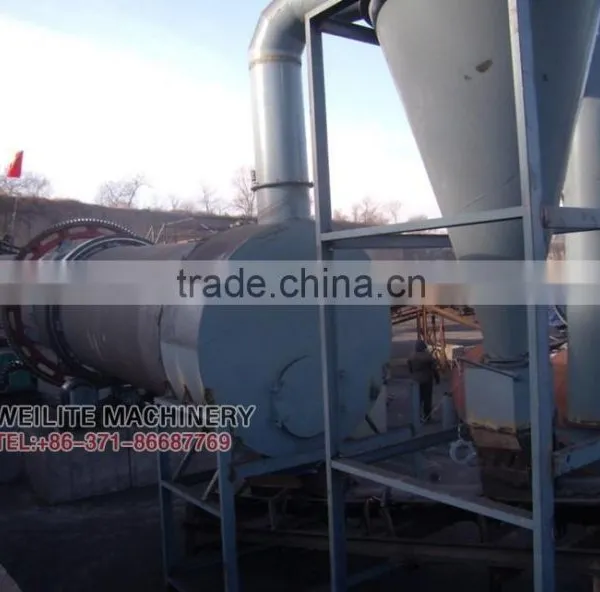

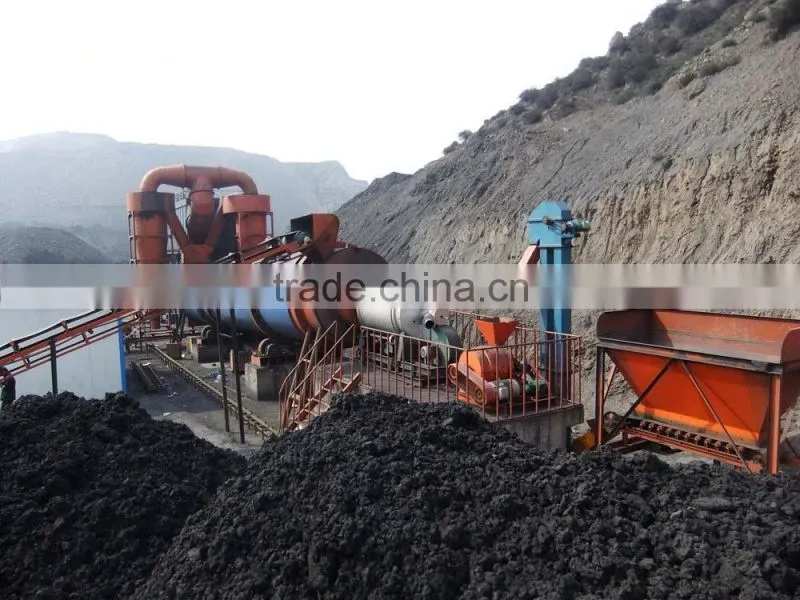

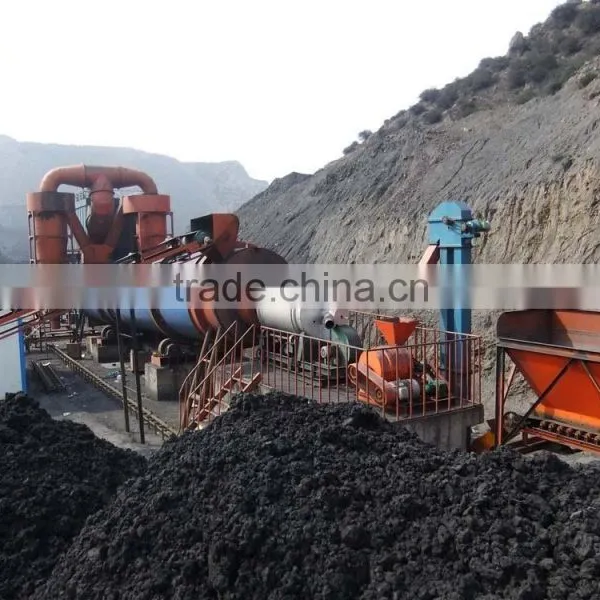

Customer's working place with our semi-coke dryer

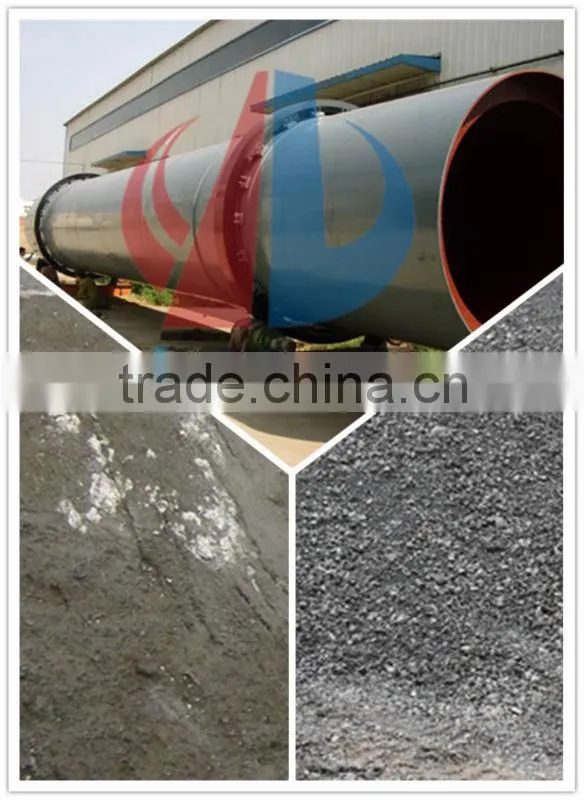

Suitable material for the semi-coke dryer
Coke, semi-coke, coal slurry, coal, tail coal, mixed coal, middings , peat,clean coal, cleaned coal, concentrate fines,
and the material with high moisture, fine powder, large viscosity is available as well .
Application area of the semi-coke dryer
Building industry, mining, clay coal, sand, limestone and chemical industry, metallurgy ,power
plant ,etc .
Technology parameters of the semi-coke dryer
| model | gradient | inter-air temperatuer | production capacity | weitht |
| 600*6000 | 3~5% | ≤700 | 0.1~1.5t/h | 2.9t |
| 800*10000 | 3~5% | ≤700 | 0.8~2.5 t/h | 4.5t |
| 10000*10000 | 3~5% | ≤700 | 1.0~3.5t/h | 5.6 |
| 15000*12000 | 3~5% | ≤800 | 3.5~9 t/h | 17.8t |
| 2200*20000 | 3~5% | ≤800 | 12~20 t/h | 56t |
| 3000*25000 | 3~5% | ≤800 | 32~40 t/h | 104.9t |

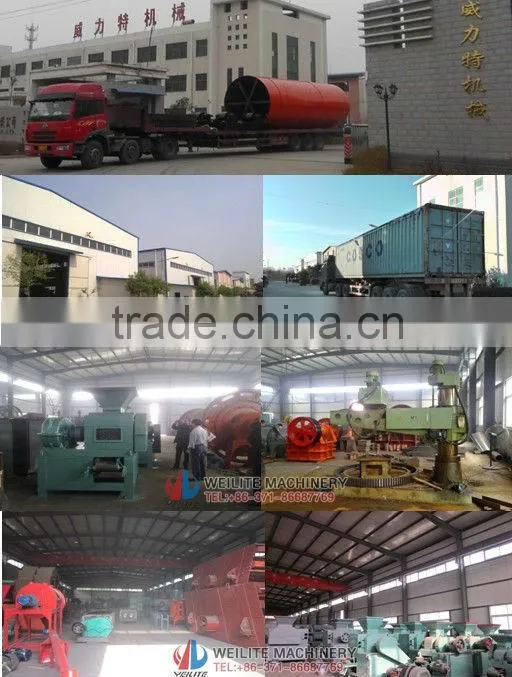

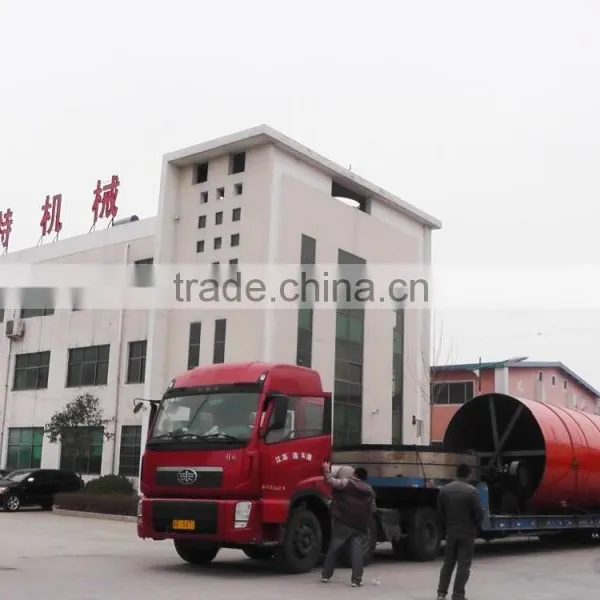

Company Information of the coal briquettes dryer
Zhengzhou Weilite Machinery Equipment Co., Ltd. is an export and manufacturing oriented
enterprise .Our company produce large ,medium and small capacity/output mining production
line , sand making production line and briquette making production line with over 30 years for
the oversea market .
If you have any question and confusion about the semi-coke dryer, just feel free to contact us, we’ll give the response
asap, thank you so much for your consideration , i am Ms.Ashley , Skype: ashley.weilite
