Separator chute
- Separator chute are gravity concentrators and separate minerals of different specific gravity according to their relative movement in response to gravity, centrifugal force and other forces in the fluid medium. It has extremely good performance and effects in processing placer of beach, riverside, seashore and stream.
- Separator chute are made of polyurethane lined fiberglass with wear-resistant corundum inner surface.

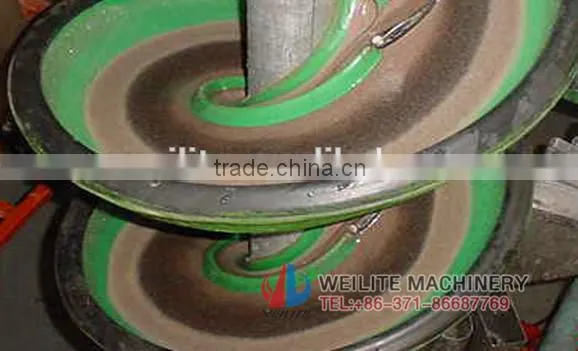

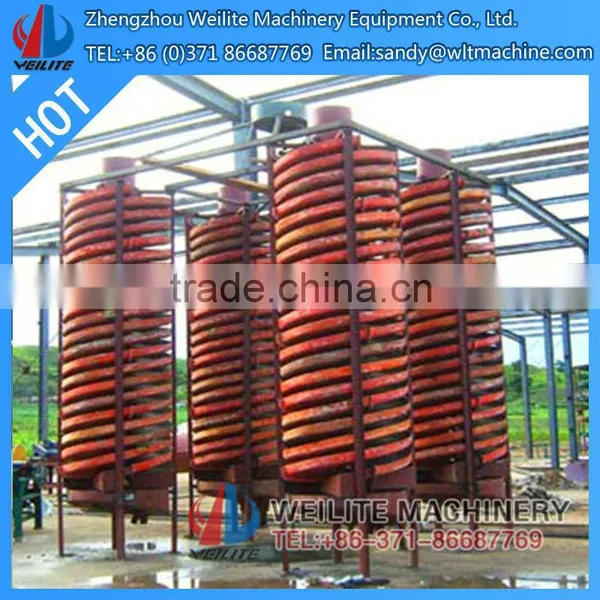

1)Separator chute pictures

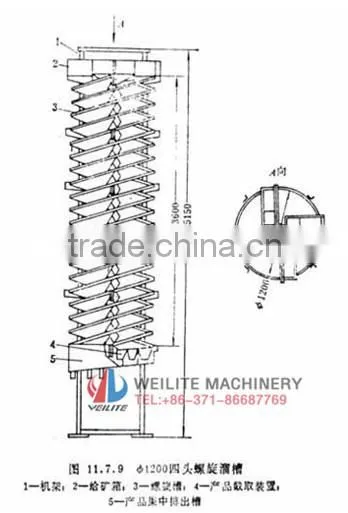

2)Separator chute working principle
Separator chute erected , calibration of the vertical line , metal frame or wood fixed in the right position by the sand pump ore sent to the spiral feed inlet at the top two , add supplementary water , adjust the concentration of ore oar ore oar natural down from the high swirl , in a rotating inclined plane velocity to produce a kind of inertia , centrifugal force, the proportion of ore particle size , shape differences , through the swirl of gravity and centrifugal force to separate ore and sand , fine mine into the concentrate bucket pick out pipe , the tailings flow into the tailings bucket receiving the pipe sand traps, and then the sand pump to drain away, completed the whole process of dressing.

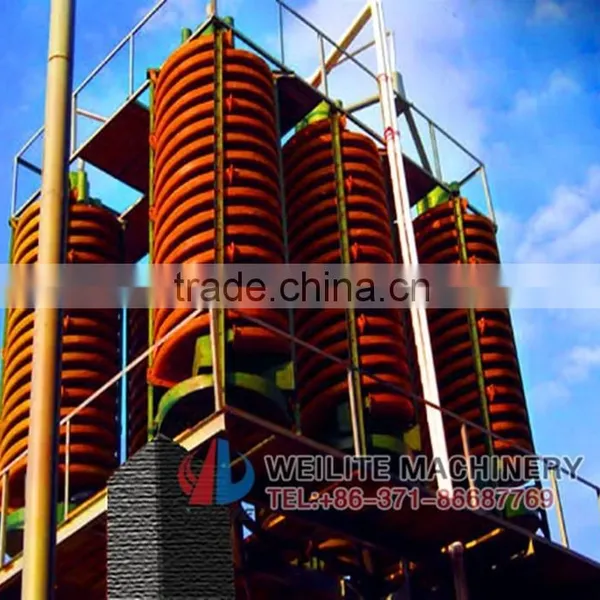

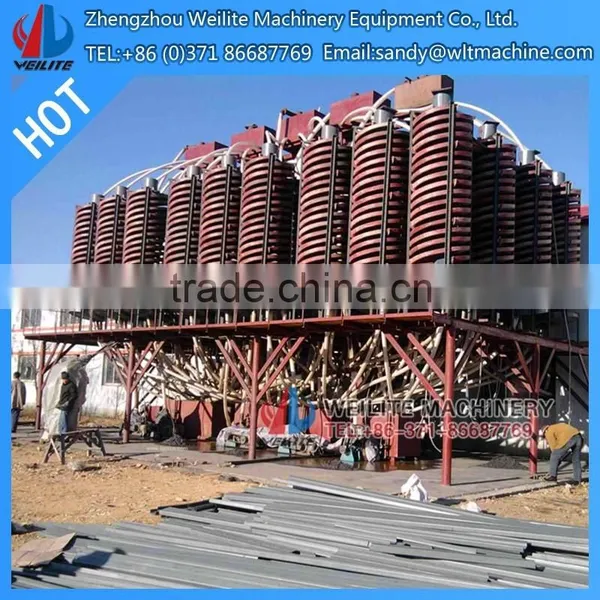

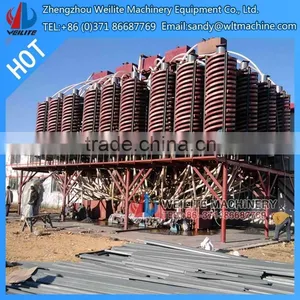

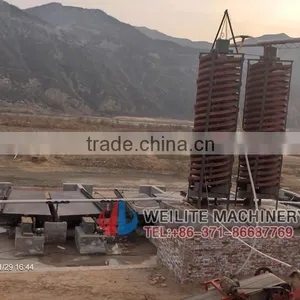

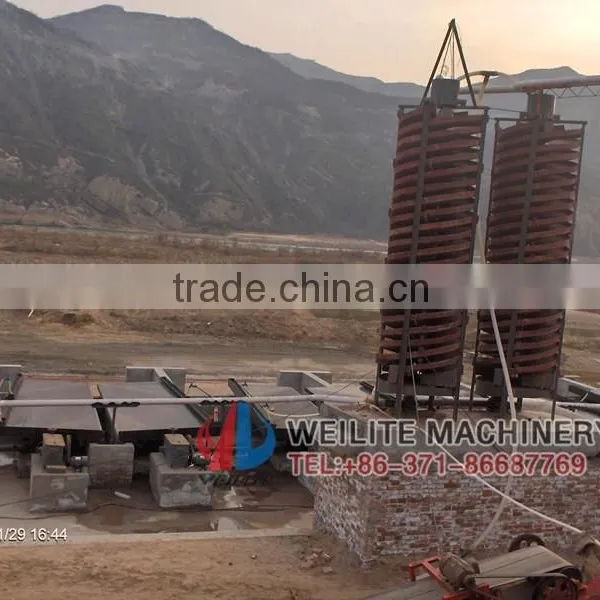

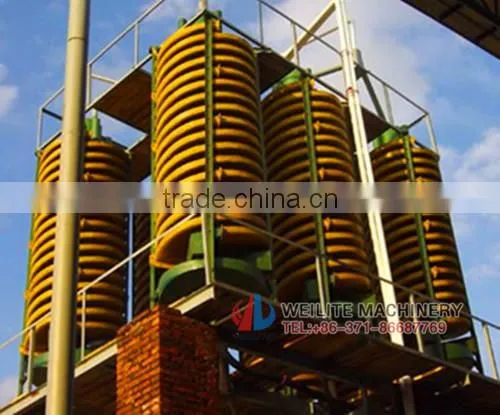

3)Separator chute installation pictures
4)Main technical parameters of separator chute
| Model | DI2000 | DI1500 | DI1200 | DI900 | DI600 | DI400 |
| Outside diameter | 2000 | 1500 | 1200 | 900 | 600 | 400 |
| Inside diameter | 2000 | 1500 | 1200 | 900 | 600 | 400 |
| Pitch of screw | 1200 | 900 |
720 540 |
540 360 |
390 360 |
180 |
| Rate | 0.6 | 0.6 | 0.6 | 0.4 0.6 | 0.4 | 0.45 |
| Gradient(°) | 9 | 9 | 9 | 9 | 9 | 9 |
| Number of threads | 2-4 | 2-4 | 2-4 | 2-3 | 1-2 | 1-2 |
| Number of turns | 3.5 | 4 | 4-5 | 4-5 | 4-5 | 4-5 |
| Max.feed size(mm) | 0.04-4 | 0.03-0.3 | 0.03-0.3 | 0.03-0.3 | 0.02-0.2 | 0.02-0.2 |
| Mine density(%) | 20-40 | 20-45 | 30-50 | 30-50 | 30-50 | 30-50 |
| Capacity L/h-1 | 15-45 | 10-25 | 4-6 | 2-3 | 0.8-12 | 0.5-0.2 |
| Area(m²) | 5, 7 | 5, 8 | 2 | 1 , 2 | 0.5 | 0.25 |
| Heigh(m) | 6.8 | 6.1 | 5.23 | 4 | 2.6 | 1.3 |
1)Pre-sale services: Enthusiasm
- We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2)Sale services: Servant
- Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3)After-sale services: Faithfulness
- To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4)We provide one-year warranty to make sure your machine runs consistently.
- We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /
This is the general information of our products, if they are helpful to you, please let us know without fail. We will be please to provide you detailed information.
