Professional Barite Ore Ball Mill With Best Price
- 120 Set / Sets per Month
- China main port
- T/T Credit Card PayPal
Product Details
Condition: | New | Type: | Ball Mill | Motor Type: | AC Motor |
Power(W): | 18.5-800kw | Capacity(t/h): | 0.3-90 | Place of Origin: | Henan, China |
Brand Name: | Weilite | Model Number: | MQJ Series | Dimension(L*W*H): | 1950x1200x1000mm |
Weight: | 3.6-137 tons | Certification: | ISO, ISO9001:2000 | Warranty: | 1 year, 1 year(excluding wearing parts) |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
ball mill for barite ore
Barite ore ball mill for grinding barite, limestone, ceramic, slag mohs hardness is not more than 9.3 on the Richter scale, such as ball mill humidity below 6% of flammable and explosive of mining, metallurgy, chemical industry, building materials industry more than 280 kinds of materials such as high fine milling processing, the finished product size in the range of 80-425 mesh adjustment (the 1000 mesh).Barite ball mill for grinding barite, limestone, ceramic, slag mohs hardness is not more than 9.3 on the Richter scale, such as ball mill humidity below 6% of flammable and explosive of mining, metallurgy, chemical industry, building materials industry more than 280 kinds of materials such as high fine milling processing, the finished product size in the range of 80-425 mesh adjustment (the 1000 mesh).

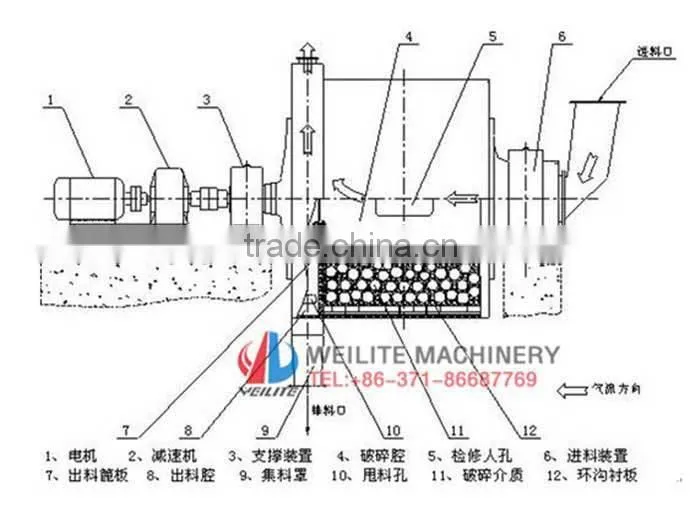

Ball Mill For Barite Ore Working Principle

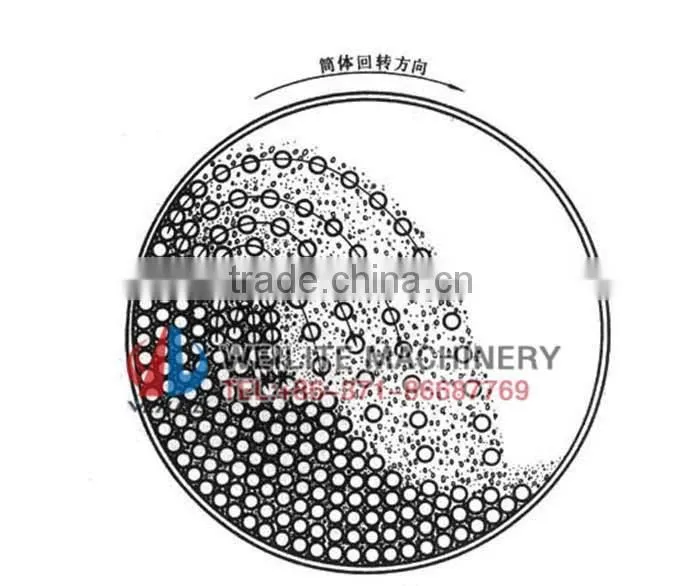

Ball mills work by rotating around a horizontal axis,partially filled with the material to be ground plus the grind medium .Different materials are used as media ,including ceramic balls ,flint pebbles and stainless steel balls.An internal cascading effect reduces the material to a fine powder. Industrial ball mills can operate continuously ,fed at one end and discharged at the other end.
Ball Mill For Barite Ore Photos

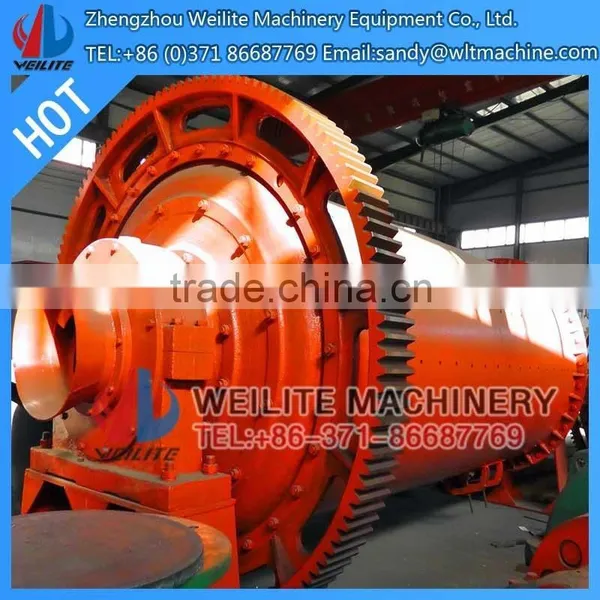

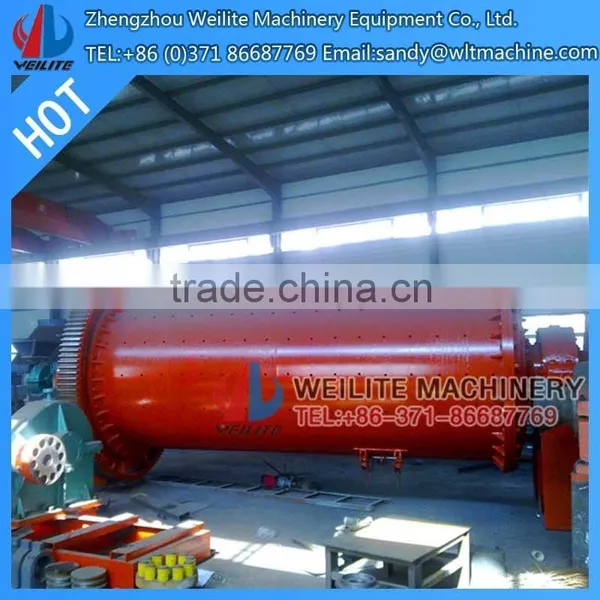

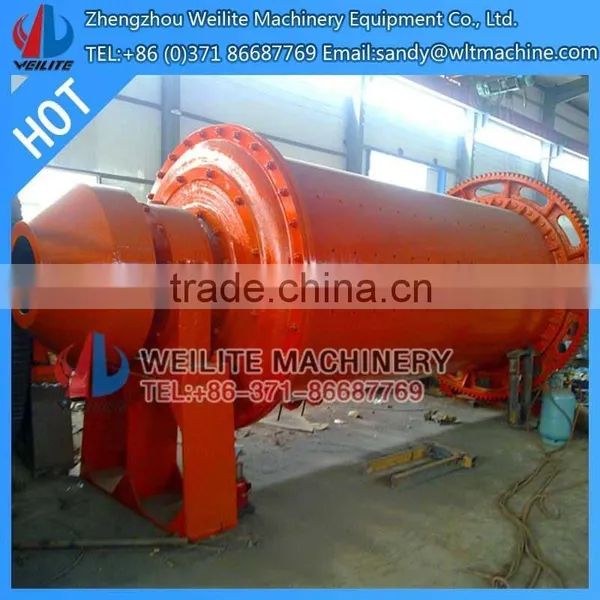

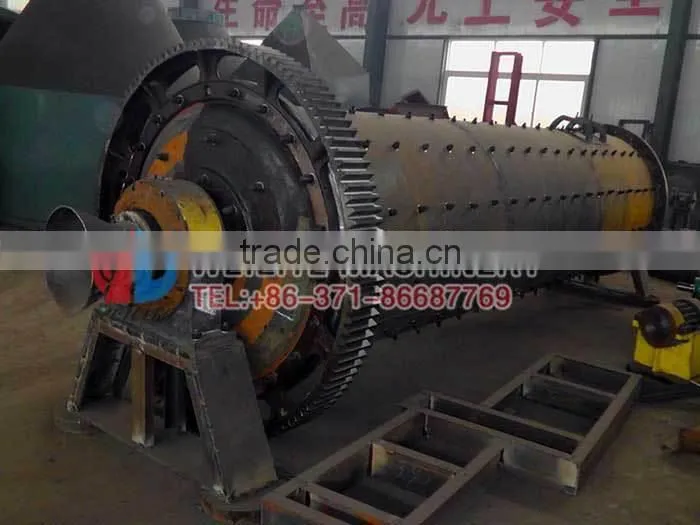

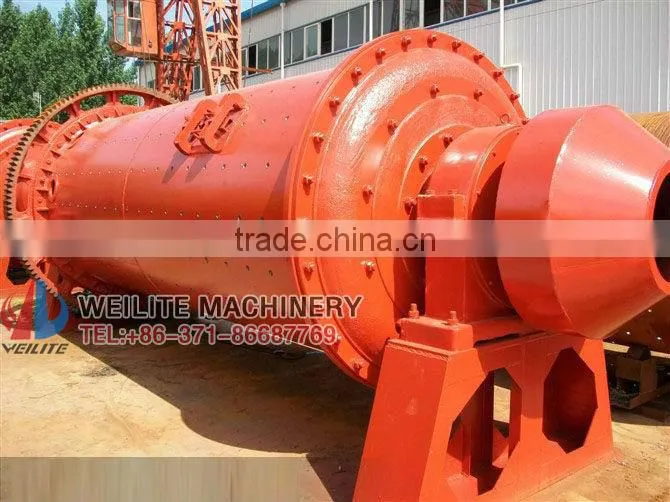

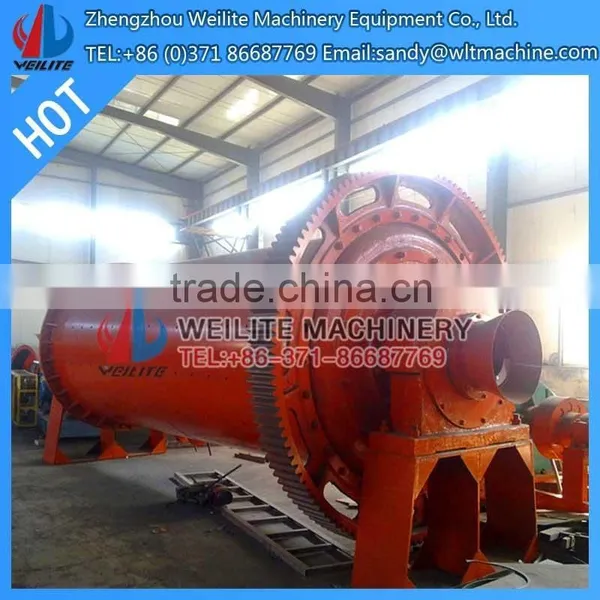

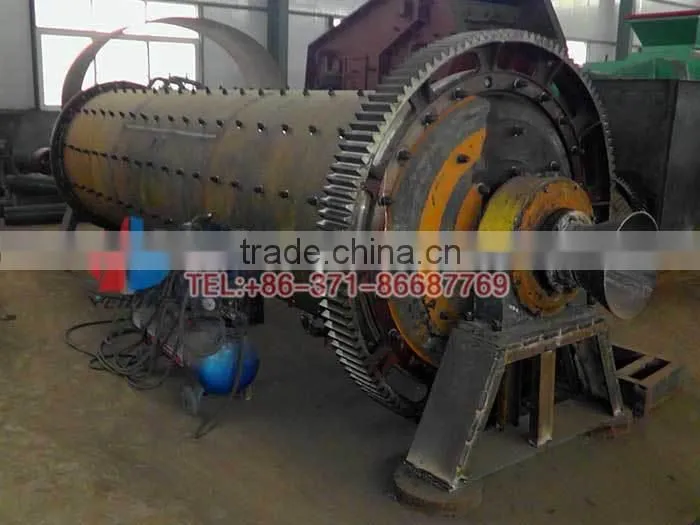

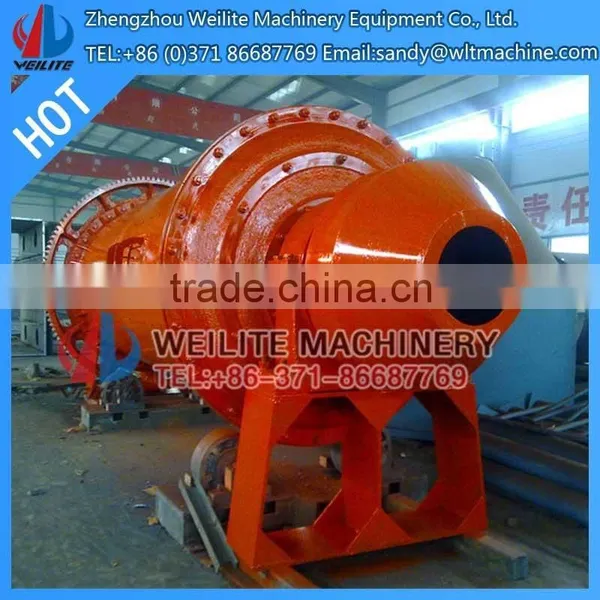

1).Ball mill In Workshop

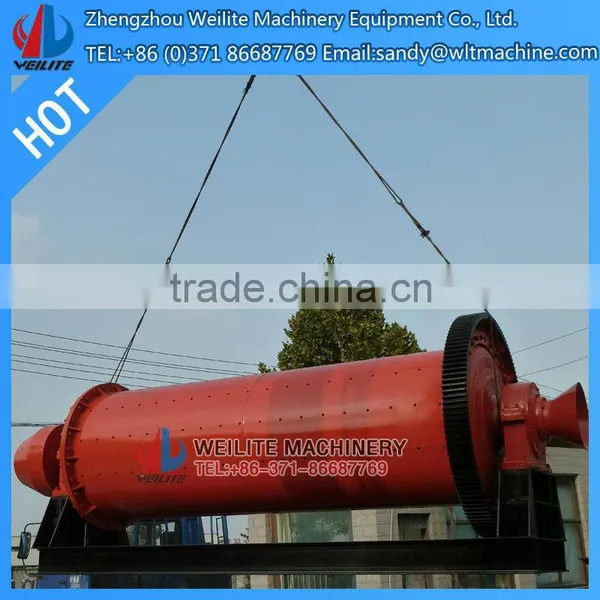

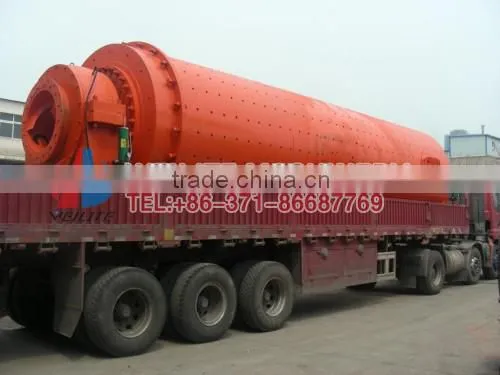

2).Ball mill for barite ore Delivery Picture

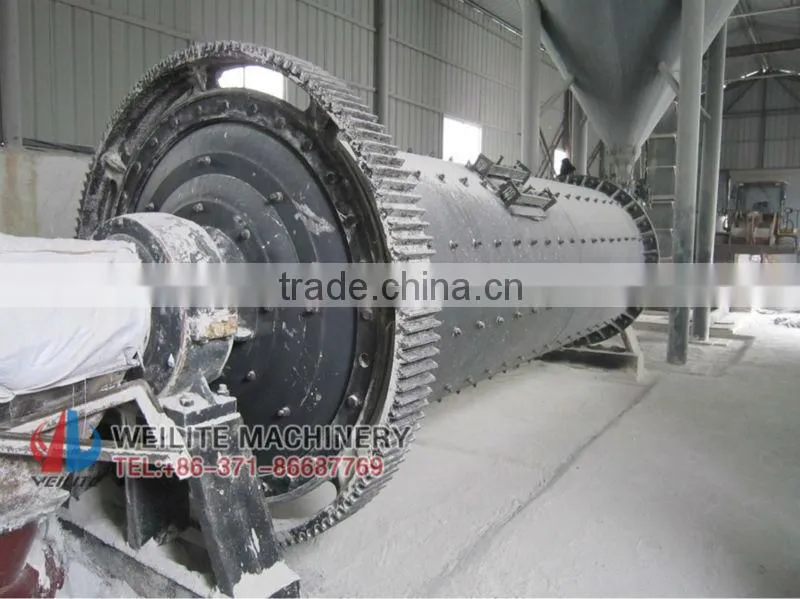

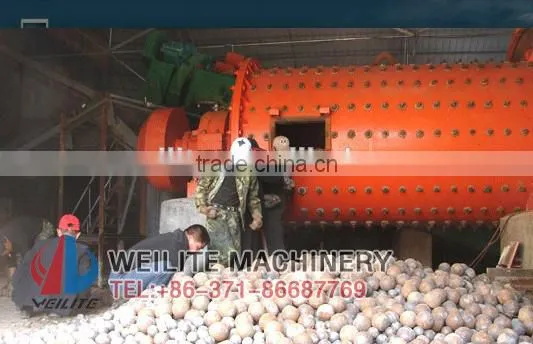

3).ball mill for barite ore Installation Pictures
Barite Ore Ball MIill Technical Data
Type | Shaft Rotation Speed | Ball Load (t) | Feeding Size | Discharging Size | Capacity (t/h) | Motor Power | Weight(t) |
MQJ900×1800 | 38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 3.6 |
MQJ900×3000 | 38 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 4.6 |
MQJ1200×2400 | 32 | 3.8 | ≤25 | 0.075-0.6 | 1.5-4.8 | 45 | 12.5 |
MQJ1200×3000 | 32 | 5 | ≤25 | 0.074-0.4 | 1.6-5 | 45 | 12.8 |
MQJ1200×4500 | 32 | 7 | ≤25 | 0.074-0.4 | 1.6.5.8 | 55 | 13.8 |
MQJ1500×3000 | 27 | 8 | ≤25 | 0.074-0.4 | 2-5 | 90 | 17 |
MQJ1500×4500 | 27 | 14 | ≤25 | 0.074-0.4 | 3-6 | 110 | 21 |
MQJ1500×5700 | 27 | 15 | ≤25 | 0.074-0.4 | 3.5-8 | 132 | 24.7 |
MQJ1830×3000 | 24 | 11 | ≤25 | 0.074-0.4 | 4-10 | 180 | 28 |
MQJ1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 32 |
MQJ1830×6400 | 24 | 23 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 34 |
MQJ1830×7000 | 24 | 25 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 36 |
MQJ2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 210 | 34 |
MQJ2100×4500 | 23.7 | 24 | ≤25 | 0.074-0.4 | 8-43 | 245 | 42 |
MQJ2100×7000 | 23.7 | 26 | ≤25 | 0.074-0.4 | 8-48 | 280 | 50 |
MQJ2200×4500 | 21.5 | 27 | ≤25 | 0.074-0.4 | 9-45 | 280 | 48.5 |
MQJ2200×6500 | 21 | 31 | ≤25 | 0.074-0.4 | 14-26 | 380 | 52.8 |
MQJ2200×7000 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-28 | 380 | 54 |
MQJ2200×7500 | 21.7 | 35 | ≤25 | 0.074-0.4 | 15-30 | 380 | 56 |
MQJ 2400×4500 | 21 | 30 | ≤25 | 0.074-0.4 | 8.5-60 | 320 | 65 |
MQJ 2700×4000 | 20.7 | 40 | ≤25 | 0.074-0.4 | 12-80 | 400 | 94 |
MQJ 2700×4500 | 20.7 | 48 | ≤25 | 0.074-0.4 | 12-90 | 430 | 102 |
MQJ 3200×4500 | 18 | 65 | ≤25 | 0.074-0.4 | Set According to the Technology | 800 | 137 |
1). If any interest in our machine, please feel free to contact me and let me know your requirement on capacity and material size. We are professional machine manufacturer, we will help to choose the most suitable machine for you.
2).Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
3). If you need, we will dispatch professional engineer for installation, trail and worker training.
Zhengzhou Weilite Machinery Equipment Co., Ltd is a manufacturer and exporter of mining machine in China. Our main products are crusher, grinding mill, dryer, briquette plant and so on. Welcome to visit and purchase from us!
1).What's the max. feeding material size for the grinding mill?
- Answer:25mm.
2).What's the discharging material size?
- Answer:Discharging material size varies from 125mesh to 325mesh.
3).What kind of material can be grinded by your plant?
- Answer:Cement Clinker, Coal,Gypsum,Steel Slag,Iron Ore,Chrome Ore,etc.
4).Do you provide production line design service?
- Answer:Yes, we are professional machine manufacturer. So we can provide production line design service.
