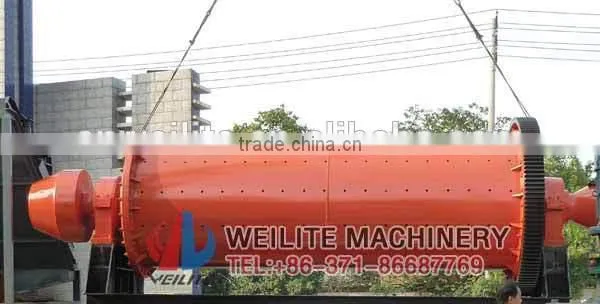

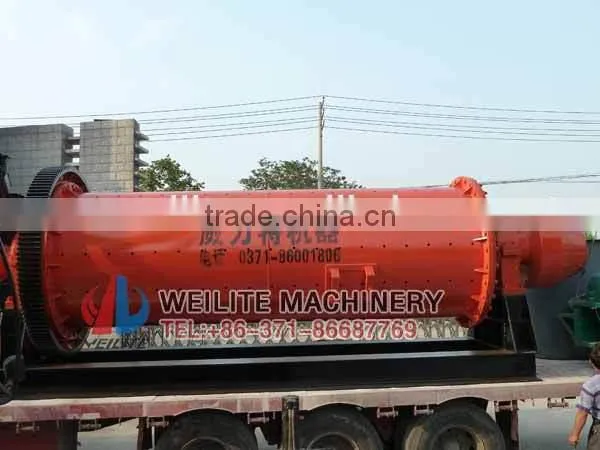

ball mill for silica sand
Ball mill for silica sand lining and grinding ball with silica, alumina, rubber materials, in the process of grinding quartz, reduce the incorporation of impurities such as iron, guarantee the purity of silica sand.
Ball mill for silica sand performance characteristics:
1. The wide scope of application, simple structure, easy maintenance.
2. The capacity is big, continuous operation.
3. The cylinder liner, grinding media can be used a variety of materials, corrosion resistance is strong, widely used.
4. Easy installation, debugging, easy to operate.
5. High production efficiency, low use cost.
Ball mill for silica sand working principle

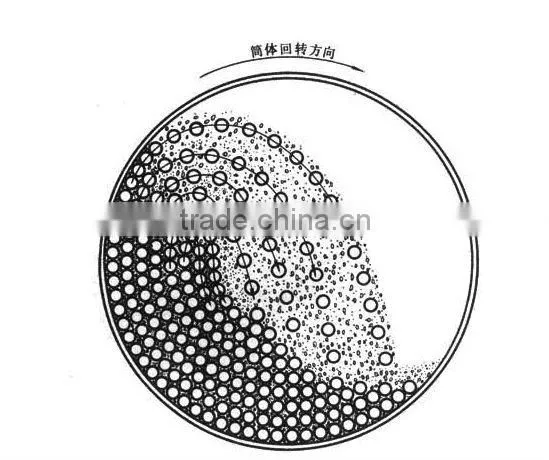

The ball mill for silica sand is a horizental rotating device transmitted by the outer gear. The materials are transferred to the grinding chamber through the quill shaft uniformly. There are ladder liner and ripple liner and different specifications of steel balls in the chamber. The centrifugal force caused by rotation of barrel brings the steel balls to a certain height and impact and grind the materials. The ground materials are discharged through the discharging board thus the grinding process is finished.

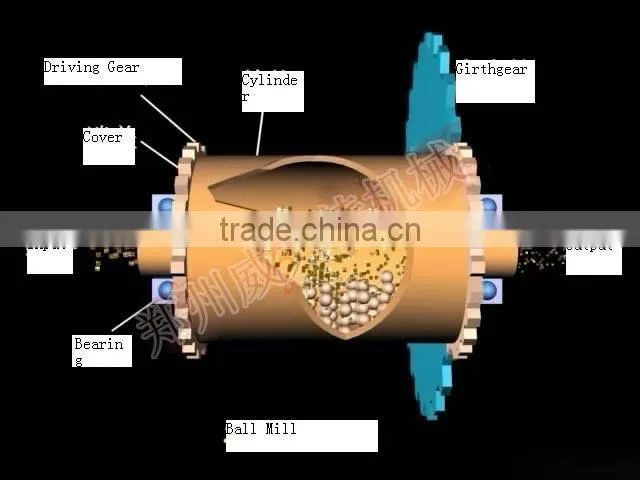

Internal structure

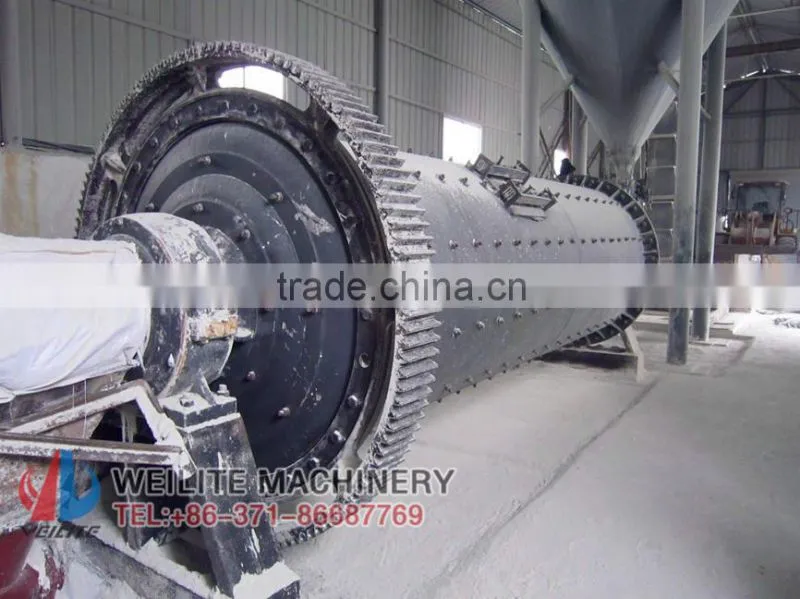

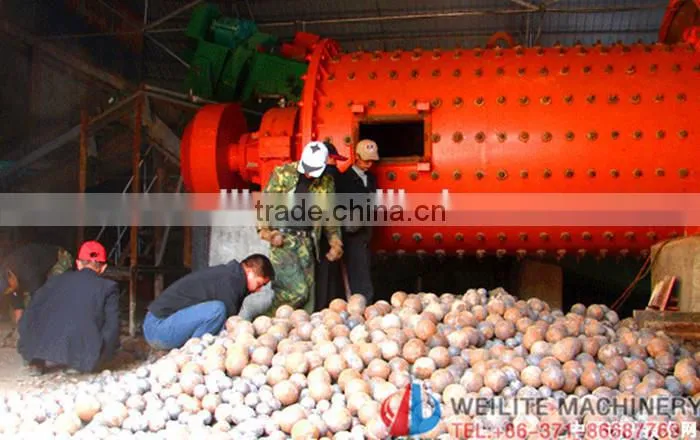

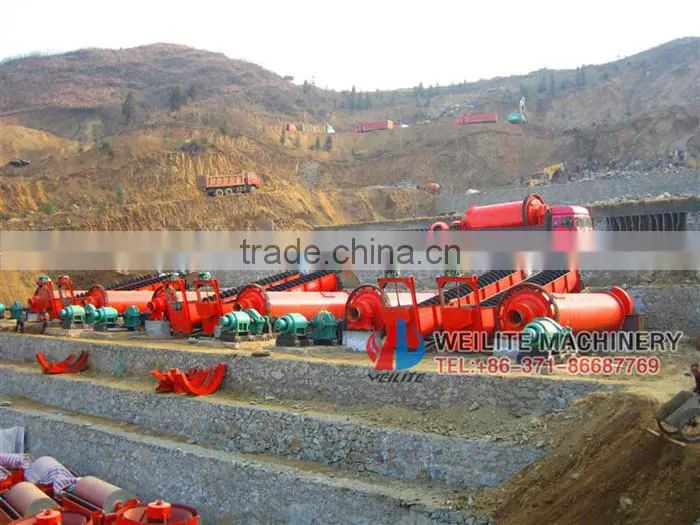

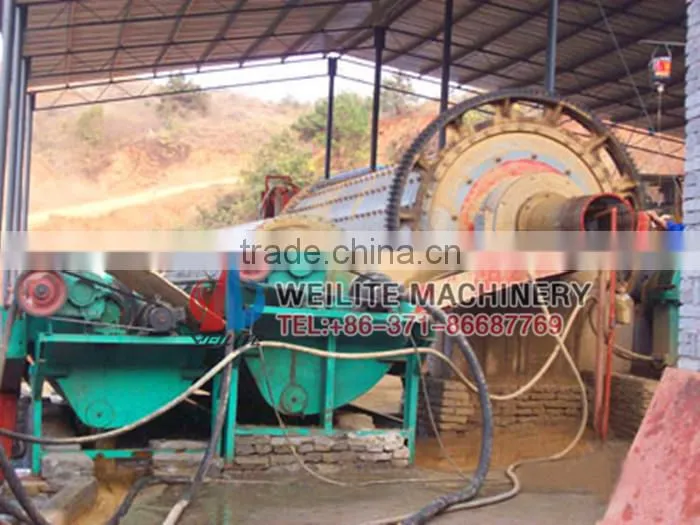

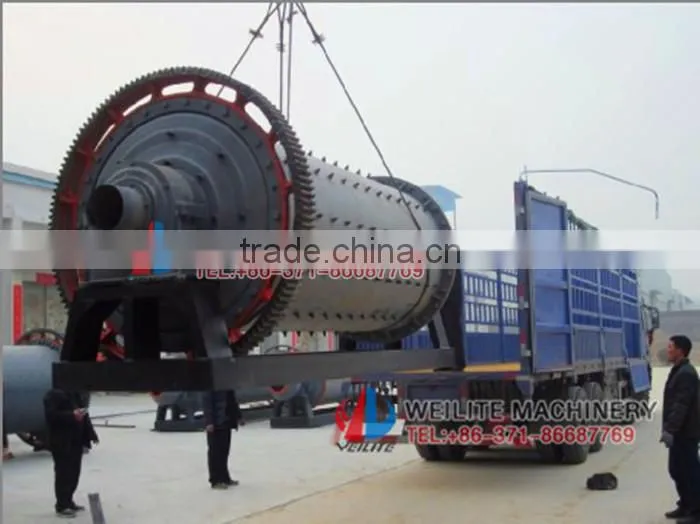

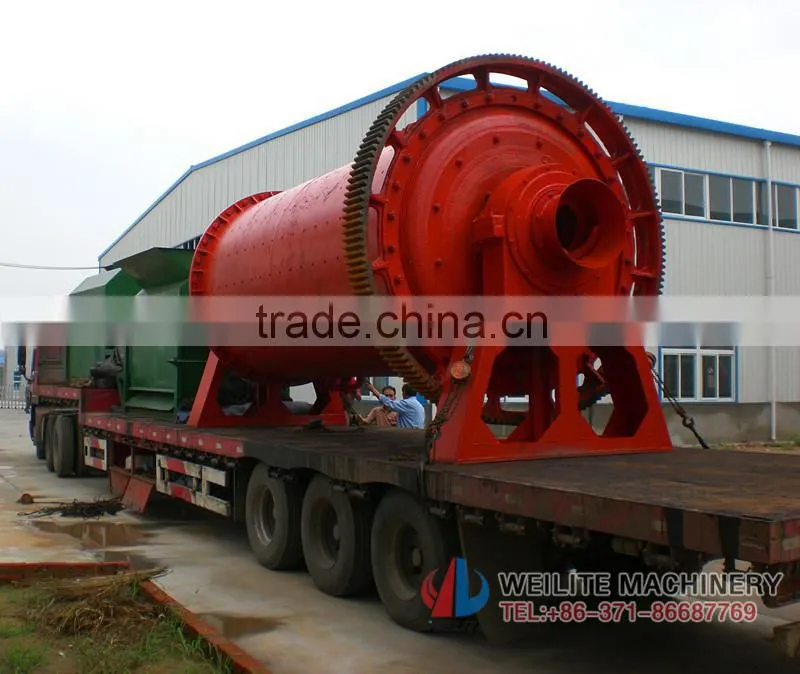

Installation pictures
Main technical parameters
Model |
Ball load (t) |
Feeding size (mm) |
Discharging size (mm) |
Capacity (t/h) |
Motor power (kw) |
900*1800 |
1.5 |
≤20 |
0.075-0.89 |
0.65-2 |
18.5 |
1200*2400 |
3 |
≤25 |
0.075-0.6 |
1.5-4.8 |
30 |
1500*3000 |
7.5 |
≤25 |
0.074-0.4 |
2-5 |
75 |
1830*4500 |
15 |
≤25 |
0.074-0.4 |
4.5-12 |
155 |
2100*3000 |
15 |
≤25 |
0.074-0.4 |
6.5-36 |
210 |
2200*7500 |
35 |
≤25 |
0.074-0.4 |
15-30 |
380 |
2700*4000 |
40 |
≤25 |
0.074-0.4 |
12-80 |
400 |
1)Pre-sale services: Enthusiasm
- We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2)Sale services: Servant
- Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3)After-sale services: Faithfulness
- To establish long term friendship, we will regularly pay return visit to customers. Supplying technique, building design, instruction, installation and debugging for free.
4)We provide one-year warranty to make sure your machine runs consistently.
- We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in one years.
Zhengzhou Weilite Machinery Equipment Co.,Ltd. is a professional mining machine manufacturer, we also offers other machines for such as crusher, mixer, briquette machine,conveyor belts, etc. Website: /
1. What is your raw material to be grind?
- Answer:Iron ore, gold ore, copper ore, or others.
2. What is the maximum feed size of your raw material?
- Answer:Less than 25mm,if larger,it will be crushed.
3. What are output sizes you want?
- Answer:Usually for the mineral processing 60% 200mesh, for the cement grinding 350mesh.
4. What is capacity you want? How many ton per hour?
- Answer:The capacity is about 0.65-90t/h by the different model.
