machine to grind limestone for manufacture calcium
1. machine to grind limestone for manufacture calcium
1)General Description:
Raymond grinding plant is applicable to the grinding and processing more than 280kinds of non-flammable and non-explosive materials with hardness less than 7 moths and humidity less than 6% in mining, construction, chemical industry and metallurgy, such as barite, calcite, feldspar, talcum, marble, limestone, clay, glass, The fineness of the finished product can be adjusted from 30 mesh to 325 mesh according to requirements.
2.Application:
It is a used for milling materials into powders after they are crushed. It is widely applied to the production of g Calcite, Limestone, glass,silica sand,cements, silicate products, building materials, fireproof materials, fertilizers, ceramics as well as nonferrous and ferrous metal processing industries. It could carry out dry and wet milling on different materials.
3.Features:
1.Produces and processes fine powder
2.The product size is adjustable from 80 meshes to 1200 meshes
3.It is possible to produce 30 - 80 mesh coarse powder through a special device in the machine.
4. Main Technical Parameters
Model |
YGM-65 |
YGM-75 |
YGM-85 |
YGM-95 |
YGM-160 |
Feeding size (mm) |
<12 |
<15 |
<20 |
<25 |
<35 |
Output size (mm) |
30-1250 mesh |
30-1250 mesh |
30-1250 mesh |
30-1250 mesh |
30-1250 mesh |
Capacity(t/h) |
0.25-2 |
0.28-3 |
0.35-3.2 |
2.1-5.6 |
10-15 |
Motor Power(kw) |
15KW |
18.5KW |
22KW |
37KW |
132kw |
Overall dimension(m) |
4.1×3.3×4.5 |
4.3×3.5×5.1 |
5.3×4.1×5.2 |
7.1×5.9×7.9 |
8.3×5.7×1.2 |
5.Working Principle Picture

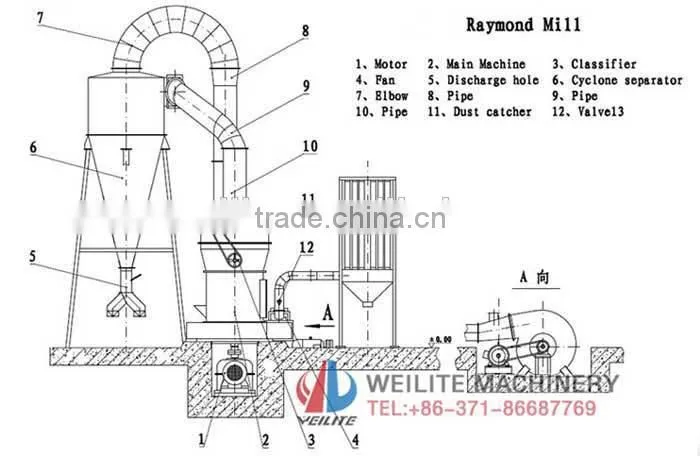

6. Installation Diagram
7.Successful Cases
Contact Information
Tel:+86 371 86687769
Cell Phone:+86 15137145403
Contact Name:Ms. Ivy Zhang
Skype:ivyzhang2421
