Specifications
Ore Briquette Drying Equipment1.Capacity:0.5-40t/h
2.Power:3-75kw
3.Dried Moisture:1-3%(adjustable)
Ore Briquette Drying Equipment
1.Company Introduction
Zhengzhou Weilite Machinery Equipment Co., Ltd is a manufacturer and exporter of mining machinery in China. Our main products are crusher, grinding mill, dryer, briquetting machine and so on. They are excellent quality and enjoy good reputation both in China and overseas. Welcome to visit and purchase from us!
- Introduction
- Ore Briquette Drying Equipment Application
Ore Briquette Drying Equipment is widely used to drying briquettes in coal / charcoal briquettes production line. It has the character of high efficiency, low destory percentage, stable performance, etc. Ore Briquette Drying Equipment is a common continuous drying equipment can be widely used in the chemical, food, medicine, building materials, electronics and other industries, especially for better drying breathable sheet, strip, granular materials, for the filter cake material paste and the like, can also be pelletized or extruded pieces after the molding mechanism dried.

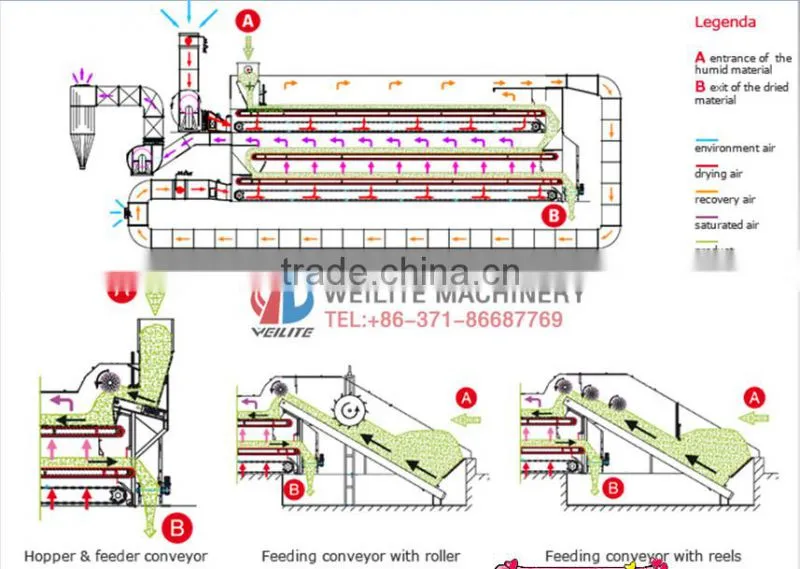

- Ore Briquette Drying Equipment Working Principle Pictures(Three Decks)
Material by feeder evenly the shop on the net, net belt use 12 to 60 of the stainless steel wire mesh. There is movement transmission device drag in the dryer. Ore Briquette Drying Equipment is each unit hot air circulation, independent part of the tail gas has special platoon is wet exhaust fan, exhaust valve control, the heat down to up or down through the shop on the net belt material, dry heat and moisture away.Ore Briquette Drying Equipment to move slowly, running speed can adjust freely according to the material temperature, drying after finished product continuous fell into the receiving device.
- Ore Briquette Drying Equipment Advantages
- Coal Briquette Dryer can adjust the amount of air, heating temperature, residence time, and feed rate in order to achieve the best drying results.
- Flexible network device configuration can be used with dryer mesh belt washing system and material cooling system.
- Mesh belt dryer (mesh belt dryer) Most air recycling, highly energy saving.
- Unique sub-air dryer unit, hot air distribution is more uniform, to ensure product quality and consistency.
- Heat source can be steam, oil, or gas stove matching points.
- Ore Briquette Drying Equipment Feature
- A small investment, quick drying speed, high evaporating intensity;
- High efficiency, high yield, good quality of product;
- Can regulate air quantity, heating temperature, residence time of materials on the dryer;
- The heat source may be steam, heat conduction oil, or gas hot air furnace.
3. Ore Briquette Drying Equipment Technical Parameters
Type |
202 |
204 |
304 |
306 |
Length(m) |
20 |
20 |
30 |
30 |
Layer |
2 |
4 |
4 |
6 |
Mesh Belt Width(m) |
1.2 |
1.2 |
1.5 |
1.5 |
Capacity(t/h) |
6 |
10 |
15 |
20 |
Moisture before drying(%) |
8-12% |
8-12% |
8-12% |
8-12% |
Moisture after drying(%) |
1.5-3% |
1.5-3% |
1.5-3% |
1.5-3% |
Power(kw) |
3 |
3×2 |
5.5×2 |
5.5×3 |
Inlet Air Temperature(°C) |
180-250 |
180-250 |
180-250 |
180-250 |
4.Our Service
(1) Pre-sale Service:
Suitable-design products and resonable price will be supplied to you to meet your need. We can also offer experiment to test the equipment that the customer need.
(2) After-sale Service:
On the spot guidance for installation by our engineers, and the buyer is responsible for the expense. We have a perfect after-sales service system and team with professional.
5.Packing And Shipping Of Ore Briquette Drying Equipment

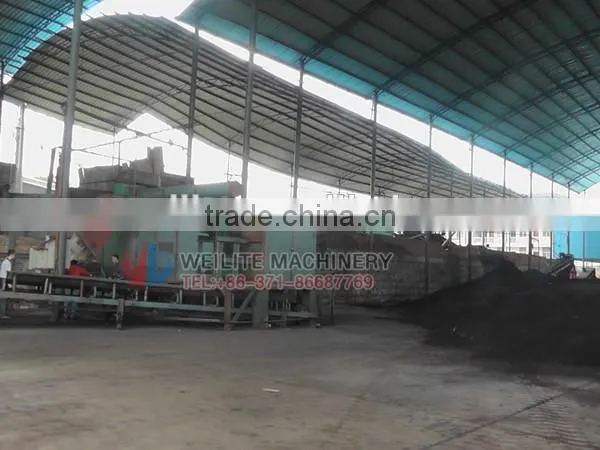

6.Successful Case
7.Foreign Customers To Visit Our Company And Our Company Has Obtained The Certificate
8.Contact Us
If any need, please contact me for details. Website: /
