rotary drum dryer for mud / rotary dryer for red mud
Rotary Dryer For Red Mud also named asMud Drying Machine and Mud Rotary Drier. Our dryer has the character of stable running, easy operation, large capacity, enviroment protect, etc. The dryer is widely used for drying red mud, soil, clay, lump copper ore, copper chips,copper ore powder and other kind of powder and chips.The final product is widely used in brick making industry and mining intrudtry.The drying temperature is adjustable according to different materials with different moisture.
Rotary Dryers For Red Mud Drawing

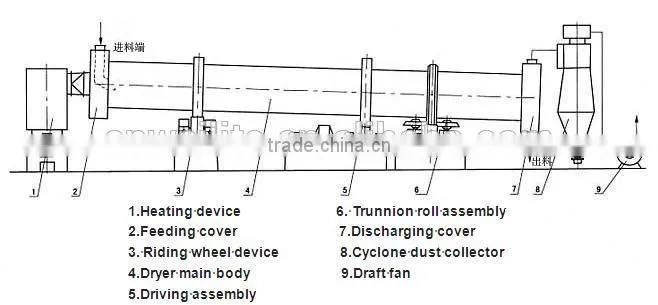

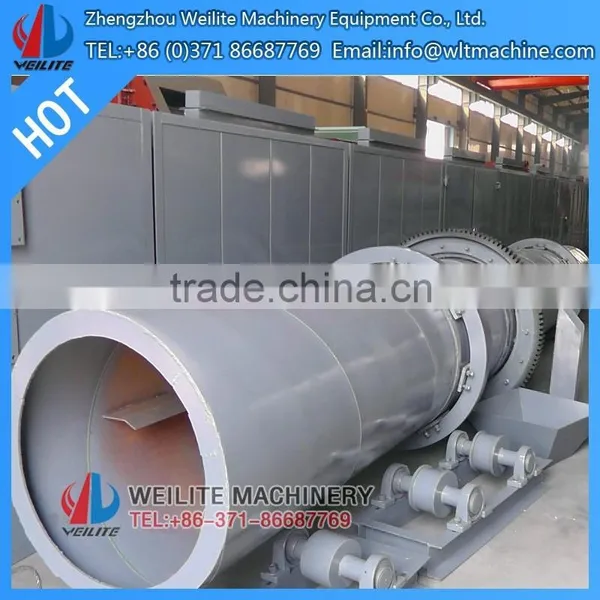

The rotary dryer for red mud is mainly composed by 1.heating device; 2.feeding parts;3.riding wheel device;4.dryer drum;5.driving assembly;6.trunnion roll assemble;7.discharging part;8.cyclone dust collector;9.draft fan. Our company could design the heating device, conveyors, dust collector, draft fan and other devices according to the different requirement of our customers'.
Advantage of Rotary Dryers For Red Mud
1.The rotary dryer for red mud main body is made by wear-resisting Mn steel plate. It extends the dryer service life of 3-4 times.

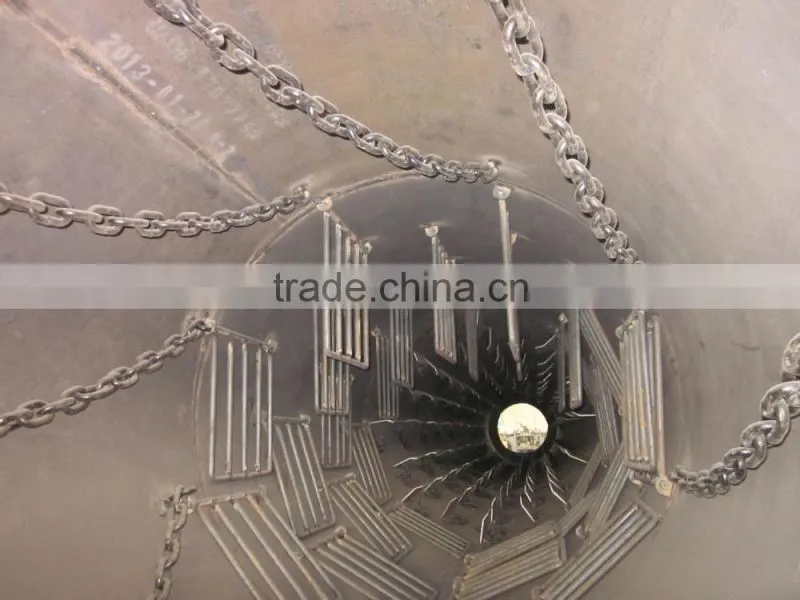

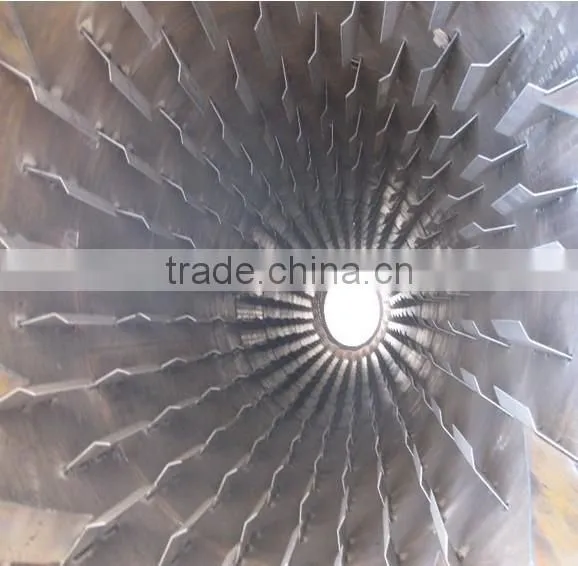

2.There are steel chains and steel patter inside the dryer to make sure material will not stick during the drying process.
3. The fuel could be coal, diesel, gas, wood pellet and any other kinds of lump materials.
4.It solves the sealing problem and improving the drying efficiency.
5.Discharging material temperature is lower than 60 co. It could be send into warehouse directly.
Rotary Dryers For Red Mud Working Theory
Material to be dried enters the dryer, and as the dryer rotates, the material is lifted up by a series of internal lifting flight lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the dryer, passing through the hot gas stream as it falls. cyclone dryer also can be widely used to dry other lump and powder materials, and it is simple to be operated.
Rotary Dryers For Red Mud Technical Data
Model (mm) |
Inclination (%) |
Rotate speed (r/min) |
Air inlet temperature (°C) |
Power (kw) |
Production capacity(t/h) |
Weight (t) |
Φ600x6000 |
3-5 |
3-8 |
≤700 |
3 |
0.5-1.5 |
2.9 |
Φ800x8000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.0 |
3.5 |
Φ800x10000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.5 |
4.5 |
Φ1000x10000 |
3-5 |
3-8 |
≤700 |
5.5 |
1.0-3.5 |
5.6 |
Φ1200x10000 |
3-5 |
3-8 |
≤700 |
7.5 |
1.8-5 |
14.5 |
Φ1200x12000 |
3-5 |
3-8 |
≤700 |
11 |
2-6 |
14.8 |
Φ1500x12000 |
3-5 |
2-6 |
≤800 |
15 |
3.5-9 |
17.8 |
Φ1800x12000 |
3-5 |
2-6 |
≤800 |
18 |
5-12 |
25 |
Φ2200x12000 |
3-5 |
1.5-6 |
≤800 |
18.5 |
6-15 |
33 |
Φ2200x18000 |
3-5 |
1.5-6 |
≤800 |
22 |
10-18 |
53.8 |
Φ2200x20000 |
3-5 |
1.5-6 |
≤800 |
30 |
12-20 |
56 |
Φ2400x20000 |
3-5 |
1.5-5 |
≤800 |
37 |
18-30 |
60 |
Φ3000x20000 |
3-5 |
1.5-5 |
≤800 |
55 |
25-35 |
78 |
Φ3000x25000 |
3-5 |
1.5-5 |
≤800 |
75 |
32-40 |
104.9 |
1).Rotary Dryers For Red Mud Full Container Load without package and Less Than Container Load with wooded case package
a). If any interest in our Rotary Dryers For Red Mud,please feel free to contact me and let me know your requirement on capacity and material moisture before and after dried.
b). We are professional machine manufacturer, we will help to choose and design the most suitable machine for you.
c). Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
d). If you need, we will dispatch professional engineer for installation, trail and worker training.
Zhengzhou Weilite Machinery Equipment Co., Ltd is a manufacturer and exporter of mining machine in China. Our main products are crusher, grinding mill, dryer, briquette machine and so on. Welcome to visit and purchase from us!
1.What kind of material can be dried by the rotary dryer?
- Answer: Nearly all kinds of lump, powder and chip material can be dried by our machine such as copper,iron etc.
2.What kind of fuel can be used with the rotary dryer?
- Answer: Diesel, natural gas, coal, wood chips and other kind of fuel are OK.
3.What's the drying temperature of the rotary dryer?
- Answer:Drying temperature of the dryer is adjustable. It varies from 70 to 700 °C.
4.Is it hot air drying machine?
- Answer: Yes, it is.
5.Is the drying temperature adjustable?
- Answer: Yes, it is.
