Professional sawdust dryer manufacturer
Brief introduction of the professional sawdust dryer
This type professional sawdust dryer is designed based on the features of the
sawdust / wood chip, like the raw moisture is higher than other material, the specific gravity is
smaller than others, large mobility in the process of drying .
The professional sawdust dryer is widely used for drying sawdust, wood shavings, sludge, coal slurry, wood chips,
clay, bentonite, gypsum,
silica sand iron ore, chrome ore
and other kinds of lump and powder materials.
The drying temperature is adjustable according to different materials with different moisture.
Advantages of the professional sawdust dryer
1. The professional sawdust dryer with reasonable structure, made by high grade
steel material,enjoy mature technology, durable with competitive price .
2 .The professional sawdust dryer main body is made by wear-resisting Mn steel plate.
It extends the dryer service life of 3-4 times.
3. Increase the drying efficiency by 40%.
4. The fuel could be coal, diesel, gas, wood pellet and any other kinds of lump materials.
5. It solves the sealing problem and improving the drying efficiency.
6. Discharging material temperature is lower than 60 co. It could be send into warehouse directly

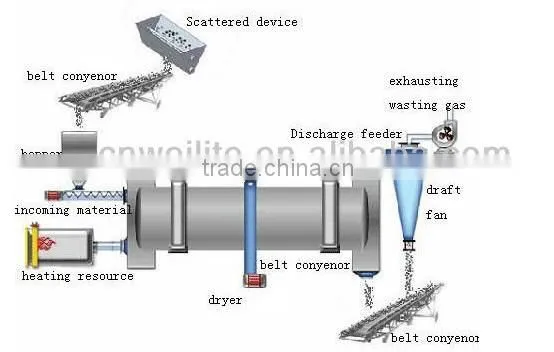

The Professional sawdust dryer is mainly composed by 1.heating device; 2.feeding parts;
3.riding wheel device;4.dryer drum;5.driving assembly;6.trunnion roll assemble;7.discharging part;8.cyclone dust collector;9.draft fan. Our company could design the heating device, conveyors, dust collector, draft fan and other devices according to the different requirement of our customers'.
Working principle of the professional sawdust dryer

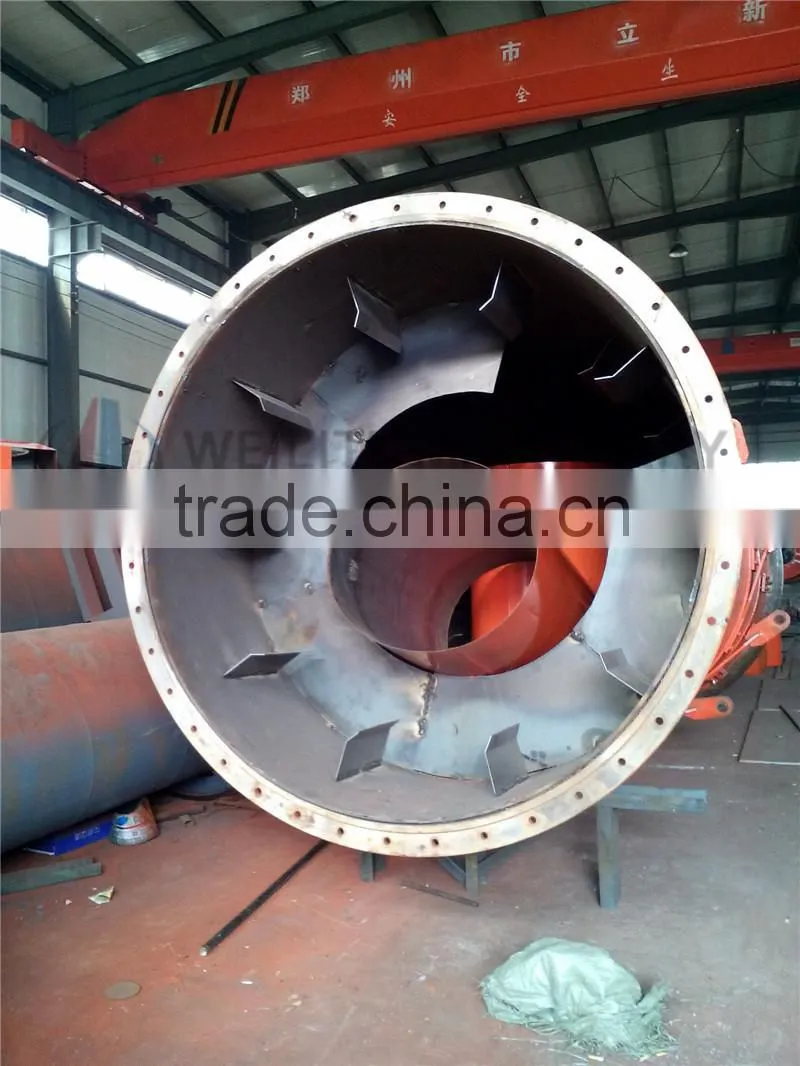

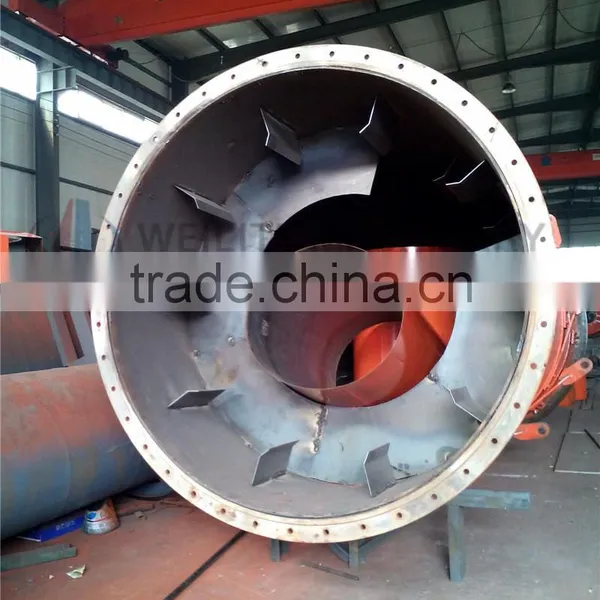

Material to be dried enters the rotary type sawdust dryer, and as the dryer rotates, the material
is lifted up by a series of internal lifting flight lining the inner wall of the dryer. When the material gets high enough to roll back off the fins, it falls back down to the bottom of the professional sawdust dryer, passing through the hot gas stream as it falls. cyclone included dryer also can
be widely used to dry other lump and powder materials, and it is simple to be operated.

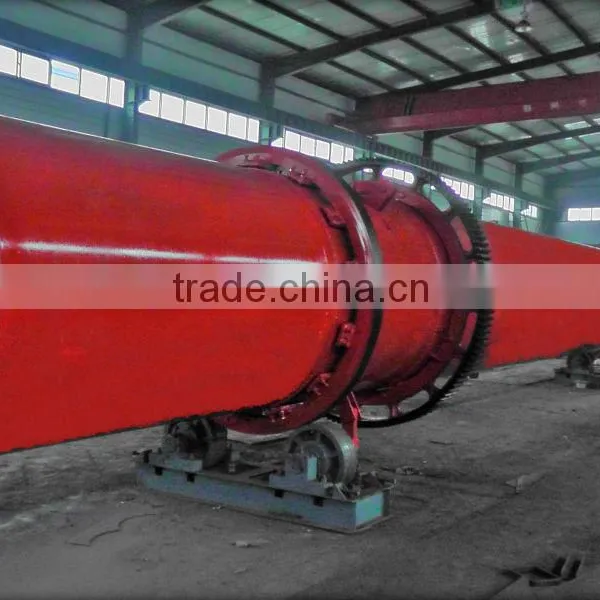

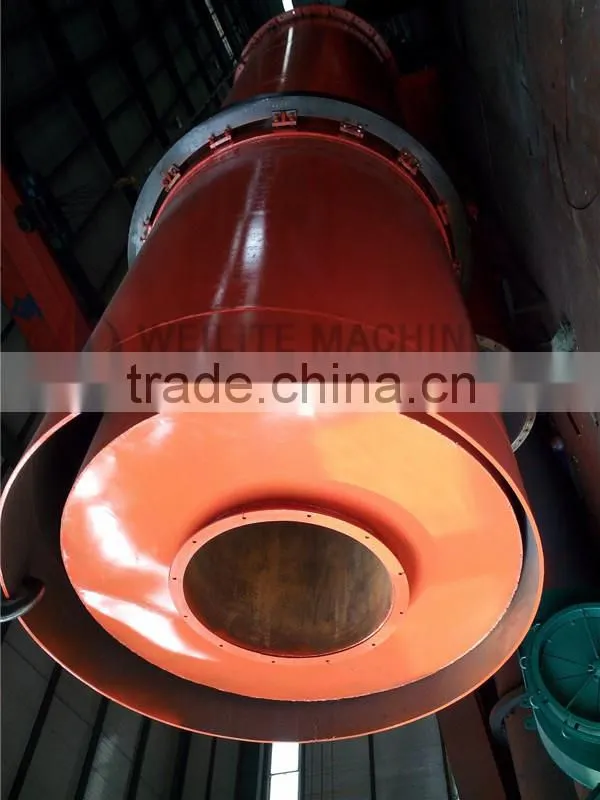

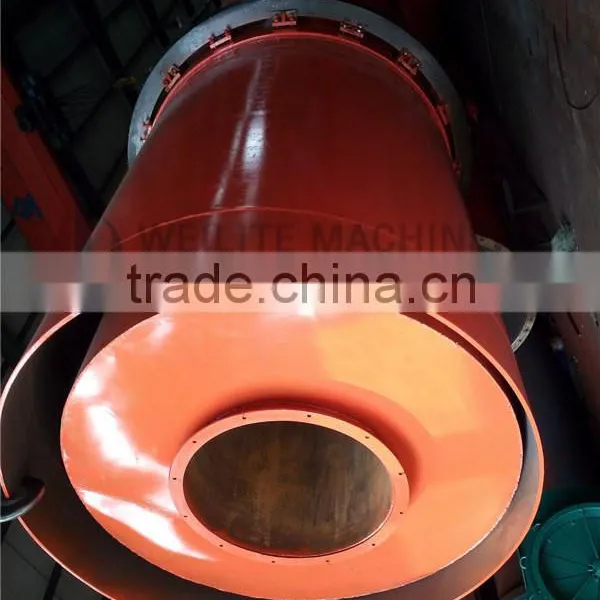

Professional sawdust dryer in the workshop
Draught fan,gearing and motor of the professional sawdust dryer
Technical parameters of the professional sawdust dryer
Model (mm) |
Inclination (%) |
Rotate speed (r/min) |
Air inlet temperature (°C) |
Power (kw) |
Production capacity(t/h) |
Weight (t) |
Φ600x6000 |
3-5 |
3-8 |
≤700 |
3 |
0.5-1.5 |
2.9 |
Φ800x8000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.0 |
3.5 |
Φ800x10000 |
3-5 |
3-8 |
≤700 |
4 |
0.8-2.5 |
4.5 |
Φ1000x10000 |
3-5 |
3-8 |
≤700 |
5.5 |
1.0-3.5 |
5.6 |
Φ1200x10000 |
3-5 |
3-8 |
≤700 |
7.5 |
1.8-5 |
14.5 |
Φ1200x12000 |
3-5 |
3-8 |
≤700 |
11 |
2-6 |
14.8 |
Φ1500x12000 |
3-5 |
2-6 |
≤800 |
15 |
3.5-9 |
17.8 |
Φ1800x12000 |
3-5 |
2-6 |
≤800 |
18 |
5-12 |
25 |
Φ2200x12000 |
3-5 |
1.5-6 |
≤800 |
18.5 |
6-15 |
33 |
Φ2200x18000 |
3-5 |
1.5-6 |
≤800 |
22 |
10-18 |
53.8 |
Φ2200x20000 |
3-5 |
1.5-6 |
≤800 |
30 |
12-20 |
56 |
Φ2400x20000 |
3-5 |
1.5-5 |
≤800 |
37 |
18-30 |
60 |
Φ3000x20000 |
3-5 |
1.5-5 |
≤800 |
55 |
25-35 |
78 |
Φ3000x25000 |
3-5 |
1.5-5 |
≤800 |
75 |
32-40 |
104.9 |
Noted please: IF you are not find suitable size professional sawdust dryer in the above table, kindly let us know, the raw material, the size and initial moisture, the moisture requirement after drying, the feeding capacity per hour, then we'll recommend suitable rotary type sawdust dryer with details very soon for your reference, thank you for your consideration .
Why the rotary type sawdust dryer is the professional dryer for drying sawdust:
1. Large drying intensity, cause the higher dispersion of the powder in the airflow ;
2. Short drying time, large capacity and high thermal efficiency ;
3. Simple and advanced structure, small size in floor, easy to install and maintain ;
4. Continuous operation, low power consumption, long using life ;
5. Can be designed with scatter device to adapt the viscous material .
The application area of the professional sawdust dryer
Straw / sawdust briquettes making, match the wood briquette machine, wood pellet making,
farming and animal husbandry engineering .

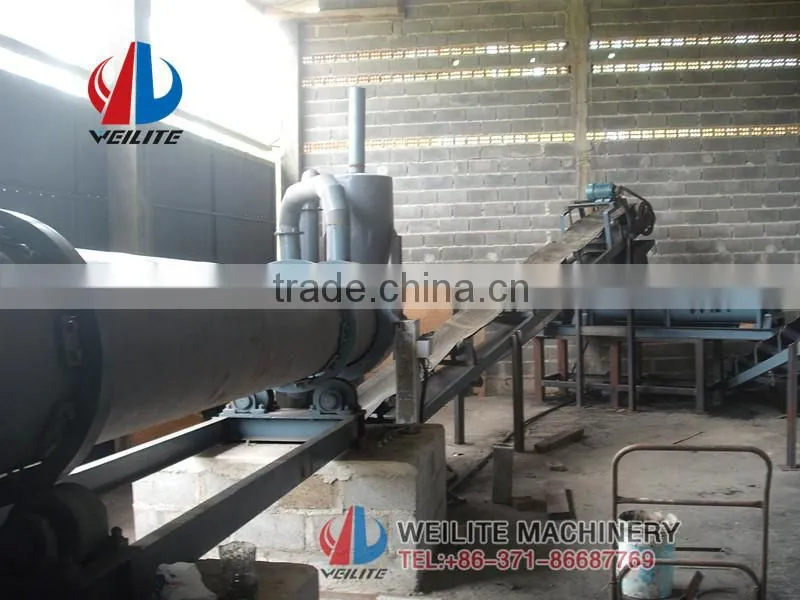

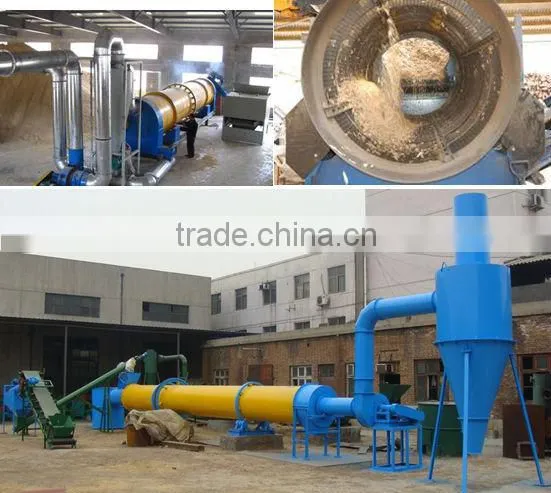

Working site of our professional sawdust dryer in customer's working site

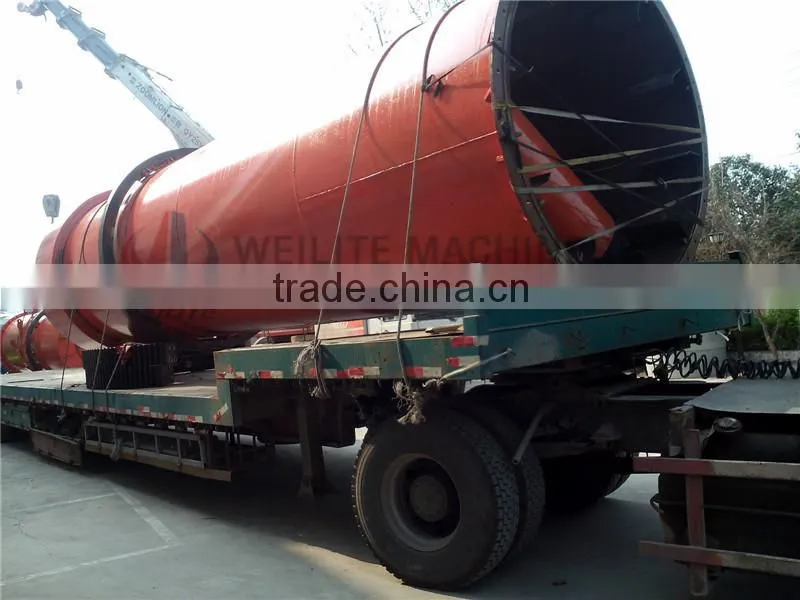

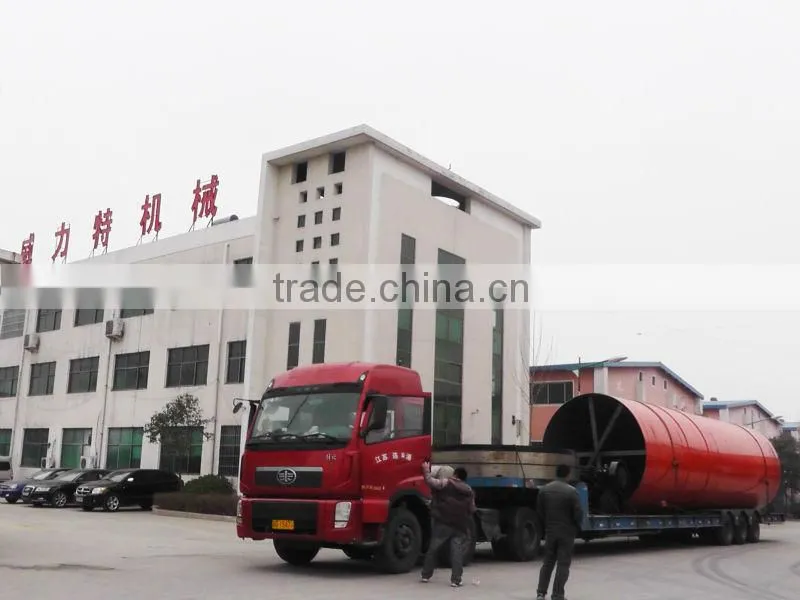

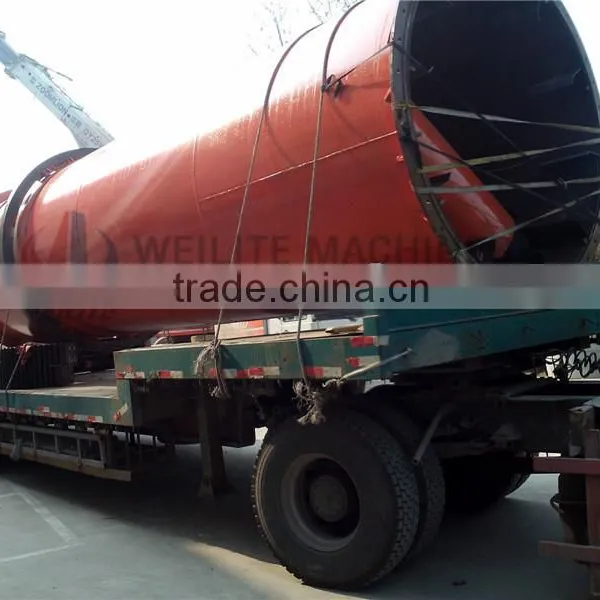

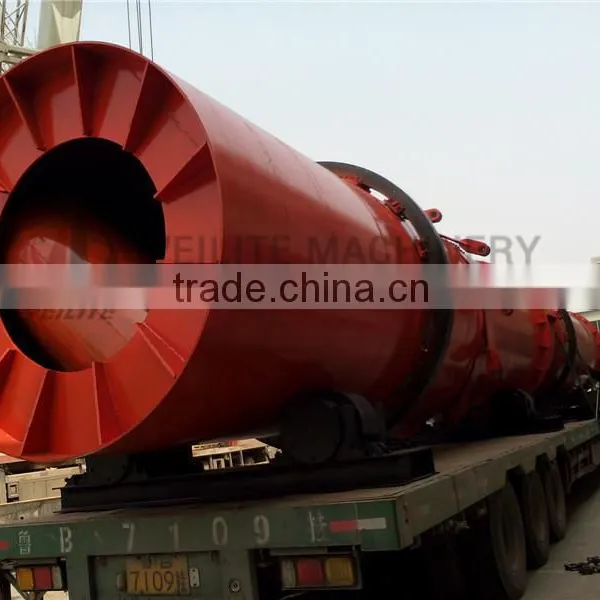

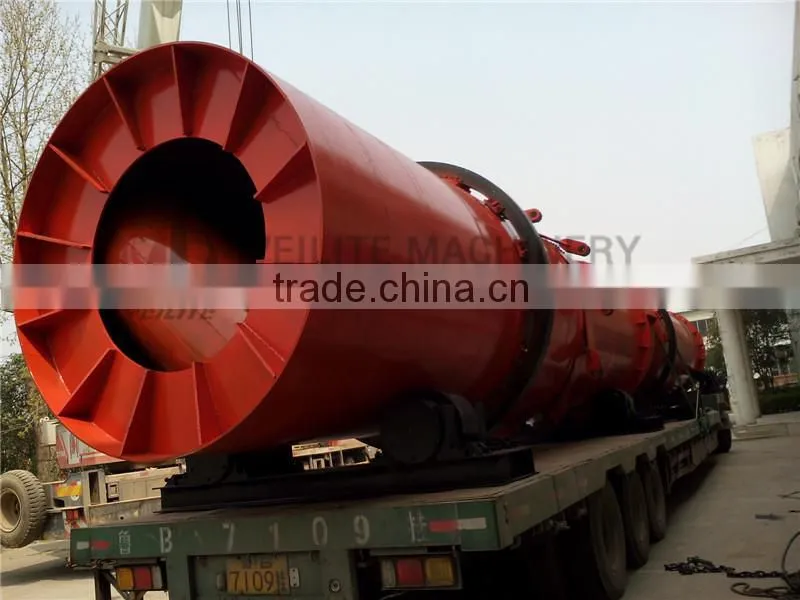

With 20 or 40 standard export container, or negotiation, it depends on the dryer's size and weight
professional sawdust dryer company brief introduction
Henan province zhengzhou city weilite machinery plant is the professional saw dust dryer manufacturer for making different kinds sawdust dryer, woodchips dryer , coal dryer and mining machine, importing international advanced technical, use and improve the newest design conceptof different machines to make more high efficiency, power saving and durable sawdust drying equipment .
Our service of the professional sawdust dryer
1. If any interest to our professional sawdust dryer, please feel free to contact me and let
me know your requirement on capacity and material size.
2. We are professional saw dust dryer manufacturer, we will help to choose the most
suitable machine for you.
3. Whole plant design and drawings are free after set order.
4. Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
5. If you need, we will dispatch professional engineer for installation, trail and worker training.
If any interest to our professional sawdust dryer, please contact me for more details.
Tel:+86 (0)371 86687769
Cell Phone/what's app:+86 18237163670
Contact person: Ashley Gao(Sales Manager)
Skype: ashley weilite
