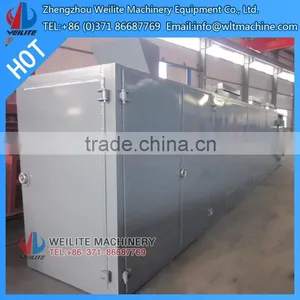

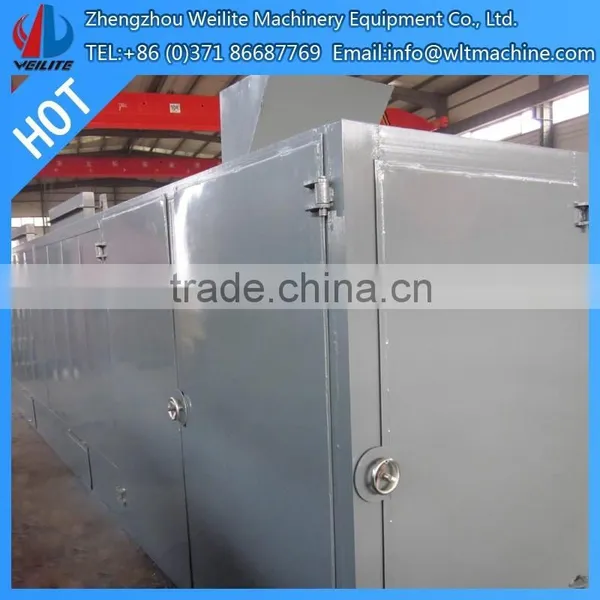

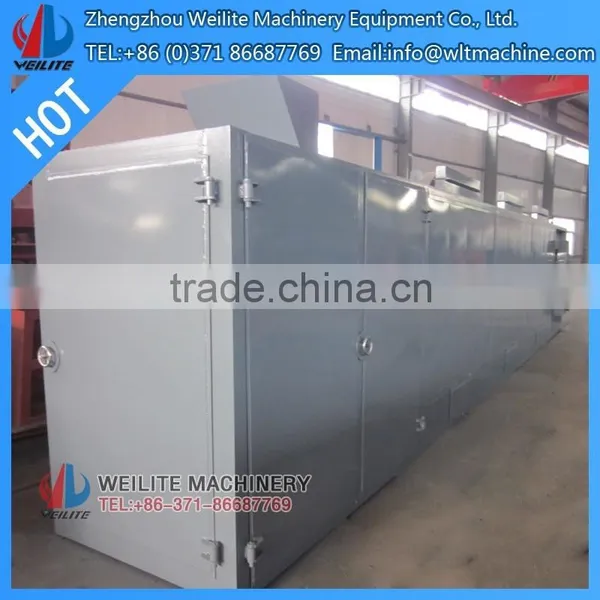

1.Briquette Drier Introduction
Briquette Drier is a highly efficient drying system that can be used in different industry segments and production lines. The drying products include for example coal briquette, charcoal briquettes, biomass pellet, wood chips and other lump or solid materials. Drying temperature is adjustable according to different raw materials so it has a vast application. It has the character of high efficiency, low broken rate, stable performance,etc.
2.Briquette Drier Working Principle

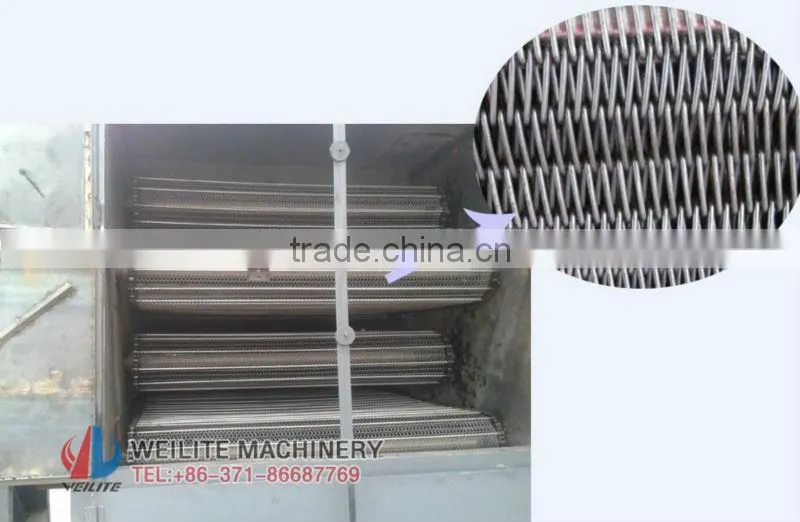

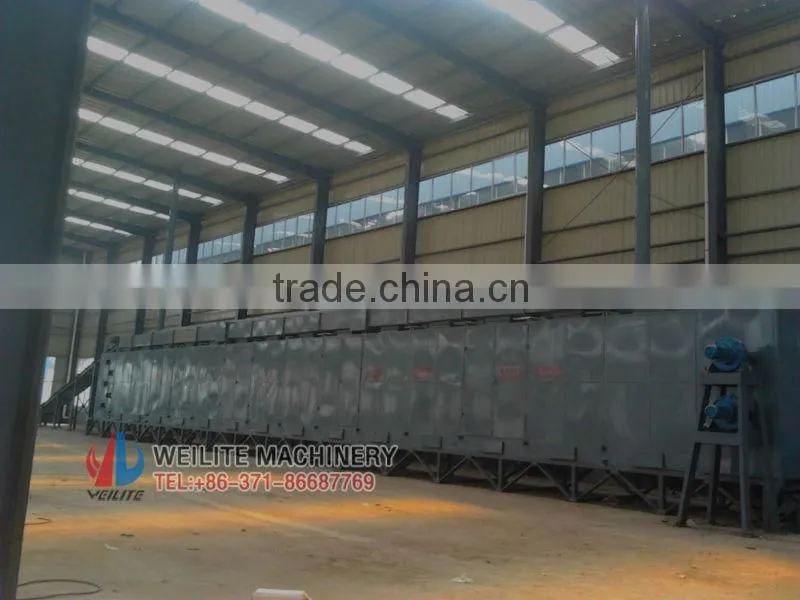

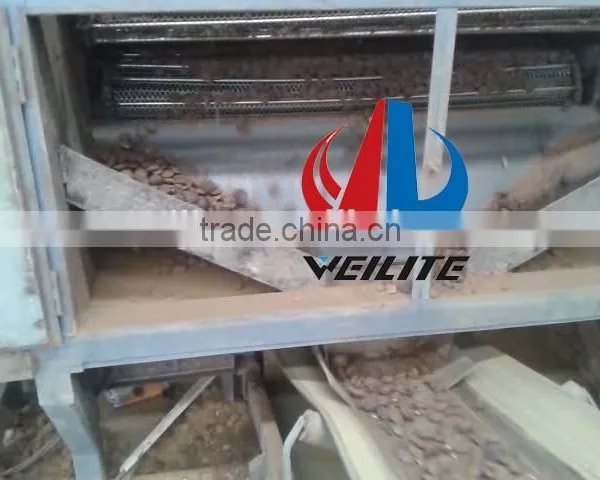

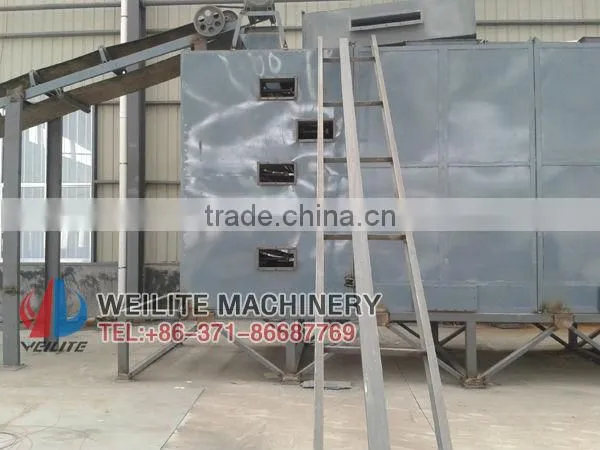

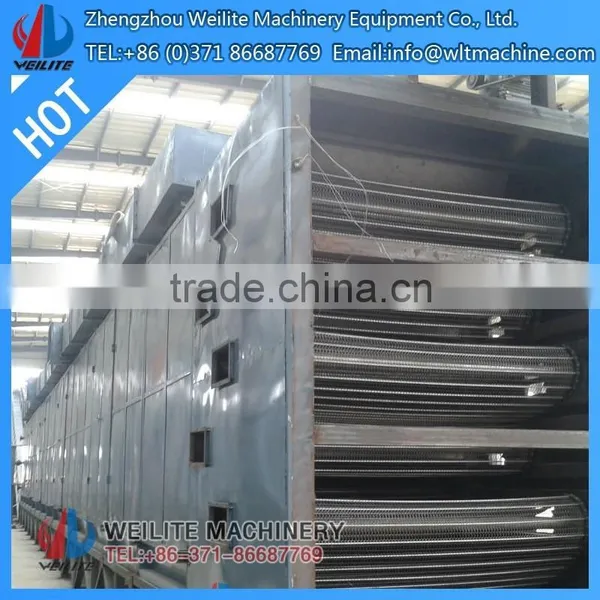

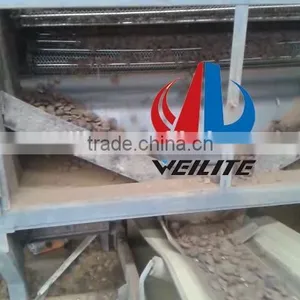

Briquette Drier is horizontal dryer with multi-section combination, this kind of dryer is mainly used for drying in humidity state when the intensity is not high pellet or ball. The length of a dryer is according to the humidity and the output of the material. Material feed from the top and run back and forth from the top down to the Discharge port at the bottom of the drying box.Drying time for 15% humidity coal ash briquettes is approximately 90-120 minutes, customer can adjust the conveyor speed according to the humidity requirement of the finished ball, belt speed is adjustable in order to achieve good product quality.
3.Briquette Drier Application
Examples of Briquette Drier Applications
- briquettes production line
-pellet production line
-other solid / powder material drying production line
4.Briquette Drier Technical Data
Type |
WDH0.8x8m-3 |
WDH1x20m-3 |
WDH1.5x20m-3 |
WDH2x20m-3 |
WDH1.5x30m-5 |
Length(m) |
8 |
20 |
20 |
20 |
30 |
Layer |
3 |
3 |
3 |
3 |
5 |
Mesh Belt Width(m) |
0.8 |
1 |
1.5 |
2 |
1.5 |
Moisture before drying(%) |
8%-12% |
8%-12% |
8%-12% |
8%-12% |
8%-12% |
Moisture after dried(%) |
1%-3% |
1%-3% |
1%-3% |
1%-3% |
1%-3% |
Power(kw) |
3 |
2.2x3 |
3x3 |
4x3 |
5.5x5 |
Drying Temperature(°C) |
70-300 |
70-300 |
70-300 |
70-300 |
70-300 |
Capacity(T/H) |
2 |
10-15 |
20-30 |
35-50 |
55-60 |
We can design the machine fro you according to your requirments. If you need design service, pelase let us know your raw material moisture,your requirement on finished products moisture and capacity (tons per hour).Our professional engineer will give the best solution.

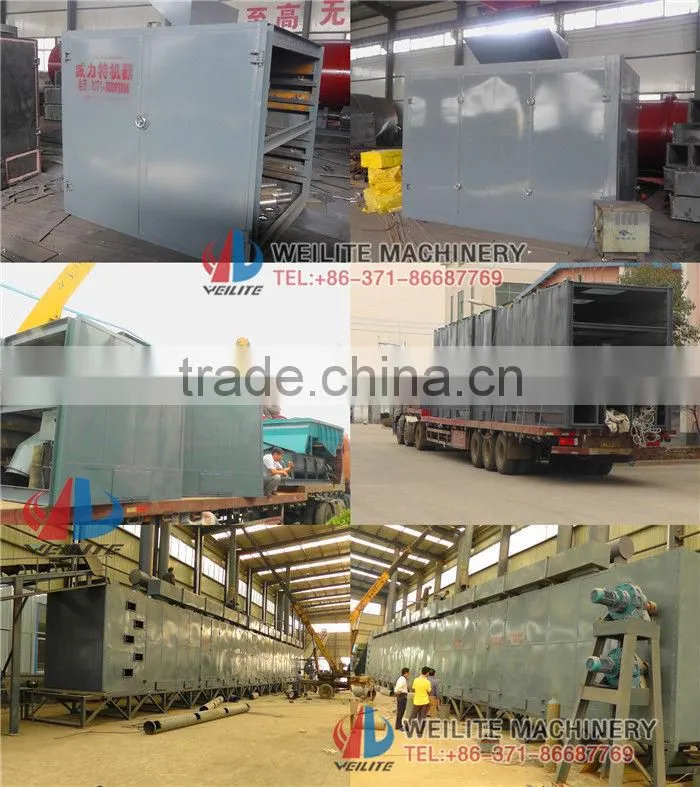

5.Briquettes Drier Packaging And Shipping
6.Our Services For Briquette Drier
a). If any interest in our briquette drier, please feel free to contact me and let me know your requirement on capacity and material moisture before and after dried.
b). We are professional machine manufacturer, we will help to choose the most suitable machine for you.
c). Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
d). If you need, we will dispatch professional engineer for installation, trail and worker training.
7.About Us--Zhengzhou Weilite Machinery
Zhengzhou Weilite Machinery Equipment Co., Ltd is a manufacturer and exporter of machine for briquette production line in China. Our main products are crusher, dryer, mixer, briquette machine and so on. They are excellent quality and enjoy good reputation both in China and overseas. Welcome to visit and purchase from us!
8.FAQ About Briquette Drier
1).What kind of material can be dried by the briquette drier?
- Answer: Nearly all kinds of lump and chips material can be dried by our machine such as wood chips, leaves, coal briquettes, charcoal briquettes, iron pellets, etc.
2).What kind of fuel can be used with the briquette drier?
- Answer: Diesel, natural gas, coal, wood chips and other kind of fuel are OK.
3).What's the drying temperature of the briquette drier?
- Answer:Drying temperature of the dryer is adjustable. It varies from 70 to 350 °C.
4).How long will the briquettes stay in the briquette drier?
- Answer:Normally the drying time will be about 50-120 minutes.
5).Is the belt speed adjustable?
- Answer: Yes, the belt speed is adjustable to make sure it can dry material with differnt moisture.
If any interested in our briquette drier, please feel free to contact me.
