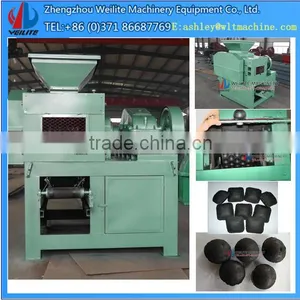

coal briquetting plant machinery
coal briquetting plant machinery introduction
. Our coal briquetting plant machinery helps in making high quality coal briquetting and other waste powder material recycling. As a manufacturer, exporter, and supplier, we have the expertise to design and making advanced briquetting machine for coal to assure smooth briquetting production in different sizes and shapes.
. coal briquetting plant machinery is the first choice for solid fuel energy conservation and dust emissions reduction in the coal plant / coal briquetting plant investment projects and other similar industries.
Application fields of the coal briquetting plant machinery
Refractory plant, power plants,
metallurgical, chemical,
energy, transportation, heating and otherindustries .

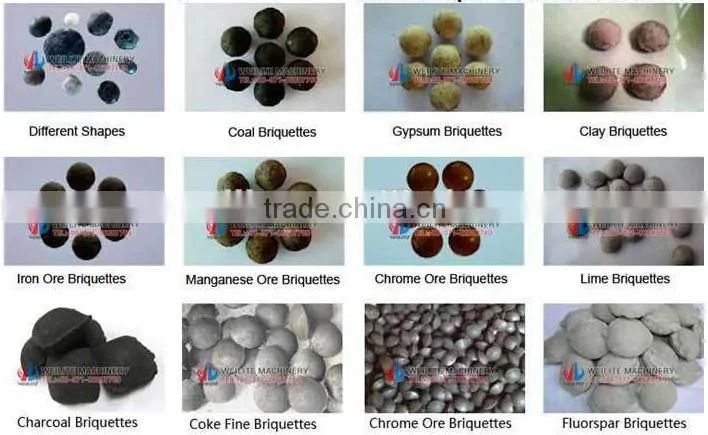

Suitable material for coal briquetting plant machinery
The newest coal briquetting plant machinery can press
. coal dust/powder/grain, iron powder, iron ore dust, coke,
. mineral slag/dust, gypsum, tailing, bolus alba, white bole,
. caoline, active carbon and other kinds powder, dust material,
. waste material and waste residue .
Working principle of the coal briquetting plant machinery
The coal briquetting plant machinery motor will pass the power on to the two pressure rollers through the reducer. The two sides and rollers rotation, in both rotating direction, material fulfill the space between two rollers, with the roller rotating, pressure on material will be bigger and bigger. When the material reach the two rollers rotating line contact point, the pressure reach the peak. After press, the briquettes will drop by gravity.

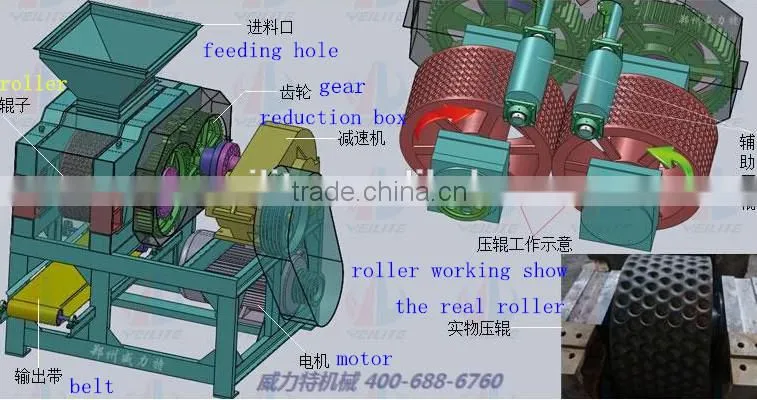

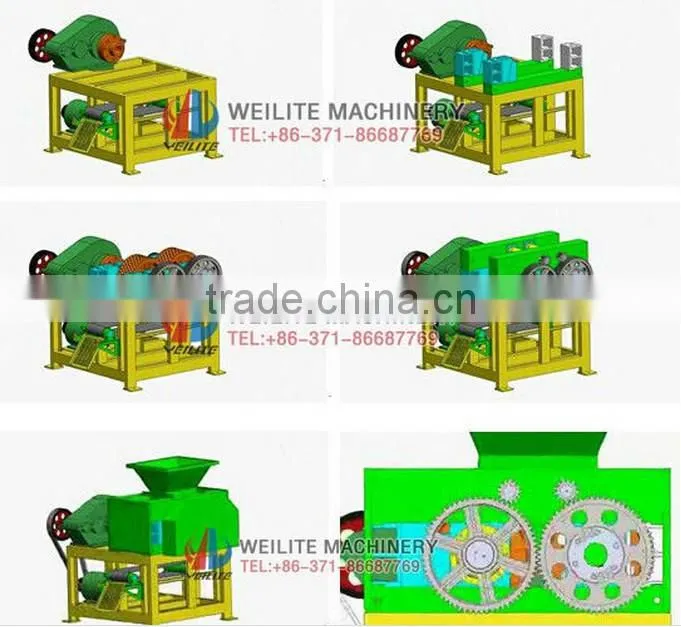

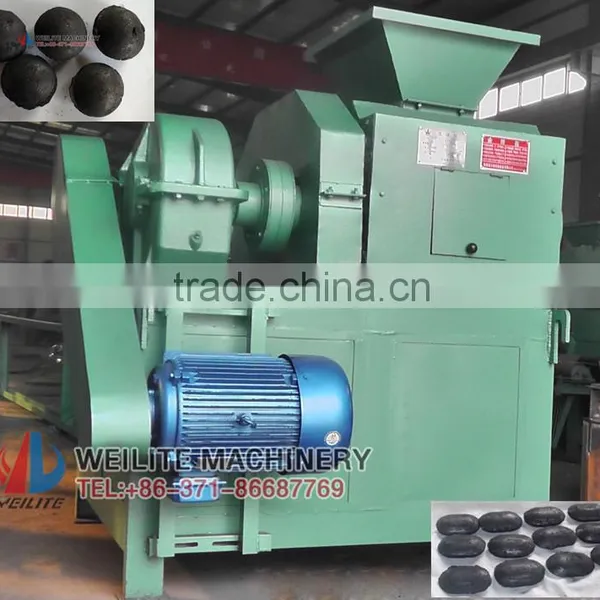

The coal briquetting plant machinery mainly made of three parts:
1. feeding material part : to make sure feed material to the press roller evenly
2. Gearing part : to supply power by electromagnetic adjustable speed motor
3. Molding part : Mainly means the basic body of the machine, the core part is the roller to get different shape and size briquettes .
Features of the coal briquetting plant machinery
a. Making Briquette Size: 30-60mm in general or custom made ;
b.Making Briquette Shape: oval, square, pillow, hexagonal or custom design ;
c.The rollers are made of 65Mn or 9Cr2Mo. After heat treatment the hardness of the rollers will be very high. The rollers is specially designed and easy for exchange. And there is buffer unit inside the making coal briquetting machinery to prevent the machine from being damaged by block material.
Technical data of the coal briquetting plant machinery / briquetting machine for coal
Model |
WLXM-360 |
WLXM-400 |
WLXM-500 |
WLXM-650 |
WLXM-750 |
WLXM-850 |
WLXM-1250 |
Capacity |
2~4 t/h |
6~8t/h |
8~11t/h |
13~18 t/h |
18~25t/h |
25~35 t/h |
40~70 t/h |
Annually capacity |
10,000 t/h |
20,000 t/h |
30,0t00 t/h |
50,000 t/h |
70,000 t/h |
100,000 t/h |
200,000 t/h |
Dia. Of rollers |
360mm |
400mm |
500 |
650mm |
750 |
850mm |
1250mm |
Width of rollers |
250 |
280 |
300 |
336 |
400 |
500 |
650 |
Motor power |
7.5 kw |
11~15kw |
18.5~22kw |
20~30 kw |
45kw |
75 kw |
130 kw |
Rotation speed |
18 r/min. |
15r/min. |
13r/min |
13 r/min. |
13r/min |
10 r/min. |
10 r/min. |
Shapes of briquettes |
Oval or pillow or square or customized |
||||||
Sizes of briquettes |
As your specific requirement ( usually 20~80mm ) |
||||||
If can't sure does your material can be handle by our briquetting machine for coal/other powder material or not, kindly let us know the raw material content, raw material size, raw material moisture and your requirement on capacity. Our professional engineer will help to recommend the most suitable type afterwe get detailed information from you.
Packing and shipping of the coal briquetting plant machinery
1. with wooden case for single machine, small size machine
2. with container for big size machine, large quantity machine, or complete production line
coal briquetting plant machinery company brief introduction
Henan province zhengzhou city weilite machinery plant is the professional manufacturer for making different kinds coal briquetting plant use machine, briquetting machine for coal,etc, importing international advanced technical, use and improve the newest design concept of different machines to make more high efficiency, power saving and durable making coal briquetting machinery .
FAQ about coal briquetting plant machinery
1. What’s the shape of the briquette made by coal briquetting plant machinery ?
Answer: Square, oval, pillow, ball, or customized .
2. Moisture demands of the coal briquetting plant machinery ?
Answer: usually 8%-12% .
3. what’s the feeding size to the coal briquetting plant machinery ?
Answer: less than 5mm in general .
4. With binder or not ?
Answer: it’s up to you, with binder can enhance the cold strength and thermal intensity of the briquette , if you do not need, then without binder .
5. With dryer or not ?
Answer: First, if the raw material is too wet (raw moisture more than 45%), then should dry the wet material before briquetting; second, the final briquettes to be dry or not, it’s up to you . If the working place has not much strict requirements to the briquette’s moisture, or the device can handle the briquette directly, then there is no need briquettes mesh belt dryer .
6. What’s the supporting machines in the coal briquetting plant production line ?
Answer: crusher, conveyor, binder, mixer, double-shaft mixer, raw material dryer, briquette mesh belt dryer, electric cabinet, etc . We produce all the supporting equipment.
Our service of the coal briquetting plant machinery
1. If any interest on our coal briquetting plant machinery , please feel free to contact me and let me know your requirement on capacity and material size.
2. We are professional factory for making coal briquetting machinery, we will help to choose the most suitable machine for you.
3. Whole plant design and drawings are free after set order.
4.Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
5. If you need, we will dispatch professional engineer for installation, trail and worker training.
If any interest to our coal briquetting plant machinery, please contact me for more details.
