coal briquette pressing machine
Coal briquette pressing machine Introduction
1. Our coal briquette pressing machine helps in manufacturing high quality coal briquettes / charcoal briquettes and other waste powder material recycling. As a manufacturer, exporter, and supplier, we have the expertise to design and manufacturing advanced briquette machine to assure smooth briquette production in varied sizes and shapes.
2. coal briquette pressing machine is the first choice for energy conservation and emissions reduction in the coal /charcoal industry investment projects and other similar powder industries.
Application fields of the coal briquette pressing machine
Refractory plant,
power plants,
metallurgical,
chemical,
energy,
transportation,
heating and otherindustries .
Suitable material of the coal briquette pressing machine
The newest coal briquette pressing machine can press
1. coal dust/powder/grain, iron powder, iron ore dust, coke,
2. mineral slag/dust, gypsum, tailing, bolus alba, white bole,
3. caoline, active carbon and other kinds powder, dust material,
4. waste material and waste residue .
Working principle of the coal briquette pressing machine
The coal briquette pressing machine motor will pass the power on to the two pressure roller through the reducer. The two sides and roller rotation, in both the rotating direction, material fulfill the space between two rollers, with the roller rotation, pressure on material will be bigger and bigger. When the material reach the two rollers rotating line contact point, the pressure reach the peak. After press, the briquette will drop by gravity.
The coal briquette pressing machine mainly made of three parts:
1. feeding material part : to make sure feed the press roller material evenly
2. Gearing part : to supply power by electromagnetic adjustable speed motor
3. Molding part . Mainly means the basic body of the machine, the core part is the roller .
Features of the coal briquette pressing machine
a. Manufacturing Briquette Size: 30-60mm or custom made

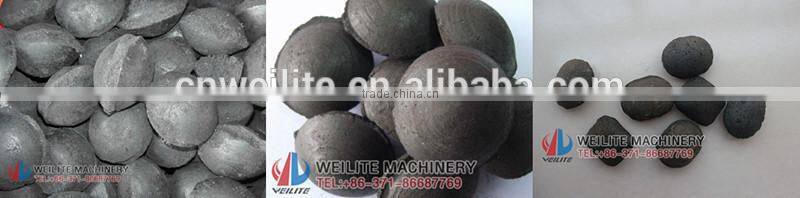

b.Manufacturing Briquette Shape: oval, square, pillow, hexagonal or custom design
c.The rollers are made of 65Mn or 9Cr2Mo. After heat treatment the hardness of the rollers will be very high. The rollers is specially designed and easy for exchange. And there is buffer unit inside the machine to prevent the machine from being damaged by block material.
Technical data of the coal briquette pressing machine
Model |
WLXM-360 |
WLXM-400 |
WLXM-500 |
WLXM-650 |
WLXM-750 |
WLXM-850 |
WLXM-1250 |
Capacity |
2~4 t/h |
6~8t/h |
8~11t/h |
13~18 t/h |
18~25t/h |
25~35 t/h |
40~70 t/h |
Annually capacity |
10,000 t/h |
20,000 t/h |
30,0t00 t/h |
50,000 t/h |
70,000 t/h |
100,000 t/h |
200,000 t/h |
Dia. Of rollers |
360mm |
400mm |
500 |
650mm |
750 |
850mm |
1250mm |
Width of rollers |
250 |
280 |
300 |
336 |
400 |
500 |
650 |
Motor power |
7.5 kw |
11~15kw |
18.5~22kw |
20~30 kw |
45kw |
75 kw |
130 kw |
Rotation speed |
18 r/min. |
15r/min. |
13r/min |
13 r/min. |
13r/min |
10 r/min. |
10 r/min. |
Shapes of briquettes |
Oval or pillow or square or customized |
||||||
Sizes of briquettes |
As your specific requirement ( usually 20~80mm ) |
||||||
If can't sure does your material can be hanled with our machine for manufacturing coal/charcoal briquettes or not, kindly let us know the raw material content, raw material size, raw material moisture and your requirement on capacity. Our professional engineer will help to recommend the most suitable type afterwe get detailed information from you.
Packing and shipping of the coal briquette pressing machine
1. with wooden case for single machine, small size machine
2. with container for big size machine, large quantity machine, or complete production line
coal briquette pressing machine Company brief introduction
Henan province zhengzhou city weilite machinery plant is the professional manufacturer for manufacturing different kinds coal briquette pressing machine, machine for manufacturing charcoalbriquette, importing international advanced technical, use and improve the newest design concept of different machines to make more high efficiency, power saving and durable briquette pressing machine .
FAQ about coal briquette pressing machine
1. What’s the shape of the briquette made by coal briquette pressing machine?
Answer: Square, oval, pillow, ball, or customized .
2. Moisture demands of the coal briquette pressing machine ?
Answer: usually 8%-12% .
3. what’s the feeding size to the coal briquette pressing machine ?
Answer: less than 5mm in general .
4. With binder or not ?
Answer: it’s up to you, with binder can enhance the cold strength and thermal intensity , if you do not need, then without binder .
5. With dryer or not ?
Answer: First, if the raw material is too wet (raw moisture more than 45%), then should dry the wet material before to be formed ; second, the final briquettes to be dry or not, it’s up to you as well. If the working place has not much strict requirements to the briquette’s moisture, or the device can handle the briquette directly, then there can without briquettes mesh belt dryer .
6. What’s the supporting machines in the briquette manufacturing production line ?
Answer: crusher, conveyor, binder, mixer, double-shaft mixer, raw material dryer, briquette mesh belt dryer, electric cabinet, etc . We produce all the supporting equipment.
Our service of the coal briquette pressing machine
1. If any interest on our coal briquette pressing machine , please feel free to contact me and let me know your requirement on capacity and material size.
2. We are professional factory for manufacturing machine, we will help to choose the most suitable machine for you.
3. Whole plant design and drawings are free after set order.
4. Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
5. If you need, we will dispatch professional engineer for installation, trail and worker training.
If any interest to our coal briquette pressing machine, please contact me for more details.
Tel:+86 (0)371 86687769
Cell Phone/what's app:+86 18237163670
Contact person: Ashley Gao(Sales Manager)
Skype: ashley weilite
