charcoal briquette machine manufacturer
charcoal briquette machine manufacturer Introduction
Our charcoal briquette machine manufacturer helps in develop high quality charcoal briquettes and waste charcoal material recycling. As a manufacturer, exporter, and supplier, we have the expertise to design and develop premium grade roller press briquette machine to assure smooth briquettes production in varied sizes.
Application fields of the charcoal briquette machine manufacturer
Refractory plant, power plants, metallurgical, chemical, energy, transportation, heating and otherindustries .
Suitable material of the charcoal briquette machine manufacturer
The newest charcoal press briquette machine with two-rollers or four-rollers can press
. coal dust/powder/grain, charcoal, iron powder, iron ore dust, coke,
. mineral slag/dust, gypsum, tailing, bolus alba, white bole,
. caoline, active carbon and other kinds powder, dust material,
. waste material and waste residue .
The working principle of the charcoal briquette machine manufacturer
The charcoal briquette machine manufacturer / roller press briquette machine, it's motor will pass the power on to the two pressure rollers through the reducer. The two sides and roller rotation, in both the rotating direction, material fulfill the space between two rollers, with the roller rotation, pressure on material will be bigger and bigger. When the material reach the two rollers rotating line contact point, the pressure reach thepeak. After press, the briquette will drop by gravity.

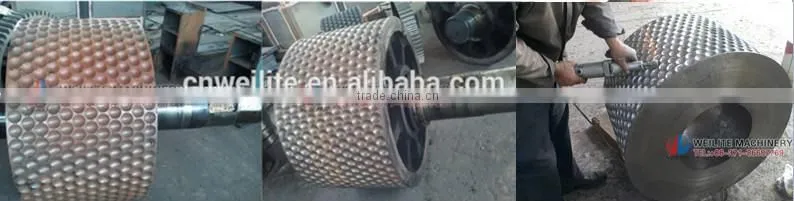

Roller of roller press briquette machine made by ourselves
Size , shape and raw material made of charcoal briquette machine manufacturer
a. Briquette Size:30-60mm or custom made
b. Briquette Shape:oval, square, pillow, hexagonal or custom design
c.The rollers are made of 65Mn or 9Cr2Mo.After heat treatment the hardness of the rollers will be very high. The rollers is specially designed and easy for exchange. And there is buffer unit inside the charcoal briquette machine (manufacturer) to prevent the machine from being damaged by block material.
Main Parameters of charcoal briquette machine manufacturer
Model |
WLXM-360 |
WLXM-400 |
WLXM-500 |
WLXM-650 |
WLXM-750 |
WLXM-850 |
WLXM-1250 |
Capacity |
2~4 t/h |
6~8t/h |
8~11t/h |
13~18 t/h |
18~25t/h |
25~35 t/h |
40~70 t/h |
Annually capacity |
10,000 t/h |
20,000 t/h |
30,0t00 t/h |
50,000 t/h |
70,000 t/h |
100,000 t/h |
200,000 t/h |
Dia. Of rollers |
360mm |
400mm |
500 |
650mm |
750 |
850mm |
1250mm |
Width of rollers |
250 |
280 |
300 |
336 |
400 |
500 |
650 |
Motor power |
7.5 kw |
11~15kw |
18.5~22kw |
20~30 kw |
45kw |
75 kw |
130 kw |
Rotation speed |
18 r/min. |
15r/min. |
13r/min |
13 r/min. |
13r/min |
10 r/min. |
10 r/min. |
Shapes of briquettes |
Oval or pillow or square or customized |
||||||
Sizes of briquettes |
As your specific requirement ( usually 20~80mm ) |
||||||
If you need our machine, please let us know the raw material content, raw material size, raw material moisture and your requirement on capacity. Our professional engineer will help to recommend the most suitable type after we get detailed information from you.

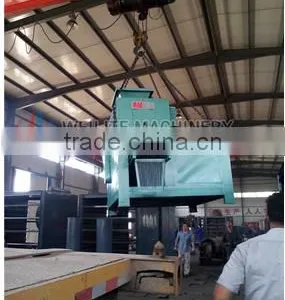

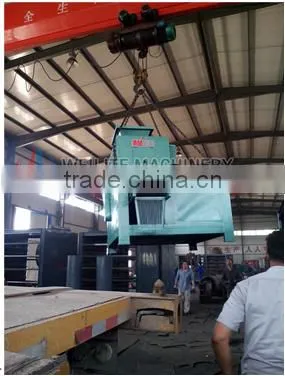

Packing and shipping of the charcoal briquette machine manufacturer
1. with wooden case for single machine, small size machine
2. with container for big size machine, large quantity machine, or complete production line
FAQ About charcoal briquette machine manufacturer
1. What's the best raw material moisture for charcoal briquette machine manufacturer?
Answer: 8%-12%. If material moisture is larger, we had better dry it firstly.
2. What's the max. feeding size for charcoal briquette machine manufacturer?
Answer: less than 5mm.If larger, we will need crusher.
3. What's the briquette size can be made by charcoal briquette machine manufacturer?
Answer:Normally the briquette diameter is between 30-60mm.We also can custom made the briquette size according the customer's requirement.
4. Will this machine requires binder for making briquettes?
Answer:Yes, in order to make sure the briquette strength, we will need binder.
5. Will we need water?
Answer: It depends on the raw material moisture.
6. What’s the supporting machine for briquettes making in the production line ?
Answer: crusher, conveyor, binder, mixer, double-shaft mixer, raw material dryer, briquette mesh belt dryer, electric cabinet, etc . We produce all the supporting equipment.
7. Does it support wholesale for charcoal briquette machine manufacturer?
Answer: yes, we are the factory, support wholesale charcoal press briquette machine .
The charcoal briquette machine manufacturer mainly used in the coal / charcoal press briquettes making production line :
1. crusher: crush the raw material to less than 5mm;
2. belt conveyor: convey the material to dryer or next step machine ;
3. raw material rotary dryer: dry the material to suitable moisture before feeding the briquette machine - 8-12% in general ;
4. mixer: mix the material with binder and water evenly ;
5. briquette machine: make briquettes 30-60mm in general with oval, pillow shapet,etc ;
6. continuous wire mesh belt dryer: dry the fresh briquette's moisture less than 3% .
(( We can help to design production line according to customer's raw material and capacity requirements . ))
Complete charcoal roller press briquettes machine and charcoal briquette dryer in India
charcoal briquette machine manufacture company brief introduction
Henan province zhengzhou city weilite machinery plant is the professional manufacture for making different kinds new type charcoal briquette machine manufacturer
, machine for coal briquette making, charcoal press briquette machine, sand making machine, beneficiation machine, importing international advanced technical, use and improve the newest design concept of different machines to make more efficiency, power saving and most durable machine .
Our service of the charcoal briquette machine manufacturer
1. If any interest to our charcoal briquette machine manufacturer, please feel free to contact me and let me know your requirement on capacity and material size.
2. We are professional charcoal briquette machine manufacturer
, we will help to choose the most suitable machine for you.
3. Whole plant design and drawings are free after set order.
4. Quality Commitment: Quality Warranty, Grantee Period: 1 year. Supply wearing parts with favorable price and long term after-sales service.
5. If you need, we will dispatch professional engineer for installation, trail and worker training.
If any interest to our charcoal briquette machine manufacturer, contact me freely for more details please.
