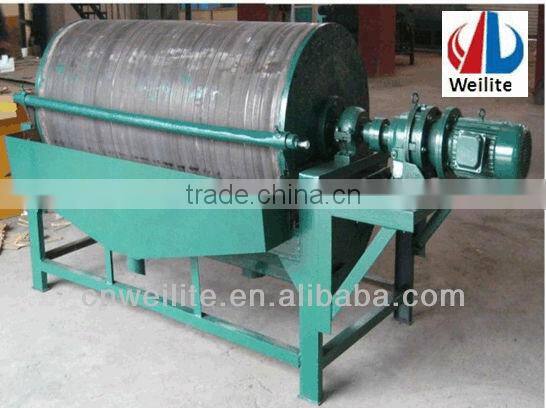

High quality Wet type magnetic separator
Part One : General Description and usuage of the wet type magnetic separator
Magnetic Separator is widely used in mineral processing, coal washing and chemical industry, for sorting the wet particle size of 6-10mm. The strong magnetic minerals and magnetic minerals are divided into two kinds of material: non-magnetic material and megnetic material. Magnetic separator is suitable for wet magnetic separation of materials such as magnetite, calcined ore, etc. and it can remove the iron in the coal, non-metal and construction industries.
Part Two : Working Principle
When the pulp flows to the magnetic separator via inlet, the mineral granules spread. As a result of the magnetic force, the magnetic minerals concentrate as a lump or a chain. This lump or chain is then absorbed on the roller surface owing to the magnetic force. When the magnetic lump or chain rotates with the roller, gangues and other non-magnetic minerals falls off from the lump or chain and are then discharged from outlet. The lump or chain left at the wall of the roller is ore concentrate.
Part Three : Main parameters OF wet type magnetic separator
| Model | Strength of magnetic field | Processing capacity | Motor Power | Weight |
| CTB 600X1200 | 1450 Oe | 8~15 t/h | 1.5 kw | 910 kg |
| CTB 600X1800 | 1500 Oe | 15~25 t/h | 2.2 kw | 1340 kg |
| CTB 750X1800 | 1550 Oe | 30~45 t/h | 3 kw | 2050 kg |
| CTB 900X1800 | 1650 Oe | 35~60 t/h | 4 kw | 3000 kg |
| CTB1050X2400 | 1650 Oe | 60~95 t/h | 5.5 kw | 5020 kg |
| CTB 1200X3000 | 1650 Oe | 80~150 t/h | 7.5 kw | 7800 kg |
| CTB 1500X3000 | 1650 Oe | 120~200 t/h | 11 kw | 9600 kg |
Please note that :
If you could not find the wet magnetic separator in this page , please feel free to contact me ! We are the mining equipment manufacturer in China , we can produce the right machine for you according to your specific requirement !
My mobile phone no. is +86 371 86687769. Please call me or email me ! We can talk more !
