China magnetic separator / China magnetic separator Wet style

Specifications

Wet magnetic separator manufacturer
1 selling by the manufacturer directly
2 high quality and low price
3 mining separate use

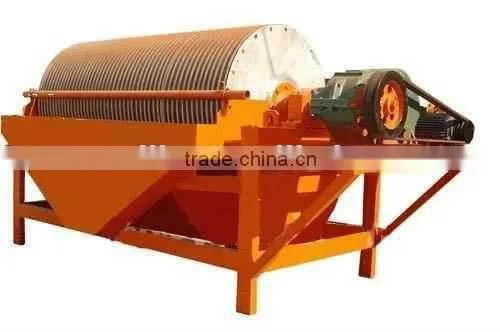

Wet type magnetic separator made in China



Part One : General Description and usuage

Magnetic Separator is widely used in mineral processing, coal washing and chemical industry, for sorting the wet particle size of 6-10mm. The strong magnetic minerals and magnetic minerals are divided into two kinds of material: non-magnetic material and megnetic material. Magnetic separator is suitable for wet magnetic separation of materials such as magnetite, calcined ore, etc. and it can remove the iron in the coal, non-metal and construction industries.



Part Two : Working Principle

When the pulp flows to the magnetic separator via inlet, the mineral granules spread. As a result of the magnetic force, the magnetic minerals concentrate as a lump or a chain. This lump or chain is then absorbed on the roller surface owing to the magnetic force. When the magnetic lump or chain rotates with the roller, gangues and other non-magnetic minerals falls off from the lump or chain and are then discharged from outlet. The lump or chain left at the wall of the roller is ore concentrate.



Part Three : Main parameters

Model	Strength of magnetic field	Processing capacity	Motor Power	Weight
CTB 600X1200	1450 Oe	8~15 t/h	1.5 kw	910 kg
CTB 600X1800	1500 Oe	15~25 t/h	2.2 kw	1340 kg
CTB 750X1800	1550 Oe	30~45 t/h	3    kw	2050 kg
CTB 900X1800	1650 Oe	35~60 t/h	4    kw	3000 kg
CTB1050X2400	1650 Oe	60~95 t/h	5.5 kw	5020 kg
CTB 1200X3000	1650 Oe	80~150 t/h	7.5 kw	7800 kg
CTB 1500X3000	1650 Oe	120~200 t/h	11  kw	9600 kg





Please note that :

If you could not find the wet magnetic separator in this page , please feel free to contact me ! We are the mining equipment manufacturer in China , we can produce the right machine for you according to your specific requirement !

My mobile phone no. is +86 371 86687769  . Please call me or email me ! We can talk more !
