CPE Cast Protection Film Machine
General overview of CPE film production line
This line is to produce high quality three layer co extruded CPE protaction film through the process of cast and coextrusion and online curing.
Techniacal details of CPE film production line
Model No. | 1000 | 1200 | 1700 | 2200 |
Film Width (mm) | 800 | 1000 | 1500 | 2000 |
Film Thickness (mm) | 0.01-0.08 | |||
Maximum Linear Speed of The Cast Film Extrusion Line (m/min) | 50-100-150-200 | |||
Features and advantages of CPE film production line
1.Screw: has special mixing fuction and high plasticizing capacity. It ensures good plasticizing, excellent mixing and high output when combining with European static mixer.
2.Optional fully automatic die and thickness gauge system with APC control for automatic measuring film thickness and adjusting die online.
3.High quality cooling and forming roller, special designed spiral flow, will ensure good cooling and molding at the high speed running.
4.Positive pressure and negative pressure device will be provided to reach a stable melting.
5.The film edge can be recyled online to save production cost.
6.The full automatic central winder with imported tension controller is helpful to automatic change finished rolls and cut off.
Characteristic of cast film
Compared with blowing protection film, CPE cast protection film enjoys following merits:
higher transparency and lower haze;
Better smoothness;
A kind of no glue protection film with electrosatatic adsoption force so its paste effect is more beautiful without any glue vestigital;
Apllication of cast film
Uesd as ultraviolet proof, sun protection, dustproof of car surface paint
Protect electrical products surface such as refrigerator, air condition, washing machine etc.
Outer packaging of electroplated products such as electroplated parts, tables and chairs, electroplated cups;
Surface protection of aluminum plastic panel, high quality mirror board, aluminum profile,security doors, ps plated and stainless steel plate’
Avoid damage in the process of production, transport and use.

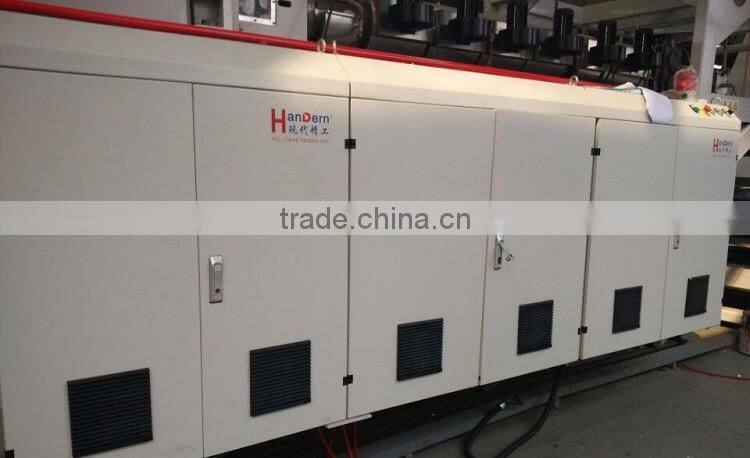

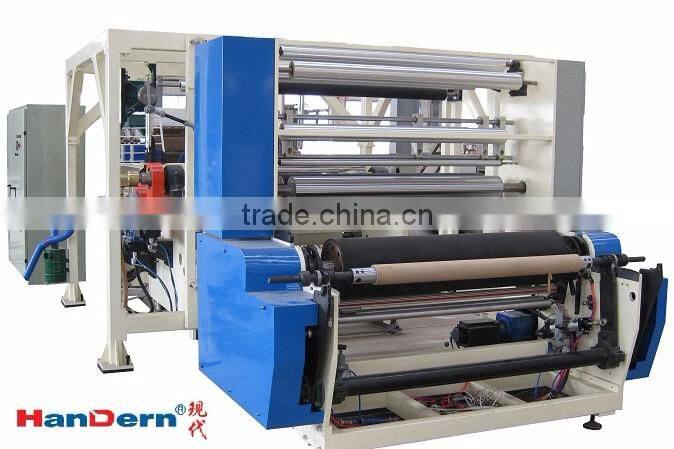

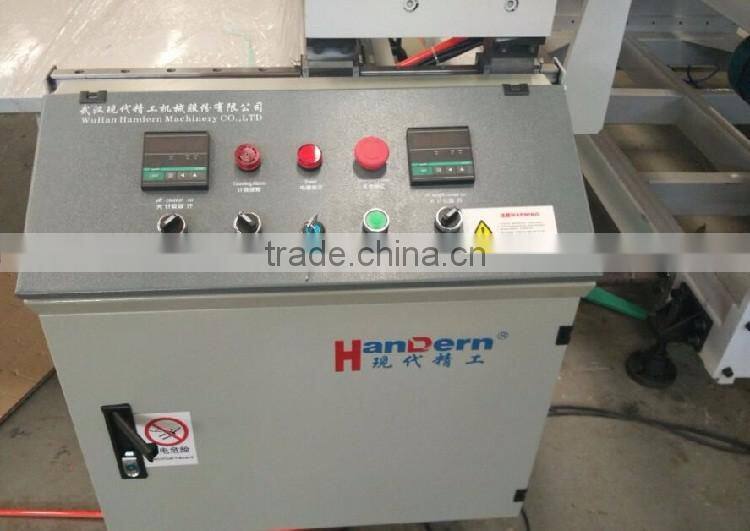

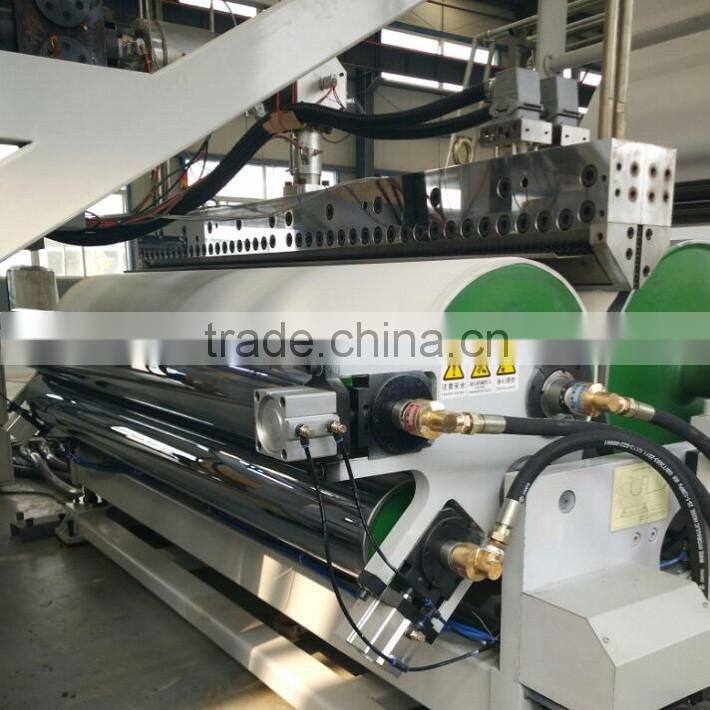

Pictures of CPE film production line
0.012mm CPE cast protection film production line
0.02mm CPE cast protection film production line
0.03mm CPE cast protection film production line
0.035mm CPE cast protection film production line
Supply the complete drawings for installing the machine and send one or two technicians to buyer to install and adjust the machine and train operator of buyer. Or operator trainee coming to our factory for study.
The seller guarantee the eligible production can be make out by the machine supplied by seller at buyer's company.
The buyer should prepare all the condition such as water, workspace, power, air, etc, according to the using condition of the machine, before our engineers arrival.
Supply complete service.
Quality control of CPE cast protection film production line
