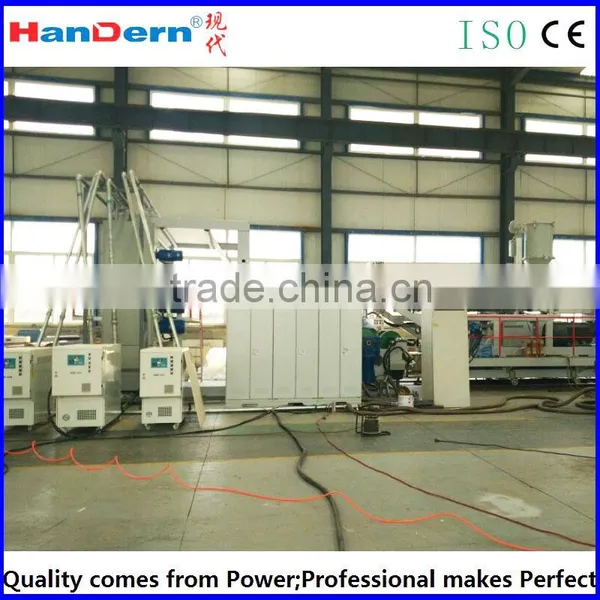

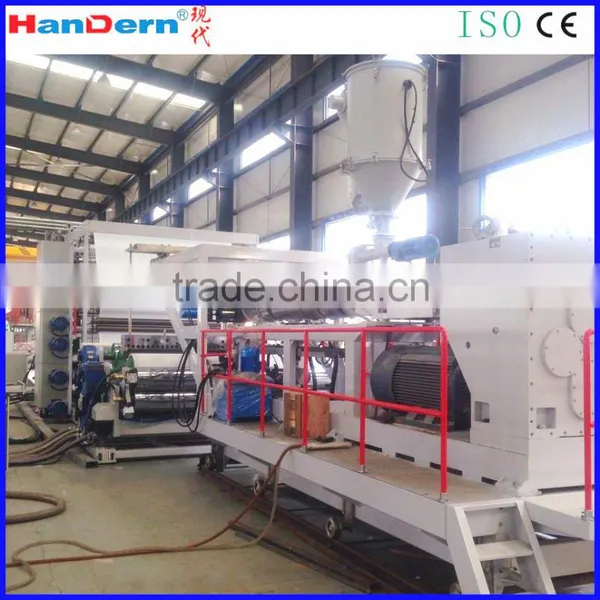

High quality waterproof breathable film machin
Advanced High quality waterproof breathable film machine
The breathable film allows air to circulate while keeping out moisture.
This machine can cast PE, PP, EVA, PEVA, TPU films which are widely used for hygiene, medical and packaging applications.
Cast film machine have some advantages compared with blown film machine.
Application:

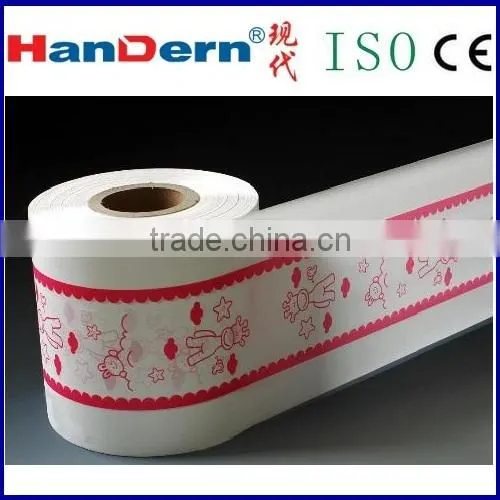

1) Hygiene products: sanitary napkin, lady pad, baby diaper, medical surgical gown, pet cushion, disposable underpad and etc.
2) Daily necessities: raincoat, umbrella, tablecloth, western style suit cover, glove, apron, bath curtain, bath hat and etc.
3) Packaging: computer cover, electric appliance cover, shoes cover, cosmetic soft package, shopping bag, gift bag, document folder, file cover and etc.
Specifications of High quality waterproof breathable film machine
Breathable Film Width | 1200mm-2600mm |
Linear Speed of the Extrusion Equipment | 200-300 m/min |
Breathable Film Thickness | 0.015mm-0.08mm |
Maximum Production Capacity | 200-300-400-500-600KG/h |
Main Parts of High quality waterproof breathable film machine
1 | Feeding System | One set |
2 | Extruding System | One set |
3 | Hydraulic Pressure Screen Exchanger System | One set |
4 | Melting Pressure and Temperature Sensor | One set |
5 | Die specially for Casting | One set |

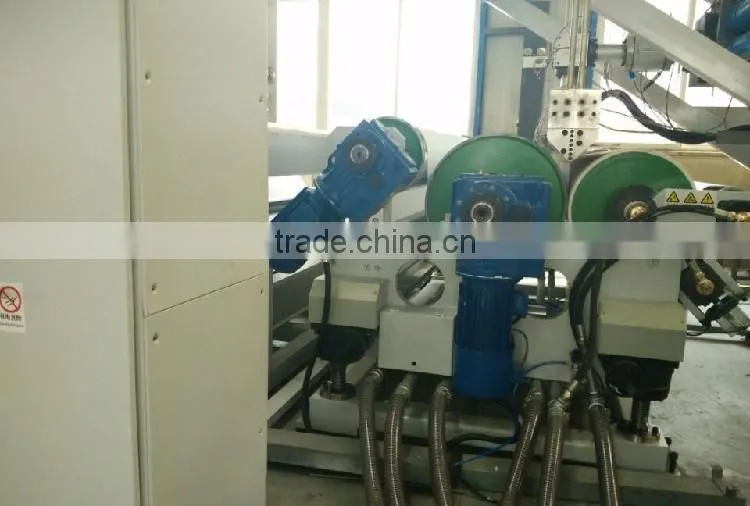

6 | Cast forming unit | One set |
7 | Unilateral Stretch unit | One set |
8 | Online thickness gauge | One set |
9 | Online computer detective unit | One set |
10 | Haul off unit | One set |
11 | Embossing unit | One set |
12 | Winding unit | One set |
13 | Control System | One set |
Advantages of High quality waterproof breathable film machine
In comparison to other Chinese film extrusion lines, our extrusion equipment exhibits many unique advantages in configuration optimization, energy saving, and manufacturing and processing technologies.
Overall performance tests show that each and every technical specification of our extrusion machine reaches internationally advanced level. As a matter of fact, HANDERN plastics extrusion line is among the fastest, most advanced Chinese equipment for producing breathable films.
The water vapor transmission rate of the resulting film from our plastics extrusion line, if measured at the temperature of 37℃ and relative humidity of 90%, is up to 8000g/m2(24h).
As the state-of-the-art polymeric material, the breathable film has much higher processing technology requirements than ordinary water-proof materials. As far as material quality is concerned, the breathable film has far more desirable functions than other water-proof materials.
Process of High quality waterproof breathable film machine
Feeding→Drying→Extrusion→Screen exchanger→Die→Shape forming→Water temperature circulation system→Cooling→Haul off→Preheating
Oil temperature System→Heating→Stretch→Calibration→Cooling→Automatic slitting and winding
1200mm High quality waterproof breathable film machine
1400mm High quality waterproof breathable film machine
1600mm High quality waterproof breathable film machine
1800mm High quality waterproof breathable film machine
Wooden case is available for High quality waterproof breathable film machine
- Supply the complete drawings for installing the machine and send one or two technicians to buyer to install and adjust the machine and train operator of buyer. Or operator trainee coming to our factory for study.
- The seller guarantee the eligible production can be make out by the machine supplied by seller at buyer’s company.
- The buyer should prepare all the condition such as water, workspace, power, air, etc, according to the using condition of the machine, before our engineers arrival.
- Supply complete service.
Quality Control of High quality waterproof breathable film machine
