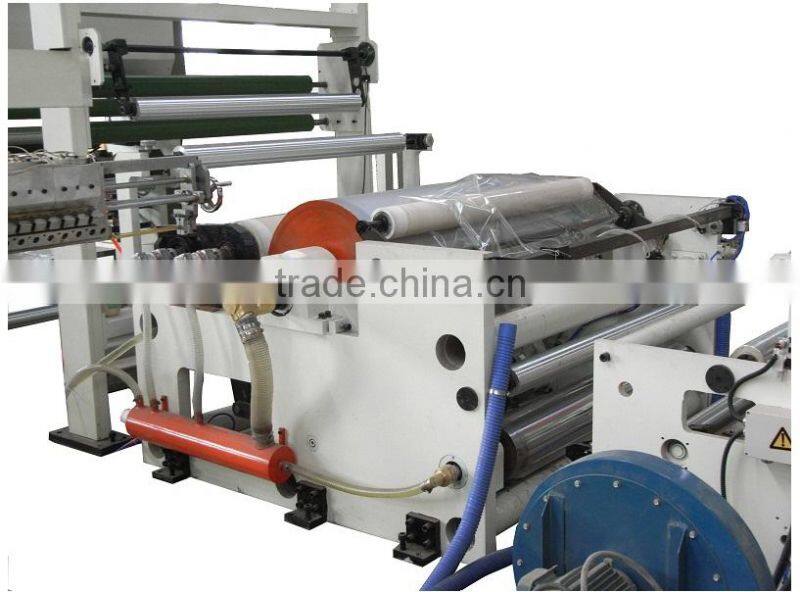

PE PP EVA cast film extrusion coating lamination machine
1. General introduction of PE PP EVA cast film extrusion coating lamination machine
This high speed extrusion lamination mmachine takes Polyethylene(PE) or Polypropylene(PP) as raw material, then laminating on base material such as kinds of paper, BOPP,BOPET after extrusion. It can improve tensile strength, air tightness, and moisture of the base material.
2.Applications of PE PP EVA cast film extrusion coating lamination machine
The line is widely used in food, chemicals, commodities, commodities, electronics,metallurgy,cement and mineral packaging, storage and tranport; and also can be combined with air-laid paper coated silicon, used in the field of paper tape.
Paper type:
Lamination with kraft paper, air-laid paper, white cardoard, used for packing books, seeds,garbage bags,tape and others;
Film:
Lamination with BOPP,BOPET film, are used for pack instant noodles, meat food, chemical products and others.
3.Technical Specifications of PE PP EVA cast film extrusion coating lamination machine
| Model | 950mm | 1150mm |
1350mm |
1750mm | 1950mm |
| Width | 800mm | 1000mm | 1200mm | 1650mm | 1800mm |
| Extruder Powder | 30KW | 30KW | 37 KW | 37 KW | 45 KW |
| Extruder Screw | Ø80 | Ø90 | Ø90 | Ø90 | Ø100 |
| Maximum Extrusion Output | 160kg/h | 180kg/h | 220kg/h | 240kg/h | 260kg/h |
| Resin | LDPE, LDPP laminating resin | ||||
| Base Material | Paper (35-350g/m2), non-woven fabric, woven cloth, aluminum foil | ||||
| Mechanical Speed | 80-120 m/min | ||||
| Coating Thickness | 0.012mm-0.05mm | ||||
| Diameter of Wound and Unwound Rolls | Ø1200mm-Ø1500mm (friction-type winding) | ||||
| Diameter of Auxiliary Unwound Rolls | Ø300mm---Ø450mm | ||||
| Variable Frequency Drive (for tension control) | Vector control variable frequency drive (automatic tension control) | ||||
| Electrical Control | PLC system with human-machine interface | ||||
| Dimensions (L×W×H) |
11000mm × 7000-9000mm × 3000mm |
||||
4.Features of PE PP EVA cast film extrusion coating lamination machine
Extruder: adopts automatic temperature control system, automatic feeding material;
Die: high precise die to ensure high quality extrusion
Available with automatic tension control, the unwinding unit, lamination unit and take-up unit (winding unit) are in sync with each other
The winding unit takes up the laminate at the same high speed even when the laminate roll needs replacing. This greatly reduces machine downtime.
variable-frequency drive, PLC human-machine interface, linkage control,
Equipped with corona treatment device, automatic deviation correction unit, finished laminate metering device, adjustable edge-cutter and edge guide.
Original structure of the machine; good appearance; easy installation and easy operation
5. Pictures of cast film extrusion lamination machine
800mm cast film extrusion lamination machine
900mm cast film extrusion lamination machine
1000mm cast film extrusion lamination machine
1100mm cast film extrusion extrusion machine
Wooden case and PE film for cast film extrusion lamination machine
Service:
Presale Service:
1)Select equipment model;
2)Design and manufacture products according to clients' special requirements
3)Train technical personnel for clients
Service during the sale
1)check products ahead of delivery
2)Help clients to draft solving plans
After-sale Service
1)Provide considerate service to minimize clients' worries
2)help clients to prepare for the first construction scheme
3)Install and debug the equipment
4)Train operators for clients
5)Examine the machine
6)Take initiatives to eliminate the troubles rapidly
7)Provide perfect service
8)Provide technical exchange.
Quality Control System of cast film extrusion lamination machine
