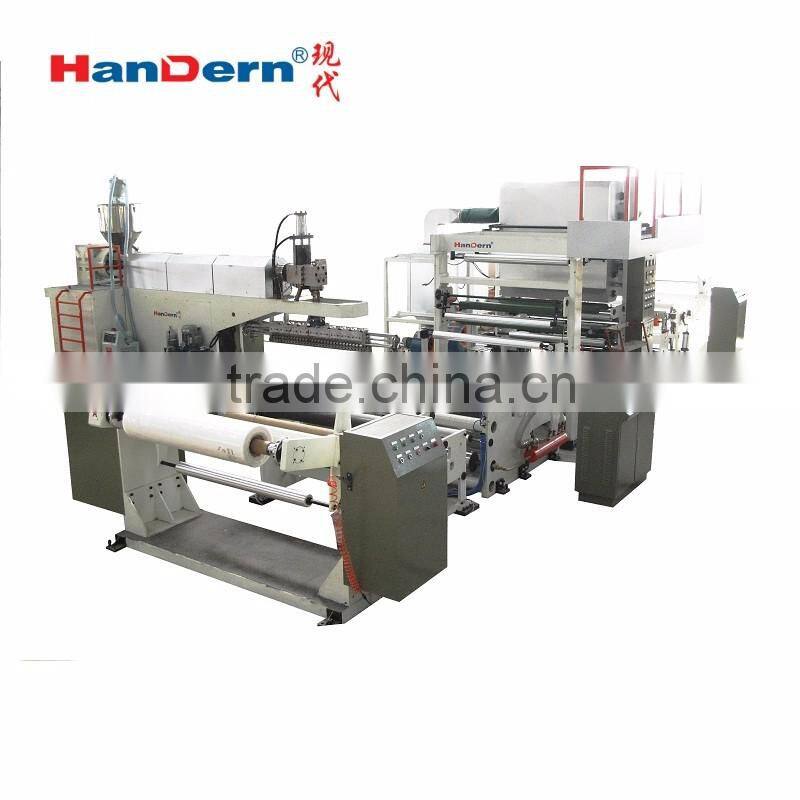

Non woven fabric Breathable film plastic extruder machine
PP PE non woven fabric breathable film lamination machine
Main features of Non woven fabric Breathable film plastic extruder machine
This extrusion lamination line uses an extruder to produce cast stretch film which will then be laminated over the non-woven fabric or thin paper via lamination equipment. After extrusion, membrane materials are guided through the single-long narrow slit by an air flow.
From raw stock feeding to final non-woven fabric take-up, there are automatic controls at each step of the way. The AC variable frequency drive technology saves you more electricity and is more reliable than traditional DC speed control system. The touch-screen controller offers easy access to the extrusion laminating process. The whole extrusion lamination line features a proper structure that delivers high efficiency, low consumption, easy operation, and minimum breakdown time.
Film material: non woven cloth, waterproof cloth, knitted cloth
Raw material: PE EVA PP TPU SBS film
Technical Specifications of Non woven fabric Breathable film plastic extruder machine
| Extruder Screw | φ100mm |
| Die | T shape |
| Raw material | PP PE |
| Effective lamination width | 2000-2400mm |
| Lamination thickness | 0.012mm-0.030mm |
| Lamination uniformity | tolerance ±8% |
| Max output | 280kg/h |
| Maximum diameter of unwound roll | 600mm |
| Maximum diameter of wound roll | 600mm |
| Installed Power | 150KW |
Main parameters of Non woven fabric Breathable film plastic extruder machine
1. Extruder screw: φ100mm, length-diameter ratio: 32:1, material: 38CrMoAl.
2. The extruder screw has been through quenching, tempering, and surface nitridation. There are dedicated mixing and melting zones to ensure the raw plastics are thoroughly mixed and melted. This also ensures large-volume extrusion output.
3. T-shaped die is made of 38CrMoAl, which has been quenched and tempered to ensure maximum toughness and hardness. The die is able to withstand high temperatures without deforming.
4. Completely sealed gear box contains reliable gear sets with hard gear teeth.
5. Digital intelligent temperature control system
6. Double unwinding rollers come with the magnetic particle brake to control tension.
7.The extrusion lamination machinery uses 4 take-up rollers with automatic metering functions.
8. Pneumatic Winding and Unwinding Shafts
Applications of non woven fabric breathable film lamination machine
Macromilecule waterproof coiled material, geotechnical and hydraulic coiled material, hygienic material poncho, advertisement cloth.
Pictures of Non woven fabric Breathable film plastic extruder machine
2000mm Non woven fabric Breathable film plastic extruder machine
2100mm Non woven fabric Breathable film plastic extruder machine
2200mm Non woven fabric Breathable film plastic extruder machine
2300mm Non woven fabric Breathable film plastic extruder machine
- Supply the complete drawings for installing the machine and send one or two technicians to buyer to install and adjust the machine and train operator of buyer. Or operator trainee coming to our factory for study.
- The seller guarantee the eligible production can be make out by the machine supplied by seller at buyer’s company.
- The buyer should prepare all the condition such as water, workspace, power, air, etc, according to the using condition of the machine, before our engineers arrival.
- Supply complete service.
