Cast Film Lamination production line
1. General introduction of Cast Film Lamination production line
cast film extrusion lamination line features a state-of-the-art extrusion laminating design that allows easy operation. The extruder adopts automatic temperature control, material feeding, and high-precision extrusion die to ensure extrusion quality.
Available with automatic tension control, the unwinding unit, lamination unit and take-up unit (winding unit) are in sync with each other. The winding unit takes up the laminate at the same high speed even when the laminate roll needs replacing. This greatly reduces machine downtime.
Other desirable features on this single-side cast film extrusion lamination line include variable-frequency drive, PLC human-machine interface, linkage control, corona treatment device, automatic deviation correction unit, finished laminate metering device, adjustable edge-cutter and edge guide.
2. Technical Specifications of single side cast film extrusion lamination line
| Extrusion Lamination Line Specifications | 950mm | 1150mm |
1350mm |
1750mm | 1950mm |
| Width | 800mm | 1000mm | 1200mm | 1650mm | 1800mm |
| Extruder Powder | 30KW | 30KW | 37 KW | 37 KW | 45 KW |
| Extruder Screw | Ø80 | Ø90 | Ø90 | Ø90 | Ø100 |
| Maximum Extrusion Output | 160kg/h | 180kg/h | 220kg/h | 240kg/h | 260kg/h |
| Resin | LDPE, LDPP laminating resin | ||||
| Base Material | Paper (35-350g/m2), non-woven fabric, woven cloth, aluminum foil | ||||
| Mechanical Speed | 80-120 m/min | ||||
| Coating Thickness | 0.012mm-0.05mm | ||||
| Diameter of Wound and Unwound Rolls | Ø1200mm-Ø1500mm (friction-type winding) | ||||
| Diameter of Auxiliary Unwound Rolls | Ø300mm---Ø450mm | ||||
| Variable Frequency Drive (for tension control) | Vector control variable frequency drive (automatic tension control) | ||||
| Electrical Control | PLC system with human-machine interface | ||||
| Dimensions (L×W×H) |
11000mm × 7000-9000mm × 3000mm |
||||
3. Pictures of single side cast film extrusion lamination line

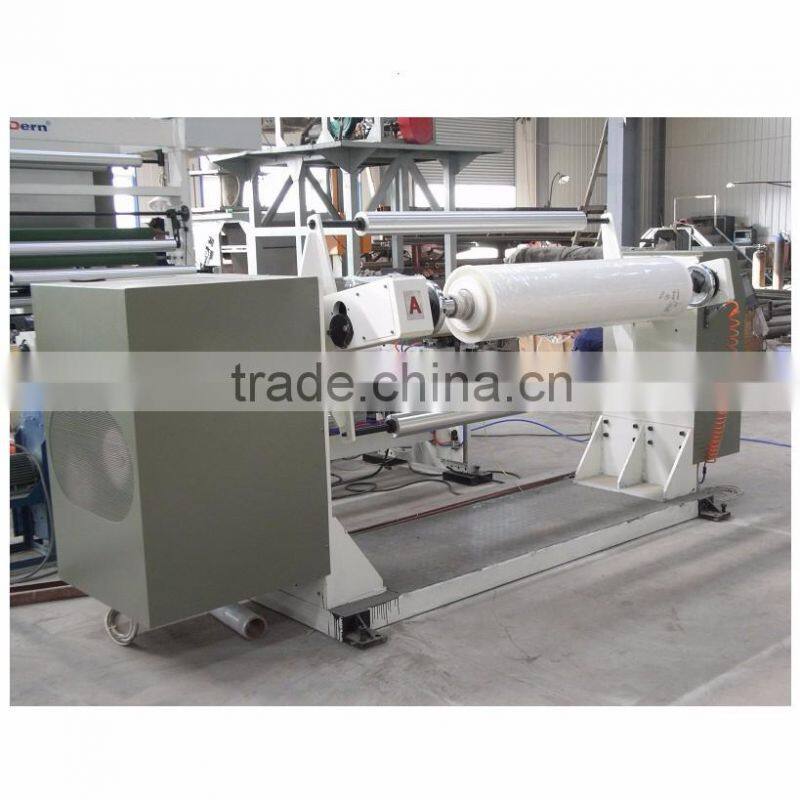

800mm Cast Film Lamination production line
900mm Cast Film Lamination production line
1000mm Cast Film Lamination production line
1100mm Cast Film Lamination production line
Wooden case for Cast Film Lamination production line
Service:
Presale Service:
1)Select equipment model;
2)Design and manufacture products according to clients' special requirements
3)Train technical personnel for clients
Service during the sale
1)check products ahead of delivery
2)Help clients to draft solving plans
After-sale Service
1)Provide considerate service to minimize clients' worries
2)help clients to prepare for the first construction scheme
3)Install and debug the equipment
4)Train operators for clients
5)Examine the machine
6)Take initiatives to eliminate the troubles rapidly
7)Provide perfect service
8)Provide technical exchange.
Quality Control of Cast Film Lamination production line
