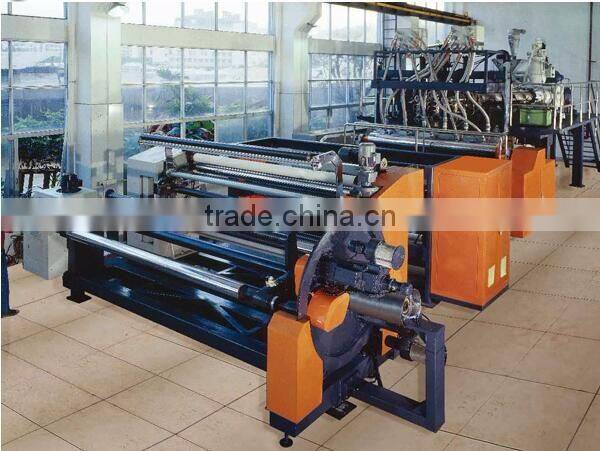

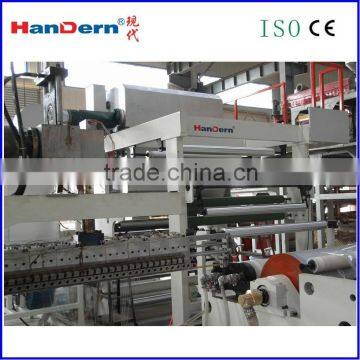

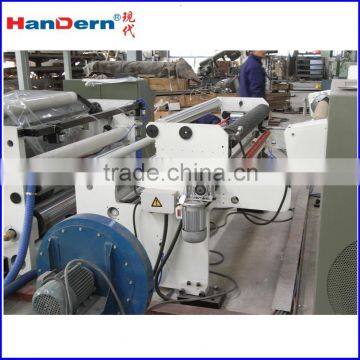

Automatic Thermal Laminating Machine
Automatic Thermal Laminating Machine
Conponents of Automatic Thermal Laminating Machine
1.the unwinding unit
ating unit
3.drying unit
4.lamination unit
5.auxiliary unwinding unit
6.extrusion die
7.winding unit
ntrol unit
Fully computer control ensures high production efficiency and extrusion lamination quality.
Process of Automatic Thermal Laminating Machine
1)the thermoplastic resin is heated to temperature above the melting point.
2)the molten plastics are pushed through an extrusion die to form a thin hot film
3)laminating the film over a kind of pre-coated base material.
The resultant laminate is totally odorless.
Raw resin of Automatic Thermal Laminating Machine:LDPE, LLDPE, EVA, EAA, and other laminating resin.
The substrate wound onto the primary unwinding roller:usually BOPP (15-60um) or BOPET (12-50um).
Applications of Automatic Thermal Laminating Machine
Paper: Kraft paper, air-laid paper, and cardboard lamination to produce book packaging, snack packaging, duct tape for trash bag;
BOPP, BOPET, BOPA, and other plastic film lamination;
Non-woven fabric lamination, PE, PP stretch film extrusion lamination;
Aluminum foil and PE stretch film lamination;
Technical Specifications of Thermal film laminating machine
| thermal film laminating machine |
Techniacal specification |
| Laminate Width | 800~1500mm |
| Maximum Mechanical Speed | 150m/min |
| Extruder Motor | 47~75kw |
| Extruder | HL-90 or HL-100 |
| Maximum Extrusion Output | 260kg/h |
| Resin | LDPE, PP, EVA, EAA, LLDPE, EMA, EMAA |
| Coating Thickness | 8~30μm |
| Thickness Uniformity | ≤±5% |
| Maximum Diameter of Unwound Roll | 800mm |
| Substrate |
BOPP, BOPET, BOPA, CPE, CPP, thin paper (50~200g/m2) |
| Coating and Drying |
Gloss roller, floor-standing or horizontal drying oven |
| Tension Control |
Automatic tension control |
| Control Method |
Imported PLC system, human-machine interface |
| Drive |
AC digital vector control (variable frequency drive) |
Wooden case is available for automatic thermal film laminating machine
Supply the complete drawings for installing the machine and send one or two technicians to buyerto install and adjust the machine and train operator of buyer. Or operator trainee coming to our factory for study.
The seller guarantee the eligible production can be make out by the machine supplied by seller at buyer's company.The buyer should prepare all the condition such as water, workspace, power, air, etc, according t the using condition of the machine, before our engineers arrival.
Quality Control of Automatic thermal film laminating machine
