PLC Control Oil Heating Solar Panel Laminating Machine
- 200 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Water Cooling Solar Panel Laminator with 2.2 x 2.2 m Working Area
- 8.75 MW Solar Laminating Machine for 300 watt Panel
- 2200 x 2200 Oil Heating Solar Laminating Machine with Vacuum
- Keyland Solar PV Module Automatic Laminator
- KEYLAND 2.2x1.1 Solar Panel Vacuum Sun Laminator for Solar Plants KL-1122 KL-2222
- Keyland Double stages solar laminator Type Automatic BIPV panel laminator
Product Details
Condition: | New | Application: | Other, Solar, Solar Panel Laminating | Packaging Type: | Other, Solar |
Packaging Material: | Other, Solar Panel | Automatic Grade: | Semi-Automatic | Driven Type: | Pneumatic |
Voltage: | 380 V | Power: | 22 kW | Place of Origin: | Jiangsu, China |
Brand Name: | KEYLAND | Model Number: | KEL22 | Dimension(L*W*H): | 3905 x 2605 x 1360 mm |
Weight: | 7.5 Ton | Certification: | CE, ISO | After-sales Service Provided: | Engineers available to service machinery overseas |
Packaging Details
Plywood Case
Product Description
PLC Control Oil Heating Solar Panel Laminating Machine
Application

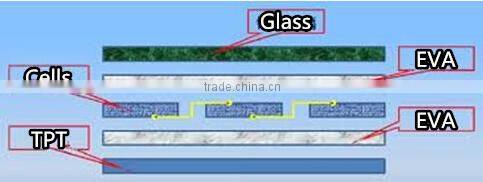

Fuction: Solar Panel Lamination and solidification.
Application: Mainly used on monocrystalline silicon/polycrystalline silicon solar panel laminating.
Position in a production line:
Welding - laminated & solidified layer pressure - cutting edge - detection - cleaning - test -packing
Features
1. Good temp uniformity due to oil heating.
2. Area laminating with different speed lower the debris rate obviously.
3. Deft design brings reliable and stable equipment.
4. Unique control system, automatic centralized control mode, data storage, analysis ability.
5. Emergency alrm system ensure safety of operator.
6. Flat work table easy to imput/output materials.
7. Opening cover suitable for 3 sides working.
8. High quality heating work table.
9. PLC & touch screen operating.
Specifications
Technical Parameters | |||
Power supply: | AC380V, 3Phases, 5Wires | Control mode: | Touch screen |
Heating type: | Oil heating | Operation mode: | Manual/Auto |
Working vacuum: | 200-20Pa | Max open height: | Over 500mm |
Temp control: | PLC | Temp control precision: | ±1°C |
Lamination height: | 25mm | Temp uniformity: | ±1.5°C |
Air pressure: | 0.6-1.0 Mpa | Air flow: | 0.42—0.8m3/min |
Air exhaust time: | 5-6min | Laminating time: | 2-10min |
Temp Range: | 30-160°C | Working conditions: | Temp: 10-50°C Humidity: 0-90% Altitude: 0-2000m |
Model | Laminating area |
KLT01 | 2200*1100mm |
KLT02 | 2200*1750mm |
KLT03 | 2200*2200mm |
KLT04 | 2200*3600mm |
KLT05 | 2200*3600*2 |

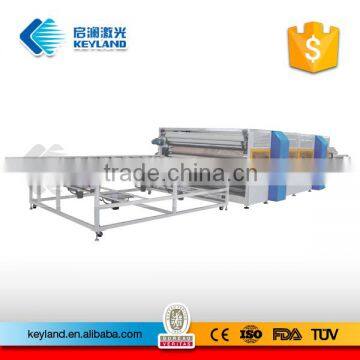

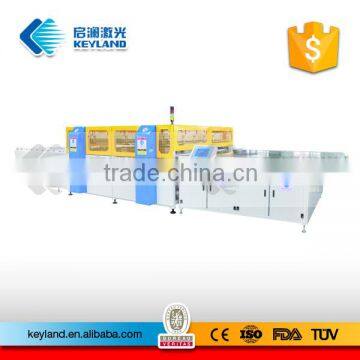

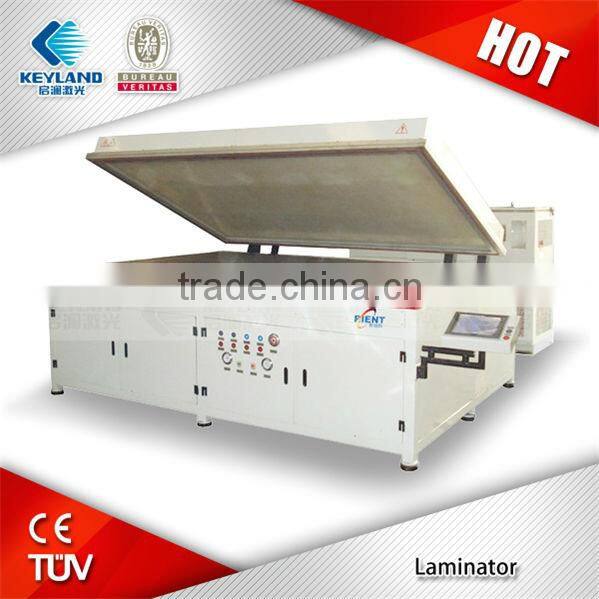

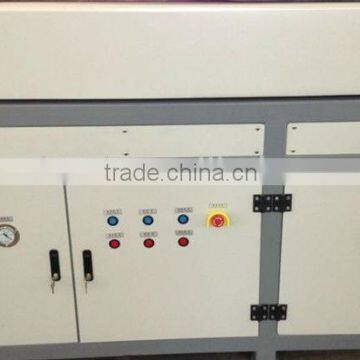

Machine Photos
Company View
Why Buy From Us?
Doing business with KEYLAND is SAFE and BENEFICIAL.
- Alibaba Trade Assurance
- Onsite Checked by BV
- Golden Suppliers for Years
- CE, ISO, FDA approved products
- Warranty Up To 2 Years
- Full Operator Training & Support
Contact
More details abour our Solar Panel Laminating Machine please contact us.
