Multiwall Profile extrusion machine
PP PE PC hollow multiwall profile extrusion line
Best selling and high output machine
1. Application of multiwall profile extrusion line

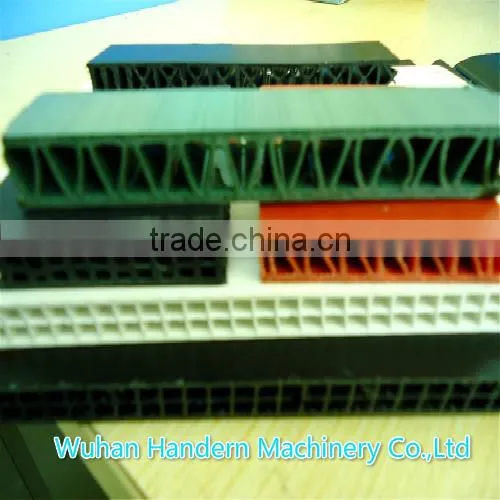

Multiwall sheet extrusion line is to produce pp hollow profile sheet, which is widely used in decoration, construction, greenhouse roofing,outside advertisement and package turnover on industrial products.
2. Features of Multiwall sheet extrusion line
pp pe pc twinwall multiwall sheet has the characteristics of light weight, high hardness, good light transmission, and excellent resistance to corrosion, moisture, pollution, high pressure and shock, waterproof. it has gradually has replaced corrugated card and paper package.
3.Specifications of Multiwall sheet extrusion line
| Machine Type | sheet width(mm) | sheet thickness(mm) | Max output(kg/h) |
| 1400 | 1250 | 2-18 | 280/280/350 |
| 1800 | 1650 | 2-18 | 320/350/420 |
| 2300 | 2150 | 2-12 | 350/450 |
| 2700 | 2550 | 2-6 | 480 |
4.Parameters of Twinwall multiwall sheet extrusion line
| Number | Item | Unit | Quantity |
| 1 | Extruder with single screw | set | 1 |
| 2 | Screen Changer | set | 1 |
| 3 | Die | set | 1 |
| 4 | Vaccum Calibrator | set | 1 |
| 5 | First haul-off unit | set | 1 |
| 6 | Drying oven | set | 1 |
| 7 | Cooling Device | set | 1 |
| 8 | Second haul-off unit | set | 1 |
| 9 | Cutting device | set | 1 |
| 10 | Electrical control Cabinet | set | 1 |
| 11 | Stacker Unit | set | 1 |
| 12 | Screw feeder | set | 1 |
5. Technial Advantages of Twinwall multiwall sheet extrusion line
Extrudes: special designed screw, advanced temperature control system, ensure stable extrusion
and high output.
Die: super quality alloy lips and adjustable restrict bars, provide even pressure.
Vacuum calibrator: heatconvection system with array interleaved, guarantees precision of calibration.The vacuum system consists of two independent subsystem, equipped with many closed vacuum
lines.
Electrical control system: adopt microprocessor unit(PLC) to control precise parameters and
optimize the operation features.

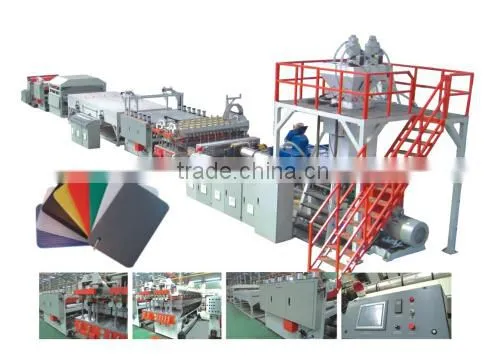

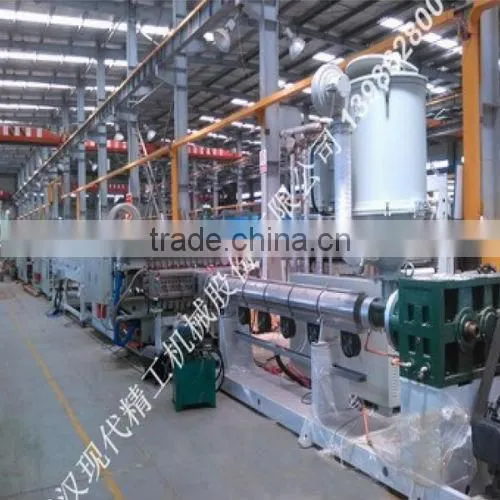

6.Pictures of Twinwall multiwall sheet extrusion line
1250mm multiwall profile sheet extrusion line
1650mm multiwall profile sheet extrusion line
2250mm multiwall profile sheet extrusion line
2650mm multiwall profile sheet extrusion line
We adopt standard wooden case to pack the pp hollow profile sheet extrusion line
Finished products will be shipped within 60 days on receipt of your advance payment.
We promise to provide the best quality Twinwall multiwall sheet extrusion line and helpful support for you.
(1) Provide technical training for you after the delivery of pp hollow profile sheet extrusion line.
(2) Appoint professional stuff to install, debug, test anf train on site about 10-15 days.
Wuhan Handern Machinery Co., Ltd, established in 1989, is a Sino-Japanese joint venture high-tech enterprise, specialized in plastic machinery R&D, manufacturing and sales with over 30 superiortechnical talents and skillful trained operator.
Handern Machinery are devoted to develop and manufacture all kinds of plastic sheet and film
extrusion line since its establishment. Our products are widely applied to electronics,packaging,
machinery, light industry etc.
Nowadays, we have gained a series of independent intellectual property rights such as international
leading technology of hollow profile sheet extrusion line , solar cell films extrusion line series
production and other technology patents, and produced a number of quality products of high
technology content and practicality.
With the advantage of abundant capital background, excellent technology talents, plurality of
manufacturing management experience and skillful precision mold manufacturing experience,
our products have been selling well over twenty provinces in domestic market, and exported to
many abroad countries including UK, Brazil, Serbia,Australia, Russia, Iran, Vietnam, Korea,
Japanese, India Mexico, Canada and so on, following a wave of praise.
Our company passed the ISO 90012008 international quality system certification and all products
have acquired CE certificate of EU. for years.
We always promise the best product and technical support and spare no efforts to provide the best
product and the most professional technical support and training for our customers.
