Multiwall Polycarbonate sheet extrusion line
pp pe pc hollow multiwall sheet extrusion line
Greenhouse Multiwall UV protected sheet extrusion machine
1. Features of multiwall polycarbonate sheet extrusion line
Multiwall polycarbonate sheet extrusion line is to produce pp pe pc pvc hollow profile sheet, which is are an extremely flexible instrument with applications in the fields of achitecture and in the building industry. It's light, easy to work, ductile in shapes and colors, all these make hollow profiles in PC and PMMA an unequalled and extraordinary material.
Multiwall sheets with air space inside guarantees good thermal insulation and excellent resistence tocrash stress. Many applications produced with our machines have been installed for more than twenty year.
2.Specifications of multiwall polycarbonate sheet extrusion line
| Machine Type | sheet width(mm) | sheet thickness(mm) | Max output(kg/h) |
| 1400 | 1250 | 2-18 | 280/280/350 |
| 1800 | 1650 | 2-18 | 320/350/420 |
| 2300 | 2150 | 2-12 | 350/450 |
| 2700 | 2550 | 2-6 | 480 |
3.Parameters of multiwall polycarbonate sheet extrusion line
| Number | Item | Unit | Quantity |
| 1 | Extruder with single screw | set | 1 |
| 2 | Screen Changer | set | 1 |
| 3 | Die | set | 1 |
| 4 | Vaccum Calibrator | set | 1 |
| 5 | First haul-off unit | set | 1 |
| 6 | Drying oven | set | 1 |
| 7 | Cooling Device | set | 1 |
| 8 | Second haul-off unit | set | 1 |
| 9 | Cutting device | set | 1 |
| 10 | Electrical control Cabinet | set | 1 |
| 11 | Stacker Unit | set | 1 |
| 12 | Screw feeder | set | 1 |
4. Technial Advantages of multiwall polycarbonate sheet extrusion line
Extrudes: special designed screw, advanced temperature control system, ensure stable extrusion
and high output.
Die: super quality alloy lips and adjustable restrict bars, provide even pressure.
Vacuum calibrator: heatconvection system with array interleaved, guarantees precision of calibration.The vacuum system consists of two independent subsystem, equipped with many closed vacuum
lines.
Electrical control system: adopt microprocessor unit(PLC) to control precise parameters and
optimize the operation features.

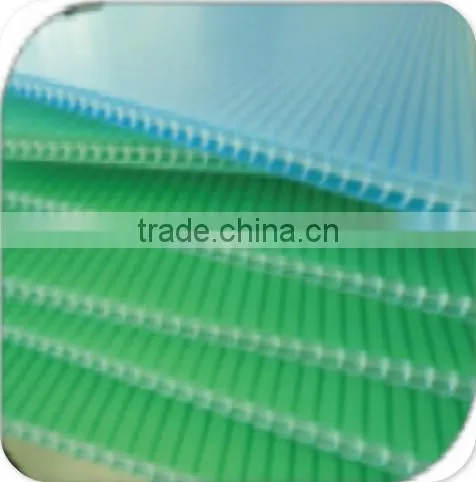

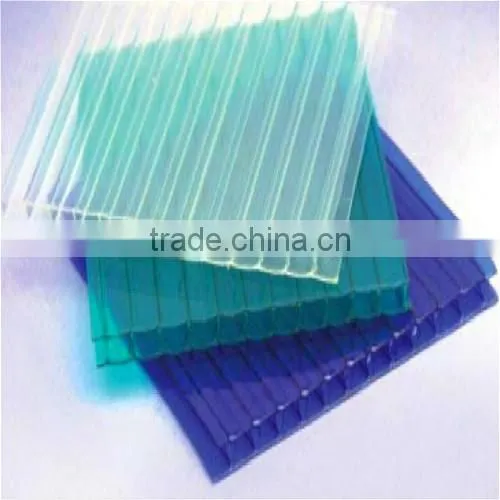

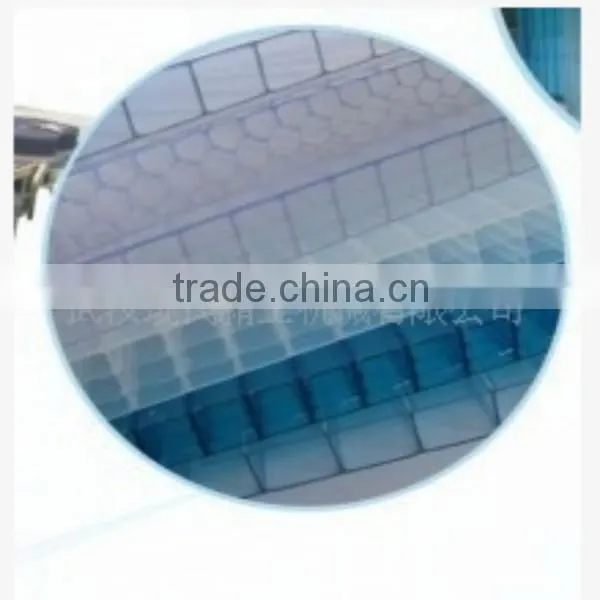

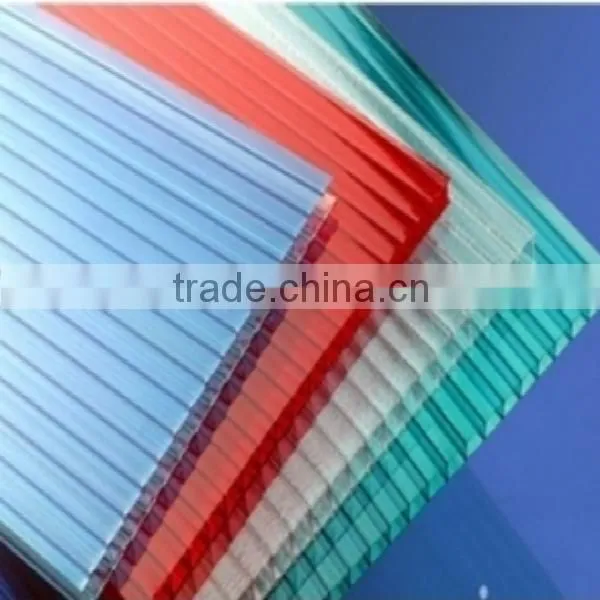

5.Pictures of multiwall polycarbonate sheet extrusion line
2mm thick multiwall polycarbonate sheet extrusion line is CE certified, which assures your legal right.
6mm thick multiwall polycarbonate sheet extrusion line is ISO9001:2008 certified, which guarantee the product quality.
8mm thick multiwall polycarbonate sheet extrusion line is professionally manufactured through the plastic equipment of more than 15 years' experience.
10mm thick multiwall polycarbonate sheet extrusion line offers the customer service and engineer available to service overseas, which can meet your requirement better and solve the problem in the process of operation.
We adopt standard wooden case to pack the pp hollow profile sheet extrusion line
Finished products will be shipped within 60 days on receipt of your advance payment.
We promise to provide the best quality multiwall polycarbonate sheet extrusion line and helpful support for you.
(1) Provide technical training for you before the delivery of pp hollow profile sheet extrusion line.
(2) Appoint professional stuff to install, debug, test anf train on site until your operator will run the extrusion line independently.
(3) Follow operation manual, normal production, three guarantees for repiar, replacement or compensation of faulty products for one year.
(4) Over one year, we will provide relative parts repair or sale with a favorable price for you.
Wuhan Handern Machinery Co., Ltd, established in 1989, is a Sino-Japanese joint venture high-tech enterprise, specialized in plastic machinery R&D, manufacturing and sales with over 30 superiortechnical talents and skillful trained operator.
Handern Machinery are devoted to develop and manufacture all kinds of plastic sheet and film
extrusion line since its establishment. Our products are widely applied to electronics,packaging,
machinery, light industry etc.
Nowadays, we have gained a series of independent intellectual property rights such as international
leading technology of hollow profile sheet extrusion line , solar cell films extrusion line series
production and other technology patents, and produced a number of quality products of high
technology content and practicality.
With the advantage of abundant capital background, excellent technology talents, plurality of
manufacturing management experience and skillful precision mold manufacturing experience,
our products have been selling well over twenty provinces in domestic market, and exported to
many abroad countries including UK, Brazil, Serbia,Australia, Russia, Iran, Vietnam, Korea,
Japanese, India Mexico, Canada and so on, following a wave of praise.
Our company passed the ISO 90012008 international quality system certification and all products
have acquired CE certificate of EU. for years.
We always promise the best product and technical support and spare no efforts to provide the best
product and the most professional technical support and training for our customers.
Wuhan Handen Machinery Co.Ltd
