Servo Spot Gun

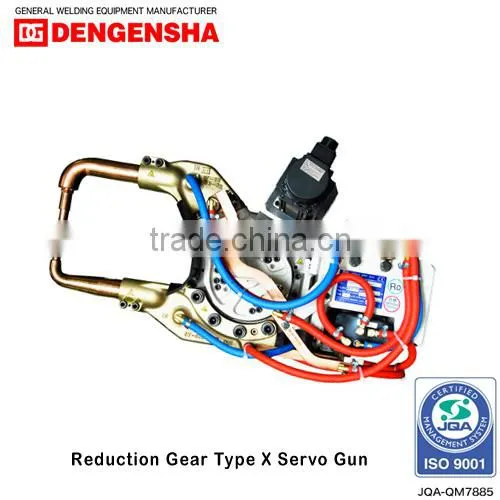

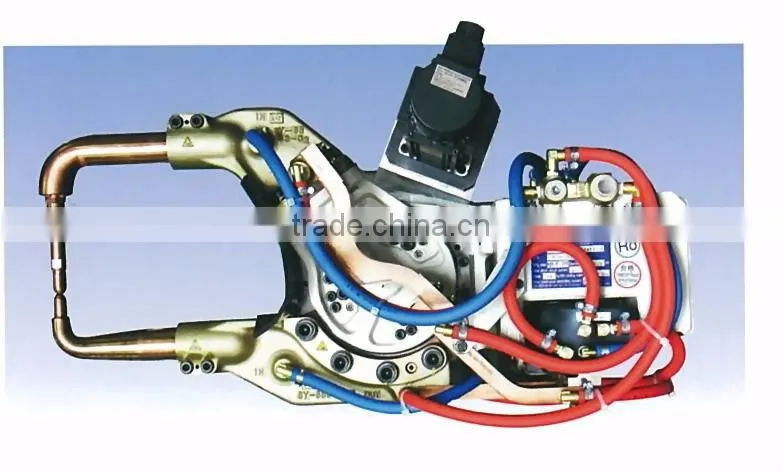

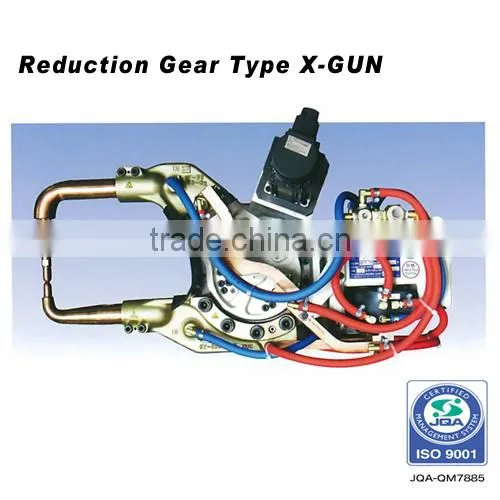

Reduction gear type X-gun
[ Higher welding quality ]
This appropriate pressure force can be set for each welding spot.
Soft in touch, this welding gun rarely leaves a dent, resulting higher quality.
[ A better working environment ]
This soft touch welding gun reduces noise and dust, threreby helping to improve the working environment. Moreover, since it produces no exhaust air, it dose not pollute air in the workshop.
[ A shorter cylcle time ]
This welding gun achieves much shorter squeeze times*1 with high-speed pressure rise. The appropriate opening stroke can be set for each welding spot and to operate in synchronization with a robot, resulting in a much shorter cylcle time.
Note:*1. The time from startup to the time when a welding current begins to be applied.
[ Contributing to cost reduction ]
This welding gun consumes less than about half as much electricity as air gun for pressurization, resulting in cost reduction.
TYPE AC-type INV-type
List of basic specifications
|
Maximum Welding current |
Permissible duty cylcle |
Maximum Welding pressure |
Throat depth |
Mass |
|
13000A |
10% |
5KN |
290~350mm |
103~144KG |
[ Action principle]
[ Servo Gun Model No.]
Provide customized services:
-Welding Pressrue and throat depth can design for your demand.
F.O.B PRICE:
-The quotation will be offered after disussion of speicification.
