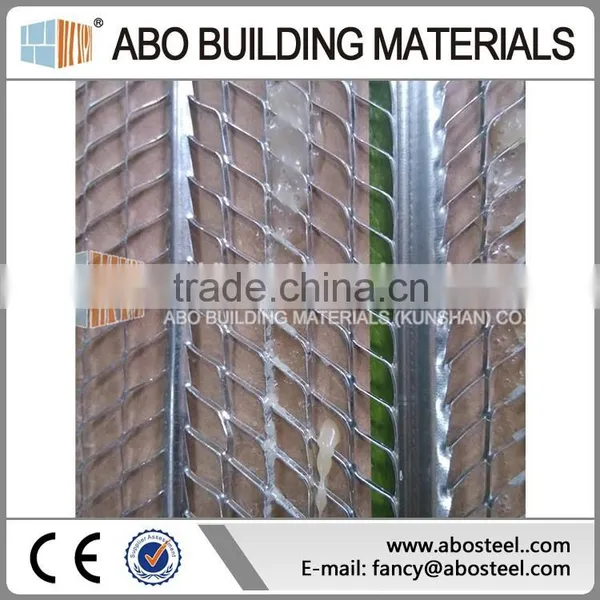

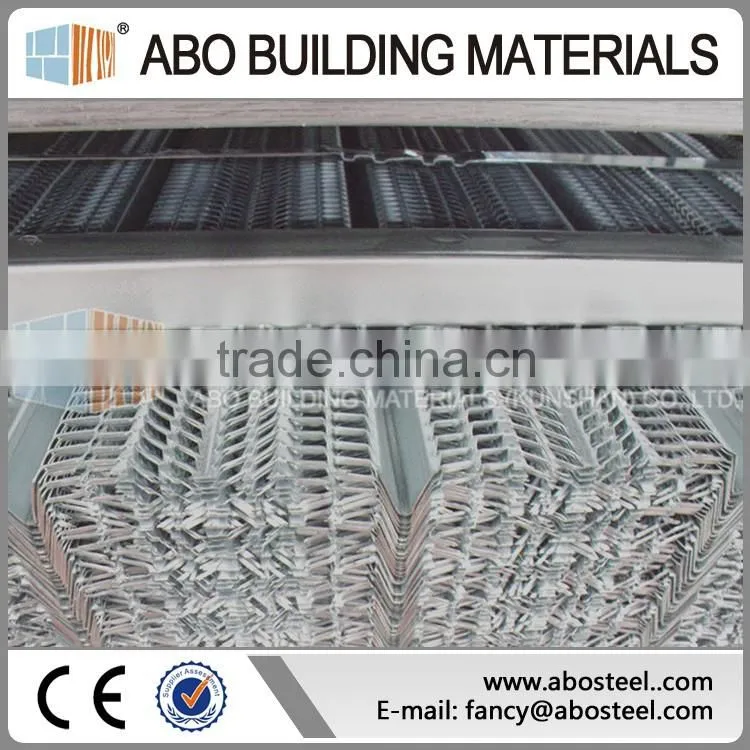

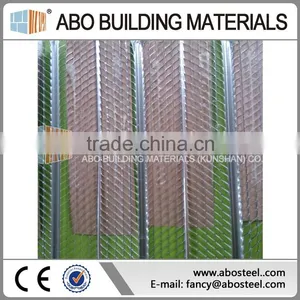

Help CenterRib Lath/ Hy-rib Lath/ Hy Rib Mesh- ABO Building
Related Products
-
Rib Lath/ Flat Rib Mesh- ABO BuildingUS$ 3.5 - 4MOQ: 3800 Pieces -
3/8"Rib Metal Lath- ABO BuildingUS$ 3.5 - 4MOQ: 3800 Pieces
-
3.4 3/8"Rib Lath / Expanded Metal Lath - ABO BuildingUS$ 3.5 - 4MOQ: 3800 Pieces
-
3/8"Rib Lath - ABO BuildingUS$ 3.5 - 4MOQ: 3800 Pieces
-
Expanded Rib Lath/ Flat Rib Lath/ Metal Rib Forming Lath(AB-1/8-4-75-600)US$ 0.62 - 0.62MOQ: 3800 Pieces

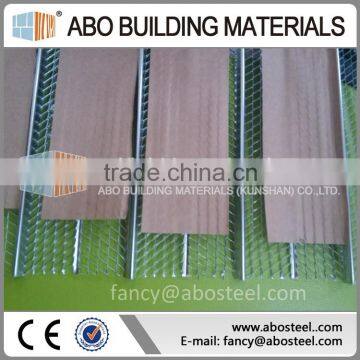

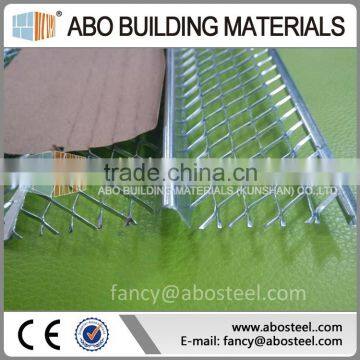

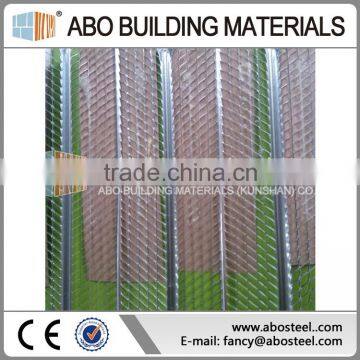

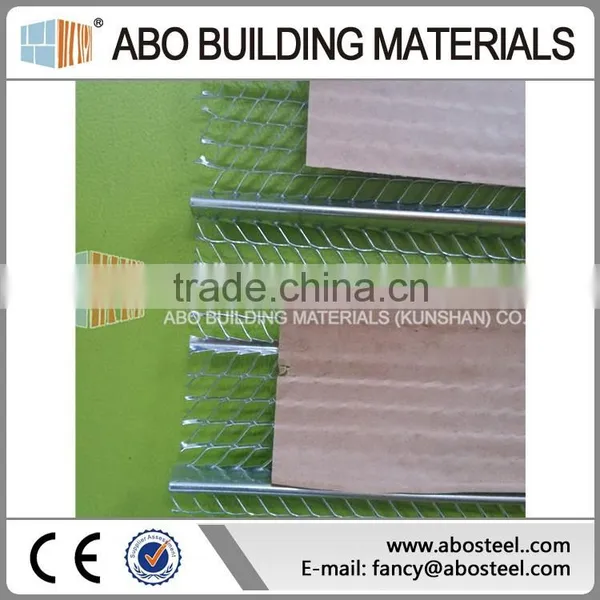

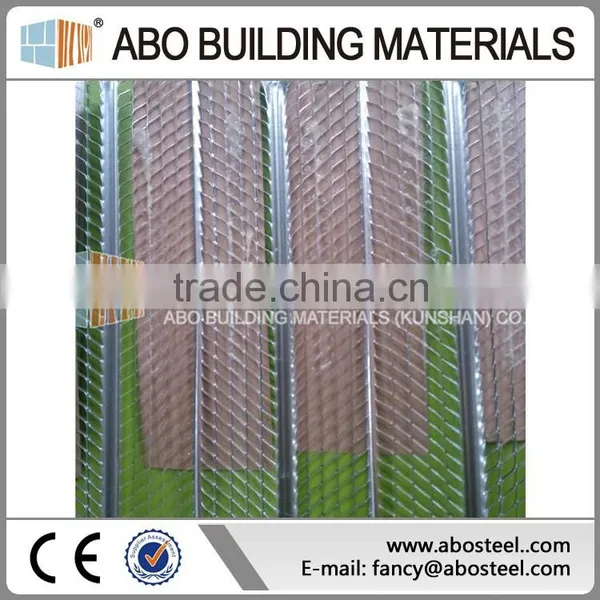

Flat Rib Lath is available in paper-backed in either K (Kraft) paper, or with D paper.

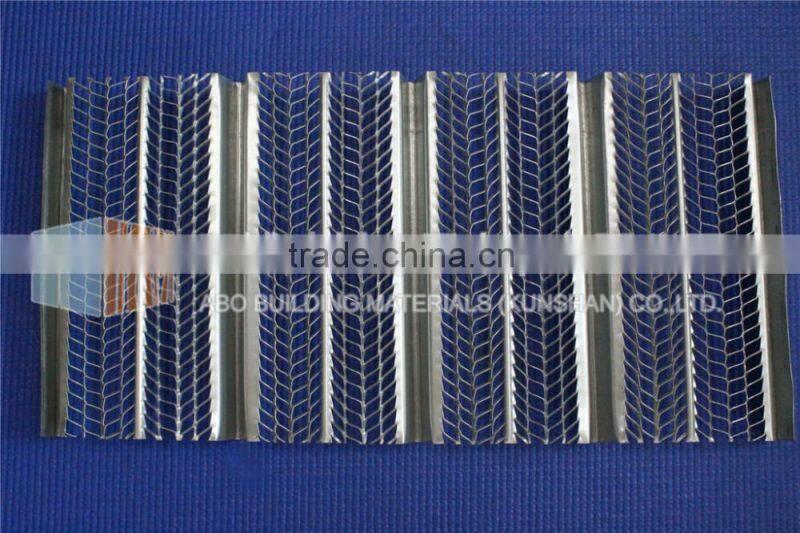

Expanded Metal Flat Rib Lath, Plaster stucco base metal lathing, ribbed expanded metal lath
Model |
Rib Height |
Rib Distance |
Width |
Aperture Size |
Remark |
AB-1/8-4-75-450 |
1/8" |
75 |
450 |
9*17 |
9-rib & 4-aperture |
AB-3/8-4-75-450 |
3/8" |
75 |
450 |
9*17 |
9-rib & 4-aperture |
AB-1/8-4-75-600 |
1/8" |
75 |
600 |
9*17 |
9-rib & 4-aperture |
AB-3/8-4-75-600 |
3/8" |
75 |
600 |
9*17 |
9-rib & 4-aperture |
AB-1/8-4-75-750 |
1/8" |
75 |
750 |
9*17 |
9-rib & 4-aperture |
AB-3/8-4-75-750 |
3/8" |
75 |
750 |
9*17 |
9-rib & 4-aperture |
Model |
Rib Height |
Rib Distance |
Width |
Aperture Size |
Remark |
AB-1/8-8-100-600 |
1/8" |
100 |
600 |
7*11 |
7-rib & 8-Aperture |
AB-3/8-8-100-600 |
3/8" |
100 |
600 |
7*11 |
7-rib & 8-Aperture |
AB-3/4-8-100-600 |
3/4" |
100 |
600 |
7*11 |
7-rib & 8-Aperture |
AB-5/8-8-100-600 |
5/8" |
100 |
600 |
7*11 |
7-rib & 8-Aperture |
AB-7/8-8-100-600 |
7/8" |
100 |
600 |
7*11 |
7-rib & 8-Aperture |
Model |
Rib Height |
Rib Distance |
Width |
Aperture Size |
Remark |
AB-1/8-4-100-600 |
1/8" |
100 |
600 |
9*20 |
7-rib & 4-aperture |
AB-3/8-4-100-600 |
3/8" |
100 |
600 |
9*20 |
7-rib & 4-aperture |
AB-3/4-4-100-600 |
3/4" |
100 |
600 |
9*20 |
7-rib & 4-aperture |
AB-5/8-4-100-600 |
5/8" |
100 |
600 |
9*20 |
7-rib & 4-aperture |
AB-7/8-4-100-600 |
7/8" |
100 |
600 |
9*20 |
7-rib & 4-aperture |
Model |
Rib Height |
Rib Distance |
Width |
Aperture Size |
Remark |
AB-1/8-8-150-600 |
1/8" |
150 |
600 |
11*17 |
5-rib & 8-aperture |
AB-1/4-8-150-600 |
1/4" |
150 |
600 |
11*17 |
5-rib & 8-aperture |
Model |
Rib Height |
Rib Distance |
Width |
Aperture Size |
Weight |
AB-3/8-8-100-686 |
3/8" |
98 |
686 |
7.2*9.5 |
4.3kg |
AB-5/8-8-100-686 |
5/8" |
98 |
686 |
7.2*9.5 |
5.6kg |
AB-3/4-8-100-686 |
3/4" |
98 |
686 |
7.2*9.5 |
6kg |
AB-7/8-8-100-686 |
7/8" |
98 |
686 |
7.2*9.5 |
6.5kg |

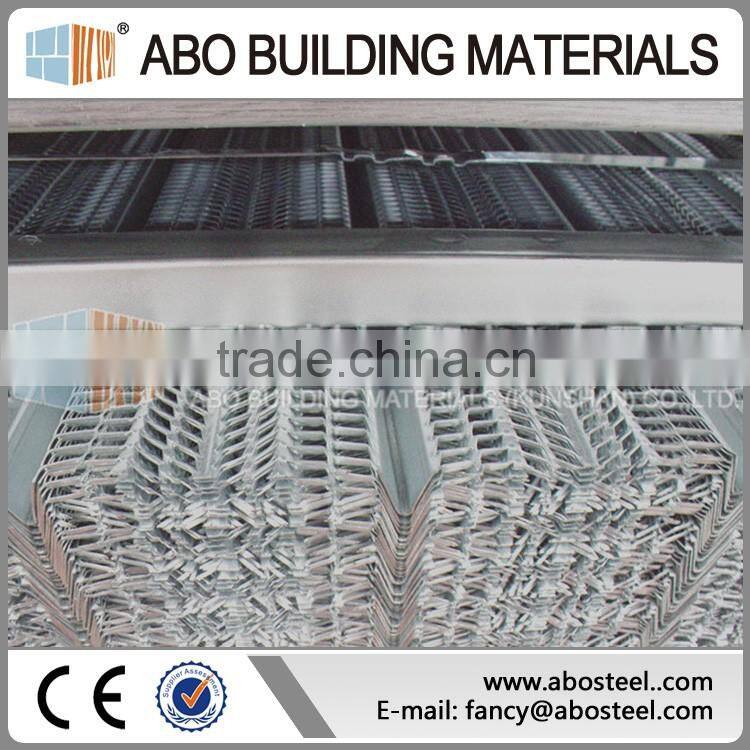

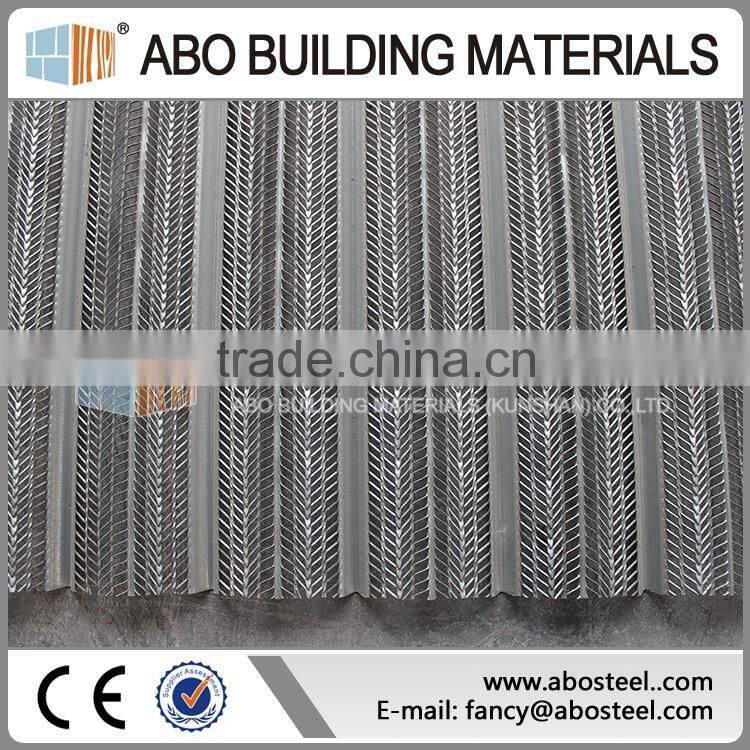

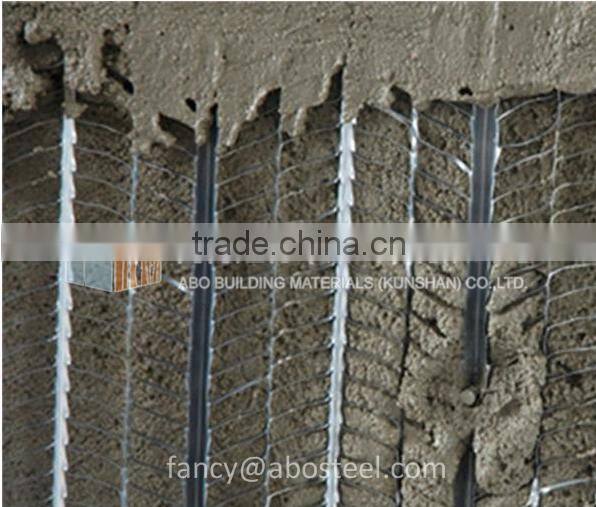

Rib lath, ribbed expanded metal lath, 3.4 expanded metal lath is idea for refurbishing damaged or aged masonry walls, when a key for rendering is not certain due to disintegration or softening of the wall face.
Lath should be fixed with apexes of ribs against the wall, edge ribs of sheets nesting into each other should be wire-tied every 15cm and ends of sheets should be lapped not less than 2.5cm and nesting ribs securely tied together. Stainless steel fixing should be used at sufficient intervals to hold the lath firmly in position.

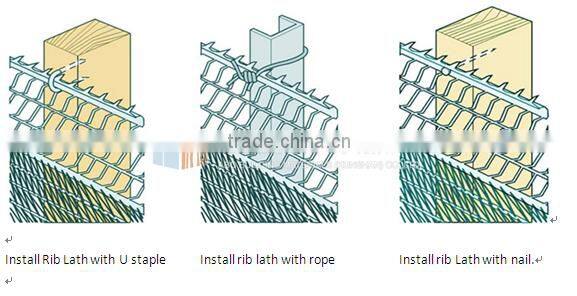

Fixing of Rib lath Sheets
Rib lath is fixed so that the tip of the rib is put against the supporting background. The rib of the sheet should run at right angles to any supports. Make sure that sheets are superposed by a minimum of 50mm end to end and by 25mm width ways and that the ribs are nestled together.
Wood Support
Rib lath is fixed at each rib to wood supports using plasterers' nails or staples. Make sure that compatible corrosion resistant fixings are used, for example, please don’t use galvanized fixings for stainless steel.
Metal Support
Rib lath is fixed at each rib to metal support using 1.63mm galvanized or stainless steel tying wire. When joining rib lath sheets overlap the edge ribs and tie the edges with 1.22mm tying wire at 150mm centers.
Solid Background
Rib lath can be fixed to a solid background using a suitable fixing which holds the ribs firmly against the background. Where sheets are installed perpendicularly, fixings should be positioned through all ribs at 600mm centers to make sure there have enough stability.

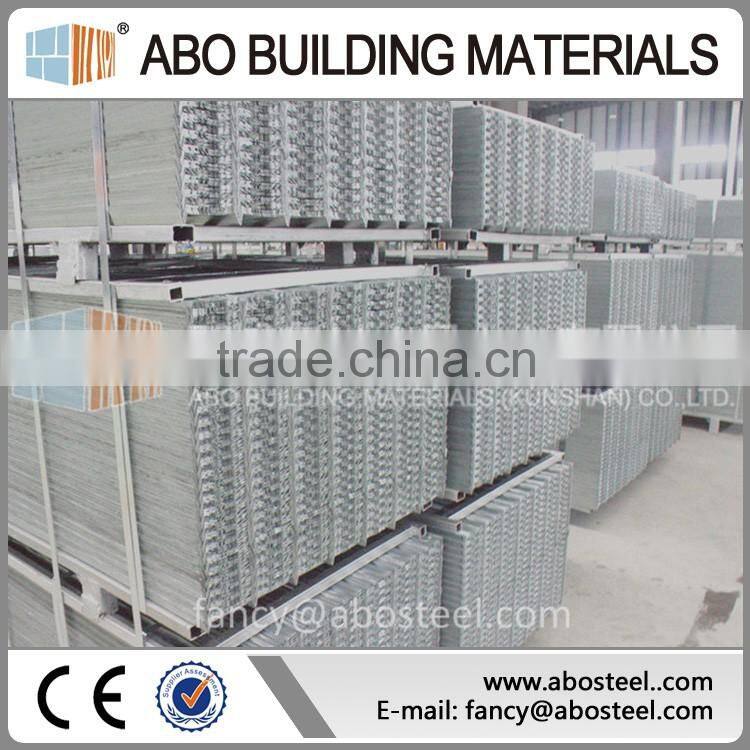

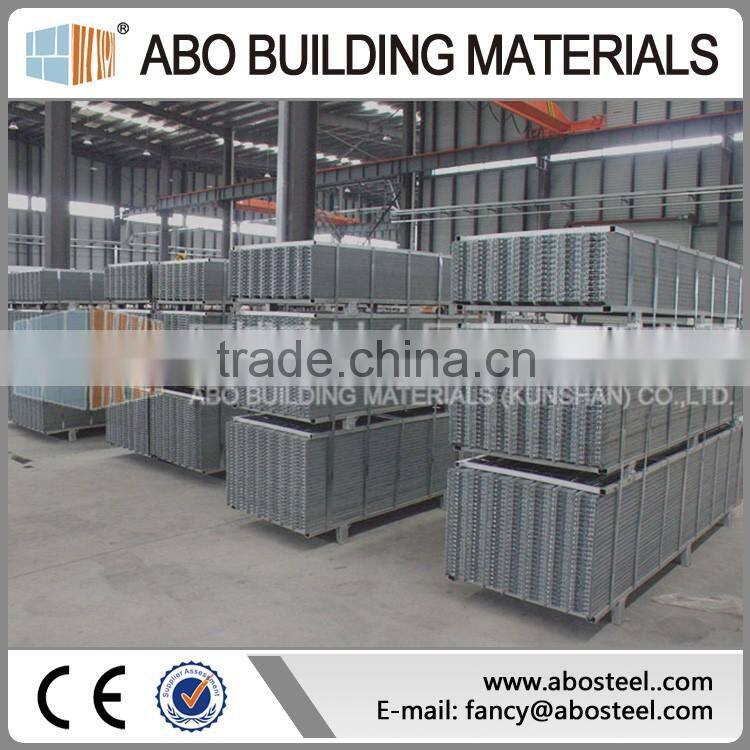

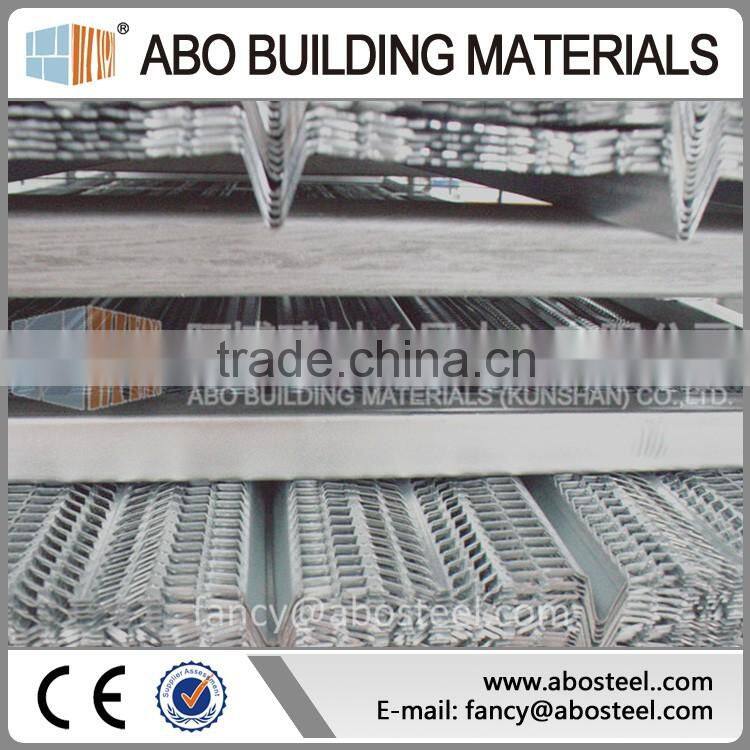

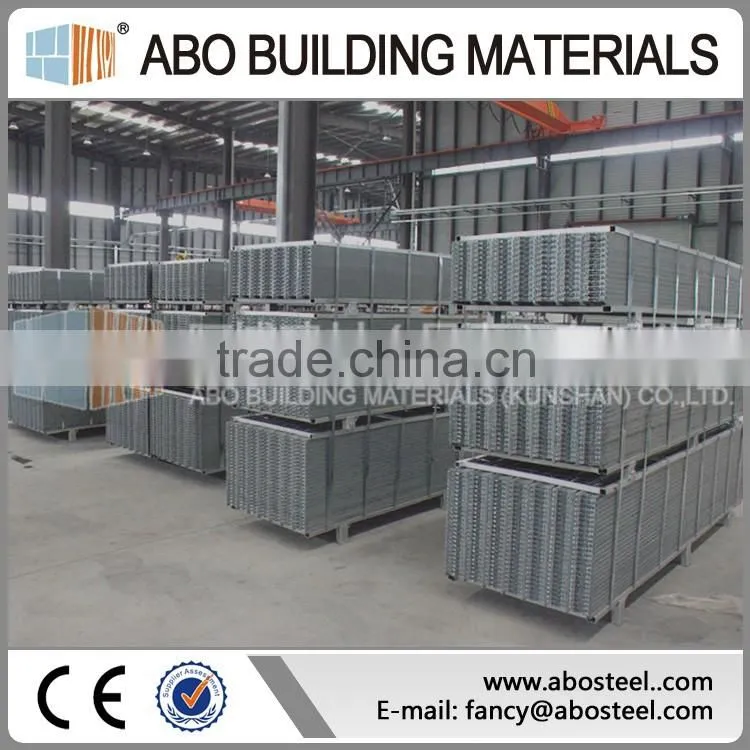

Normally, 3.4 expanded metal lath, 620piece per pallet. 6pallets for one 20' container. packing method can be customized accoring to client's requirements.

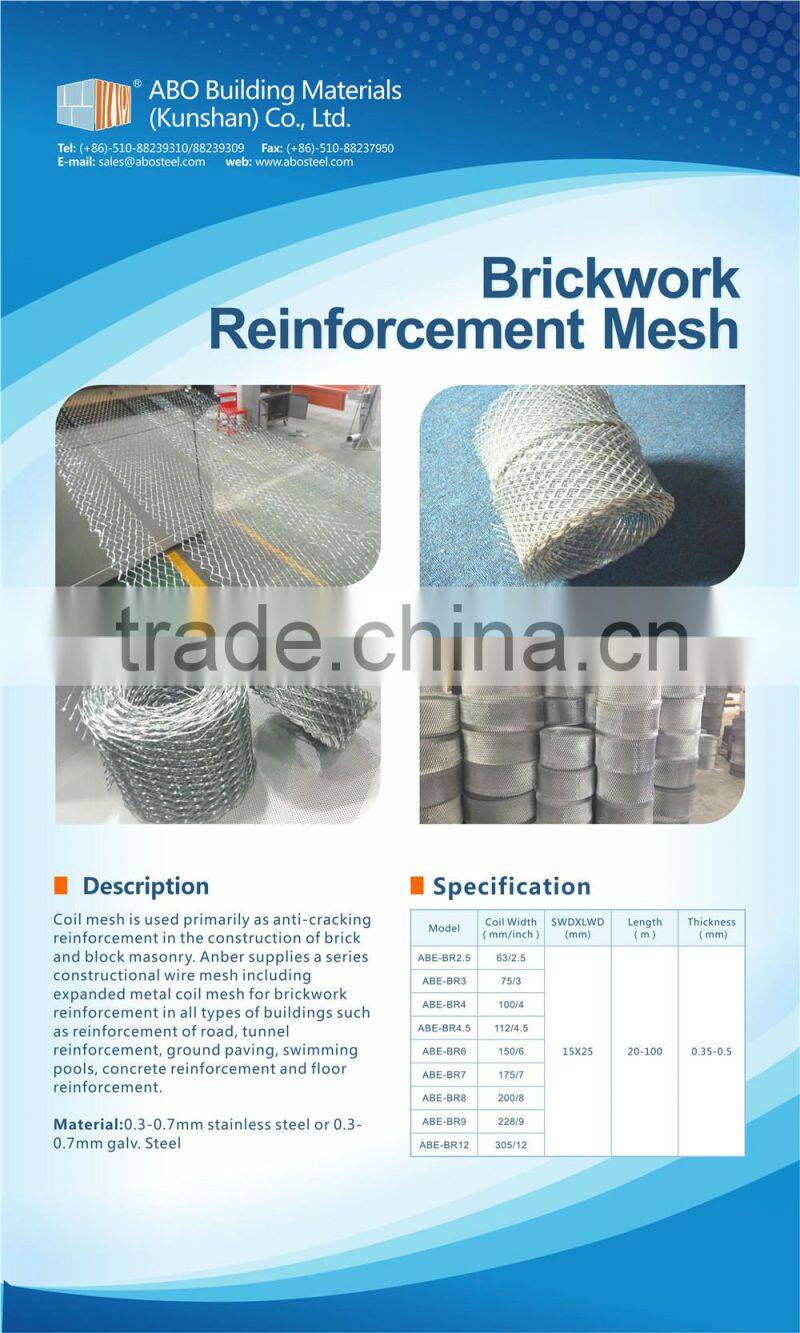

We can produce various building mesh, more pictures about strength and products.
Diamond Metal Lath, stainless steel expanded angle beads, for wall corner beads in corner guards, Expanded Wire Metal Lath

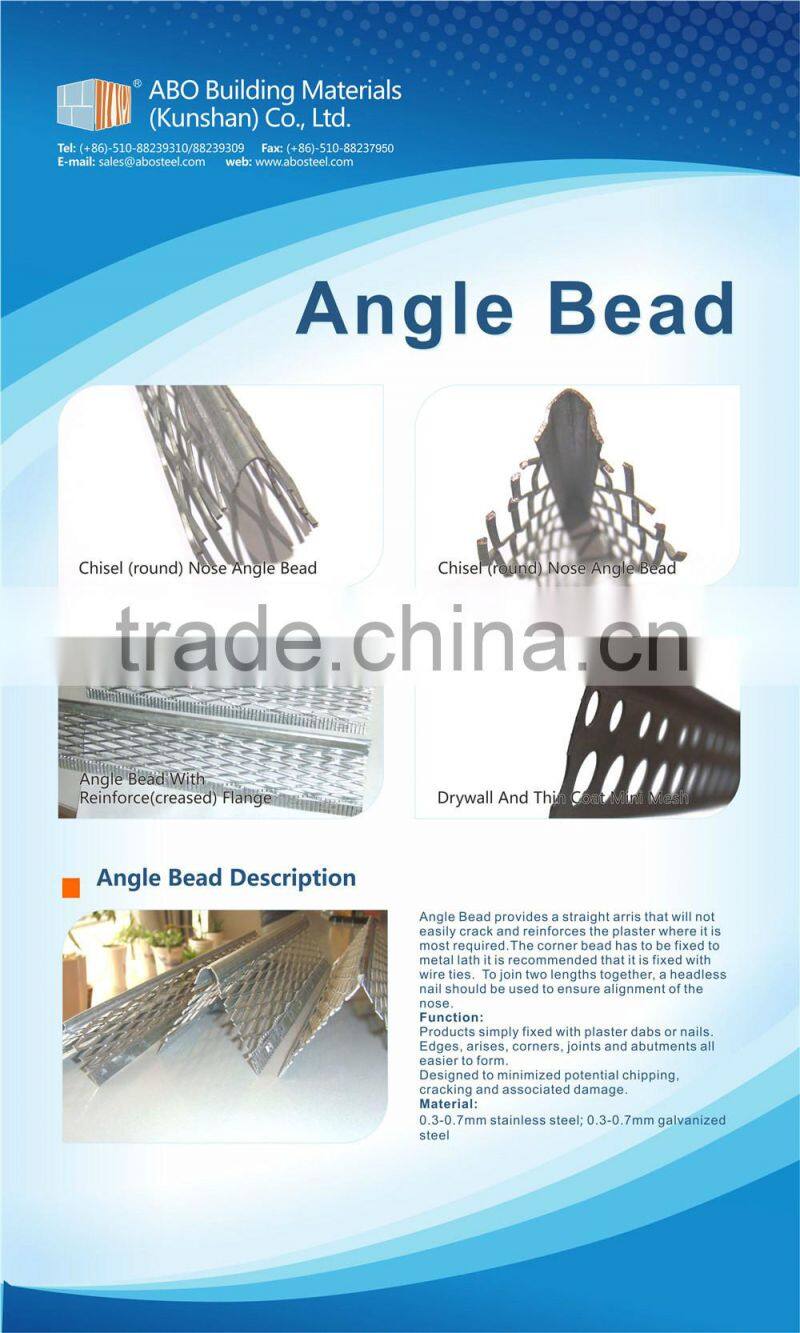

Angle beads
perforated angle beads
Competitive Advantages
Good and High Quality Control ,
Prompt Delivery ,
New Product ,
Competitive Prices ,
Earth-friendly Products
Contact: Fancy Yuan
Cell/ WhatsApp/ Viber/imo: +86 13921196631
Check out our new booth! Come see the demo of our products and talk with our sales staff about your product needs.
"IBS & KBIS 2016" from Jan 19th to 21st in Las Vegas
Booth# C3434
1. Are you a trading company or manufacturer?
We a manufacturing and trading combo.
2. What is your factory strength?
All products of machines are made by ourselves, we have IT team to research the production line, let the final products meet the clients requirements.

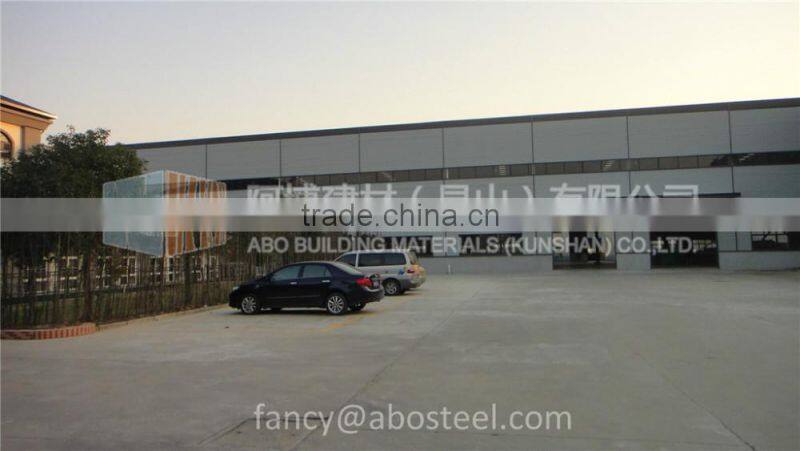

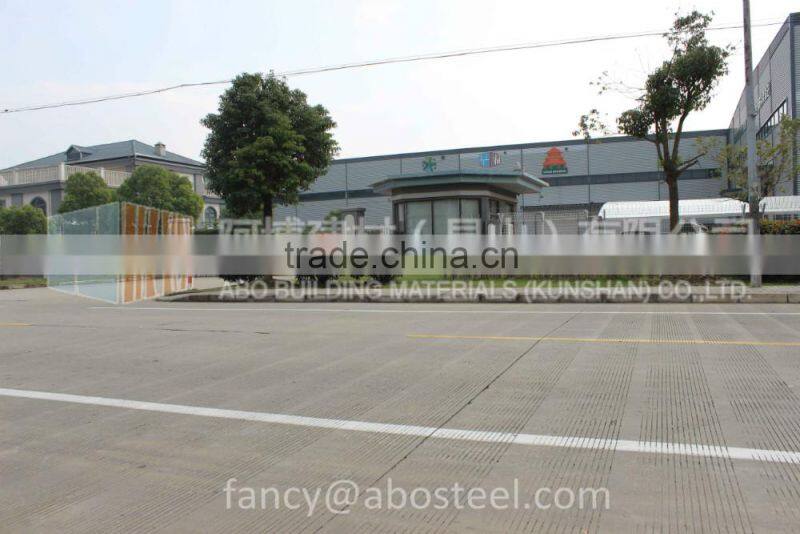

3.Where is ABO Building factory?
