Home > Construction & Decoration > Decoration Materials > Sandwich Panel > 3.4 3/8"Rib Lath / Expanded Metal Lath - ABO Building

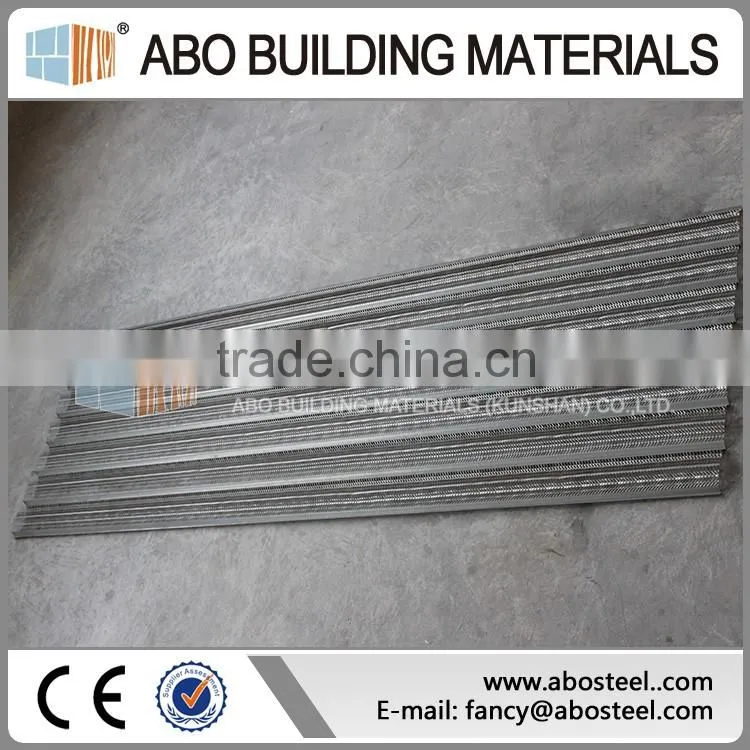

3.4 3/8"Rib Lath / Expanded Metal Lath - ABO Building

3.4 3/8"Rib Lath / Expanded Metal Lath - ABO Building thumbnail-3

3.4 3/8"Rib Lath / Expanded Metal Lath - ABO Building thumbnail-4

3.4 3/8"Rib Lath / Expanded Metal Lath - ABO Building thumbnail-5

3.4 3/8"Rib Lath / Expanded Metal Lath - ABO Building thumbnail-6

3.4 3/8"Rib Lath / Expanded Metal Lath - ABO Building photo-1

3.4 3/8"Rib Lath / Expanded Metal Lath - ABO Building photo-2

3.4 3/8"Rib Lath / Expanded Metal Lath - ABO Building photo-3

3.4 3/8"Rib Lath / Expanded Metal Lath - ABO Building photo-4

3.4 3/8"Rib Lath / Expanded Metal Lath - ABO Building photo-5

3.4 3/8"Rib Lath / Expanded Metal Lath - ABO Building photo-6

US$ 3.5 - 4 MOQ: 3800 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

ABO

Model Number:

3/8" rib lath

Contact Supplier Request Quote Chat Now

Abo Building Materials (Kunshan) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name ABO

Model Number 3/8" rib lath

Material Galvanized Sheet

Product Description

3/8" Rib- lath is expanded metal-lath stiffened with longitudinal ribs. The furring design of the mesh provides efficient background plaster for construction of partition, suspended ceilings and refurbishment works. The advantage of ribbed- lath over metal-lathing is that support centers can be increased or widened.

Flat Rib Lath is available in paper-backed in either K (Kraft) paper, or with D paper.

Specification

Model	Rib Height (mm)	Rib Distance (mm)	Width (mm)	Aperture Size (mm)	Remark
AB-1/8-4-75-450	1/8"	75	450	9*17	9-rib & 4-aperture
AB-3/8-4-75-450	3/8"	75	450	9*17	9-rib & 4-aperture
AB-1/8-4-75-600	1/8"	75	600	9*17	9-rib & 4-aperture
AB-3/8-4-75-600	3/8"	75	600	9*17	9-rib & 4-aperture
AB-1/8-4-75-750	1/8"	75	750	9*17	9-rib & 4-aperture
AB-3/8-4-75-750	3/8"	75	750	9*17	9-rib & 4-aperture

Model	Rib Height (mm)	Rib Distance (mm)	Width (mm)	Aperture Size (mm)	Remark
AB-1/8-8-100-600	1/8"	100	600	7*11	7-rib & 8-Aperture
AB-3/8-8-100-600	3/8"	100	600	7*11	7-rib & 8-Aperture
AB-3/4-8-100-600	3/4"	100	600	7*11	7-rib & 8-Aperture
AB-5/8-8-100-600	5/8"	100	600	7*11	7-rib & 8-Aperture
AB-7/8-8-100-600	7/8"	100	600	7*11	7-rib & 8-Aperture

Model	Rib Height (mm)	Rib Distance (mm)	Width (mm)	Aperture Size (mm)	Remark
AB-1/8-4-100-600	1/8"	100	600	9*20	7-rib & 4-aperture
AB-3/8-4-100-600	3/8"	100	600	9*20	7-rib & 4-aperture
AB-3/4-4-100-600	3/4"	100	600	9*20	7-rib & 4-aperture
AB-5/8-4-100-600	5/8"	100	600	9*20	7-rib & 4-aperture
AB-7/8-4-100-600	7/8"	100	600	9*20	7-rib & 4-aperture

Model	Rib Height (mm)	Rib Distance (mm)	Width (mm)	Aperture Size (mm)	Remark
AB-1/8-8-150-600	1/8"	150	600	11*17	5-rib & 8-aperture
AB-1/4-8-150-600	1/4"	150	600	11*17	5-rib & 8-aperture

Model	Rib Height (mm)	Rib Distance (mm)	Width (mm)	Aperture Size (mm)	Weight
AB-3/8-8-100-686	3/8"	98	686	7.2*9.5	4.3kg
AB-5/8-8-100-686	5/8"	98	686	7.2*9.5	5.6kg
AB-3/4-8-100-686	3/4"	98	686	7.2*9.5	6kg
AB-7/8-8-100-686	7/8"	98	686	7.2*9.5	6.5kg

Please contact with us for detailed data.

Detailed Images

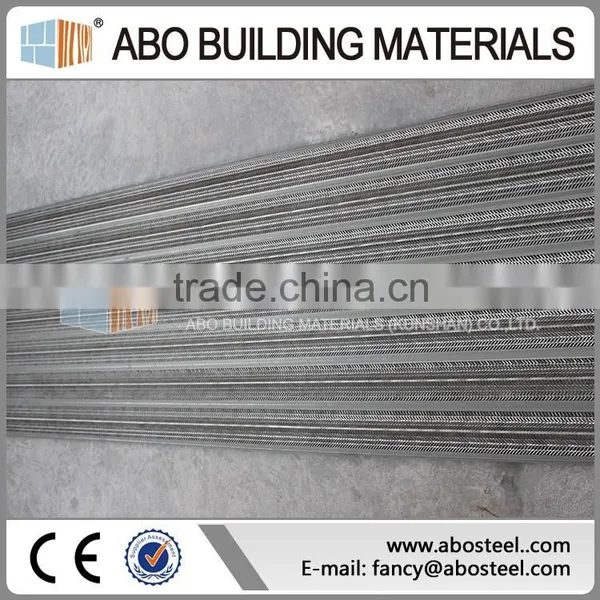

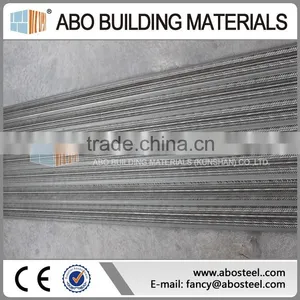

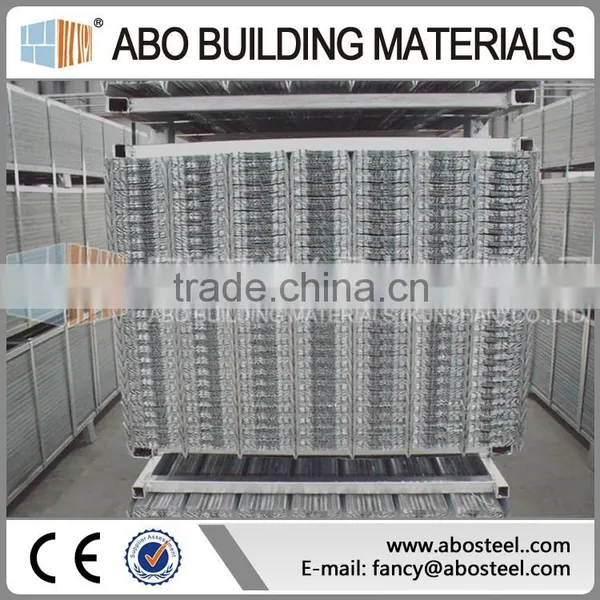

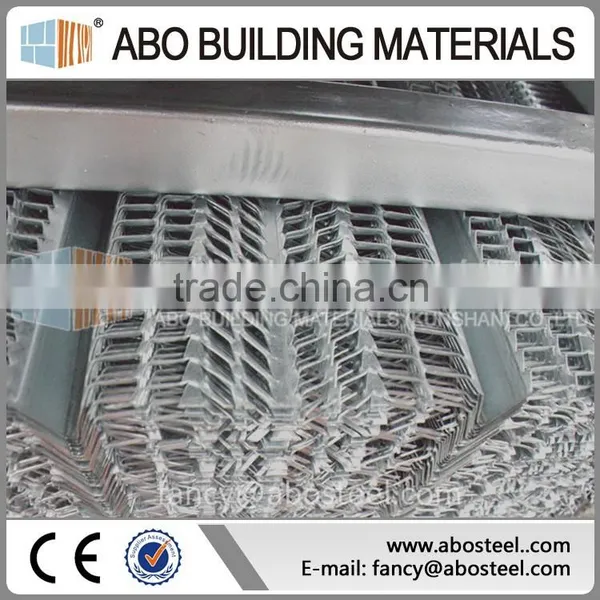

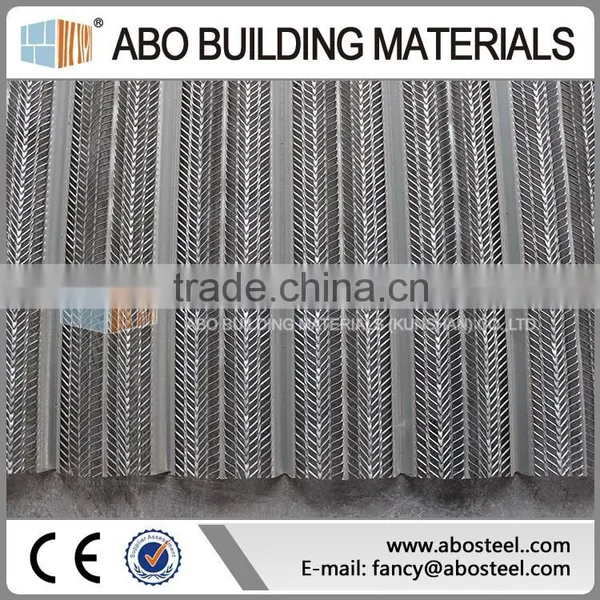

We can produce various rib lath, some pictures of rib lath for your reference.

Related Products

We can produce various building mesh, more pictures about strength and products.

Diamond Metal Lath

Angle beads

perforated angle beads

Company Introducation

We a munufacturing and trading combo, produce and export building mesh, like Angle Beads, Coil Mesh, Expanded Diamond Metal Lath, etc. for several years to overseas.

We have rich experience in this industry, with skilled team and advanced machines, welcome to enquiry our product.

Contact: Fancy Yuan

Web:

Cell/ WhatsApp/ Viber/ imo: +86 13921196631

Our Fair

Check out our new booth! Come see the demo of our products and talk with our sales staff about your product needs.
"IBS & KBIS 2016" from Jan 19th to 21st in Las Vegas
Booth# C3434

FAQ

1. Are you a trading company or manufacturer?

We a manufacturing and trading combo.

2. What is your factory strength?

All products of machines are made by ourselves, we have IT team to research the production line, let the final products meet the clients requirements.

3.Where is ABO Building factory?
We are in Kunshan, 1hour driving from Shanghai airport.

4.What about the payment Terms?
Normally deposit 50% in advance.

5.What is your available port for shipment?
Shanghai seaport.
