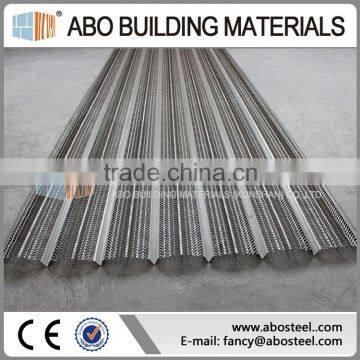

3/8"Rib Metal Lath- ABO Building
- 80 Ton / Tons per Month
- Shanghai Ningbo
- L/C D/P D/A
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | ABO | Model Number: | AB-3/8-8-100-600 |
Material: | Galvanized Sheet |
Product Description
Flat Rib Lath is available in paper-backed in either K (Kraft) paper, or with D paper.
Model | Rib Height | Rib Distance | Width | Aperture Size | Remark |
AB-1/8-4-75-450 | 1/8" | 75 | 450 | 9*17 | 9-rib & 4-aperture |
AB-3/8-4-75-450 | 3/8" | 75 | 450 | 9*17 | 9-rib & 4-aperture |
AB-1/8-4-75-600 | 1/8" | 75 | 600 | 9*17 | 9-rib & 4-aperture |
AB-3/8-4-75-600 | 3/8" | 75 | 600 | 9*17 | 9-rib & 4-aperture |
AB-1/8-4-75-750 | 1/8" | 75 | 750 | 9*17 | 9-rib & 4-aperture |
AB-3/8-4-75-750 | 3/8" | 75 | 750 | 9*17 | 9-rib & 4-aperture |
Model | Rib Height | Rib Distance | Width | Aperture Size | Remark |
AB-1/8-8-100-600 | 1/8" | 100 | 600 | 7*11 | 7-rib & 8-Aperture |
AB-3/8-8-100-600 | 3/8" | 100 | 600 | 7*11 | 7-rib & 8-Aperture |
AB-3/4-8-100-600 | 3/4" | 100 | 600 | 7*11 | 7-rib & 8-Aperture |
AB-5/8-8-100-600 | 5/8" | 100 | 600 | 7*11 | 7-rib & 8-Aperture |
AB-7/8-8-100-600 | 7/8" | 100 | 600 | 7*11 | 7-rib & 8-Aperture |
Model | Rib Height | Rib Distance | Width | Aperture Size | Remark |
AB-1/8-4-100-600 | 1/8" | 100 | 600 | 9*20 | 7-rib & 4-aperture |
AB-3/8-4-100-600 | 3/8" | 100 | 600 | 9*20 | 7-rib & 4-aperture |
AB-3/4-4-100-600 | 3/4" | 100 | 600 | 9*20 | 7-rib & 4-aperture |
AB-5/8-4-100-600 | 5/8" | 100 | 600 | 9*20 | 7-rib & 4-aperture |
AB-7/8-4-100-600 | 7/8" | 100 | 600 | 9*20 | 7-rib & 4-aperture |
Model | Rib Height | Rib Distance | Width | Aperture Size | Remark |
AB-1/8-8-150-600 | 1/8" | 150 | 600 | 11*17 | 5-rib & 8-aperture |
AB-1/4-8-150-600 | 1/4" | 150 | 600 | 11*17 | 5-rib & 8-aperture |
Model | Rib Height | Rib Distance | Width | Aperture Size | Weight |
AB-3/8-8-100-686 | 3/8" | 98 | 686 | 7.2*9.5 | 4.3kg |
AB-5/8-8-100-686 | 5/8" | 98 | 686 | 7.2*9.5 | 5.6kg |
AB-3/4-8-100-686 | 3/4" | 98 | 686 | 7.2*9.5 | 6kg |
AB-7/8-8-100-686 | 7/8" | 98 | 686 | 7.2*9.5 | 6.5kg |
Please contact with us for detailed data.

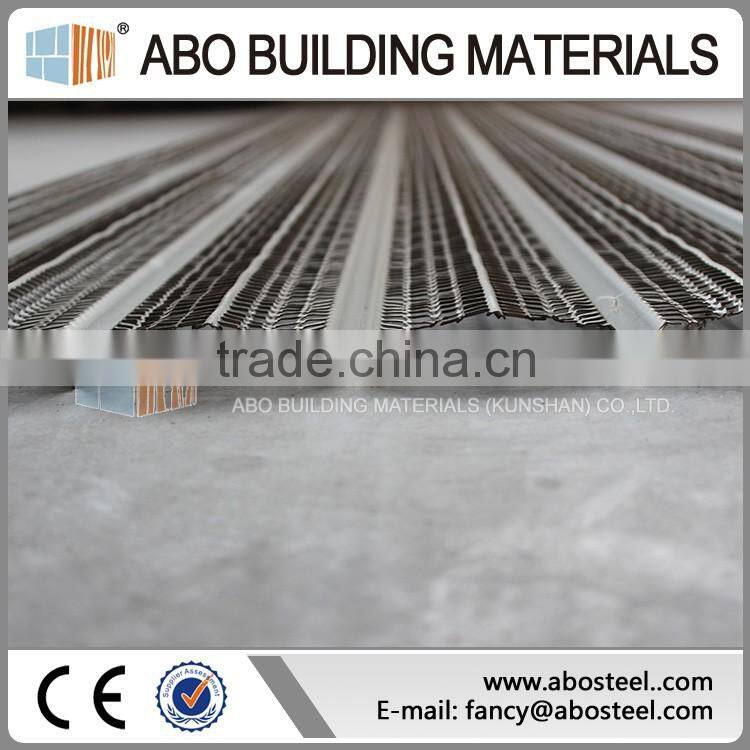

Rib lath is idea for refurbishing damaged or aged masonry walls, when a key for rendering is not certain due to disintegration or softening of the wall face.
Lath should be fixed with apexes of ribs against the wall, edge ribs of sheets nesting into each other should be wire-tied every 15cm and ends of sheets should be lapped not less than 2.5cm and nesting ribs securely tied together. Stainless steel fixing should be used at sufficient intervals to hold the lath firmly in position.

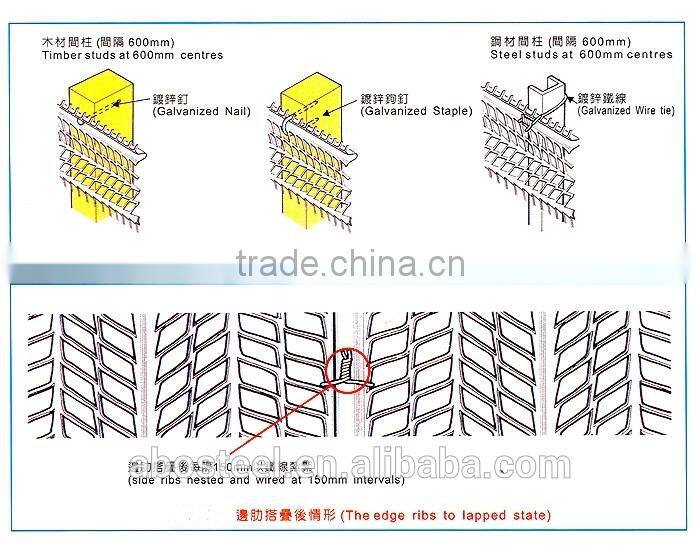

Fixing of Rib lath Sheets
Rib lath is fixed so that the tip of the rib is put against the supporting background. The rib of the sheet should run at right angles to any supports. Make sure that sheets are superposed by a minimum of 50mm end to end and by 25mm width ways and that the ribs are nestled together.
Wood Support
Rib lath is fixed at each rib to wood supports using plasterers' nails or staples. Make sure that compatible corrosion resistant fixings are used, for example, please don’t use galvanized fixings for stainless steel.
Metal Support
Rib lath is fixed at each rib to metal support using 1.63mm galvanized or stainless steel tying wire. When joining rib lath sheets overlap the edge ribs and tie the edges with 1.22mm tying wire at 150mm centers.
Solid Background
Rib lath can be fixed to a solid background using a suitable fixing which holds the ribs firmly against the background. Where sheets are installed perpendicularly, fixings should be positioned through all ribs at 600mm centers to make sure there have enough stability.

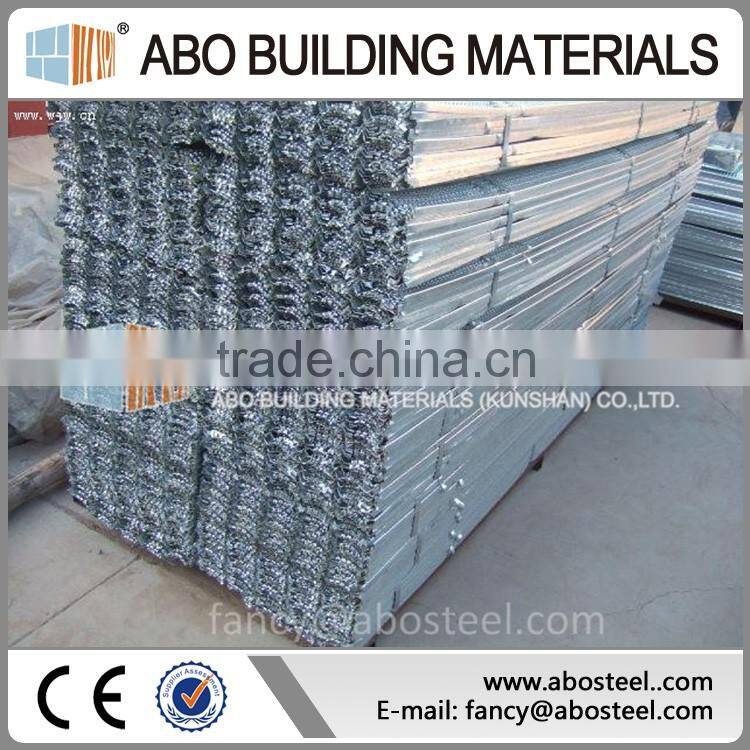

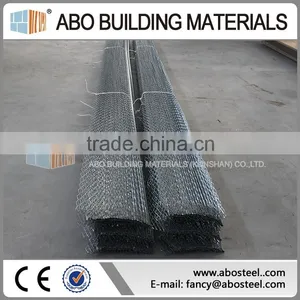

Normally, 620piece per pallet. 6pallets for one 20' container. packing method can be customized accoring to client's requirements.
We can produce various building mesh, more pictures about strength and products.

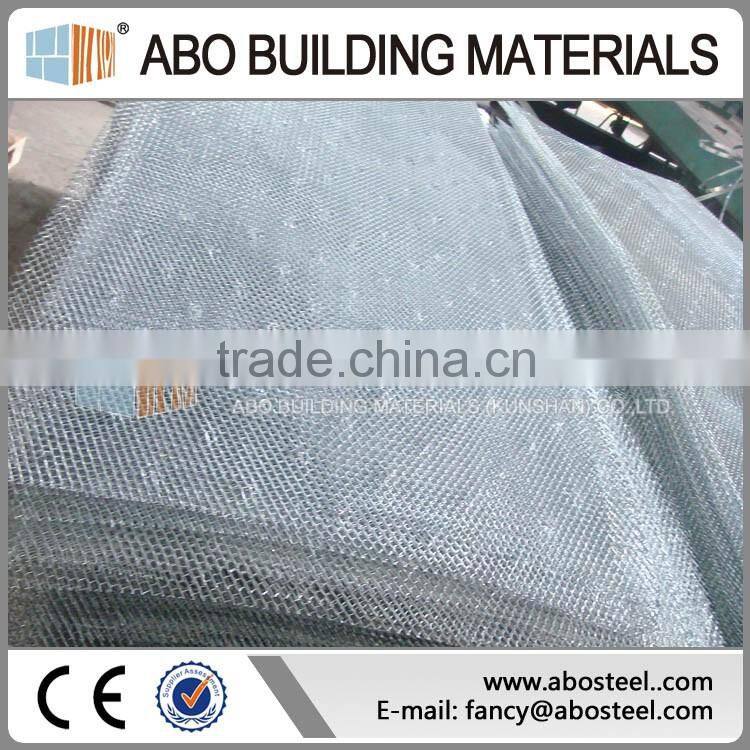

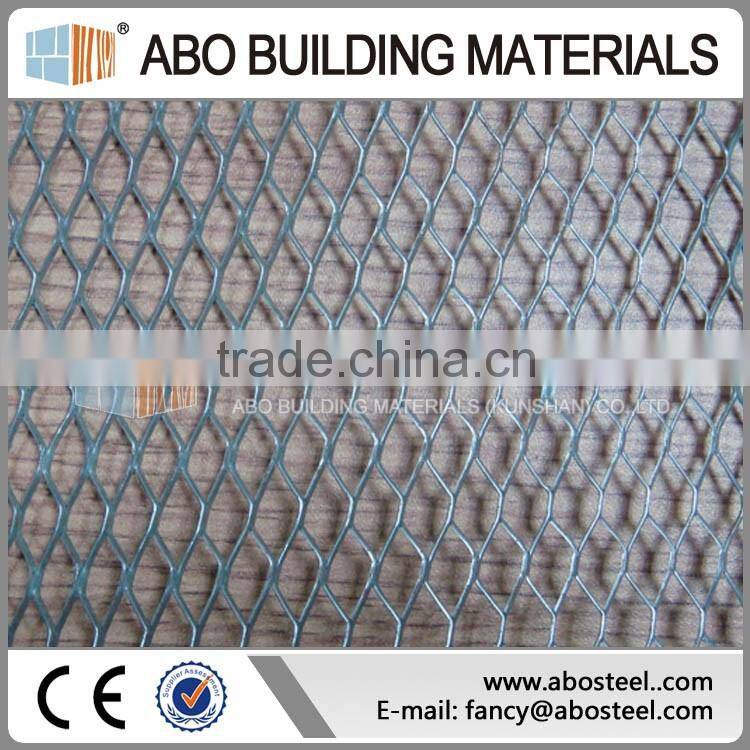

Diamond Metal Lath

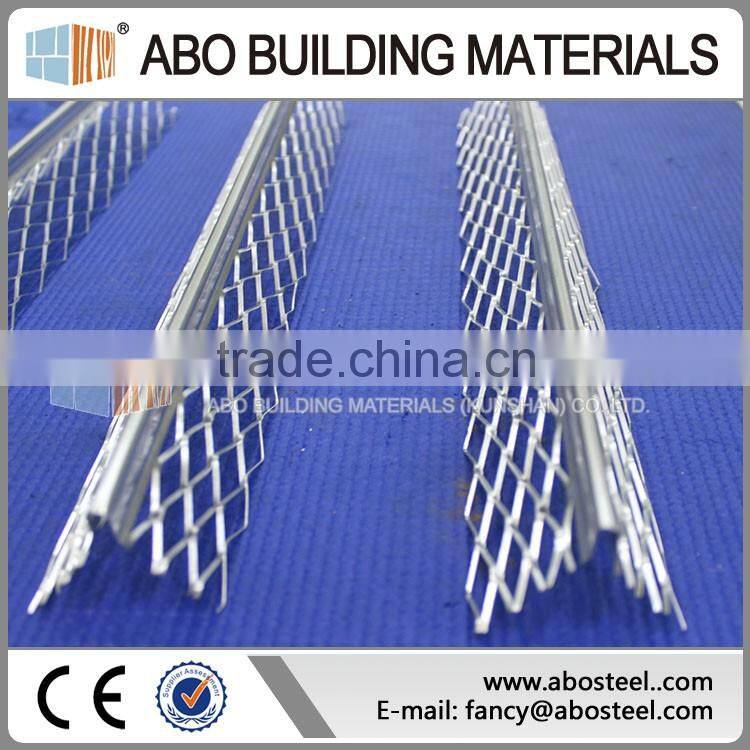

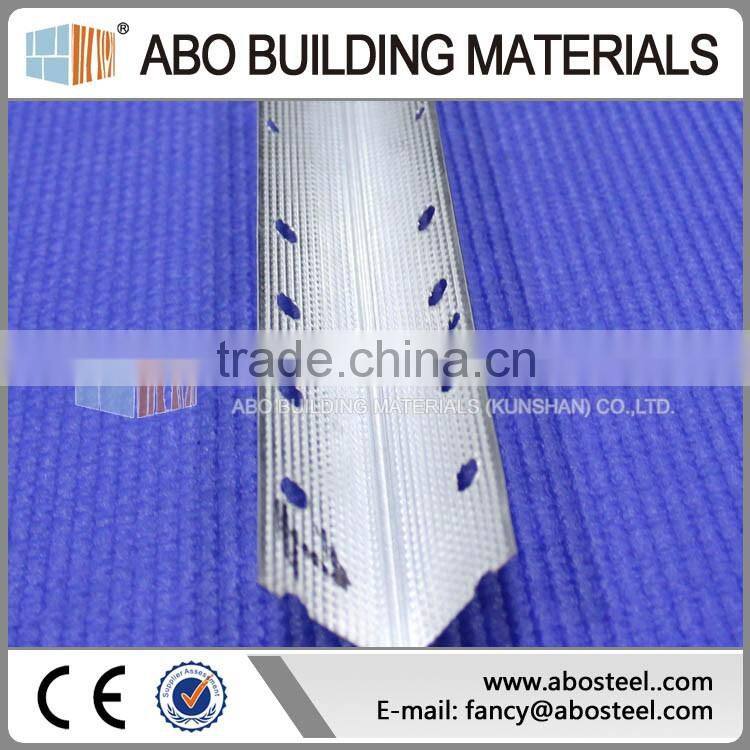

Angel beads
We a manufacturing and trading combo, produce and export build meshing, like Angle Beads, Rib Lath, Coil Mesh, etc. to overseas market for several years.
Our company provides a variety of high quality building mesh, like Expanded Metal mesh & Plaster Mesh, Angle Beads, 3D Truss Girder, Architrave Beads, Rib Lath and specialized building materials. The quality system is accredited through ISO 9001:2008, assuring our products high quality.
With self-made high speed machine, good management system, higher technic and excellent service, we can get higher productivity to match with the customer and market requirement.
A professional sales and technical team are on hand to offer advice.
Our certificate

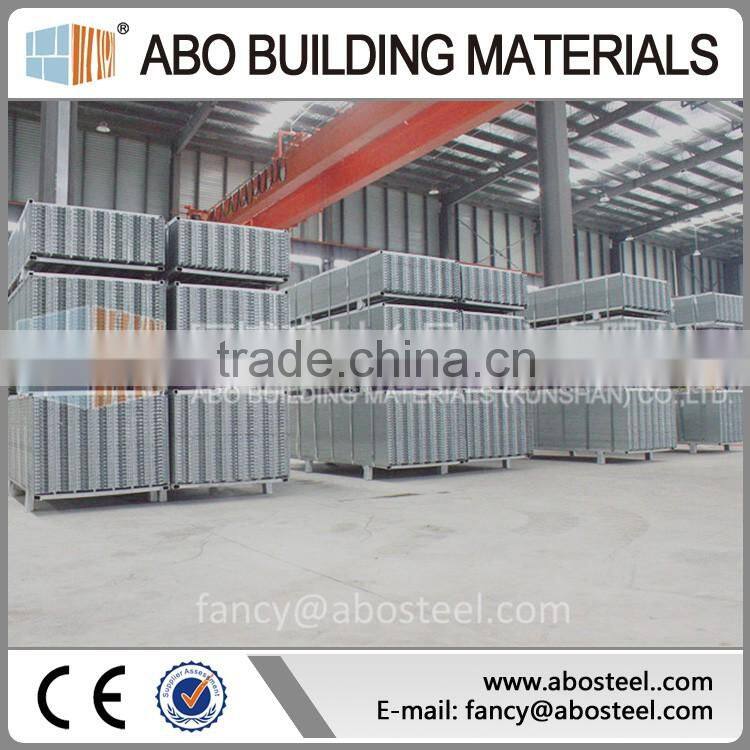

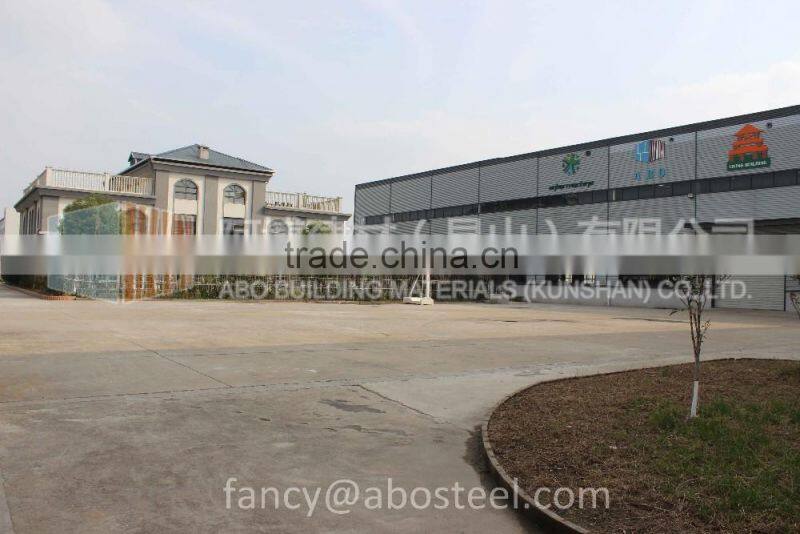

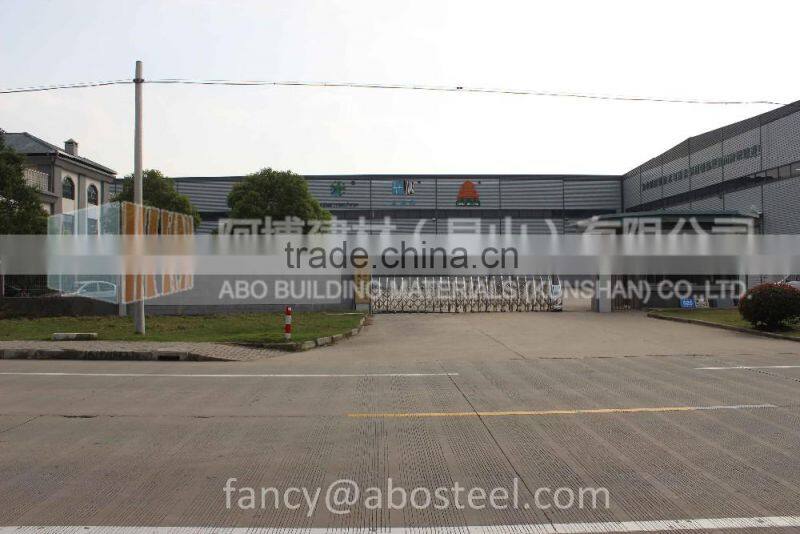

Our Factory
