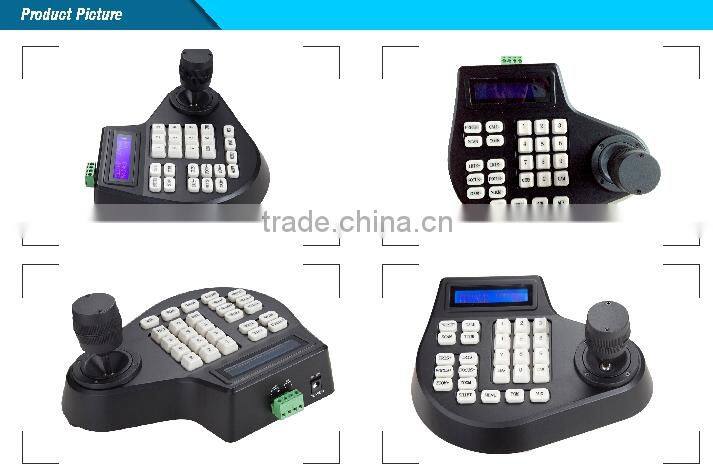

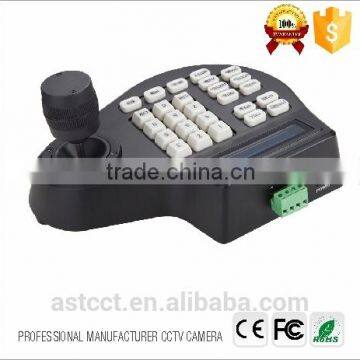

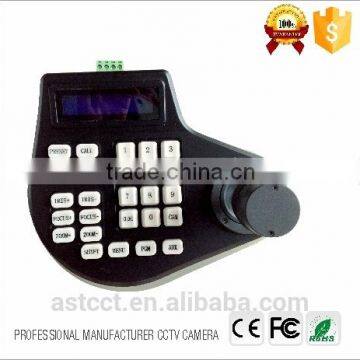

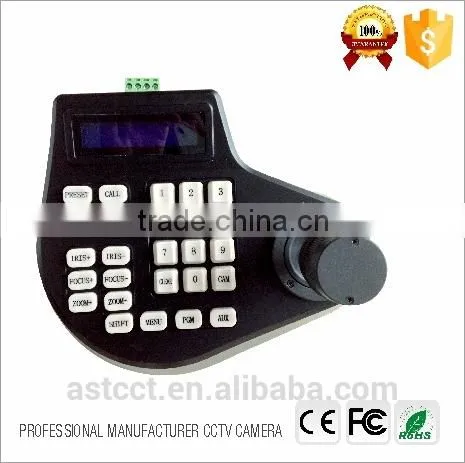

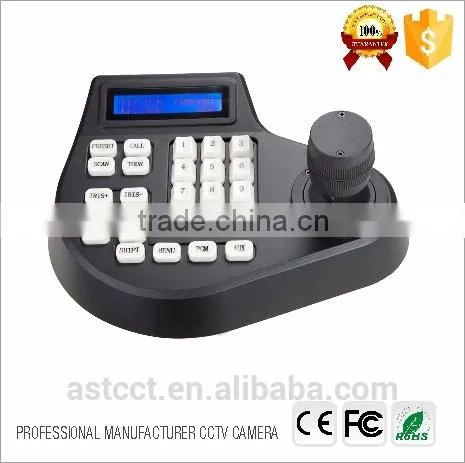

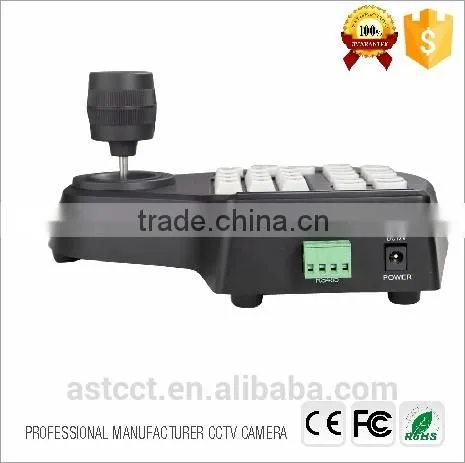

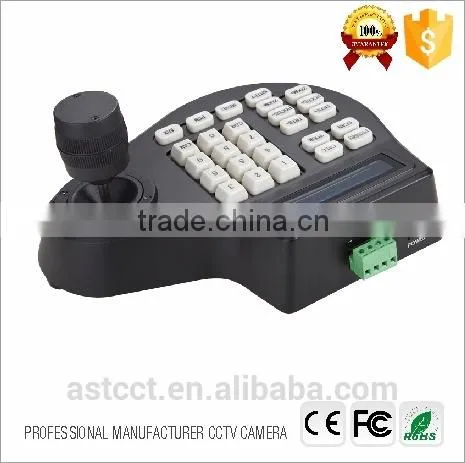

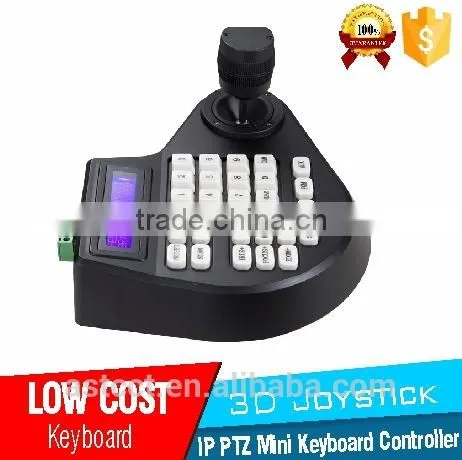

3 Axis 3D Dimension Joystick CCTV Mini Keyboard Controllers for PTZ Speed Dome Camera Support Pelco-D Pelco P Protocol

3 Axis 3D Dimension Joystick CCTV Mini Keyboard Controllers for PTZ Speed Dome Camera Support Pelco-D Pelco P protocol

brief introduction

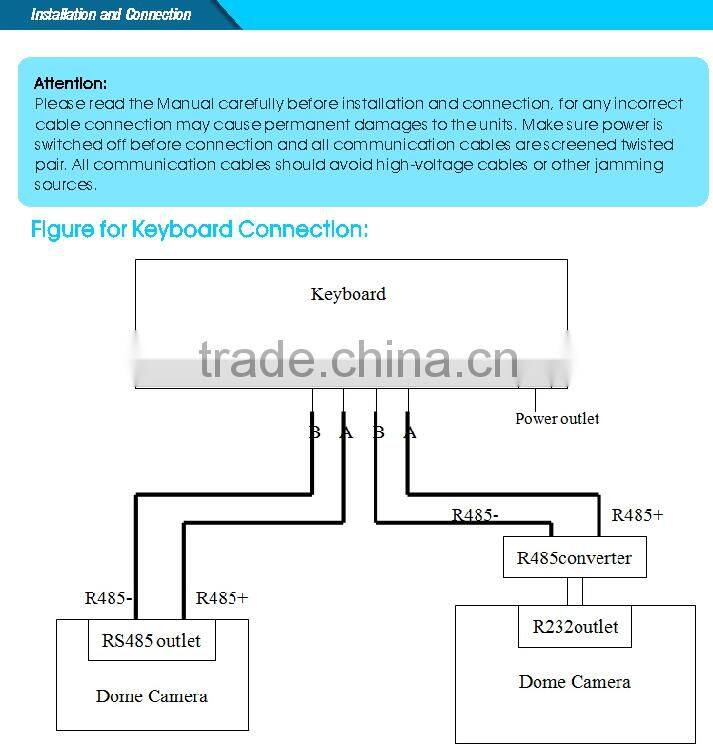

The keyboard controller can control high speed dome cameras, slow dome camera ,zoom camera , decoders, etc. The electric outlet between the controlling keyboard and the receiving terminal is EIA/RS – 485, which enables the keyboard to control as many as 128 dome cameras or other terminals within a maximal communication range of 1.5 Km.

Description of Main Functions
The main functions of the keyboard include:
1. The keyboard output adopts photoelectric insulated 485 control, which
provides strong anti-jamming and long-range transmission.
2. The range for dome camera or decoder address setup: 1~255.
3. Variable-speed operation can be applied to the built-in dome of the high speed dome camera.
4. Pre-set positions can be setup and previewed in the high speed dome camera.
5. Up to four tour routes can be setup and previewed in the high speed dome
camera, with each tour having a maximum of 16 pre-set positions, dwell time and
speed for each pre-set positions programmable.
6. The high speed dome camera can be manually / automatically controlled.
7. Lens zoom ratio, focus and iris can be manually controlled.
8. More than one terminals, such as dome cameras and decoders, can be controlled.

1. Baud rate: 1200bps,2400bps,4800bps,9600bps,19200pbs,38400pbs
2. Protocol:Pelco-D ,Pelco-P ,SAMSUNG
3. Communication: RS-485

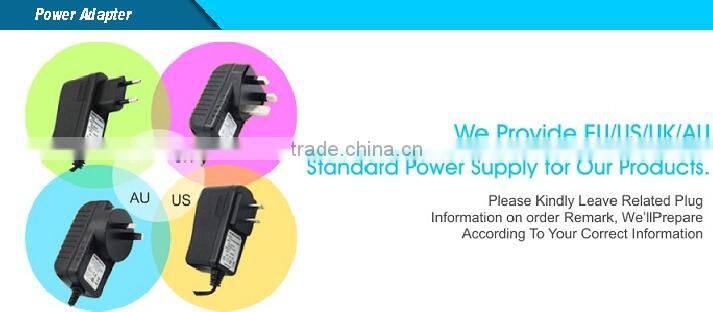

4. Power input: DC 12V -1A
5. Communication distance: max 1500m
6. Can control max 128 speed domes
7. Password setup function
8. Ambient Temperature: 0℃~60℃
9. Relative Humidity:90%RH
10. Dimension: 205mm*168mm*48 mm

OEM Service:

We could offer OEM and ODM services for our clients.

Delivery Time:

Sample order 3-5 working days, bulk order 7-15 working days.

Quality Warranty:

2 years for free repair. Whole life service for continue cooperating customers!

Price Term:

EXW Shenzhen

Delivery Term:

By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.

Our company product obtain CE, RoHS, FCC ,IP66 certifications
