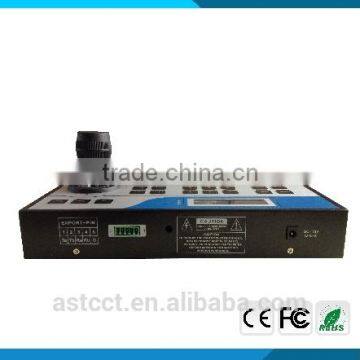

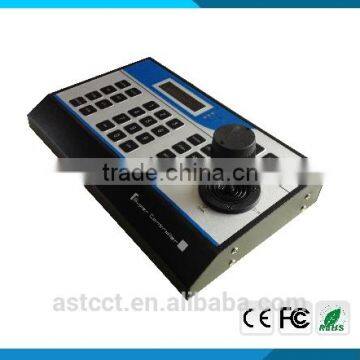

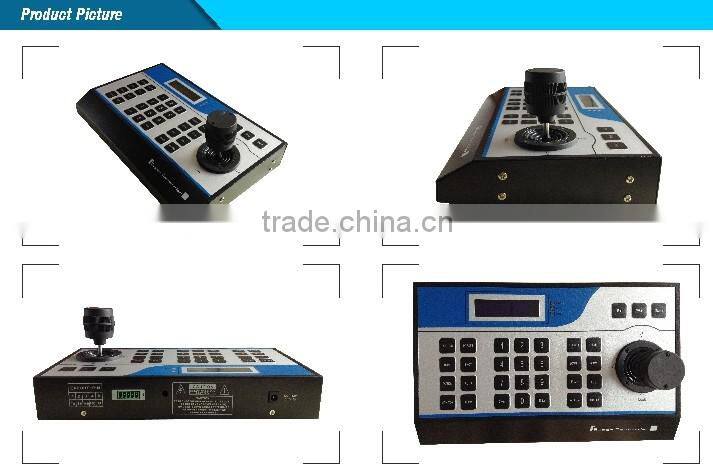

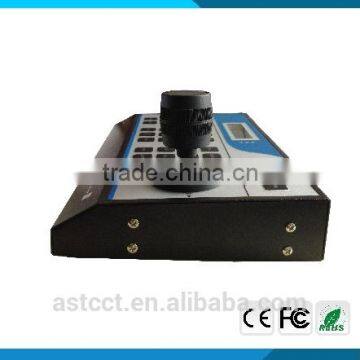

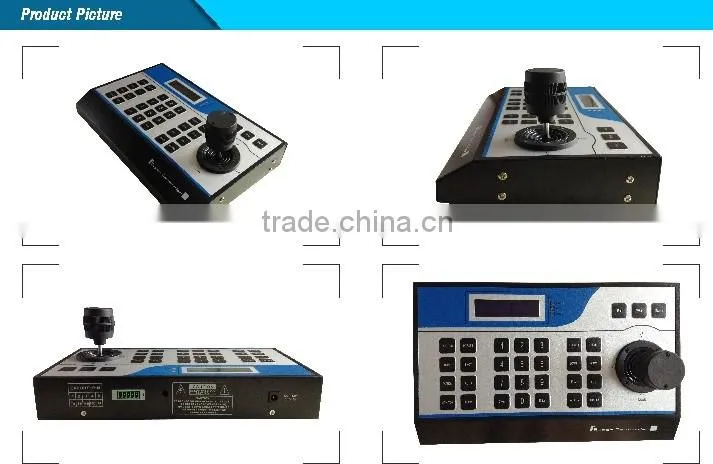

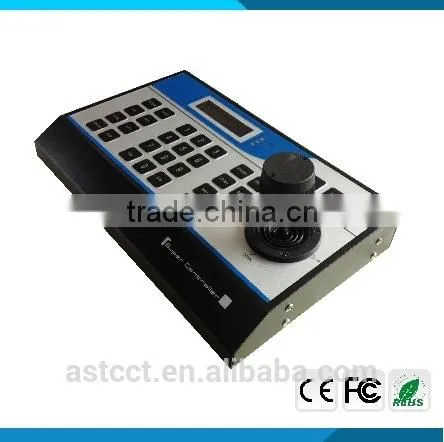

Product Name: Blacky Rs485 PTZ Camera 3D Keyboard Controller
Functional Features:
1: Specially integrate the principals of RS485 sharing device of our company. Serial embedded DVR and common PCDVR jointly control PTZ to facilitate both client program and the site;
2: Any devices paralleled with RS485 bus can be configured with individual protocol and baud rate, which skillfully enhances the system flexibility;
3: Add some new functional keys, which enhance fast control of PTZ;
4: Online update program. If the protocols required by customers are not built in the intelligence controller, our company can generate corresponding upgrade programs based on customer-offered protocols. What customers should do is to upgrade the firm program of controller through RS485 communication connection on the computer.
Operational Features:

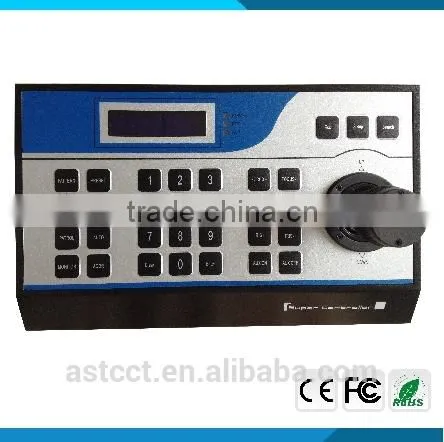

1: Operation, setting and search can be clearly displayed on the liquid crystal display (LCD);
2: Controlling the wobble amplitude of joystick can control rotating frequency of PTZ, and the wobble amplitude can be displayed on the LCD;
3: Changing setting parameters need entering password, so it is safe, reliable and error operation prevented;
4: Single key search is easy and safe, which clearly not only displays setting parameters, but also prevents parameters modifying by mistake.
Compatible Features:
1: Available in 12 PTZ and decoder protocols. Be able to add new protocols as required and online update;
2: Be able to control 255 PTZs, the address code of decoder is from 0 to 254;
3: Support slave serial control, be able to cascade 16 slave controllers. The controller ID is from 0 to 15.
Material Features:

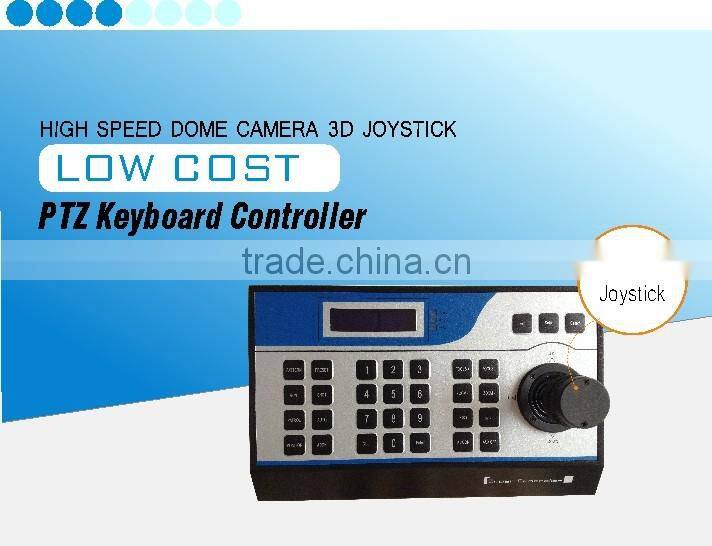

1: Correct and reliable ALPS remote joystick;
2: The keys with 5 million clicks are reliable, wary touched and have prompt sound;
3: large and clear LCD:

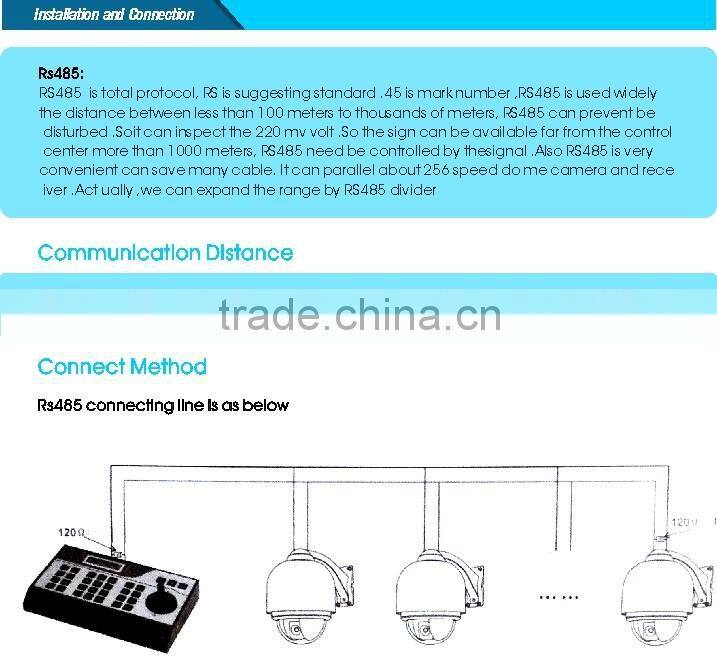

4: Standard RS485 signal input and output interfaces use photoelectric isolator, and have enhanced anti-interference ability. The standard transmission distance is up to 1200m;
5: Standard interface makes connection easy, fast and simple.
| Form parameters | |
| Mode | ASKB011 |
| Power Supply | DC12V±10%/50HZ |
| Ambient Temperature | -10~55℃ |
| Ambient Humidity | ≤90%RH (non-frosting) |

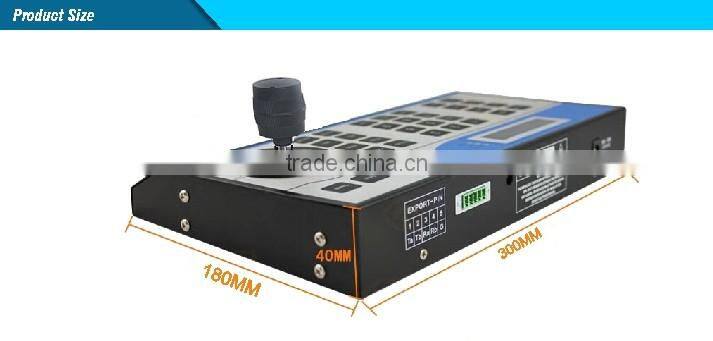

| Dimension | 300(L)× 180(W)× 90(H) |
| Weight | 2.6Kg |
| Communication Method | RS485 half-duplex |
| Communication Baud Rate | 1200bps, 2400bps, 4800bps, 9600bps, 19200bps |

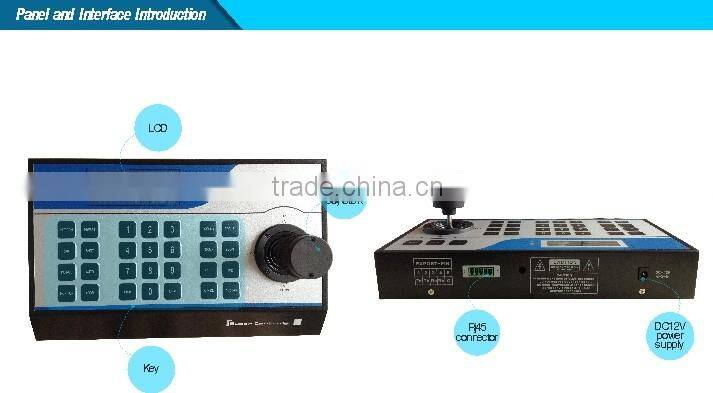

| Interface Method | RJ45, Junction Box |

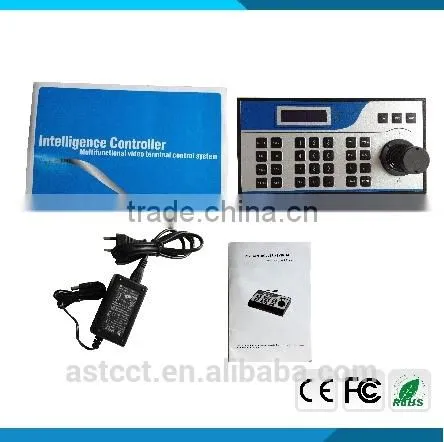

Packading Details: Standard Paper Box Packing / Carton Packing
Delivery Detail: 3-7 working days after payment comfirmed
Anxinshi Technology Co.,Ltd is a manufacturer specializing in security surveillance products . Our company set the development, production, sales and service as a whole, Products include professional intelligence, digital and network video monitoring equipment. We take our clients with professional security video surveillance products and to meet customer demand system solutions as our responsibility,and also to provide customers with system design, product supply and assembly manufacturing, sales and trade cooperation integration services.
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
MORE INFORMMATION , PLEASE CLICK HERE: AST THANK YOU!
