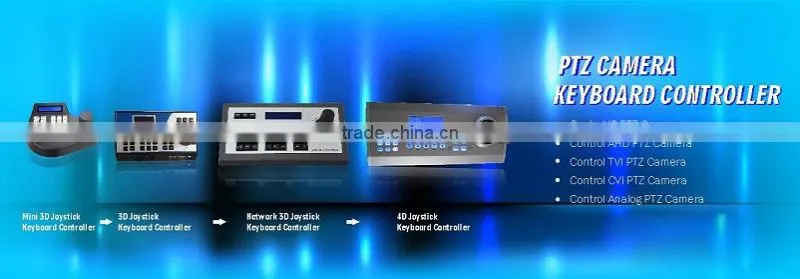

high speed dome 4D Joystick keyboard controller for DVR and PTZ CCTV camera
- 100 Piece / Pieces per Month
- Shenzhen
Product Details
Place of Origin: | Guangdong, China | Brand Name: | AST | Model Number: | ASKB03 |
Product Description
high speed dome 4D Joystick keyboard controller for DVR and PTZ CCTV camera
Product Overview:
The keyboard is a product for professional use in security systems. The keyboard is applied to remotely control digital multiplexers, DVR,NVR,speed dome cameras and IP Camera. It’s ergonomic construction guarantees comfortable operation for security personnel.
1. Protocol:PELCOD/PELCO-P/Panasonic/Samsung/AD(TYCO)/DH/VISCA
2.Bute rate:1200/2400/4800/9600/19200 ;
3. USB 2.0 HID protocol for IP Camera
Main Features:
1..The keyboard can be applied to control CCTV systems, speed dome cameras, DVR,NVR,IP camera , and personal computer monitoring terminal devices.
2.. Joystick: 3-axis+1button;
3.LCD: two lines of 20 characters, backlight.
4. 28 keys, silicon rubber + keystroke, one million times long lifetime, backlight;
Form parameters | |
Mode | ASKB03 |
Item | Technical parameters |
Joystick | 3 axis + 1 buttons, optical sensors, high precision |
Buttons | 28 ALPS keys, double color backlighting, brightness is adjustable |
Display | LCD, 2 rows, 20 characters, blue backlight |
Material | Shell: aluminium alloy; Joystick: aluminium alloy+ABS |
Dimensions | 355(L) × 150(W) ×155(H)mm |
Weight | 1.47kg (w/o Power supply) |
1.89 kg (with Power supply) | |
2.4kg (prepared for shipping) | |
Operating Environment | -10°C - 70°C; 0 - 90% (no condensation) |
Power Supply | DC12V/1A |
Power consumption | 2.7 W (not loaded line) |
Interfaces | 1×RJ-45, 1×RS485,1×RS232,1×USB-D |
Others Function | Support multiple brand camera agreement |
Baud rate: 1200, 2400, 4800, 2400, 4800kbps | |
Support auxiliary control functions: lights, windshield wipers | |
Support 255 DVR/DVR control | |
Support the camera image parameter Settings in detail(PelcoD-Usb protocol only) | |
Support USB joystick (game controller) control function, support for Microsoft DirectX |
