Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > WX118 49mm Long Shaft Carbon Film Wirewound Potentiometer

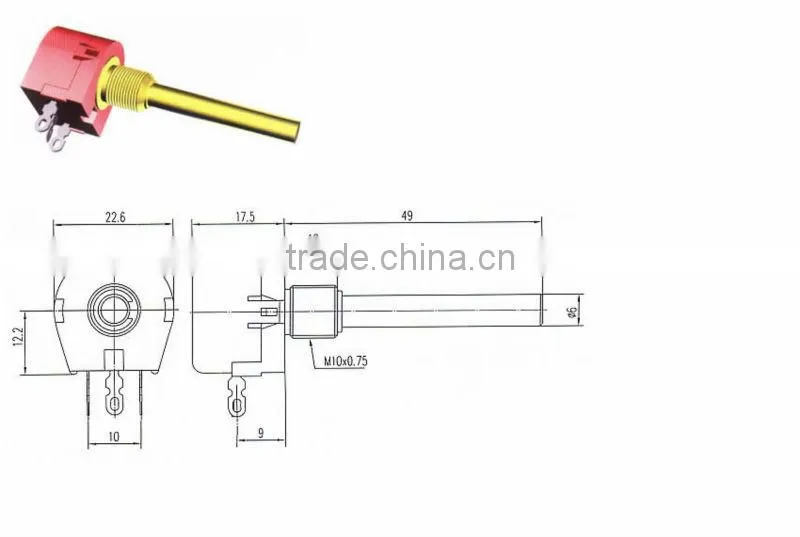

WX118 49mm Long Shaft Carbon Film Wirewound Potentiometer
US$ 1 - 1.8
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Bonens
Model Number:
WX118 potentiometer
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electronics WX118 10k Rotary PotentiometerUS$ 1 - 1.8MOQ: 100 Pieces -
Precision Multiturns 3590 Cermet Wire-wound PotentiometerUS$ 0.9 - 1.6MOQ: 100 Pieces
-
Precision 3590 Wire PotentiometerUS$ 0.9 - 1.6MOQ: 100 Pieces
-
Electronics WX118 50K Rotary Potentiometer Long Shaft PotentiometersUS$ 1 - 1.1MOQ: 1 Piece
-
Precision Trimming 3590S2 10k Wire Wound PotentiometerUS$ 0.9 - 1.6MOQ: 100 Pieces
Place of Origin
Sichuan, China
Brand Name
Bonens
Model Number
WX118 potentiometer
Type
Rotary Potentiometer
Technology
Carbon Film
Resistance
100Ω~22kΩ
Resistance Tolerance
±10%
Rated Power
1W/40℃
Max. Operating Voltage
200V
Operating Temperature
-55℃~+125
Specifications
1,WX118 carbon filrm potentiometer2,49mm long shaft
3,ISO certification and Rohs
4,competitive price and high quality
|
Model
|
WX118 |
|
Standard Resist. Range
|
100Ω~22kΩ |
|
Power Ratings
|
1W/40°C |
|
Maximum Working Voltage
|
200V |
|
Maximum Wiper Current
|
100mA |
|
Operating Temp. Range
|
-55°C~+125°C |
|
Resistance Tolerance
|
±10% |
Effective Electrical Travel |
mech.285°±5° elektr.265°±5° |
|
End Resistance
|
2Ωmax |
|
Dielectric Strength (Room Conditions)
|
1000V AC |
|
Insulation Resistance
|
1000MΩmin.(at 500V DC) |
|
Shaft Torque
|
3.5~100mN.m |
|
Rotational Life
|
5000cycles without discontinuity |
|
Temperature Coefficient
|
±100ppm/°C |
