Home > Electrical & Electronics > Passive Components > Resistor & Potentiometer > Electronics WX118 10k Rotary Potentiometer
US$ 1 - 1.8
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Bonens
Model Number:
WX118 potentiometer
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Precision Multiturns 3590 Cermet Wire-wound PotentiometerUS$ 0.9 - 1.6MOQ: 100 Pieces -
Precision 3590 Wire PotentiometerUS$ 0.9 - 1.6MOQ: 100 Pieces
-
Electronics WX118 50K Rotary Potentiometer Long Shaft PotentiometersUS$ 1 - 1.1MOQ: 1 Piece
-
Precision Trimming 3590S2 10k Wire Wound PotentiometerUS$ 0.9 - 1.6MOQ: 100 Pieces
-
Wire-wound Precision Multiturn 3590s PotentiometerUS$ 0.9 - 1.6MOQ: 100 Pieces
Place of Origin
Sichuan, China
Brand Name
Bonens
Model Number
WX118 potentiometer
Type
Rotary Potentiometer
Technology
Carbon Film
Resistance
100Ω~22kΩ
Resistance Tolerance
±10%
Rated Power
1W/40℃
Max. Operating Voltage
200V
Operating Temperature
-55℃~+125
Specifications

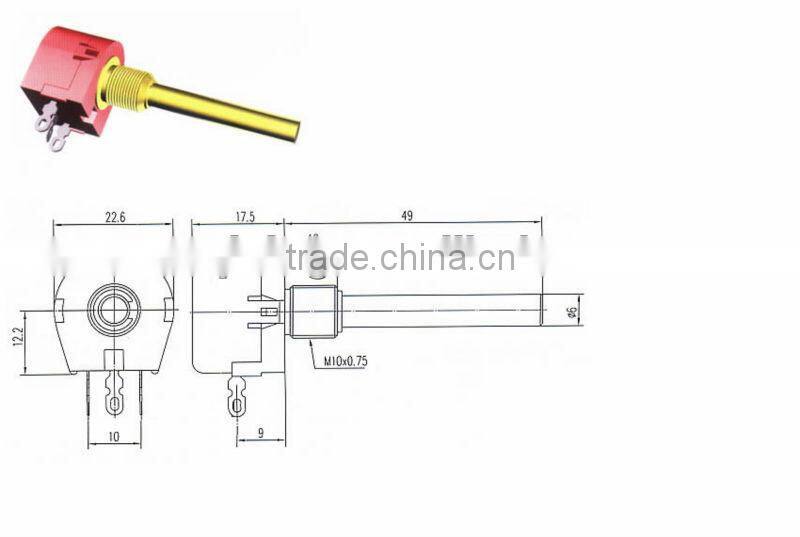

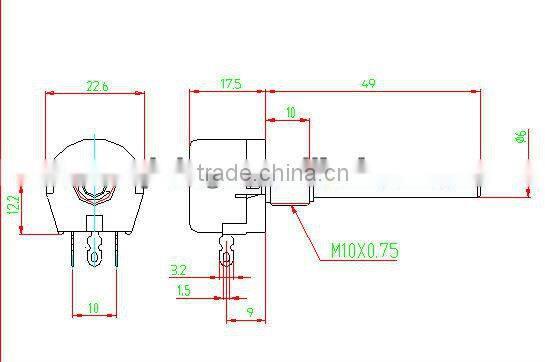

1,WX118 carbon filrm potentiometer2,49mm long shaft
3,ISO certification and Rohs
4,competitive price and high quality
Model
| WX118 |
Standard Resist. Range
| 100Ω~22kΩ |
Power Ratings
| 1W/40°C |
Maximum Working Voltage
| 200V |
Maximum Wiper Current
| 100mA |
Operating Temp. Range
| -55°C~+125°C |
Resistance Tolerance
| ±10% |
Effective Electrical Travel | mech.285°±5° elektr.265°±5° |
End Resistance
| 2Ωmax |
Dielectric Strength (Room Conditions)
| 1000V AC |
Insulation Resistance
| 1000MΩmin.(at 500V DC) |
Shaft Torque
| 3.5~100mN.m |
Rotational Life
| 5000cycles without discontinuity |
Temperature Coefficient
| ±100ppm/°C |
