Specifications
5W Fixed Aluminum Housed WireWound Resistors- High Power Rating
- Small Size
- Non-Inductive
- High Stability

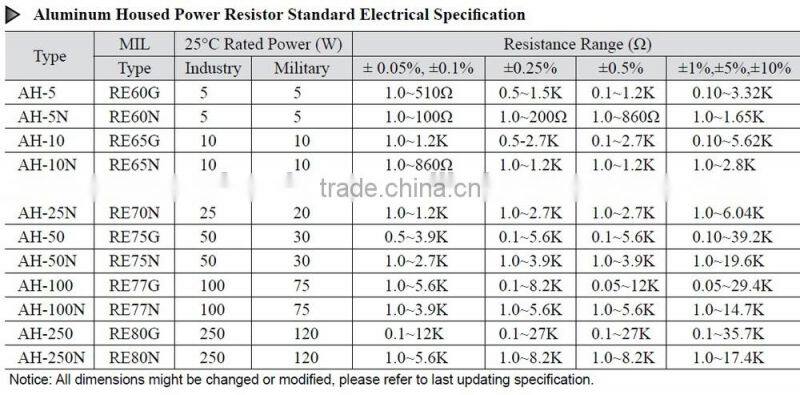

5W Fixed Aluminum Housed WireWound Resistors

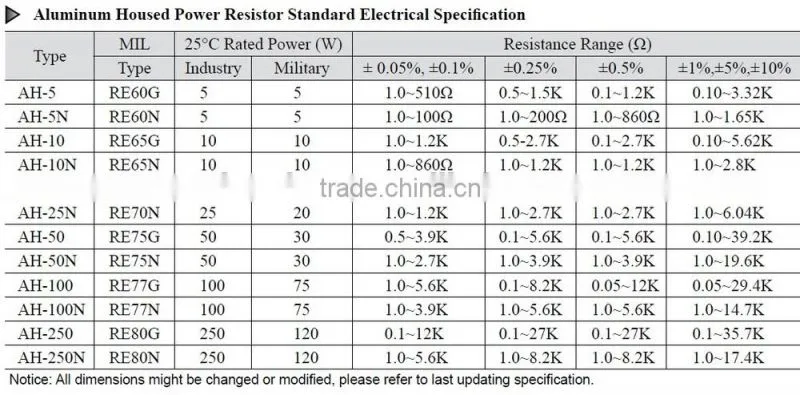

| MIL Style | Wattage Rating | Resistance Range(Ω) | MAX Working (V) | (g) MAX Weight | proper heat sink (aluminum chassis) | ||
| AN Inductive | AHN Non- inductive | AH | AHN | ||||
| RE60 | 5 | 0.05 ~3K | 0.1 ~1K | 120 | 70 | 3 | 152X102X51X1t |
| RE65 | 10 | 0.02 ~6K | 0.03~2.3K | 245 | 180 | 7 | 152X102X51X1t |
| RE70 | 25 | 0.012~15K | 0.02~5.5K | 500 | 300 | 15 | 178X127X51X1t |
| RE75 | 50 | 0.01 ~40K | 0.02~12K | 1300 | 600 | 33 | 305X305X1.5t |
| RE77 | 100 | 0.4 ~50K | 0.12~25K | 1900 | 1340 | 450 | 305X305X3t |
| RE80 | 250 | 0.6 ~80K | 0.15~40K | 2500 | 1750 | 800 | 305X305X3t |

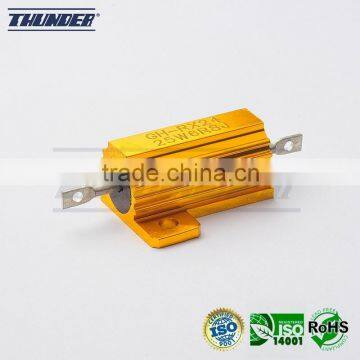

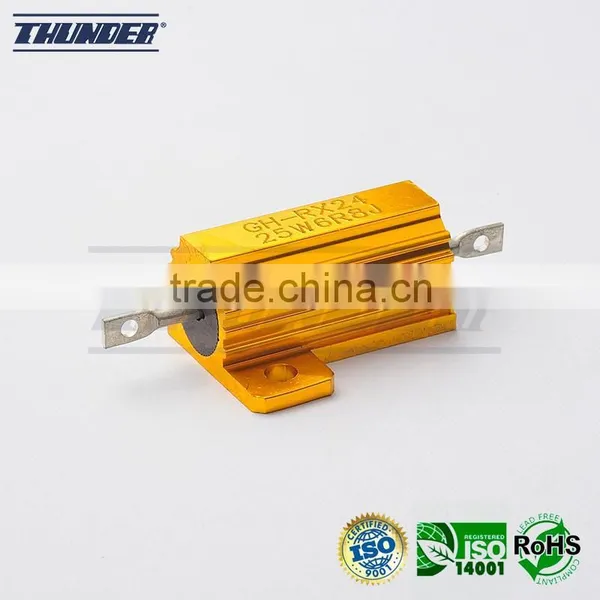

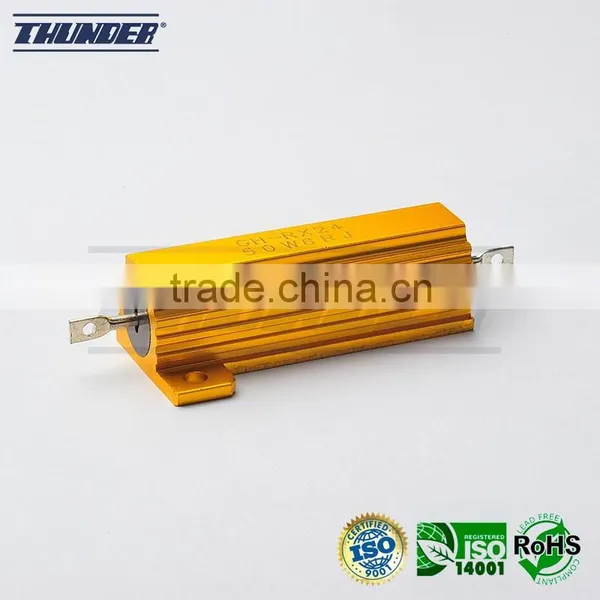

ALUMINUM HOUSED WIREWOUND RESISTORS
High power rating, small size and ultra precision.
Standard winding & non-inductive winding types.
-
High stability, strong construction.
Standard Packing : Plastic Pallet wrapped by water proof plastic film
Optional Packing : Strong Metal Pallet with wood cover to protect products withour damages during transportation.
Thunder Group was established in Taiwan Taipei in 1971, which has produced resistors more than 40 years. We have provided our products around the world including Vishat Dale Electronics, Panasonic, and Funkushima Futaba. We believe our professional experience can offer you best quality resistors with the most competitive price and fast lead-time.
Thunder Group Location
Taipei Headquarters & Kaohsiung SMD Chip Resistor Factory
GuangZhou Factory
ShenZhen Factory
HuNan Factory
GabZhou Factory
Contact Us
ISO 9001:2008
ISO 14001:2004
