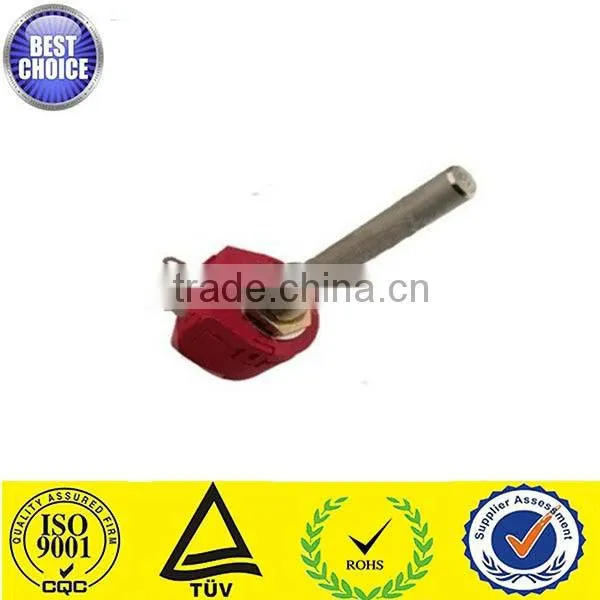

Electronics WX118 50K Rotary Potentiometer Long Shaft Potentiometers

Name: Electronics WX118 50K Rotary Potentiometer Long Shaft Potentiometers
Brand: Bonens
SKU: 101980931

US$ 1 - 1.1 MOQ: 1 Piece

Key Specifications

Place of Origin:

Sichuan, China

Brand Name:

Bonens

Model Number:

WX118 potentiometer

Sichuan Qixing Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Sichuan, China

Brand Name Bonens

Model Number WX118 potentiometer

Type Rotary Potentiometer

Technology Carbon Film

Resistance 100Ω~22kΩ

Resistance Tolerance ±10%

Rated Power 1W/40℃

Max. Operating Voltage 200V

Operating Temperature -55℃~+125

Specifications

1,50k rotary potentiometer
2,49mm long shaft
3,ISO certification and Rohs
4,competitive price,high quality
5.OEM service

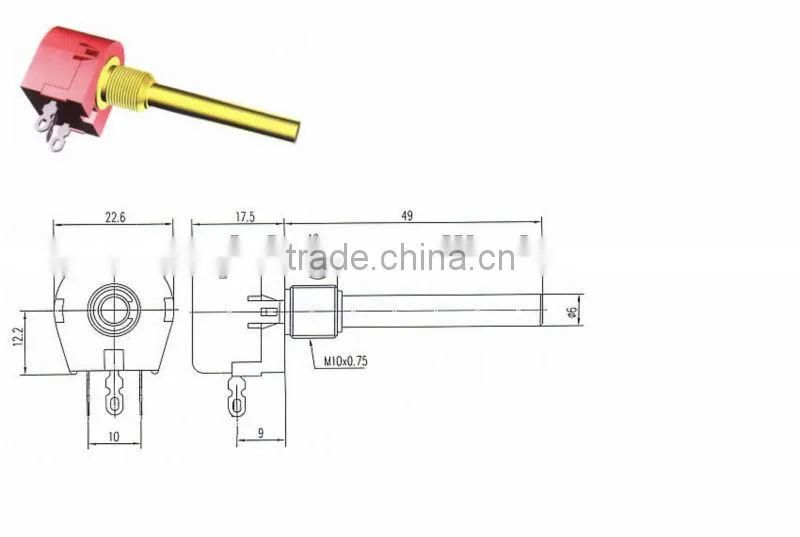

Long shaft WX118 50K rotary potentiometer

Long shaft WX118 50K rotary potentiometer specifications:

Model	WX118
Standard Resist. Range	100Ω~22kΩ
Power Ratings	1W/40°C
Maximum Working Voltage	200V
Maximum Wiper Current	100mA
Operating Temp. Range	-55°C~+125°C
Resistance Tolerance	±10%
Effective Electrical Travel	mech.285°±5° elektr.265°±5°
End Resistance	2Ωmax
Dielectric Strength (Room Conditions)	1000V AC
Insulation Resistance	1000MΩmin.(at 500V DC)
Shaft Torque	3.5~100mN.m
Rotational Life	5000cycles without discontinuity
Temperature Coefficient	±100ppm/°C
