75W 20ohm RIG21A High Power Resistor

75W 20ohm RIG21A High Power Resistor thumbnail-1
75W 20ohm RIG21A High Power Resistor photo-1
US$ 6.01 - 8.01 MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Bonens
Model Number:
RIG21A
Contact Supplier Request Quote Chat Now
Sichuan Qixing Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Sichuan, China
Brand Name Bonens
Model Number RIG21A
Type Variable Resistor
Technology Metal Alloy
Package Type Surface Mount
Resistance 1~500Ω
Resistance Tolerance ±5%
Rated Power 1~1000W
Temperature Coefficient ±300*10-6/℃
Operating Temperature -55℃~+165℃

Specifications

1 Power: 75W,100Wect.
2 Resistance: 1ohm ~500ohm
3ISO RoHS
petitive price and

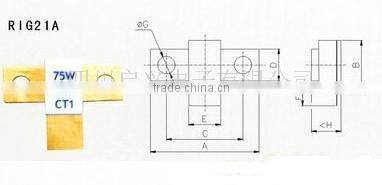

75W 20ohm RIG21A high power resistor

Products of special resistance and specifications are provided.



•Products of special standing wave ratio should be given a clear indication in contracts.



•Special requirements of standing wave ration is tested and chosen only for products of 50Ω.



•Products are corresponded to the standard of GB/T5729-94.



•Any special requirement is appreciated.







Electrical Characteristics





Range of nominal resistance: 1 ~500Ω

Frequency range: 0~2GHz

Insulation resistance: ≥ 1GΩ

Resistance tolerance: ±5%

Standing wave ratio: 1.2~1.3

Withstand voltage: 500V/1 mm (Substrate thickness)







Environment Characteristics





Rated power: 1~1000W (70°C)

TCR: ±300×10-6/°C

Moisture proof (GJB306A-96-Method106): ΔR≤±5%R

Test at low temperature (-55°C, 24h): ΔR≤±5%R

Collision: ΔR≤±3%R

Temperature range: -55°C~+165°C

Temperature shock (-55°C/+125°C, 3 times): ΔR≤±5%R

Vibration (10-500HZ, 0.75mm, 6h): ΔR≤±3%R, No mechanical damage

Load life (96): ΔR≤±5%





Physical Characteristics





Terminal strength (10N, 5s): No loosening or fall-out

Solderability (240°C, 3s): Coverage area of tin layer: 95
