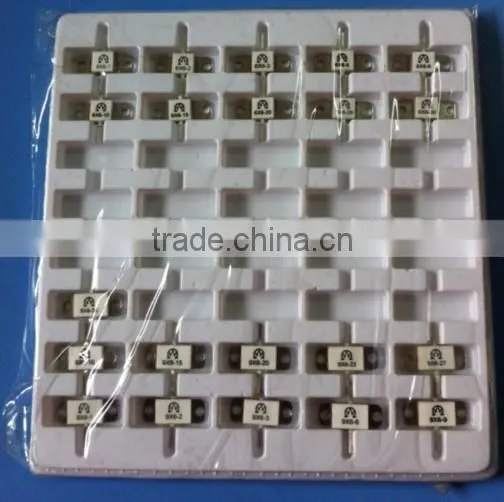

Power Resistor 1000W 100W 500W
US$ 7 - 8
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Sichuan, China
Brand Name:
Bonens
Model Number:
RIG41 RIG21 RIG22 ......
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen or other
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BONENS RIG11 High-power Resistor 10W,30W ,40WNegotiableMOQ: 100 Pieces -
150w 200w 500w Ceramic Power Resistor 50r 100rUS$ 0.17 - 3.3MOQ: 100 Pieces
-
BONENS RIG12 High-power Resistor 10W,30W ,40WNegotiableMOQ: 100 Pieces
-
RIG High Power Resistor 10w 100w 50r 100rUS$ 0.17 - 3.3MOQ: 100 Pieces
-
BONENS RIG21 High-power Resistor 10W,30W ,250W 400WNegotiableMOQ: 100 Pieces
Place of Origin
Sichuan, China
Brand Name
Bonens
Model Number
RIG41 RIG21 RIG22 ......
Type
Other, RIG High-power Resistor
Technology
Ceramic Composition
Package Type
Surface Mount
Resistance
1~500Ω
Resistance Tolerance
±5%
Rated Power
1~1000W
Temperature Coefficient
±300*10-6/℃
Operating Temperature
-55℃~+165℃
Specifications
1.400W, 1000W. etc.rresponded to GB/T5729-94
3.ISO RoHS compliant
4.we supply to the military too
5.sample available
Range of nominal resistance: 1 ~500Ω
Frequency range: 0~2GHz
Insulation resistance: ≥ 1GΩ
Resistance tolerance: ±5%
Standing wave ratio: 1.2~1.3
Withstand voltage: 500V/1 mm (Substrate thickness)
Environment Characteristics
Rated power: 1~1000W (70°C)
TCR: ±300×10-6/°C
Moisture proof (GJB306A-96-Method106): ΔR≤±5%R
Test at low temperature (-55°C, 24h): ΔR≤±5%R
Collision: ΔR≤±3%R
Temperature range: -55°C~+165°C
Temperature shock (-55°C/+125°C, 3 times): ΔR≤±5%R
Vibration (10-500HZ, 0.75mm, 6h): ΔR≤±3%R, No mechanical damage
Load life (96): ΔR≤±5%
Physical Characteristics
Terminal strength (10N, 5s): No loosening or fall-out
Solderability (240°C, 3s): Coverage area of tin layer: 95%
