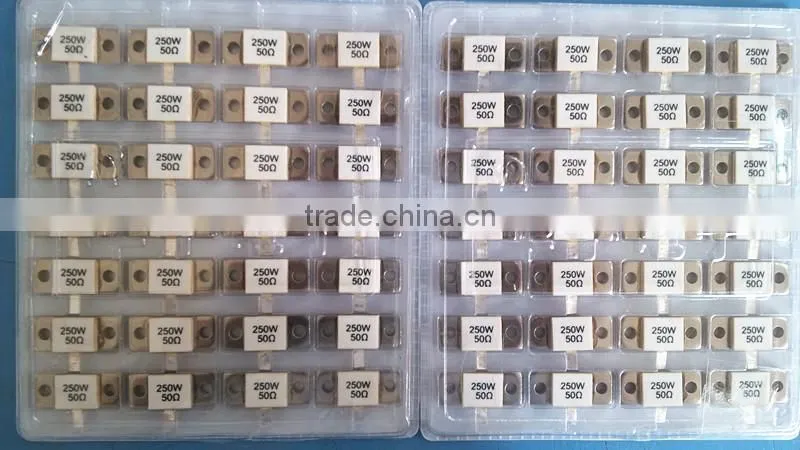

Help CenterRIG High Power Resistor 250W 50ohm Load Resistor
Related Products
-
75W 20ohm RIG21A High Power ResistorUS$ 6.01 - 8.01MOQ: 100 Pieces -
RIG21B 10W 100ohm High Power ResistorUS$ 5.99 - 8.01MOQ: 100 Pieces
-
RIG42 High-power ResistorUS$ 5.99 - 8.01MOQ: 100 Pieces
-
RIG High Power ResistorsUS$ 0.17 - 3.3MOQ: 100 Pieces
-
BONENS RIG42 High-power ResistorNegotiableMOQ: 100 Pieces
Specifications
1,competitive price and high quality2,10ohm--50ohms
3,RoHS compliant
4,RUV certification
Name:RIG21 High Power Resistor
•Products of special resistance and specifications are provided. |
•Products of special standing wave ratio should be given a clear indication in contracts. |
•Special requirements of standing wave ration is tested and chosen only for products of 50Ω. |
•Products are corresponded to the standard of GB/T5729-94. |
•Any special requirement is appreciated. |
|
Electrical Characteristics |
Range of nominal resistance: 1 ~500Ω |
Frequency range: 0~2GHz |
Insulation resistance: ≥ 1GΩ |
Resistance tolerance: ±5% |
Standing wave ratio: 1.2~1.3 |
Withstand voltage: 500V/1 mm (Substrate thickness) |
|
Environment Characteristics |
Rated power: 1~1000W (70°C) |
TCR: ±300×10-6/°C |
Moisture proof (GJB306A-96-Method106): ΔR≤±5%R |
Test at low temperature (-55°C, 24h): ΔR≤±5%R |
Collision: ΔR≤±3%R |
Temperature range: -55°C~+165°C |
Temperature shock (-55°C/+125°C, 3 times): ΔR≤±5%R |
Vibration (10-500HZ, 0.75mm, 6h): ΔR≤±3%R, No mechanical damage |
Load life (96): ΔR≤±5% |
Some Main Products:
Our partners:
CHANGHONG
TAIWAN KEZHENGXIN ELECTRONICS CO.
XI’AN HONGXING ELECTRONICS CO.
JIALING MOTORCYCLE
KLS ELECTRONIC CO., LTD.
Some parts of our certificates:
The Work Flow:
For more info., pls contact us:
Skype ID: serena.shu16
QQ ID: 1153409713
Tel.:+ 86-15680731820
