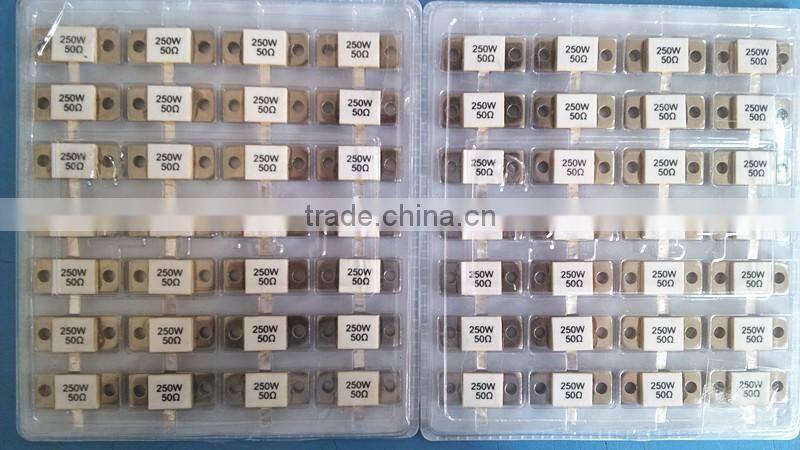

Help CenterRIG High Power Resistor 250W RF Power Resistor
Related Products
-
400W 50ohm High Power ResistorsUS$ 7 - 8MOQ: 100 Pieces -
RIG High Power Resistor 250W 50ohm Load ResistorUS$ 2 - 3MOQ: 100 Pieces
-
75W 20ohm RIG21A High Power ResistorUS$ 6.01 - 8.01MOQ: 100 Pieces
-
RIG21B 10W 100ohm High Power ResistorUS$ 5.99 - 8.01MOQ: 100 Pieces
-
RIG42 High-power ResistorUS$ 5.99 - 8.01MOQ: 100 Pieces
Specifications
1.Power: 250W2.Resistance: 1 ~500 ohm;
3.Correspongd to GB/T5729-94
4.we supply to the military too
5. ISO RoHS complian

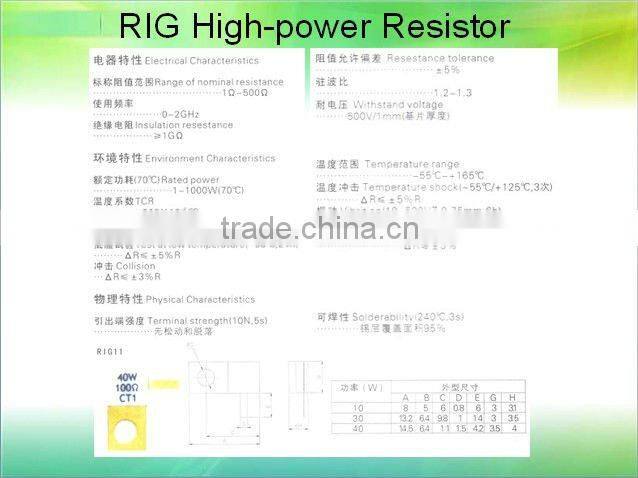

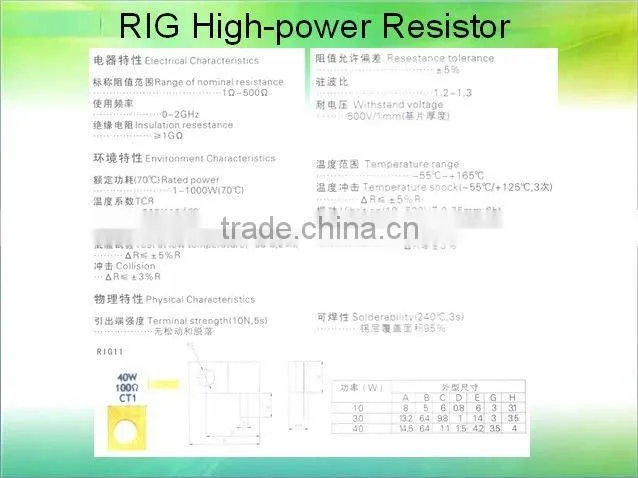

RIG11

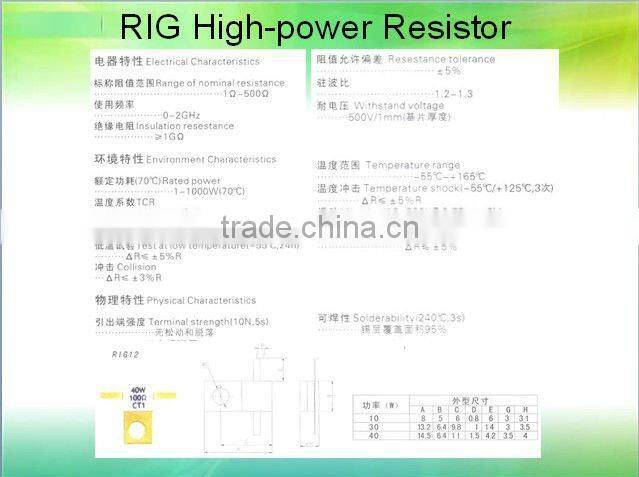

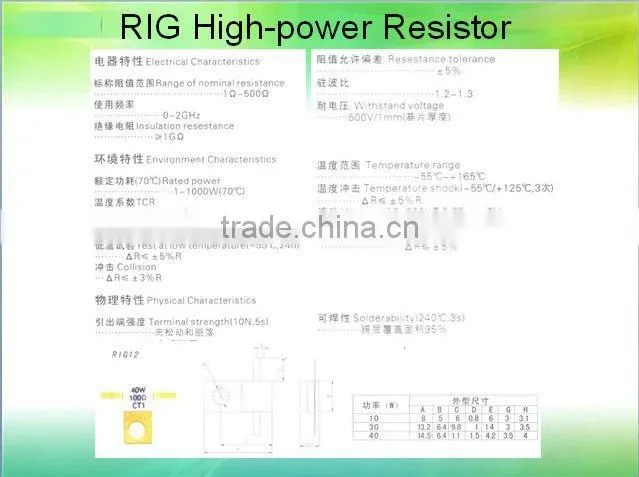

RIG12
•Products of special resistance and specifications are provided. |
•Products of special standing wave ratio should be given a clear indication in contracts. |
•Special requirements of standing wave ration is tested and chosen only for products of 50Ω. |
•Products are corresponded to the standard of GB/T5729-94. |
•Any special requirement is appreciated. |
|

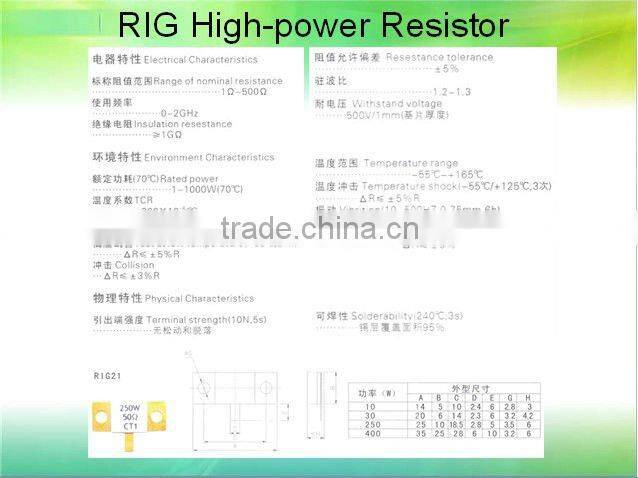

Electrical Characteristics |
Range of nominal resistance: 1 ~500Ω |
Frequency range: 0~2GHz |
Insulation resistance: ≥ 1GΩ |
Resistance tolerance: ±5% |
Standing wave ratio: 1.2~1.3 |
Withstand voltage: 500V/1 mm (Substrate thickness) |
|
Environment Characteristics |
Rated power: 1~1000W (70°C) |
TCR: ±300×10-6/°C |
Moisture proof (GJB306A-96-Method106): ΔR≤±5%R |
Test at low temperature (-55°C, 24h): ΔR≤±5%R |
Collision: ΔR≤±3%R |
Temperature range: -55°C~+165°C |
Temperature shock (-55°C/+125°C, 3 times): ΔR≤±5%R |
Vibration (10-500HZ, 0.75mm, 6h): ΔR≤±3%R, No mechanical damage |
Load life (96): ΔR≤±5% |
