Product Details
Place of Origin: | Hunan, China | Brand Name: | Kerui | Model Number: | Various |
Type: | Other, Power Tool Parts, SNMG |
Product Description

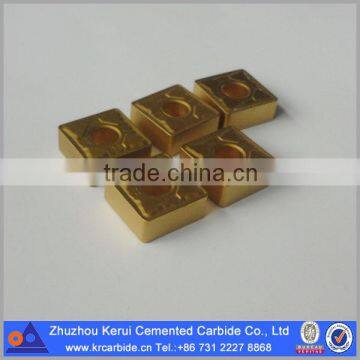

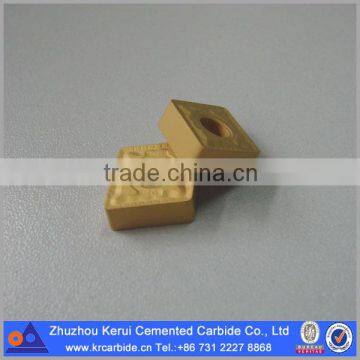

cemented carbide cutting tools milling insert
Product introduction:
Cemented Carbide cutting tools Milling inserts are used on the milling machine for the processing of various kinds of materials such
as cast iron, steel, stainless steel, nonferrous metal etc. There are conventional milling inserts and
CNC milling inserts for different milling machines. Milling inserts come in different type and grade for
different purpose.
Type: SNMG 150612 PM
Grade: YBC251 (CVD coating)
Related other carbide milling inserts of specification:
TPCN and TPKN:
SPKN:
SEKN:
SPEN:
RPMW:
RPGT:
3HX10Y/3XH13Y/3XH16Y:
4XH13Y/4XH16Y/4XH19Y:
Other types of carbide milling inserts:
1) 3-0 series: 307050/310050/313050/313100/316100/316150/316200
2) 3-11 series: 3170511/3100511/3130511/3131011/3160511/3161011
3) 3-8 series: 307058/310058/313058/313108/316058/316108/316208
4) 4-0 series: 410050/413050/413100/416050/416100/419100/4192000/425100/425200
5) 4-11 series: 4100511/4130511/4160511/4161011/4161511/4191011/4192011/4251011/4252011
6) 4-8 series: 410058/413058/416058/416108/416158/419108/419208/425108/425208
Physical and mechanical properties of main grades:
YBC151 | The combination of substrate with excellent wear resistance and coating composed of MT-TiCN, thick layer of |
Al2O3 and TiN makes it suitable for finishing steel. | |
YBC251 | The substrate with good toughness and high security of cutting edge, in optimal |
combination with coating composed of MT-TiCN, thick layer of Al2O3 and TiN makes it suitable for steel semifinishing. | |
YBC351 | The best combination of substrate with high wear resistance and coating composed of MT-Ti (CN), thick Al2O3 |
layer and TiN makes it suitable for finishing and semi-finishing of cast iron materials. | |
YBD151 | The substrate with high strength and resistance against plastic deformation, in combination with coating composed |
of MT-TiCN, thick layer of Al2O3 and TiN makes it suitable for steel roughing. | |
YBM151 | Subst rate wi th special st ructure, i n combination with coating composed of TiCN, thin Al2O3 layer and TiN, with |
excellent resistance against diffusive wear and plastic deformation makes it suitable for finishing, semi-finishing and roughing of | |
stainless steel. | |
YBM251 | Combination of substrate with good toughness and strength and coating composed of TiCN, thin Al2O3 layer and |
TiN makes it suitable for semi-finishing and roughing of stainless steel. | |
YBM253 | New CVD grade for high-efficiency machining of stainless steel,Widely applied in high-efficiency machining |
with high cutting depth and high feed rate,With advanced ultra-fine grain nano coating technology, the grade uses gradient alloy | |
substrate with high toughness. It demonstrates excellent capacity at cutting with high cutting depth, high feed rate and high |
Reference packaging:
Interior packaging: 10pcs in a plastic box,
Exterior packaging: carton or wooden case.
Also could be customized.
Product advantages:
1) efficient machining, good high-temperature stability;
2) no breaking or chipping, long lifetime;
3) good surface condition of work piece after processing.
Tips for use of milling inserts:
1) should be fixed strongly onto the holder;
2) choose proper grade for different material and machining style;
3) choose proper processing parameter
Production process:
Quality inspection instruments:
Quality control:
1. All raw materials are tested in terms of density, hardness and T.R.S before use.
2. Every piece of product goes through in-process and final inspection.
3. Every batch of product can be traced.
Guarantee:
Full payment refund if any quality problem.
Transaction process:
Inquiry => product conformation => quotation => price and terms => advance payment =>
Production => balance payment => delivery => after sales service
Payment method:
Transportation mode:
By express, by air, by road, by railway, by sea etc.
Our main markets:
North America: USA, Canada, Mexico
South America: Brazil, Peru, Chile
Europe: Italy, Spain, Russia, Poland, Romania, Azerbaijan, Germany
Mid East: Egypt, Turkey, Lebanon
Africa: Kenya, South Africa
Company profile:
Zhuzhou Kerui Cemented Carbide Co., Ltd is a professional tungsten carbide manufacturer
located in Zhuzhou City, the world renowned cemented carbide base. Have been involved in this
field for over 10 years, we have reach experience in production and research of carbide products.
We are also an assessed supplier by Alibaba and BV.
Our tungsten carbide products are exported to USA, Canada, Russia, Romania, Italy etc.
Factory pictures:
Certificates:
Our team:
Professional + Responsible + Passionate + Experienced
FAQ:
1. How to make an inquiry?
Firstly, please mention the enquired product clearly in terms of grade, type or drawing with dimension and tolerance, quantity etc. It’s better if you could have a brief introduction of your company.
Secondly, please mention your price terms, e.g. FOB, CIF. For CIF, please name the destination port.
2. What’s your MOQ?
Our MOQ could be 1 piece or 1kg. But the price will be a little bit high when the quantity below
50kg or 2000USD.
3. What’s your delivery time?
For standard types, the delivery time is normally 25-30 days. For nonstandard type or further processed type, the delivery time is 40-45 days. If you need the goods urgently, we could try to
push the production and shorten the delivery time.
