Help CenterCemented Diy Scoring Wheel for Glass and Ceramics Cutter Wheel Glaze YG6 Tile Cutter
Related Products
-
Titanium Carbide Roller Pulley Wheels Wire Guide Pulley for Steel Wire Rod MillNegotiableMOQ: 1 -
OEM Guide Wheel Pulley OD30mm *L45mm Titanium Carbide Roller for Steel Wire Output MachineNegotiableMOQ: 1
-
Steel Rolling Mill Machine Spare Part Tic-based Guide RollersNegotiableMOQ: 1
-
High Speed Finishing Guide Wheels on Steel Rebar Rolling MillNegotiableMOQ: 1
-
Titanium Carbide Guide Wheel Cross Roller Guide Short Stress Steel Rolling MillNegotiableMOQ: 1
Specifications:
Replacement super carbide wheel,
High cutting speed, good cutting effect,
No need electricity and water, dust-free work,

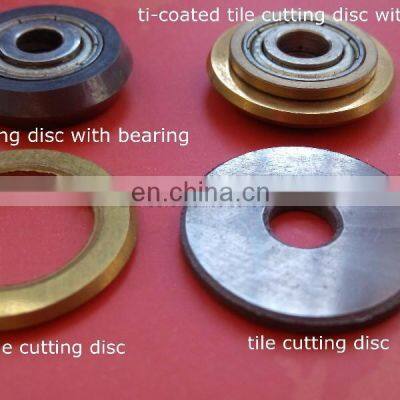

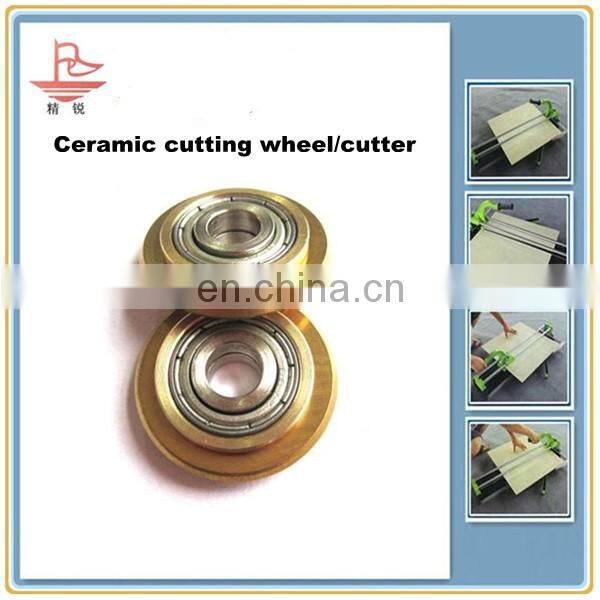

Carbide tile cutting/scoring wheel Description:
This carbide tile cutting wheel offers both technical and economical advantages:
- Cost improvement and stabilization
- High work efficiency and dust-free work, no noise
- High protrusion and strong diamond retention
- Long service time over common cutting wheel.
Type: Construction Tool Parts
Material: Carbide, titanium coating available
Technical and economical advantages: Cost improvement, excellent carbide, safety guaranteed.
Advantage High speed, good cutting effect, smooth cutting margin
Customized Products: Available as per drawing or sample
Hardness: 91.5HRA
Density: 6.1-14.8g/m3
Function: cutting porcelain, mosaic, glass & glaze, ceramic, paver,etc.
Cutting life: 2000m
TRS(ISO3327): 2200N/MM2
Characteristics: Easy to use, dust-free work, no noise, Long service time
Carbide tile cutting/scoring wheel Specification:

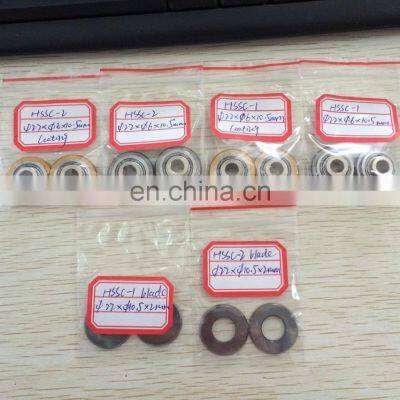

| Ceramic tile scoring Type and Grade | ||||||||
| Type | Basic size(mm) | Grade | ||||||
| outside diameter(OD) | inside diameter (ID) | Thickness | Angle | HSSC-1 | HSSC-2 | HSSC-3 | HSSC-4 | |
| Service life(≥m) | ||||||||
| Φ22×Φ14×2.6 | 22 | 14 | 2.6 | 90° 100° 110° 120° | 2000 | 800 | 400 | 200 |
| Φ22×Φ14×2.0 | 22 | 14 | 2 | |||||
| Φ22×Φ13×2.0 | 22 | 13 | 2 | |||||
| Φ22×Φ12×2.2 | 22 | 12 | 2.2 | |||||
| Φ22×Φ10.5×2.0 | 22 | 10.5 | 2 | |||||
| Φ22×Φ6×4.6 | 22 | 6 | 4.6 | |||||
| Φ22×Φ6×2.0 | 22 | 6 | 2 | |||||
| Φ20×Φ5×3.0 | 20 | 5 | 3 | |||||
| Φ18×Φ6×3.0 | 18 | 6 | 3 | |||||
| Φ18×Φ6×3.8 | 18 | 6 | 3.8 | |||||
| Φ16×Φ6×4.9 | 16 | 6 | 4.9 | |||||
| Φ16×Φ6×3.0 | 16 | 6 | 3 | |||||
| Φ16×Φ6×2.0 | 16 | 6 | 2 | |||||
| Φ16×Φ6×1.5 | 16 | 6 | 1.5 | |||||
| Φ16×Φ4×3.0 | 16 | 4 | 3 | |||||
| Φ15×Φ6×2.9 | 15 | 6 | 2.9 | |||||
| Φ15×Φ6×2.0 | 15 | 6 | 2 | |||||
| Φ15×Φ6×1.5 | 15 | 6 | 1.5 | |||||
| Φ14×Φ6×1.5 | 14 | 6 | 1.5 | |||||
| Φ13.5×Φ6×2.0 | 13.5 | 6 | 2 | |||||
| Φ13.5×Φ6×1.5 | 13.5 | 6 | 1.5 | |||||
| Φ13.5×Φ6×1.0 | 13.5 | 6 | 1 | |||||
| Φ12×Φ3×3.0 | 12 | 3 | 3 | |||||
| Φ10×Φ4×3.0 | 10 | 4 | 3 | |||||
| Φ8×Φ1.5×1.1 | 8 | 1.5 | 1.1 | |||||
| Φ7×Φ1.9×1.2 | 7 | 1.9 | 1.2 | |||||
| Φ6.4×Φ1.5×1.3 | 6.4 | 1.5 | 1.3 | |||||
|
tolerance of OD:±0.05mm; tolerance of ID:±0.05mm; tolerance of Thickness :±0.05mm; Can be produced according to customer requirements, | ||||||||
Keywords: carbide scoring wheels, tile cutting wheel, non-powered tool, tile cutter & accessories,
glass cutting wheel, clay ceramic & porcelain mosaic tile &granulated materials cutter wheel, tiling
cutting machine, flooring scoring wheel, tiling tools, hand tools, tile cutter spares, diamond blade,
carbide cutting wheel
Sigma Tile Cutting Wheel:

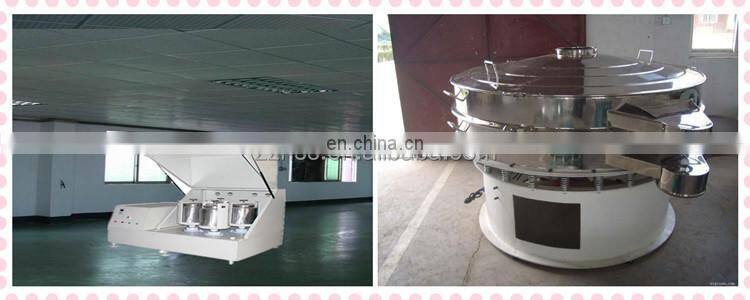

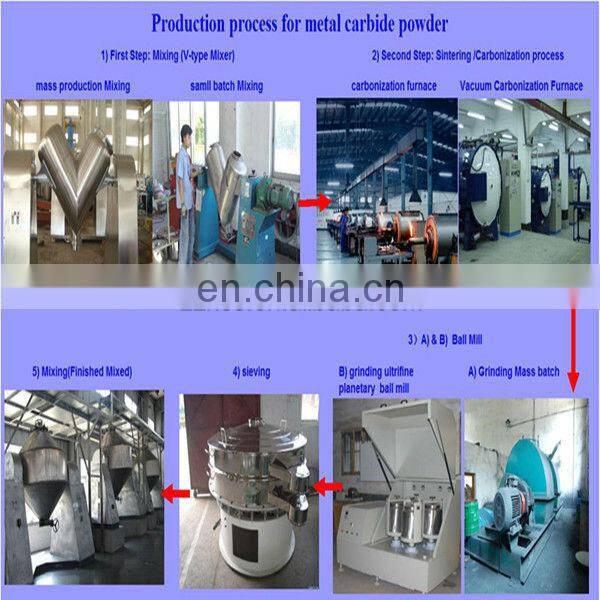

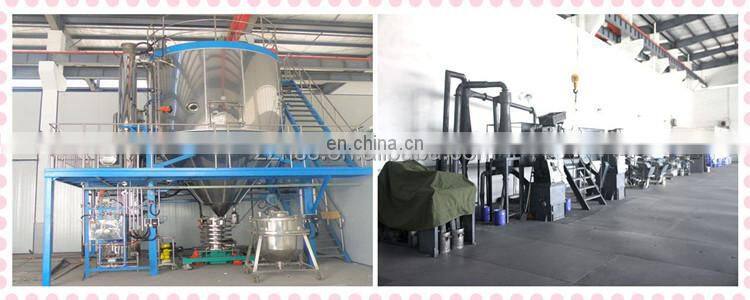

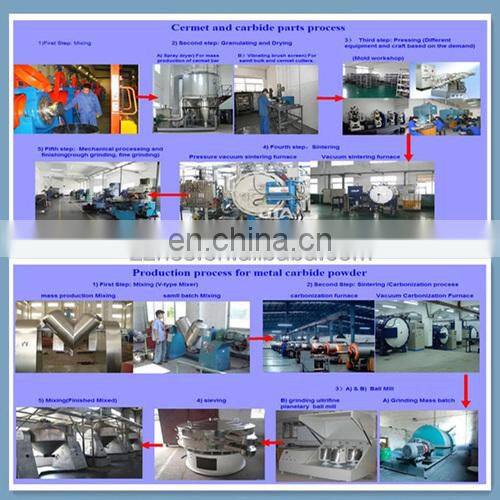

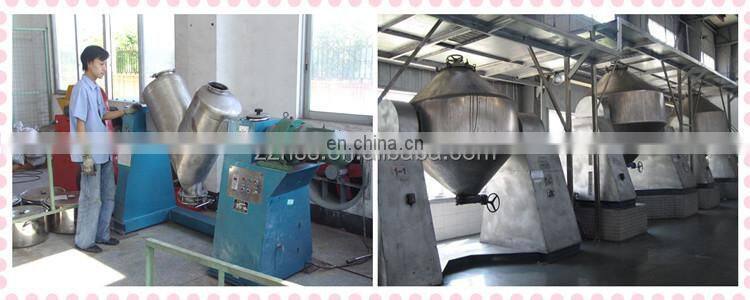

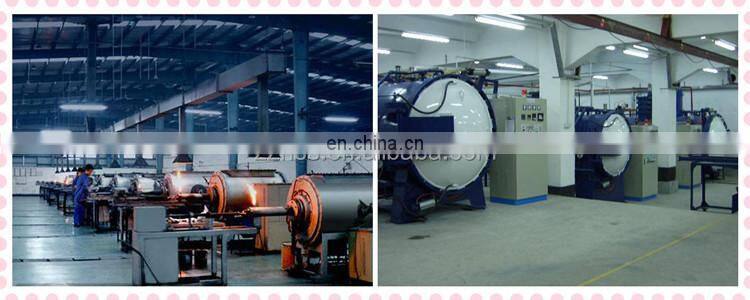

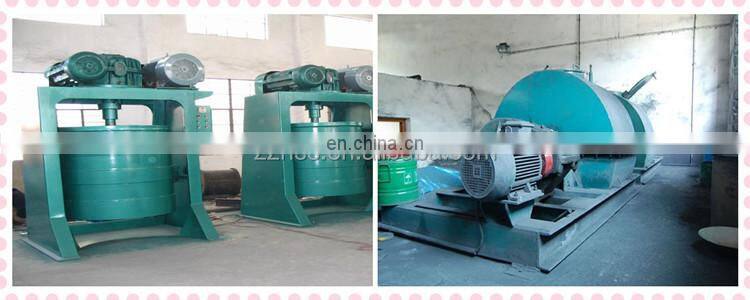

carbide powder production process:
Step 1
Step 2
Step 3
Step 4
Step 5
Step 6
You may interest in :
TiC NbC VC ZrC Cr3C2 Mo2C TaC HfC
Compound carbide powder
TiCN cermet blanks

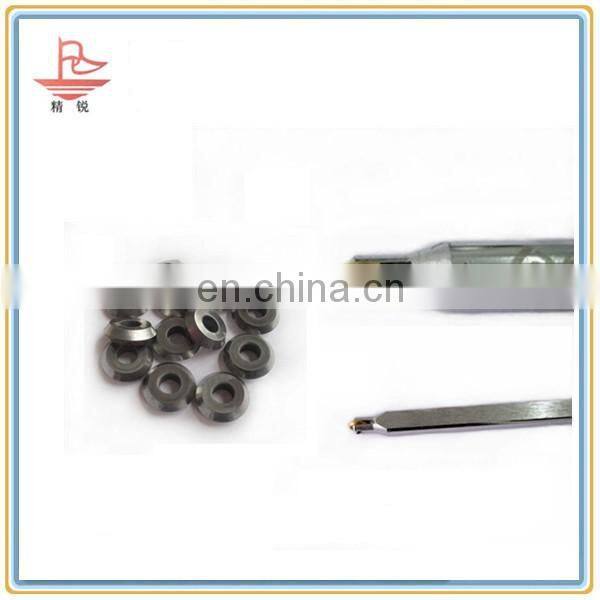

Tungsten tile cutting wheel

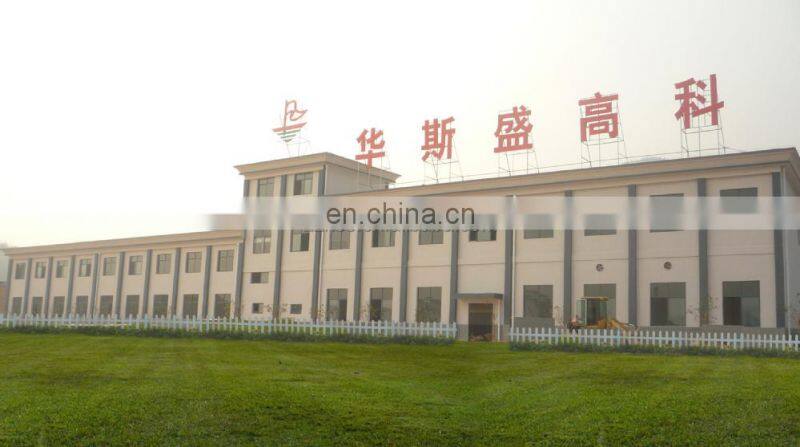

Registered with the Changsha Long-ping of High-tech Industrial Park in 2009,Zhuzhou Hastion Materials High-Tech Co.,Ltd. is a high-tech private enterprise specialized in the development,production and sales of cermet tools and cemented carbide tools and its raw materials.Have the complete check-out facility and the abundant technical force, the domestic south central university powder metallurgy research institute and Changsha Mining and metallurgy Research institute is our core technologies strength.Our company is a manufacturer of from raw materials to Finished production in cermet tools and cemented carbide tools,has many product patents.Finished tools products: cermet rods, cermet blade,cermet plates and cemented carbide rods,Raw material products:zirconium carbides powder,titanium carbides powder,chromium carbides powder,vanadium carbides powder,tantalum carbides powder,niobium carbides powder,molybdenum carbides powder,tantalum niobium carbides powder,cobalt powder and compound carbides powder.With a wide range, good quality,reasonable prices and stylish designs,our products are extensively used in machinery, oil mining,Spinning, construction, electronics,aeronautics and cermet and cemented carbide etc.of hi-tech fields such. Because we professional, I hope I can give you the best service.
Our related products:
TiC NbC VC ZrC Cr3C2 Mo2C TaC HfC
Compound carbide powder
TiCN cermet blanks
Tungsten tile cutting wheel
1.What size do you need? Since we have 60-325mesh,
a.0.8um: normally used as additives in carbide, cutting tools,etc. (additive amount:0.1%~2%)
b.60-325mesh: mixed with other materials normally used in spraying coating, which have strict requirement in
particle size and its mixture evenness.
c.3~5um:normally used in alloy products.
2.our test methods are as follows:
a.FSSS Fisher Sub-sieve sizer b.Laser c.SEM d.Seizing e.apparent density of powders
3.Delievery time:about 7 days for carbide powder.
What we do is not just selling:
We're dedicated to providing you the super service. And we'll prove it. If you're not completely satisfied, we'll do our best to improve it. Fast and free.
Technology is our core competence:
To us, technology is our core competence. We always research the new methods to improve the performance of TiCN cermet blanks, carbide blanks, metallic carbide powders, just to expand your market and save you thousands!
Excellent personnel to finish excellent jobs:
We have highly experienced engineers and sales and ready to assist you with all your requirements.
Always willingness to learn :
You know your technology better than anyone --we are happy to learn new things everyday! let us hear about it right away.
