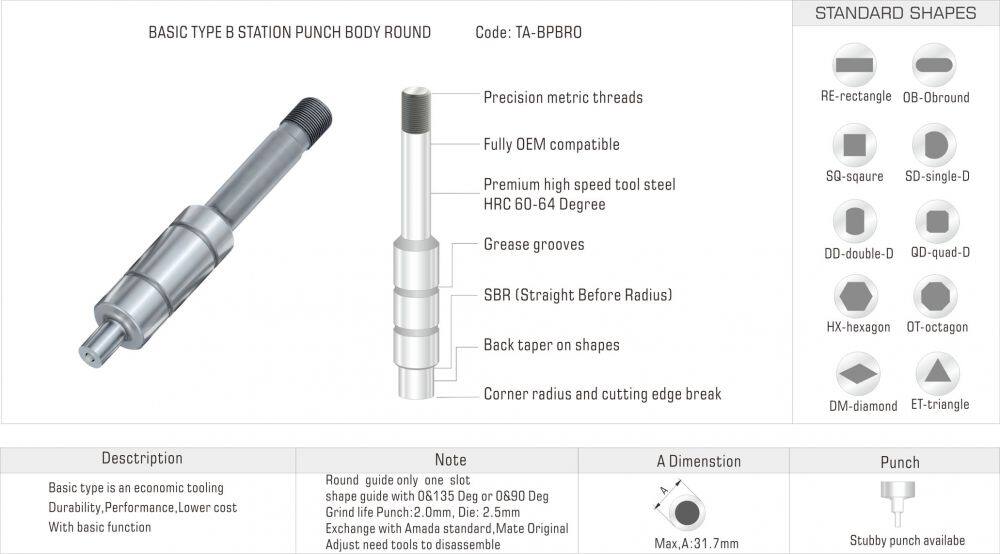

Amada CNC Punch Press Thick Turret Nct Tooling B Stn Punch Round Ferramentas PARA Punzonadoras

Amada CNC Punch Press Thick Turret Nct Tooling B Stn Punch Round Ferramentas PARA Punzonadoras thumbnail-1
Amada CNC Punch Press Thick Turret Nct Tooling B Stn Punch Round Ferramentas PARA Punzonadoras thumbnail-2
Amada CNC Punch Press Thick Turret Nct Tooling B Stn Punch Round Ferramentas PARA Punzonadoras photo-1

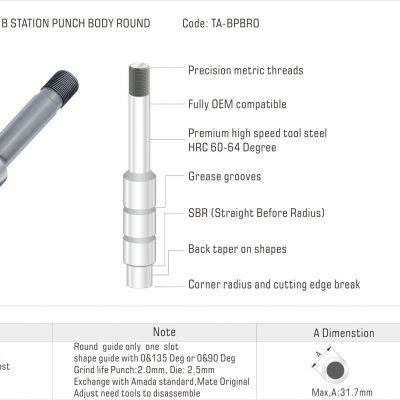

Amada CNC Punch Press Thick Turret Nct Tooling B Stn Punch Round Ferramentas PARA Punzonadoras photo-2
US$ 43.63 - 58.2 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
AFAB
Place of Origin:
China
Model Number:
AMADA Thick Turret Basic Type B STN PUNCH AMADA Thick Turret Basic Type B STN PUNCH
Contact Supplier Request Quote Chat Now
Afab Tool Limited
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Dongguan
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name AFAB
Place of Origin China
Model Number AMADA Thick Turret Basic Type B STN PUNCH AMADA Thick Turret Basic Type B STN PUNCH
Key attributes
Industry-specific attributes
Shaping Mode
Punching Mold


Other attributes
Place of Origin
Guangdong, China


Brand Name
AFAB


Model Number
AMADA


Product Material
Steel


Product
Household Product


Product Name
CNC punch press thick turret tooling


Punch material
M2-SKH51


Die material
D2-SKD11


Punch hardness
62-64


delivery time
2-3 days


HS CODE
8207300090


Die hardness
58-60


punch length
208.5mm


punch assembly length
209.5mm


die height
30mm


Packaging and delivery
Packaging Details
Plasic box, carton box, polywood

Port
shenzhen


Supply Ability
Supply Ability
30000 Piece/Pieces per Month


Show less
Lead time
Quantity (pieces) 1 - 1 > 1
Lead time (days) 3 To be negotiated

Product descriptions from the supplier

Overview
Size Information
Place of Original
Station or Size
Punch material
unch hardness
Back taper
Leading Time
Shengzhen,China
B
M2/SHK51
HRC 62-64
On punch
2-3 days
Brand Name
Max Diameter:
Die material
Die Hardness
TICN/TIN
Package
AFAB
31.7mm
D2/SKD11
HRC 58-60
Optional
Plastic,Carton
Product Description

THICK TURRET TOOLING suitable for Amada, Finn-Power,
Prima-Power,LVD,Euromac,Yawei,Tailift,Yangli,JFY,LFK,Danobat,Murata,Pullmax,Durma,Ermaksan,Baykal,Rainer,MVD,SimasV,SNK,Dener,ITE



Basic type is fully compatible with OEM popular series,Amada ,Mate original,Wilson metric.Best ecomonic type,save big cost.An
economic ,Durablity,Performance,Lower cost type

FAB type is a better tooling，Durability,Performance,Long grinding life,Quick adjust,Compatible with amada punch,Exchange with
NEX,Quickadjust,Rapidset,No need tools to adjust punch

FAB 90 type is a best tooling Durability,
Performance,Grind life punch:6.0mm,Exchange with Wilson S90 series,Quickly adjust, no need tools to adjust

FAB ULTRA type is a smart design.Durability,Performance.Grind life Punch:6.0mm,Compatibale with Mate Ultra series.Quickly
adjust,no need tools to adjust -Thick turret tooling,Punch press tooling

Special design tooling,Including close to clamp to type which saving sheet metal,Small diameter tool is for strengthen punching
for below 2.0mm holes

AFAB supply and develop more forming tools ,To meet customers' various special application, Centerpoint

AFAB Multi Tool for Prima power,Finnpower,Euromac,Durma. MT8-24mm,MT10-16mm,MT24-10mm,XMT24mm

Clamp base assembly for AMADA,JFY,YAWEI. Various keys for turret holder,guide assembly.

Products cover a large range for AMADA,LVD,PRIMA
POWER,HACO,EUROMAC,STRIPPIT,MURATA,Danobat,DURMA,Ermarksam,Tailift,JFY,YAWEI,Yangli,LFK.

Δ.Basic type is fully compatible with OEM popular series,Amada ,Mate original,Wilson metric.Best ecomonic type,save big cost.An
economic ,Durablity,Performance,Lower cost type
Δ.FAB type is a better tooling,Durability,Performance,Long grinding life,Quick adjust,Compatible with amada punch,Exchange with
NEX,Quickadjust,Rapidset,No need tools to adjust punch
Δ.FAB 90 type is a best tooling Durability,Performance,Grind life punch:6.0mm,Exchange with Wilson S90 series,Quickly adjust, no
need tools to adjust
Δ.FAB ULTRA type is a smart design.Durability,Performance.Grind life Punch:6.0mm,Compatibale with Mate Ultra series.Quickly
adjust,no need tools to adjust -Thick turret tooling,Punch press tooling
Δ.Special design tooling,Including close to clamp to type which saving sheet metal,Small diameter tool is for strengthen punching
for below 2.0mm holes
Δ.AFAB supply and develop more forming tools ,To meet customers' various special application, Centerpoint,Shearbutton,Dimple,earth
symbol mark,Extrusion Tapping,Emboss,Countersink.Knockout,Bridge,Louver,Lance and form,Emboss logo stamping,letter number
stamping,Scrible marking,Bead,Hingle Tool,Wheel rib,wheel offset,Wheel marking,Locator,thread loop,thread
form,easy-bend,Card-guide..
Δ.AFAB Multi Tool for Prima power,Finnpower,Euromac,Durma. MT8-24mm,MT10-16mm,MT24-10mm,XMT24mm
Δ.Clamp base assembly for AMADA,JFY,YAWEI. Various keys for turret holder,guide assembly.

Air Blow system
Air blow system -ABS tooling maintains the tools whilst dramatically reducing the risk of tooling related machine stoppages.
Δ.Injects high pressure oil mist into the tool during punching cycle.
Δ.Lubricates all critical areas and surfaces.
Δ.Clears fine needles and slugs through the die after punching.
Δ.Effective in overcoming 'Cold Welding' or 'Microfusing
Δ.Ensures optimum tool life.
Δ.Maintains component quality

Air Blow System-ABS feature

Punch material: M2-SKH51-High speed steel, Hardness HRC 60°-64°,Japan M2--JP M2 available,addons.
Die material:D2-SKD11, Hardness HRC 58°-60°
TIN/Maxima coating optional and vailable,improve double punch life
TICN/ Optima coating optional and vailable,improve four times punch life

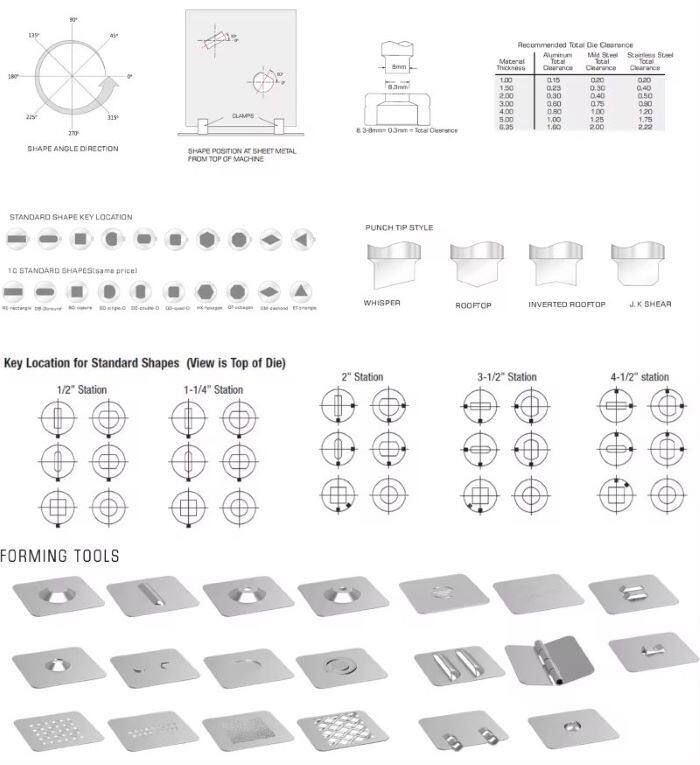

Below show location,die clearance,punch tip,Standard shape:Rectangle,Square,Oblong,QR,QD,Single D,Double D,Hexagon,Octagon



AFAB PRODUCTION ABILITY

We equiped with EDM, Wire cutting, CNC machining center,surface grinder,universal grinder,CNC lathe,Milling....

AFAB exhibition
Each year,AFAB promote in different famous exhibition in various countries
Packing & Shipping
Production leading time: Std shape 3-5 days, Special shape 4-5 days,Forming tooling 5-10 days.Coating need extra 3-4 days

Package: Extra thick carton or poly wood case. Deliver by DHL,TNT,UPS,FEDEX,AIRLINE

Company Introduction
Shenzhen onetouch trading company is a wholesale company that manufactures good & high quality knitting wear and woven wear,
starting from 2006. The company provides the customized products and OEM service. Various new collections and design are coming
out each month with the current styles and fabrics. The factory own the proficient skill and updated machine



For the last couple of years, as the leading manufacturer of punch and bend tooling, We provides a wide range of tool solution for
punching press, press brake, laser cutting consumables, sheetmetal machines. AFAB company focus only on one thing: How to make
your sheetmetal work better. We think, we design, we apply different kind of accessories, Solution, Innovation to your
requirement. With AFAB you have a partner that respects your knowledge and is dedicated to helping you succeed.
Come talk to us. AFAB Tool Limited is located in Shengzhen, China, well-know as "World′s Factory", A manufacturer of
superiorproducts and solutions for sheet metal fabricators, AFAB dedicate in excellent solution with perfect quality, low cost,
best service and comprehensive products. AFAB products and services are available worldwide, fully supported by over than 30
dealers in every industrialized countries, in Africa, Asia-Pacific, Europe, the Middle East, North America and South America.
AFAB company equip with more advanced metal proccessing machines, such as CNC lathe, drill, surface grinder, universal
grinder,centerless grinder, maching center, wire cutting, EDM sinking, which ensure we can supply satisfied quality tooling in
high precisionrequest, support fast delivery time, delivered by DHL, TNT, UPS, FedEx fast express. All products are backed with

our industry leading 100% satisfaction guarantee
AFAB products,
1. CNC punch press tooling A. Thick turret tooling B. Tumpf style tooling C. Wedemann marata tooling D. Strippit tooling E.
Salvagnini Tooling2.Press brake tooling for amada,trumpf,lvd,bystronic,....
2. Sheet Metal equipment A. Auto Punch die grinder B. Self clinching machine C. Auto feed riveting system
3. Consumables for laser cutting machine, Laser lens, mirror, nozzle, nozzle holder-ceramic, sensor cable.


Product Tags: AMADA , Thick Turret , AFAB TOOLING , Basic type , CNC punch press thick turret tooling , B STN PUNCH
