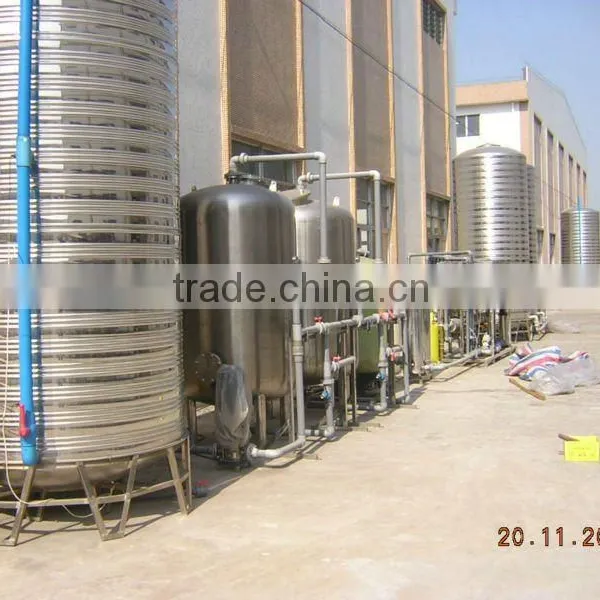

20000LPH Ultrafiltration Water Treatment System using hollow membrane system, with 304 stainless steel rack, with days of the famous film membrane element components, drug use, Hangzhou South washing pump produced multi-stage pumps in stainless steel. Automatic Control AC electrical contactor controller, comes with a flow meter, pressure gauge, automatic flushing solenoid valve.
Water source: physical and chemical indicators have reached the standard of local water purification
The quality of raw water: According to water test report
Water quality: the barrels / bottled water purification standards
Production capacity:20000L/h (25 °C)
Description of the Whole Ultrafiltration Water Purification system
Operating system: (24 hours) operation
Water supply: continuous water supply
The mode of operation: the use of interlock control system
Some manual operation
Design: from the entrance to the installation of water purification water purification equipment exports
Configuration of the Ultrafiltration Water Treatment Machine
water pretreatment system: by mechanical filters, activated carbon filters, security filters;
fine filtration system: consists by hollow ultra filtration device
Supporting systems: the electrical control system.
Water treatment system installed on the basic requirements of the external
Supply & Drain system:Supply auxiliary equipment to the water treatment room, water pressure ≥0.2 Mpa, water usage:30M3/ h, there should be room to leakage and drainage gutter.
Electronic Supply:water treatment rooms set up within the distribution box, the total power capacity of 5 KW;
Workshop:water treatment equipment to use an area of about 20 meters long five-meter wide, the room should be set up within the exhaust devices, the other on the implementation of national standards.
Description of the Ultrafiltration Water Treatment System
(Chemical Dosing machine)
Flow chart: ↓
Raw water→quartz sand filter→Active carbon Filter →PP filter→UF treatment system
(Filling system)
Description of the Process Equipment:
The system consists of: pretreatment, hollow fiber devices, supporting systems in three parts. Ultra filtration device to the main equipment, other equipment is its supporting services.
The device configuration and performance
(1) The original pumps: stainless steel centrifugal pump
Performance parameters:
Model: CDL 32-30
Material: 304 stainless steel
Flow rate: 32m3 / H
Head: 30m
Speed: 2900/min
Origin: Guangdong
Quantity: 1
(2) The mechanical filter (quartz sand filter): The high-quality 304 stainless steel with a valve operating system, pipeline system, containing the manhole, hand hole, the upper and lower water distribution devices, media, pressure.
Performance parameters:
Model: WTG-1400
Type: Pressure-type automatic operation, manual recoil
Equipment operating velocity: 16m / h
Flow rate: 30 m3 / H
Design pressure: 0.6Mpa
Diameter: Ø 1400mm
Equipment Height: 3400mm
Wall thickness: 3mm
Material: SUS304
Media: refined quartz sand
Size :1-2 .5 mm
4.5-2.5mm
Configuration: operation of the valve Ø 50 five, the other pipe fittings, etc.
Operation screen bracket (stainless steel)
1 out of the water pressure gauge
Quantity: 1
(3) The mechanical filter (activated carbon filter): The high-quality 304 stainless steel with a valve operating system, pipeline system, containing the manhole, hand hole, the upper and lower water distribution devices, media, pressure.
Performance parameters:
Model: WTG-1400
Type: Pressure-type automatic operation, manual recoil
Equipment operating velocity: 16m / h
Flow rate: 30m3 / H
Design pressure: 0.6Mpa
Diameter: Ø1400mm
Equipment Height: 3400mm
Wall thickness: 3 mm
Material: SUS304
Media: refined activated carbon
Size :1-2 .5 mm
4.5-2.5mm
Configuration: operation of the valve Ø 50 five, the other pipe fittings, etc.
Operation screen bracket (stainless steel)
1 out of the water pressure gauge
Quantity: 1
(4) The security filters: high quality stainless steel, that includes a fixed frame filter.
Performance parameters:
Type: WTJ30
Type: External compression
Flow rate:30m3 / h
Design pressure: 0.3MPa
Equipment Height: 1000mm
Media: meltblown polypropylene 5um
Filter Number: 12
Quantity: 1 set
(5)The hollow ultrafiltration device: using hollow membrane system, with 304 stainless steel rack, with days of the famous film membrane element components, drug use, Hangzhou South washing pump produced multi-stage pumps in stainless steel. Automatic Control AC electrical contactor controller, comes with a flow meter, pressure gauge, automatic flushing solenoid valve.
1, protection device: the booster pump with water before and after the water pressure and high pressure switch, to prevent the water supply system is not
Foot pressure is too low, stop the operation of high-pressure pumps and systems. As a high-pressure pump caused the water pressure is too high, stop the power supply booster pump, overpressure protection system operation.
Performance parameters:
Model: UF-1000I (20000L / H) before the ultrafiltration system
Water yield ≥ 20m3 / h (25 °C) water temperature
Rate: ≥ 75 ~ 90%
Operating pressure :0.1-0 .3 Mpa
Type: automatic control, manual washing
Including equipment:
membrane components: hollow membrane
Model: 8040
Pressure :20-30pi
Material: aromatic polyamide composite membrane
Production: Guoyou
Quantity: 10
(6), The instrumentation and electrical control system
Include:
A, the famous electrical components
B, High and Low Voltage
C, level control switch
D, flowmeter
E, pressure gauge
F, stainless steel electrical control box
(7) Installation Material
A, wire and cable, stainless steel stent
B, Ø40 Sanitary pipes
C, sanitary valves
D, sanitary valves
