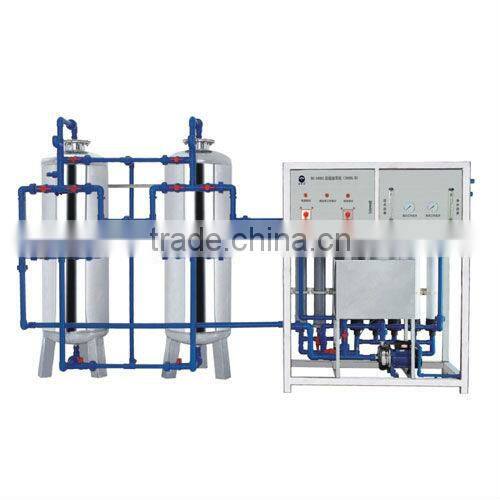

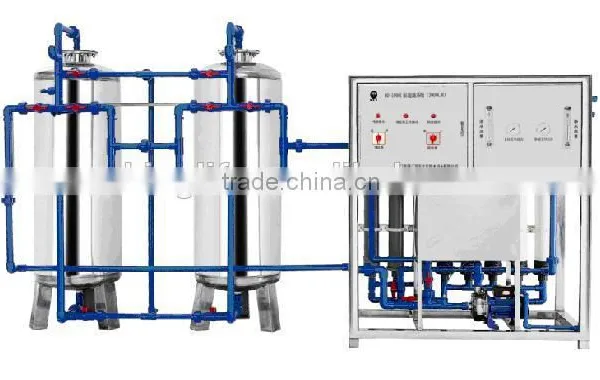

2000L river water purification system

Ultrafiltration using hollow fiber filtration technology, with the three pre-processing filtersto remove water impurities; microporous ultrafiltration of less than 0.01 micron, cancompletely filter out bacteria, rust, colloids and other harmful substances, to retain the water of the originaltrace elements and minerals.

Description of the river water purification system
Operating system: (24 hours) Working
Water supply: Continuous water supply
Mode of operation: Interlock control system,Some Part manual operation

Design of the UF Water treatment system

Water source: Physical and chemical indicators have reached the standard of local water purification
The quality of raw water: According to water test report
Water quality: The barrels / bottled water purification standards
Production capacity:2000L/h (25 °C)

Design: from the entrance to the installation of water purification water purification equipment exports

Configuration of the UF water treatment System

Water pre-treatment system: Quartz sand filters, Activated carbon filters, Precision filters;Chemical dosing machine.

Main filtration system: Consists by hollow ultra filtration device

Supporting systems: The electrical control system.

Water treatment system installed on the basic requirements of the external

Supply & Drain system:Supply auxiliary equipment to the water treatment room, water pressure ≥0.2 Mpa, water usage:4M3/ h, there should be room to leakage and drainage gutter.

Electronic Supply:Water treatment rooms set up within the distribution box, the total power capacity of 1 KW;

The device configuration and performance

(1) The original pumps: stainless steel centrifugal pump

Performance parameters:
Model: BLC70/0.75KW
Material: 304 Stainless Steel
Flow rate: 4m3 / H
Head: 30m
Speed: 2900/min
Origin: Guangdong
Quantity: 1

(2) Quartz sand filter: The high-quality 304 stainless steel with a valve operating system, pipeline system, containing the manhole, hand hole, the upper and lower water distribution devices, media, pressure.
Performance parameters:
Model: WTG-300
Forms: pressure automatic operation, manual recoil
Equipment operating flow rate: 16m / h
Flow rate: 4m3 / H
Design pressure: 0.6Mpa
Diameter: Ø300mm
Equipment Height: 1200mm
Thickness: 1.2mm
Material: SUS304
Filter story: 300mm
Filter: refined quartz sand
Size :1-2 .5 mm
Configuration: Operating valve Ø 32 five, the other pipe fittings, etc.
Operation screen bracket (stainless steel)
Out of the water pressure gauge 1
Quantity: 1

(3) Activated carbon filter: high-quality 304 stainless steel with a valve operating system, piping system, containing the manhole, hand hole, up and down the water distribution unit, filter, pressure type.
Performance parameters:
Model: WTG-300
Forms: pressure automatic operation, manual recoil
Equipment operating flow rate: 16m / h
Flow rate: 4m3 / H
Design pressure: 0.6Mpa
Diameter: Ø300mm
Equipment Height: 1200mm
Thickness: 1.2mm
Material: SUS304
Filter story: 300mm
Filter: refined activated carbon
Size :8-16 mesh
Configuration: Operating valve Ø 32 five, the other pipe fittings, etc.
Operation screen bracket (stainless steel)
Out of the water pressure gauge 1
Quantity: 1
(4) Precision filters: high-quality stainless steel, containing the filter with a fixed bracket.
Performance parameters:
Model: WTJ300
Forms: external pressure
Flow rate: 4m3 / h
Design pressure: 0.3MPa
Equipment Height: 500mm
Filter: melt-blown polypropylene 5um
Cartridge number: 4
Quantity: 1
(5) The hollow ultrafiltration devices: the use of hollow membrane system, with 304 stainless steel frame, famous film membrane components using days, Hangzhou, south of drug wash pump is stainless steel produced multi-stage pumps. Electrical automatic control AC contactor controller, comes with a flow meter, pressure gauge, automatic flush valve and so on.

Protection device: the booster pump with water before and after low water and high pressure switch, water does not prevent the system
Enough pressure is too low, and high-pressure pump to stop operation of the system. As a high-pressure pump caused the water pressure is too high, stop the booster pump power, the overpressure protection system operation.
Performance parameters:
Model: RO-1000I (2000L / H) before ultrafiltration system
Water production ≥ 2m3 / h (25 °C) water
Recovery rate: ≥ 75 ~ 90%
Operating pressure :0.1-0 .3 Mpa
Form: automatic control, automatic washing
Including equipment:
Hollow membrane
Model: 4040
Pressure :20-30pi
Material: aromatic polyamide composite membrane
Production: national best
Quantity: 4
(6) Instrumentation and electrical control system
A, Famous electrical components
B, Low voltage switch
C, Level control switch
D, Flowmeter
E, Pressure gauge
F, Stainless steel electrical control box
(7) Installation Material
A, Wire and cable, stainless steel stent
B, Ø32 sanitary pipe
C, Sanitary Valves

Ultrafiltration

Ultrafiltration is a pressure driven membrane separation technologies. Separation ofmacromolecules and small molecules for the purpose of the membrane pore size in the20-1000A °. The hollow fiber ultrafilter (membrane) has a filling unit containers, high density, small footprint advantages.

Ultrafiltration process

Ultrafiltration process, the aqueous solution under pressure-driven flows through themembrane surface, less than the membrane pore solvent (water) and small solutespermeable membrane purification liquid (liquid filtration) than the membrane pore-soluteand solute Group are retained, with the water discharge, a concentrated solution.Ultrafiltration process for dynamic filtration, separation is completed in the current state.The Solute only limited deposition on the membrane surface, the ultrafiltration rate ofdecay to a certain extent and balanced, and can be restored by cleaning.

Origin of ultrafiltration

The origin of ultrafiltration So in 1748, Schmidt Cotton film or Lu membrane filter solution,exert a certain pressure, the solution (water) through the membrane, proteins, colloidsand other substances were interception down far more than its filtering accuracy filter paper, and he proposed ultrafiltration phrase in 1896, Martin, the system out of the firstartificial ultrafiltration membrane, its the 1960s, the concept of molecular scale, is the beginning of modern ultrafiltration in the 1970s and 1980s period of rapid developmentafter the 1990s began to mature. China the technology of late 1970s, is still in theresearch period in the late 1980s before moving on to industrial production and application stages.
