300T Vertical Rubber Injection Molding Machine Low Price
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Style:
Vertical
Brand Name:
TW
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
100T Automatic Vacuum Plate Vulcanizing Molding Machine SeriesNegotiableMOQ: 1 Set -
200T Vertical Rubber Injection Molding Machine Low PriceNegotiableMOQ: 1 Set
-
500T Vertical Rubber Injection Molding Machine Low PriceNegotiableMOQ: 1 Set
-
Automatic Vacuum Plate Vulcanizing Molding Machine Series Hot SaleNegotiableMOQ: 1 Set
-
Automatic Vacuum Plate Vulcanizing Molding Machine Series FactoryNegotiableMOQ: 1 Set
Condition
New
Style
Vertical
Brand Name
TW
Model Number
TWL-300T
Place of Origin
Zhejiang, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
3000CC
Clamping Force
300T
Opening Stroke
500mm
Power(W)
40kw
Certification
CE
After-sales Service Provided
Engineers available to service machinery overseas
300T Vertical Rubber Injection Molding Machine Low Price
Machine Characteristics:
1. Stationary four cylinders balancing vertical injection structure, hyperstatic injection force.
2. Optimized shot feeding rod greatly reduces the rubber leakage and is convenient and fast for maintenance and rubberreplacement.
3. “Innovative shot feeding tube constant temperature system plus ultrashort nozzle make very few remaining materials and minimum pressure loss ”.
4. Specification under 500T adopts the international popular and advanced FIFO first-in first-out injection way 5. Totally-enclosed safety shield and grating, higher equipment operation safety grade.
6. Hot plate heating zone control makes temperature more even.

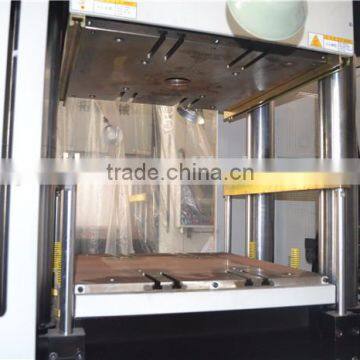

7. Bigger table board design.
8. More automatic functions may be selected.
Applicable Products
Various rubber products
Specification
| Type | TWL-200T | TWL-300T | TWL-400T | TWL-500T |
| Clapping force(TON) | 200 | 300 | 400 | 500 |
| Stroke(MM) | 500 | 500 | 600 | 600 |
| Working Plate Size(MM) | 600×600 | 700×700 | 700×800 | 800×850 |
| Dimeter of cyhnder(MM) | 355 | 450 | 500 | 560 |
| Max plate spacie(MM) | 550 | 550 | 700 | 700 |
| Min Mould Height(MM) | 60 | 60 | 100 | 100 |
| Crane travel(MM) | 200 | 200 | 250 | 250 |
| Joe trabel(MM) | 200 | 200 | 250 | 250 |
| injection unit | ||||
| Volume injection(CC) | 2000 | 3000 | 4000 | 5000 |
| Injection pressure(Mpa) | 220 | 220 | 205 | 205 |
| Screw diametre(MM) | 45 | 45 | 55 | 55 |
| Nozzle aperture(MM) | 6 | 6 | 7 | 8 |
| OTHERS | ||||
| System pressure (Mpa) | 21 | 21 | 21 | 21 |
| Horse powet(HP) | 15 | 20 | 25 | 30 |
| Heater power(KW) | 19 | 22 | 27 | 31 |
| Total power(KW) | 36 | 40 | 52 | 58 |
| Gross weight(KG) | 7200 | 9300 | 11700 | 14700 |
| Machine size(MM) | 2700×1200×3600 | 3100×1300×4000 | 3300×1400×4500 | 4000×1600×4500 |
Standard Unit
Efficient specific pressure and flow hydraulic system
Upper machinery lifting mold
Lower in and out mold unit
Two-level demoulding device
Totally-enclosed safety shield and grating
Plasticizing and injection independent temperature control system
Hot plate heating zone control
Siemens controller
Optional Device
Variable pump system
Cold runner device
3RT/4RT multilayer demoulding device
Middle mold in-and-out device
Claw device
Mold vacuum system
Quick mold change device
Remote control
Print function
May preset mold heating function
May increase injection volume
Key Configuration Of Machine
|
Name |
Brand | Description |
| Machine body casting | FCD50 ductile cast iron | High tensile strength after aging passivation |
| Stand column | Zhanwang(medium carbon steel) | Hardness is up to HRC55--58 |
| PLC | Simens,special for injection molding machine | Independent programming,covenient operation |

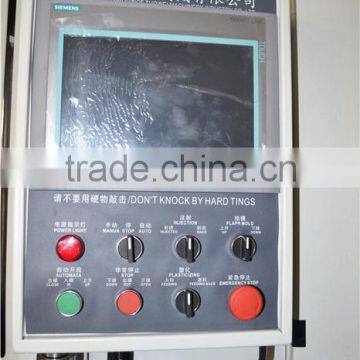

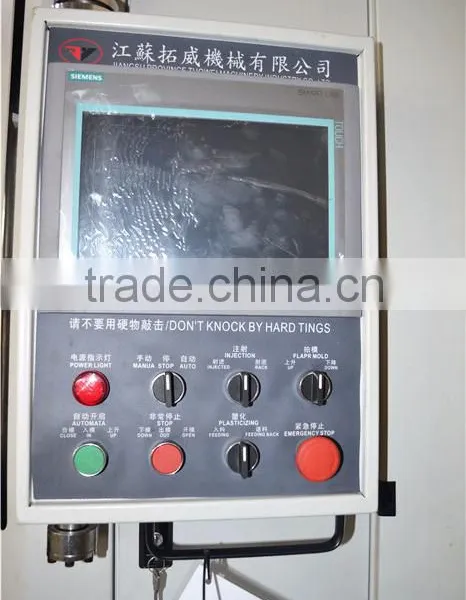

| Touch panel | Panelmaster(Taiwan) | Clear and intuitive, convenient and fast, converient operation |
| Cartridge heater | Hindley(Taiwan) | Three-stage winding,nichrome wire, non-rusty |
| Oil seal | Japanese NOK and Sakagmi | Wear-resting, durable and oil tight |
| Electromagnetic valve | Northman(Taiwan) | May control fast switching action with long service life |
| Main electric elements | Scheider(Germany) | May stabilize machine performance |
| Temperature controlled meter | Omron(Japan) | Adopt PID additions and corrections for uniform temperature distribution with an error value of ±3ºC |
| Pressure sensor | TRAFAG imported from Denmark | Accurate transmission pressure with zero deflection, easy to use |
| Heating control system | Scheider(Germany) | May make temperature distribution uniform with an error value of±3 |
| Motor | Datong(Taiwan) | Large torsion type, quiet and silent. |
| Oil pump | Yongling(Taiwan) | Integrated oil circuit design system |
| Shot system(including screw) | Zhongyang(Taiwan) | Special for injection machine |
| Vulcanizing timer | ANV(Taiwan) | four digital display |
| Vacuum pump | Busch(Germany) | Fast vacuum pumping, up to 760mm mercury column in 5 minutes |
| Proximity switch | Yangming(Taiwan) | Reliable and stable quality |

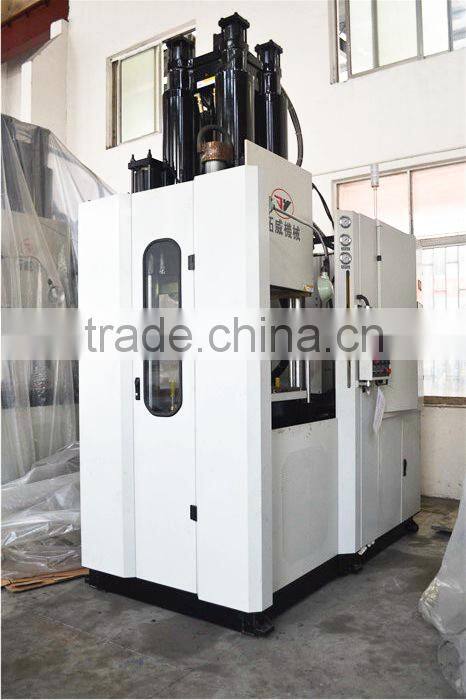

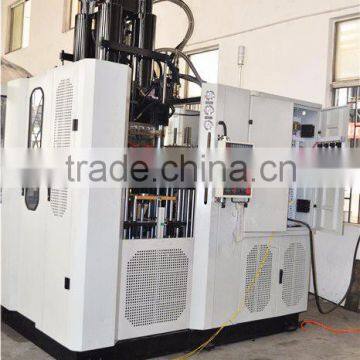

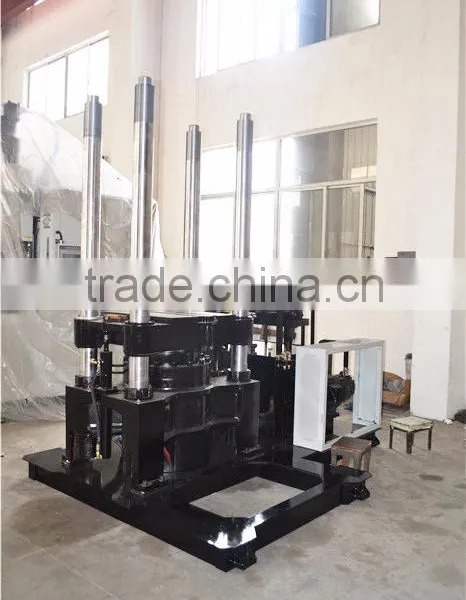

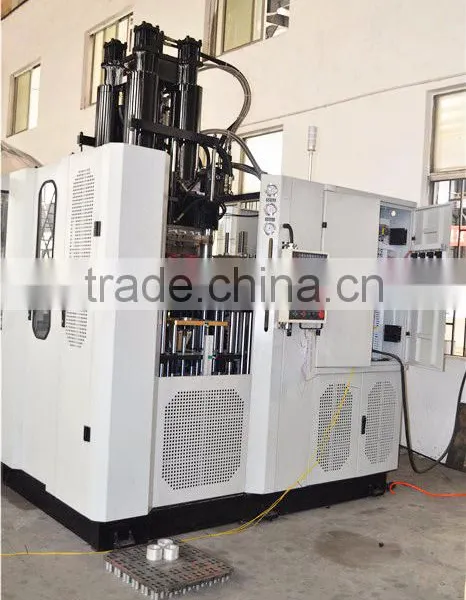

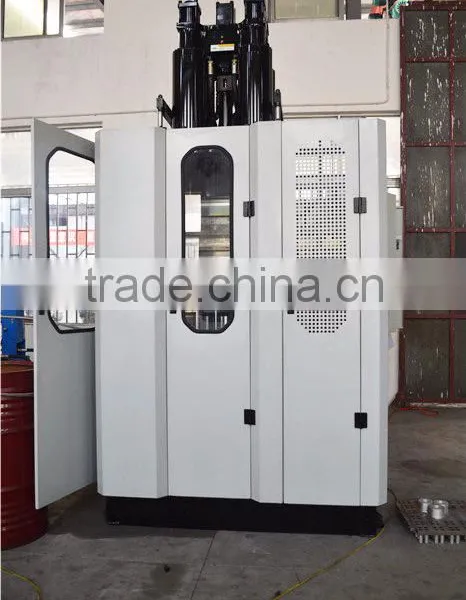

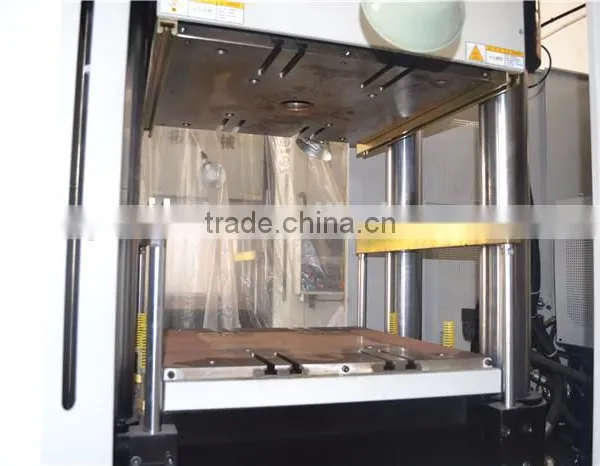

Vertical Rubber Injection Molding Machine

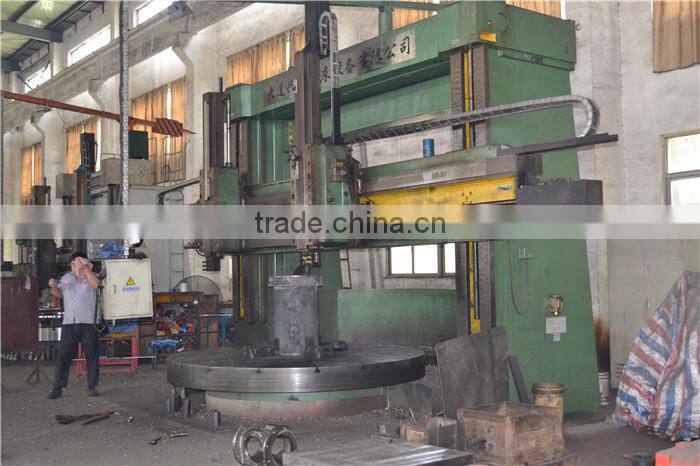

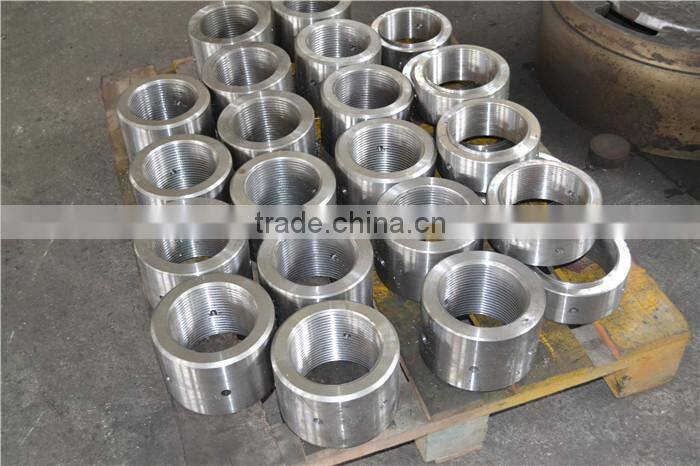

The Parts All Our Factory Produce
If you interested our products, please conatct Tammy Yan, I will give you a good plan!
Skype:timmy081593
Wechat:YQY932570502
Whatsapp:+8618329021230
