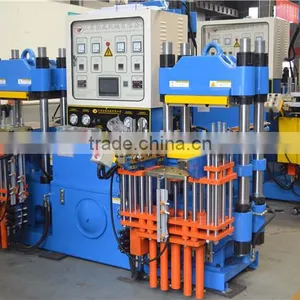

Automatic vacuum plate vulcanizing molding machine series factory
Negotiable
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- Ningbo Port
- T/T
You May Like
-
CNC rubber strip cutting machine
-
Full Automatic Single Station Rubber Vacuum Plate Vulcanizing Molding Machine
-
Single Station Four Column Rubber Vacuum Plate Vulcanizing Molding Machine
-
Single Station 4RT Rubber Vacuum Plate Vulcanizing Molding Machine
-
Horizontal Single Station Rubber Vacuum Plate Vulcanizing Molding Machine
-
200 Ton Single Station Rubber Vacuum Plate Vulcanizing Molding Machine
Product Details
| Condition | New | Place of Origin | Zhejiang, China | |
| Brand Name | TW | Model Number | TWZ-100T | |
| Power(W) | 30kw | Dimension(L*W*H) | 2600*2000*2100mm | |
| Weight | 7000kg | Certification | CE ISO9001 | |
| Warranty | one years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Automatic vacuum plate vulcanizing molding machine series factory
Machine Characteristics:
(1) Double powers, double oil pumps, double motors and double oil coolers are applied for the two axles to work independently.
(2) The oil system is unique in design with good stability, faster lift-up and lift-down speed compared with other brands when unloading/loading mold.
(3) High vacuum and the average pumping method are applied for the manufacturing of stable products and improving the quality and productivity.
(4) The pedestal vacuum oxygen tank provides large oxygen storage space.The new mold raising mechanism design has the advantages of long working life, quiet mold-unloading/loading, fastness and stability.
Specification:
Type | TWZ-100T | TWZ-200T | TWZ-250T | TWZ-300T | TWZ-350T | TWZ-400T | TWZ-500T |
Clapping force(TON) | 100 | 200 | 250 | 300 | 350 | 400 | 500 |
Stroke(MM) | 250 | 250 | 300 | 300 | 300 | 300 | 300 |
Working Plate Size(MM) | up:400×400 down:450×460 | up:536×536 down:540×560 | up:600×600 down:600×650 | up:600×600 down:650×650 | up:700×700 down:750×750 | up:750×750 down:800×800 | up:850×850 down:900×900 |
Dimeter of cyhnder(MM) | 250 | 355 | 400 | 450 | 475 | 500 | 560 |
Horse powet(HP) | 7.5×2 | 10×2 | 10×2 | 10×2 | 15×2 | 15×2 | 15×2 |
Heater power(KW) | 16 | 25 | 31 | 34 | 40 | 57 | 58 |
Total power(KW) | 30 | 45 | 52 | 55 | 68 | 83 | 86 |
Type of mold openning | 2RT/3RT/4RT UP/DownIn/Out-2RT/3RT/4RT | ||||||
Gross weight(KG) | 7000 | 9000 | 11500 | 13500 | 16000 | 20000 | 35000 |
Machine size(MM) | 2600×2000×2100 | 3000×2200×2500 | 4100*2400*2500 | 3500×2700×2600 | 3700*2800*2700 | 3700*2800*2900 | 3900*2900*3000 |
Type | TWZ-100T | TWZ-200T | TWZ-250T | TWZ-300T | TWZ-350T | TWZ-400T | TWZ-500T |
Clapping force(TON) | 100 | 200 | 250 | 300 | 350 | 400 | 500 |
Stroke(MM) | 250 | 250 | 300 | 300 | 300 | 300 | 300 |
Working Plate Size(MM) | up:400×400 down:450×460 | up:536×536 down:540×560 | up:600×600 down:600×650 | up:600×600 down:650×650 | up:700×700 down:750×750 | up:750×750 down:800×800 | up:850×850 down:900×900 |
Dimeter of cyhnder(MM) | 250 | 355 | 400 | 450 | 475 | 500 | 560 |
Horse powet(HP) | 7.5 | 10 | 10 | 10 | 15 | 15 | 15 |
Heater power(KW) | 8 | 12.5 | 15.5 | 17 | 20 | 28.5 | 29 |
Total power(KW) | 18 | 25.5 | 29 | 30.5 | 37 | 44.5 | 46 |
Type of mold openning | 2RT/3RT/4RT UP/DownIn/Out-2RT/3RT/4RT | ||||||
Gross weight(KG) | 4000 | 4500 | 5700 | 6700 | 8000 | 10000 | 15000 |
Machine size(MM) | 1900×2000×2100 | 2300×2200×2500 | 2700*2400*2500 | 2900×2700×2600 | 3200*2800*2700 | 3200*2800*2900 | 3200*2900*3000 |

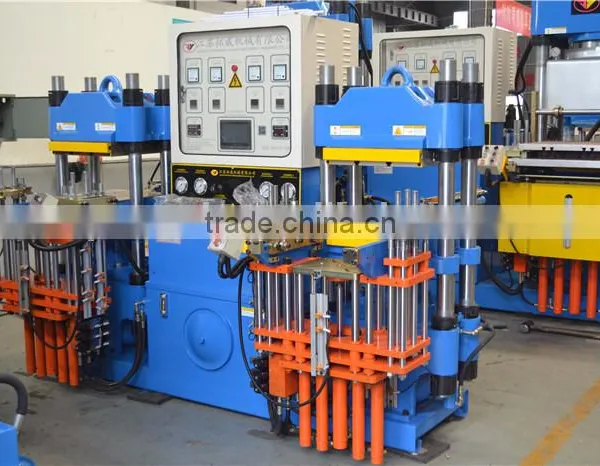

Automatic vacuum plate vulcanizing molding machine series
If you interested, please conatct Tammy Yan!
