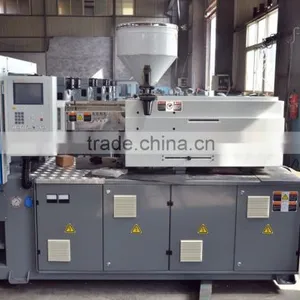

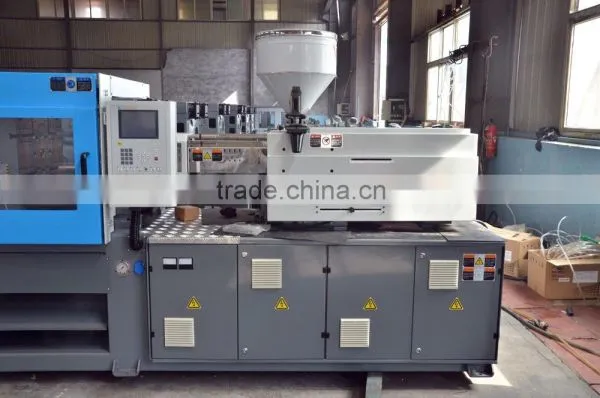

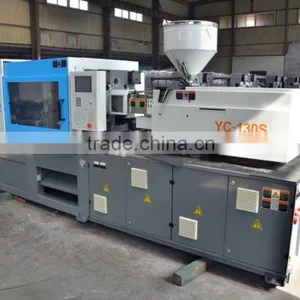

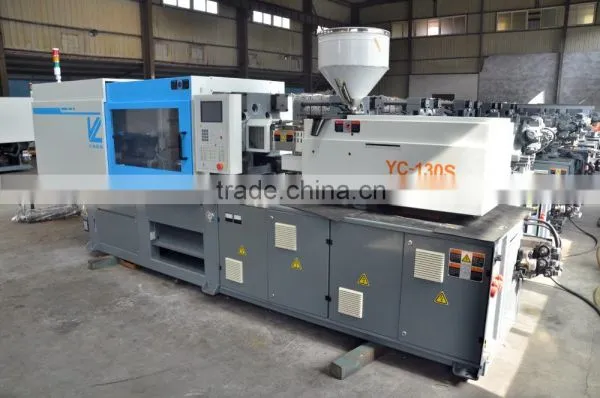

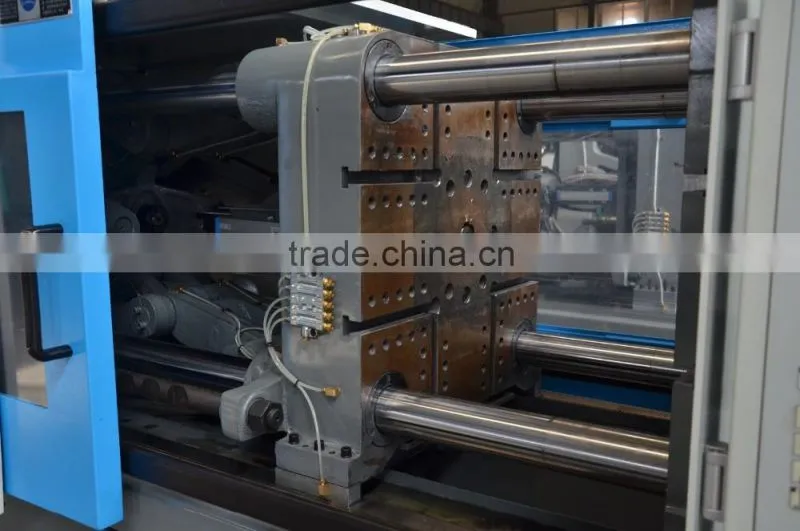

130Ton Precise Plastic Injection Molding Machine
Ningbo Youcan Machinery Co., Ltd. is a professional designer and manufacturer of plastic injection molding machine. It is a certain scale and strong competitive domestic plastic machinery R&D and manufacturing enterprises.
Youcan Machinery occupied more than 60,000 square meters of production plant and office space,with large advanced precision machining equipment and high-quality research, development and management team.
The whole production line contains manufacturing, processing and testing.
Youcan Machinery mainly produces high precision injection molding machines with the clamping force rang from 90T to 3000T.The produces have high rigidity structre and equipped imported hydraulic & elecrical elements.used bimetal screw with mixing head in order to hve excellent plastifying performance and be suitable for various engineering plastic injection molding and the users’special order are available.
Right now, the annual production capacity of Youcan Machinery is 5,000 sets, with more than 40 local sales outlets, while also exported to the Middle East, South America, Southeast Asia, the CIS and other countries and regions.
Our machine uses the first class brands parts as follows,

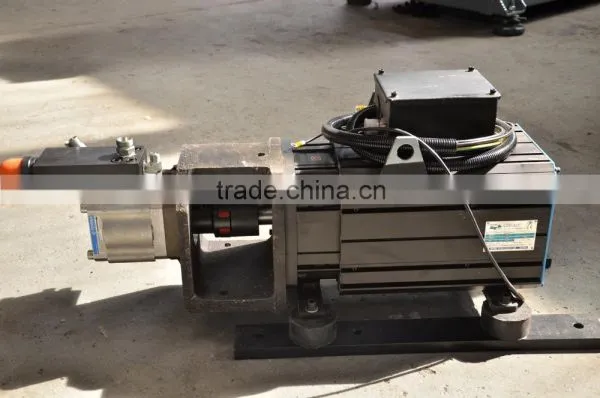

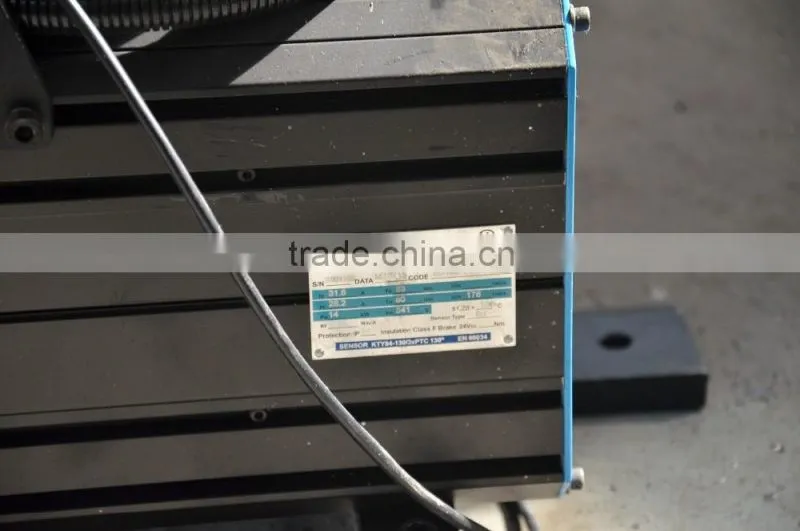

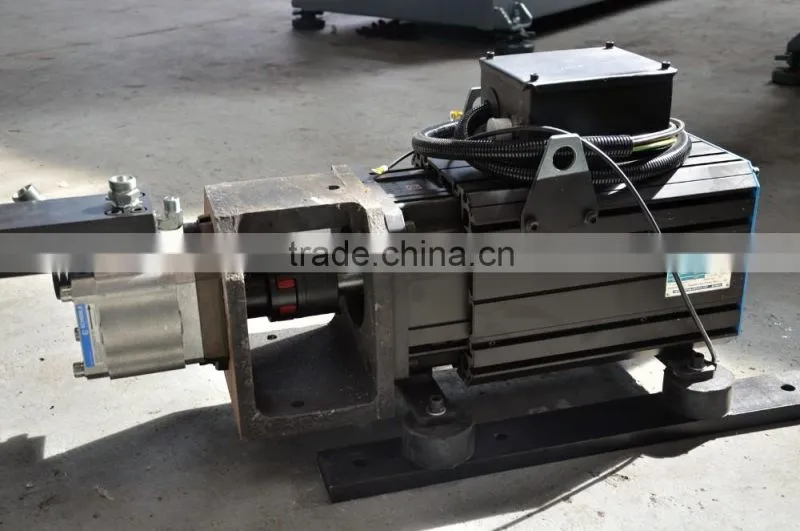

Servo Motor: Phase;

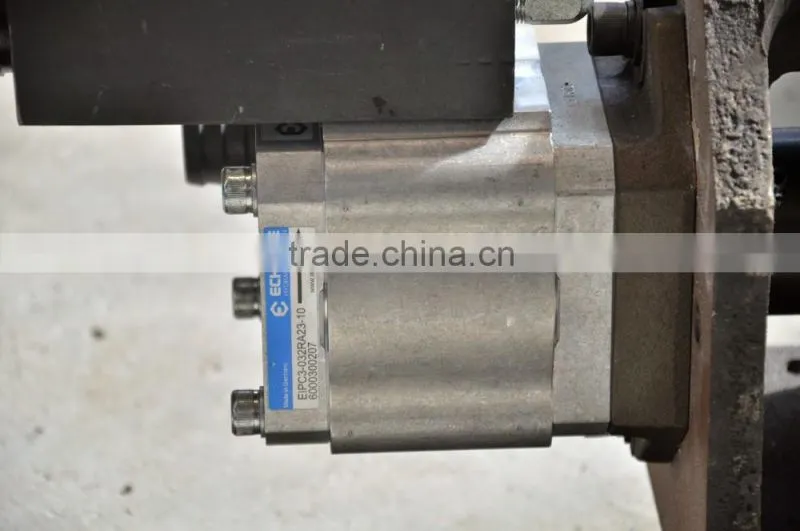

Gear Pump: Erckerle;

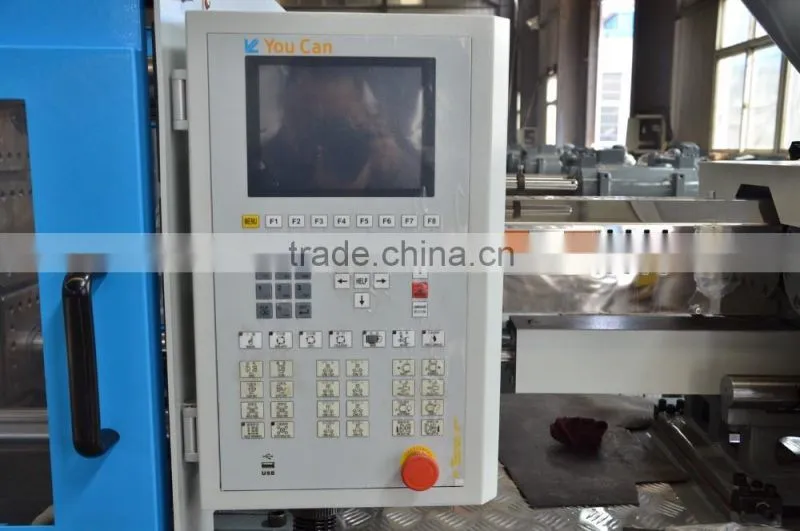

Computer: Techmation or KEBA;

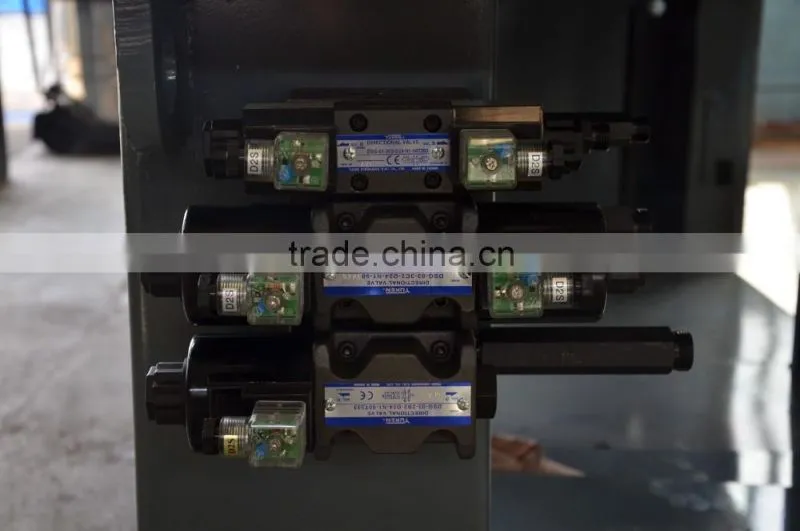

Valves: Yuken or Rexroth;
Contactor: SSR Scheneider;

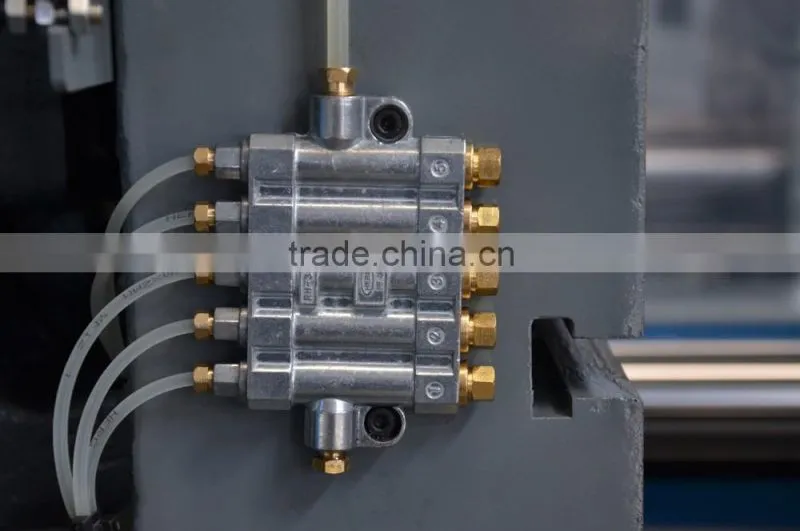

Lubrication System: Hegu;
Controller: Innovance.
The Characteristics of Servo Saving Injection Molding Machine
- High Precise Control
The servo System can control the machines' pressure, speed and location precisely makes sure that the error of accurate repeatability Precision for the shot measure is ≤0.3%. So that it can achieve the Precision Injection Molding Machine.
- High Sensitive response
Because the motor vector is matched with the controller accurately, it just takes the 0.05S when input the number from 0 to max.Compared with other traditional hydraulic injection molding machine, ZX series machine's speed is obviously more quickly, each cycle time is shorter, the production efficiency is higher.
- Low noise
Compared with the traditional fixed pump and variable pump system the noise will be lower 1/10 under normal circumstances. What's more, the noise of overall system will be less than 80dB when under the high-speed circumstances. So this series is more suitable for the sealed dustless workshop.
- Enery-Saving
Overall efficiency is more 10% and the driving capacity is more 18% than the common machine.Related to the energy saving, this series Can save energy about 30%~80%, with the first-class energy efficiency.
- The cooling water saving
The system condition prevent high pressure unloading without any power output leads to the cooling water saving.
130T Injection Molding Machine main technical datas as below;
| YC130S | ||||
| Injection Unite | A | B | C | |
| Shot Volume | CM3 | 215 | 263 | 302 |
| Shot Weight | Gram | 196 | 239 | 274 |
| Oz | 6.9 | 8.4 | 9.6 | |
| Screw Diameter | mm | 38 | 42 | 45 |
| Injection Pressure | MPa | 193 | 158 | 138 |
| Screw L/D Ratio | 22 | 20 | 18.5 | |
| Screw Stroke | mm | 190 | ||
| Screw Speed | r/min | 0~180 | ||
| Clamping Unit | ||||
| Clamping Force | KN | 1300 | ||
| Opening Stroke | mm | 380 | ||
| Platen Size | mm*mm | 610*610 | ||
| Space Between Tie Bars | mm*mm | 410*410 | ||
| Mold Thickness(Min-Max) | mm | 160~450 | ||
| Max. Daylight | mm | 830 | ||
| Hydraulic Ejection Stroke | mm | 120 | ||
| Hydraulic Ejection Force | KN | 42 | ||
| Power Unite | ||||
| Hydraulic System Pressure | MPa | 17.5 | ||
| Pump Motor | KW | 11/18.2 | ||
| Heating Capacity | KW | 7.7 | ||
| Number of temp control zones | 4+Nozzle | |||
| General | ||||
| Dry-cycle Time | Sec | 1.3 | ||
| Oil Tank Capacity | Liter | 200 | ||
| Machine Dimensions | M*M*M | 4.6*1.2*1.8 | ||
| Machine Weight | KG | 4600 | ||
